Materials:
(1) Thermoplastic rubber TPE (75 Shore).
(2) Flat neodymium magnet (NdFeB).
(3) Turned galvanised steel base, with female threaded hole (thread tolerance 6H).
Surface finish:
Smooth.
Colour:
Black(RAL 9011 code 01).
White(RAL 9004 code 04).
Special requests:
None.

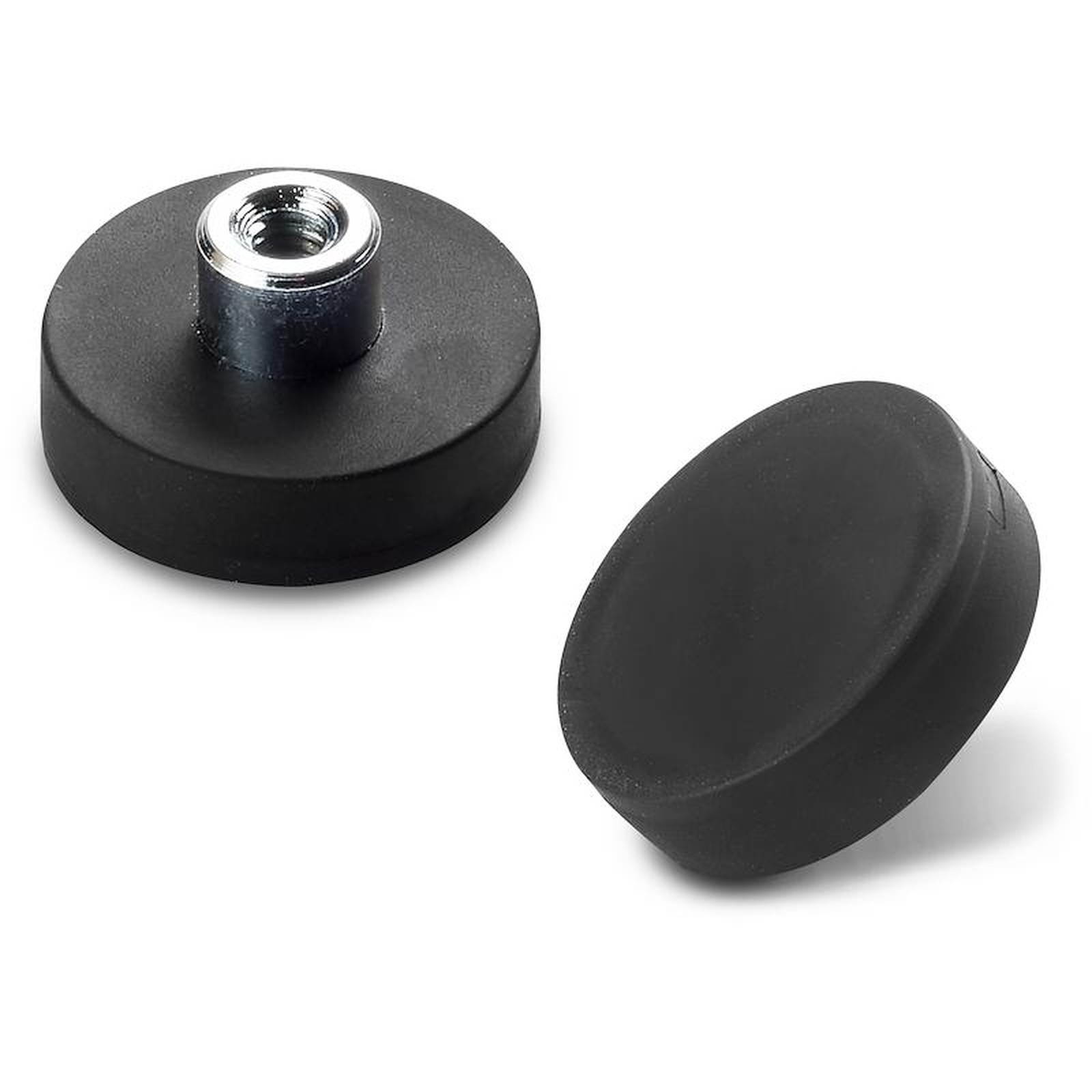

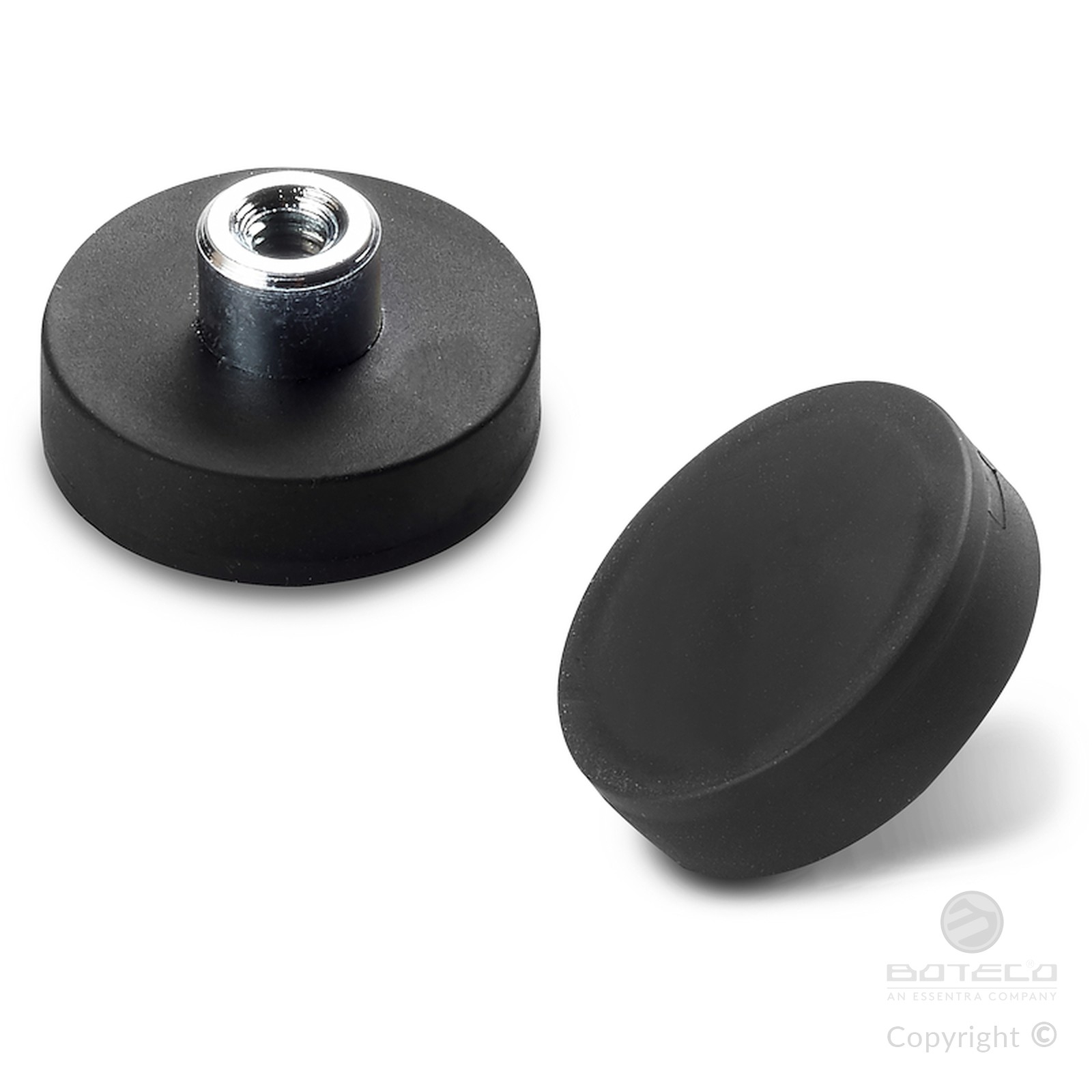

Black version (code 01)

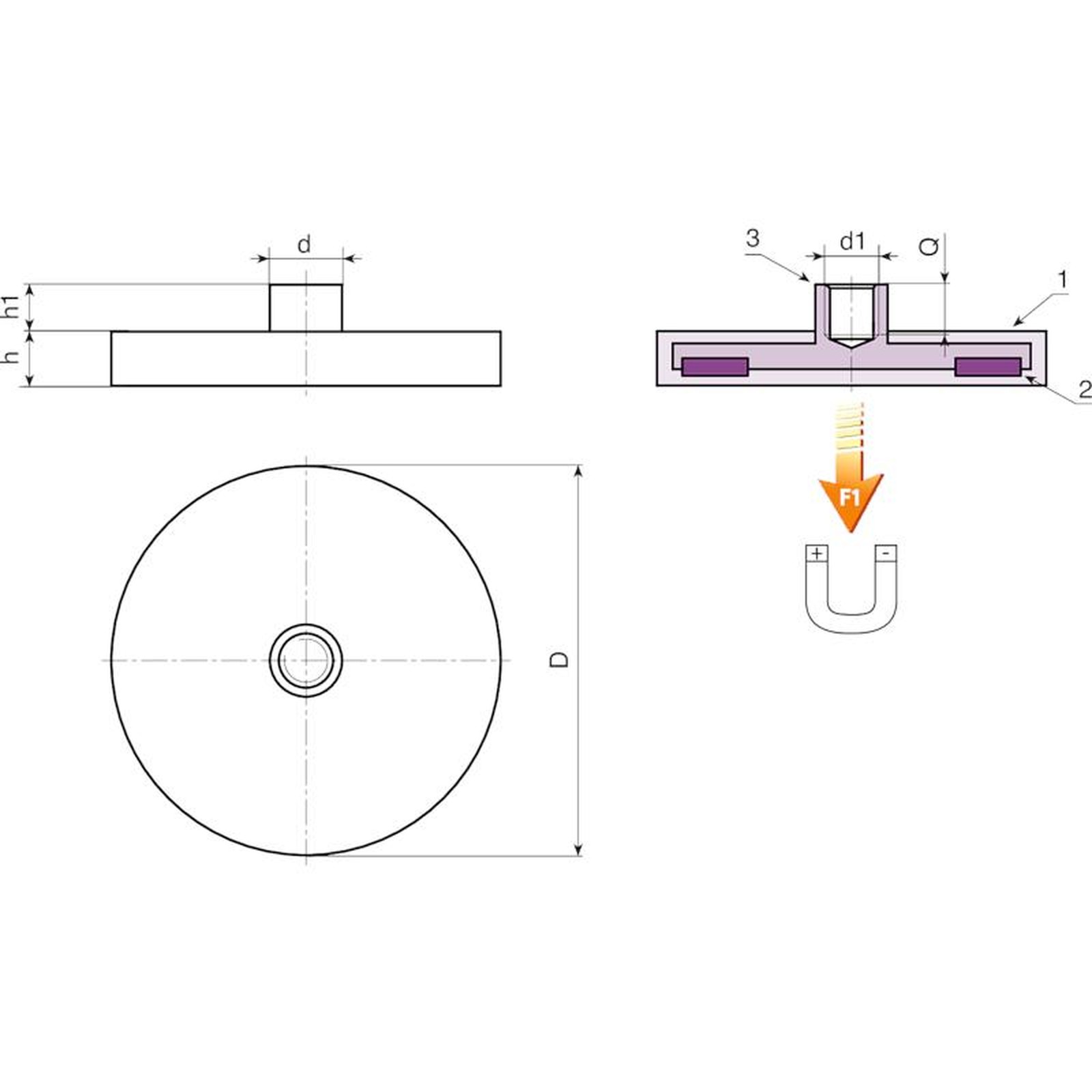

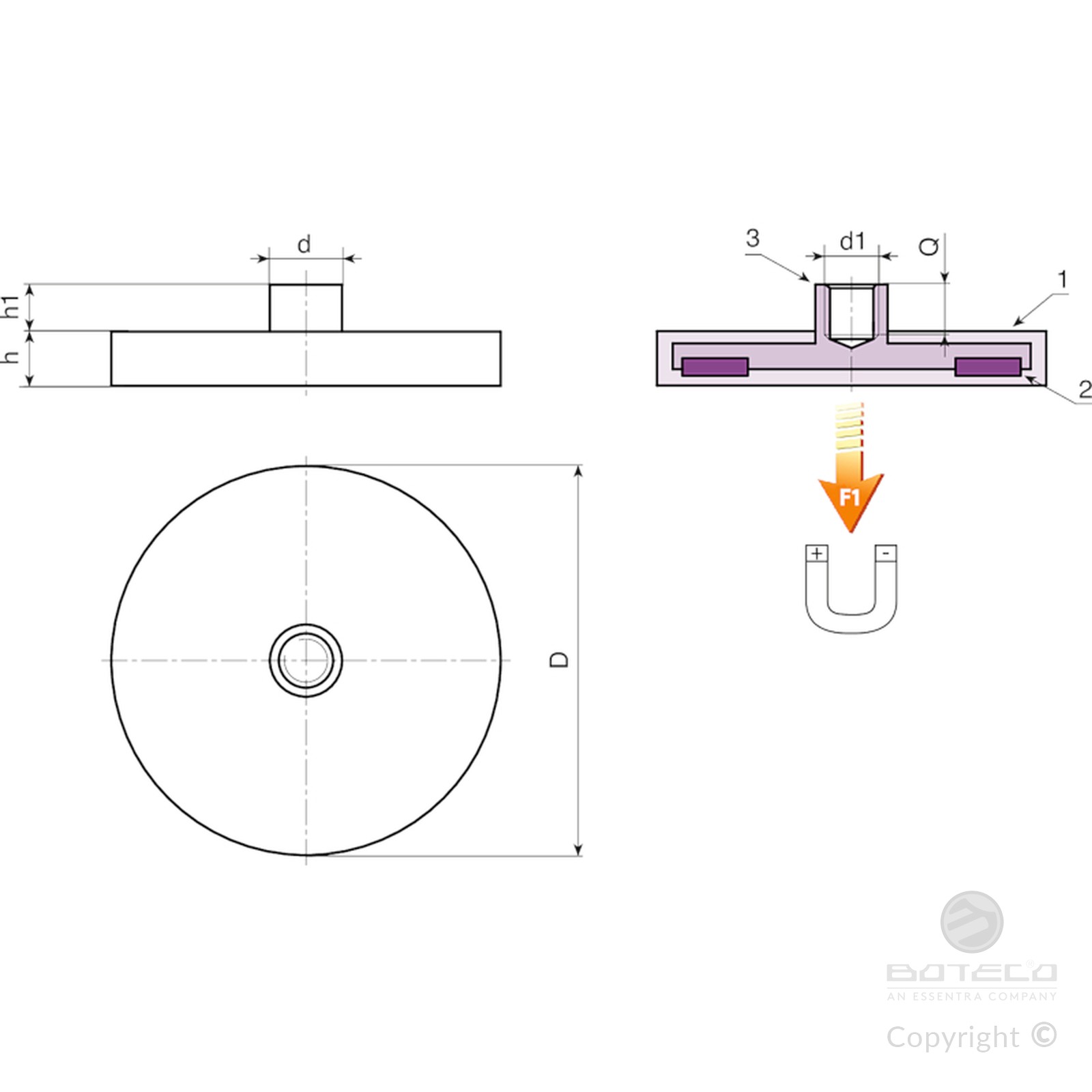

| Code | art. | D | d | h | h1 | d1 6H | Q | Weight (g) | F1 (N) |
|---|---|---|---|---|---|---|---|---|---|
| T402012.0001 | T402012.GM0401 | 12 | 8 | 7 | 7.5 | M4 | 6 | 6 | 13 |
| T402018.0001 | T402018.GM0401 | 18 | 8 | 6 | 5.5 | M4 | 5 | 9 | 37 |
| T402022.0001 | T402022.GM0401 | 22 | 8 | 6 | 5.5 | M4 | 5 | 13 | 58 |
| T402031.0001 | T402031.GM0401 | 31 | 8 | 6 | 5.5 | M4 | 5 | 22 | 89 |
| T402043.0001 | T402043.GM0401 | 43 | 8 | 6 | 4.5 | M4 | 5 | 30 | 100 |
| T402057.0001 | T402057.GM0501 | 57 | 10 | 7.5 | 7 | M5 | 6 | 82 | 200 |
| T402066.0001 | T402066.GM0501 | 66 | 10 | 8.5 | 6.5 | M5 | 8 | 105 | 250 |
| T402088.0001 | T402088.GM0801 | 88 | 12 | 8.5 | 8.5 | M8 | 11 | 192 | 550 |

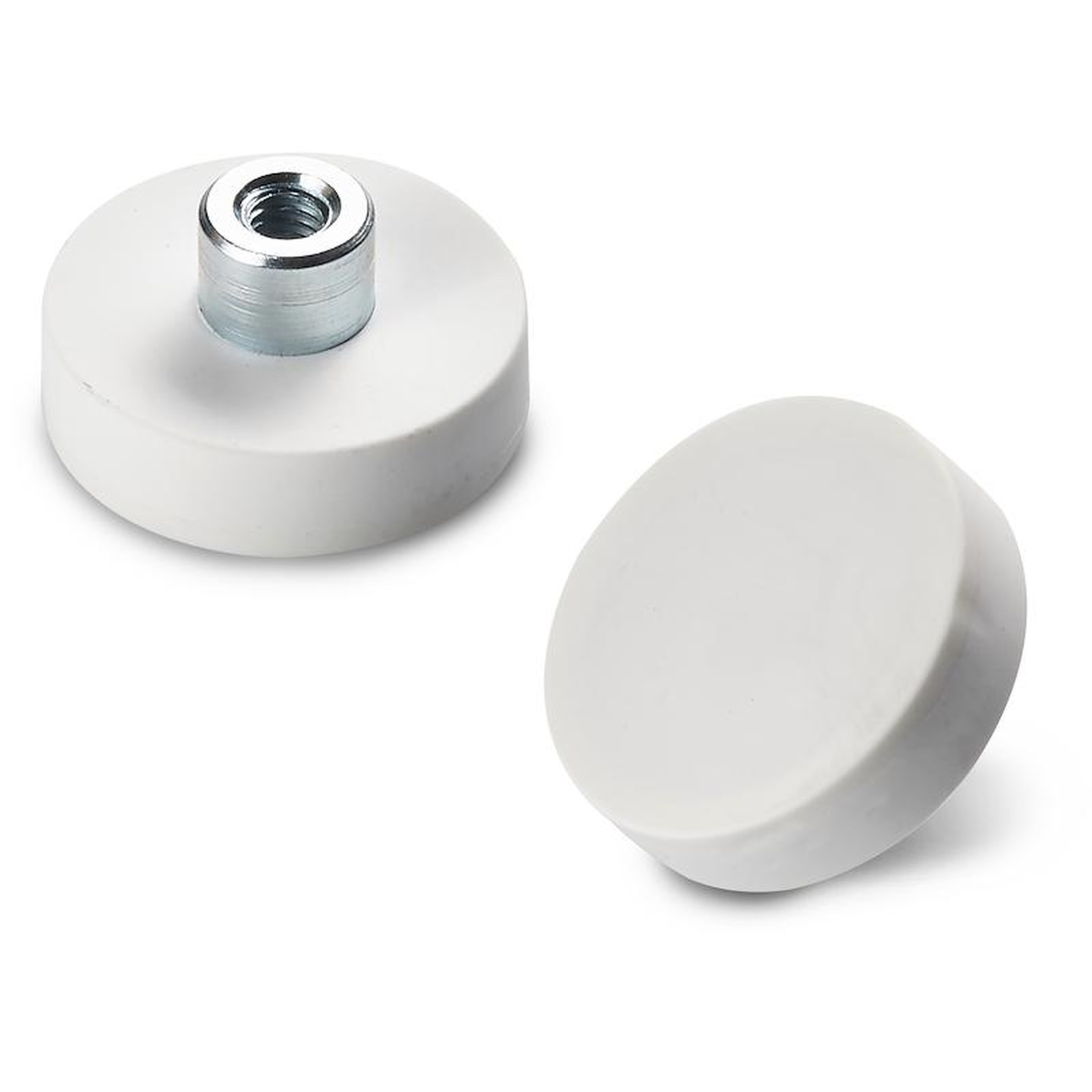

White version (code 04)
| Code | art. | D | d | h | h1 | d1 6H | Q | Weight (g) | F1 (N) |
|---|---|---|---|---|---|---|---|---|---|
| T402012.0002 | T402012.GM0404 | 12 | 8 | 7 | 7.5 | M4 | 6 | 6 | 13 |
| T402018.0002 | T402018.GM0404 | 18 | 8 | 6 | 5.5 | M4 | 5 | 9 | 37 |
| T402022.0002 | T402022.GM0404 | 22 | 8 | 6 | 5.5 | M4 | 5 | 13 | 58 |
| T402031.0002 | T402031.GM0404 | 31 | 8 | 6 | 5.5 | M4 | 5 | 22 | 89 |
| T402043.0002 | T402043.GM0404 | 43 | 8 | 6 | 4.5 | M4 | 5 | 30 | 100 |
| T402057.0002 | T402057.GM0504 | 57 | 10 | 7.5 | 7 | M5 | 6 | 82 | 200 |
| T402066.0002 | T402066.GM0504 | 66 | 10 | 8.5 | 6.5 | M5 | 8 | 105 | 250 |
| T402088.0002 | T402088.GM0804 | 88 | 12 | 8.5 | 8.5 | M8 | 11 | 192 | 550 |
