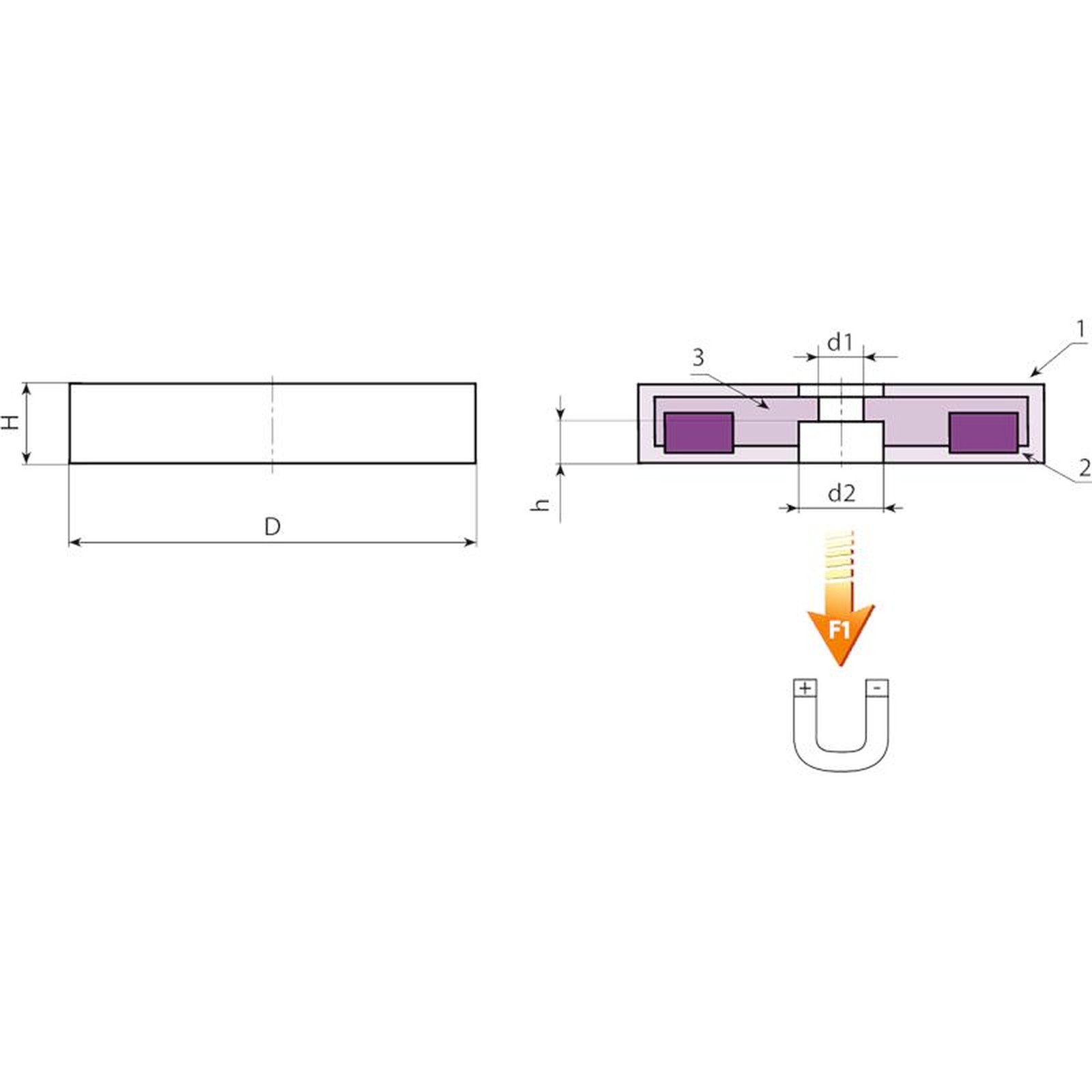

Materials:
(1) Thermoplastic rubber TPE (75 Shore).
(2) Flat neodymium magnet (NdFeB).
(3) Turned galvanised steel base, with female threaded hole (thread tolerance 6H).
Surface finish:
Smooth.
Colour:
Black(RAL 9011 code 01).
White(RAL 9004 code 04).
Special requests:
None.
Black version (code 01)
| Code | art. | D | H | h | d2 | d1 | Weight (g) | F1 (N) |
|---|---|---|---|---|---|---|---|---|
| T403018.0001 | T403018.GD0301 | 18 | 6 | 3 | 8 | 3 | 5,5 | 25 |
| T403022.0001 | T403022.GD0401 | 22 | 6 | 3,5 | 8,2 | 4 | 8 | 38 |
| T403031.0001 | T403031.GD0601 | 31 | 6 | 3,5 | 9 | 6 | 20 | 89 |
| T403057.0001 | T403057.GD0801 | 57 | 7,5 | 3,3 | 25,3 | 8 | 77 | 200 |
| T403066.0001 | T403066.GD5.501 | 66 | 8,5 | 3,2 | 22 | 5,5 | 100 | 250 |
White version (code 04)
| Code | art. | D | H | h | d2 | d1 | Weight (g) | F1 (N) |
|---|---|---|---|---|---|---|---|---|
| T403018.0002 | T403018.GD0304 | 18 | 6 | 3 | 8 | 3 | 5,5 | 25 |
| T403022.0002 | T403022.GD0404 | 22 | 6 | 3,5 | 8,2 | 4 | 8 | 38 |
| T403031.0001 | T403031.GD0601 | 31 | 6 | 3,5 | 9 | 6 | 20 | 89 |
| T403057.0002 | T403057.GD0804 | 57 | 7,5 | 3,3 | 25,3 | 8 | 77 | 200 |
| T403066.0002 | T403066.GD5.504 | 66 | 8,5 | 3,2 | 22 | 5,5 | 100 | 250 |
