COATED NEODYMIUM ROUND DISC MAGNET WITH THREADED STUD
18
T401
Magneti ricoperti

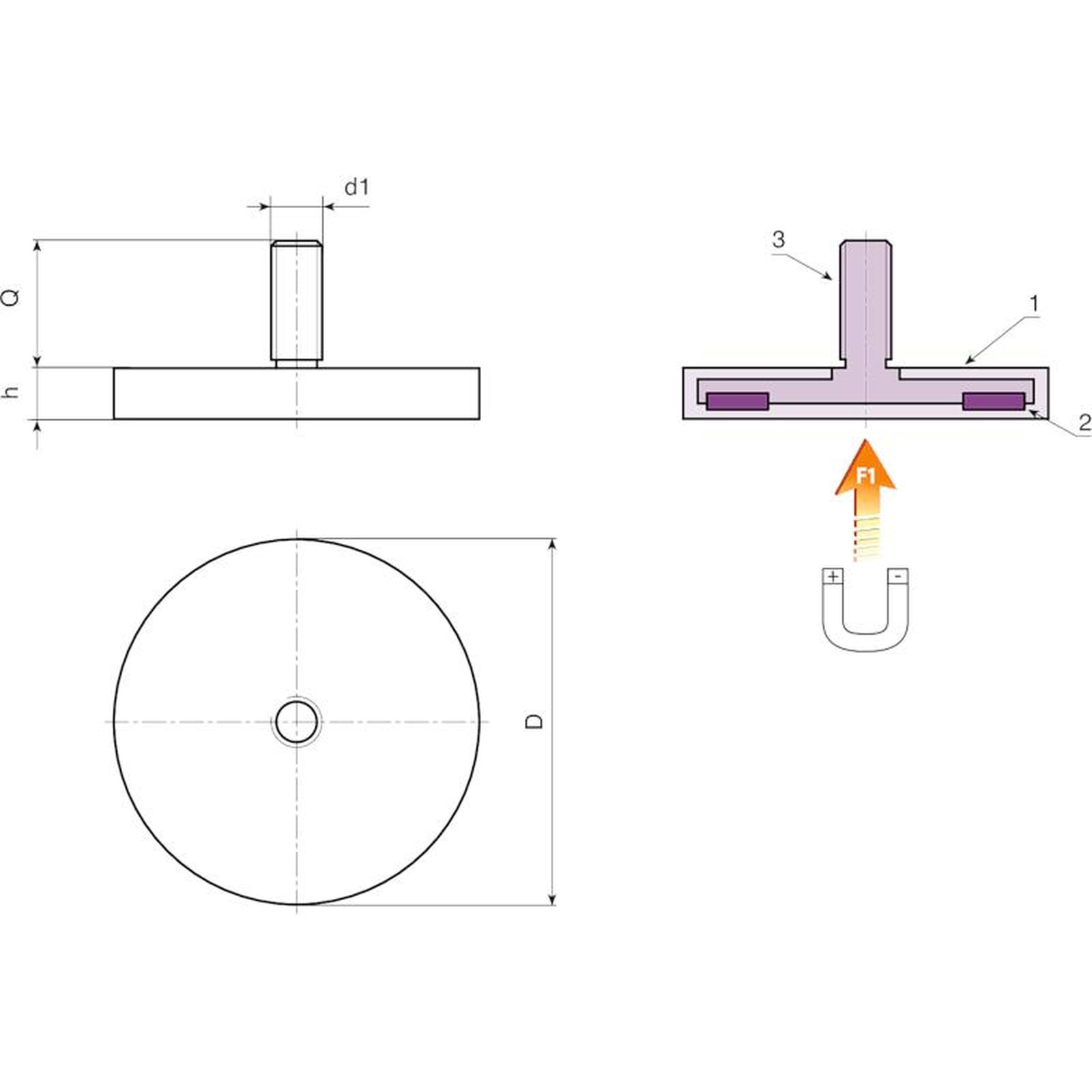

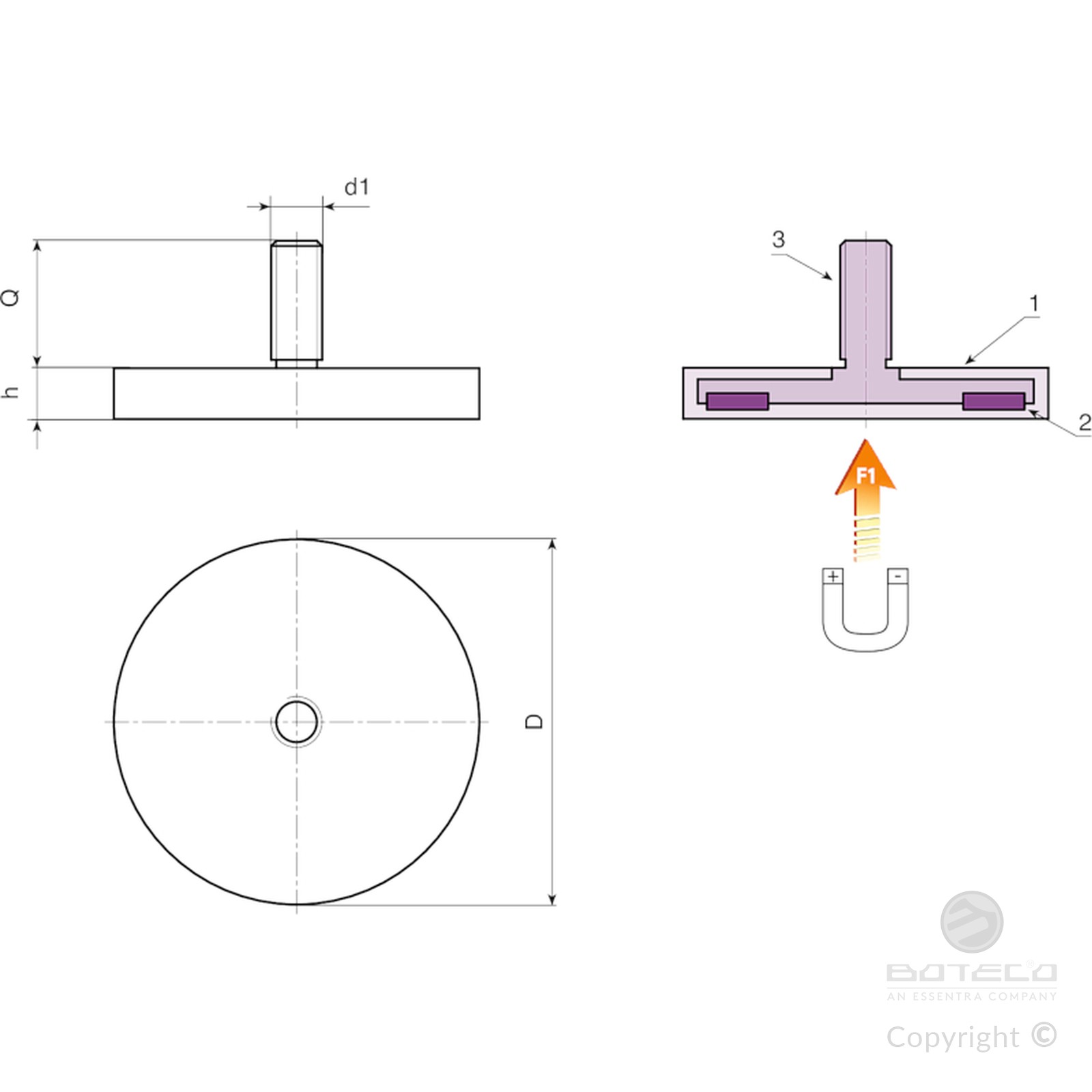

Materials:
(1) Thermoplastic rubber TPE (75 Shore).
(2) Flat neodymium magnet (NdFeB).
(3) Turned galvanised steel base, with threaded stud (thread tolerance 6g).
Surface finish:
Smooth.
Colour:
Black (RAL 9011 code 01).
White (RAL 9004 code 04).
Special requests:
None.

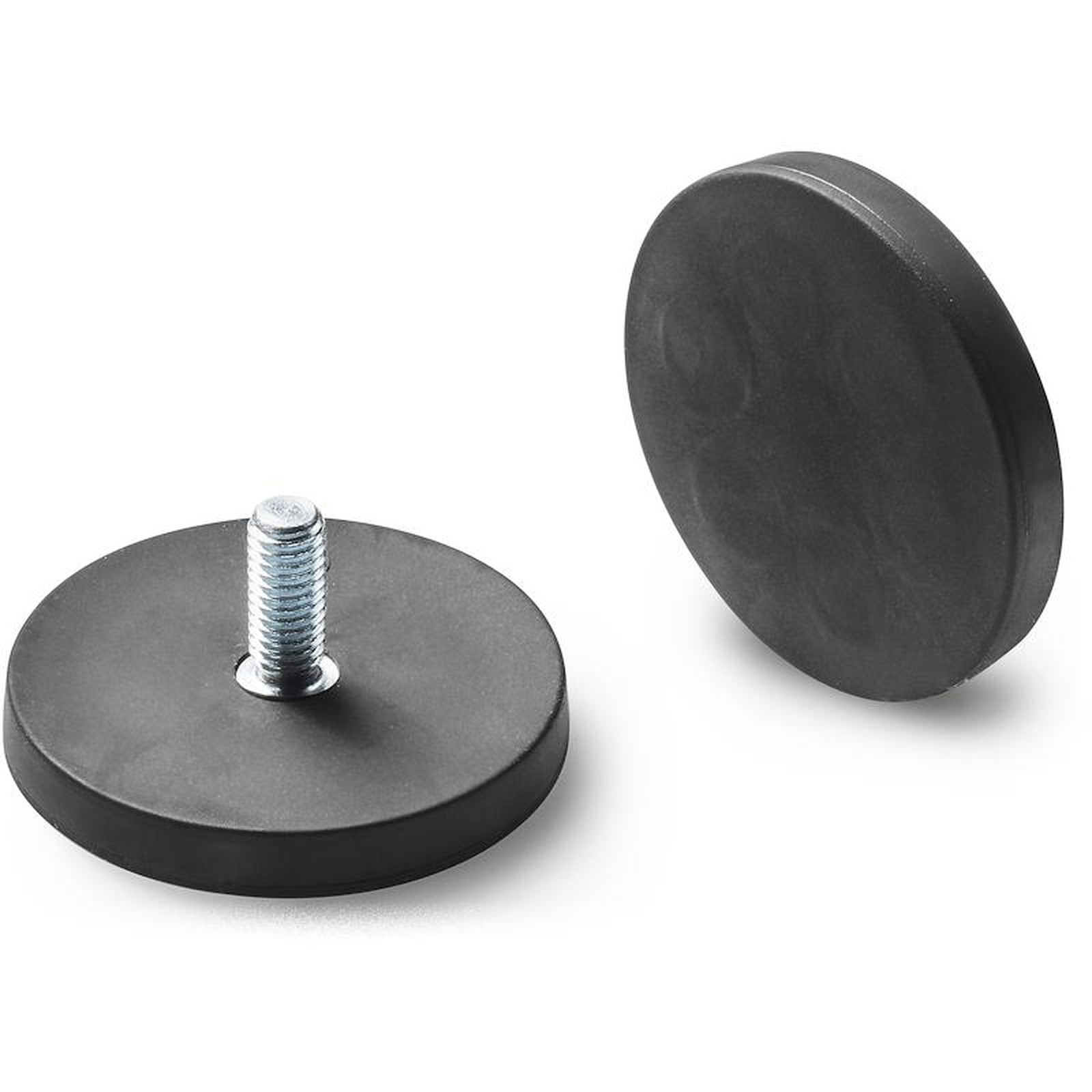

Black version (code 01)
| Code | art. | D | h | d1 6g | Q | Weight (g) | F1 (N) |
|---|---|---|---|---|---|---|---|
| T401012.0001 | T401012.GM04X0801 | 12 | 7 | M4 | 08 | 4.5 | 13 |
| T401018.0001 | T401018.GM04X0601 | 18 | 6 | M4 | 06 | 7.5 | 37 |
| T401022.0001 | T401022.GM04X6.501 | 22 | 6 | M4 | 6.5 | 11 | 58 |
| T401043.0001 | T401043.GM06X1501 | 43 | 6 | M6 | 15 | 32 | 100 |
| T401066.0001 | T401066.GM08X1501 | 66 | 8.5 | M8 | 15 | 107 | 250 |
| T401088.0001 | T401088.GM08X1501 | 88 | 8.5 | M8 | 15 | 193 | 550 |

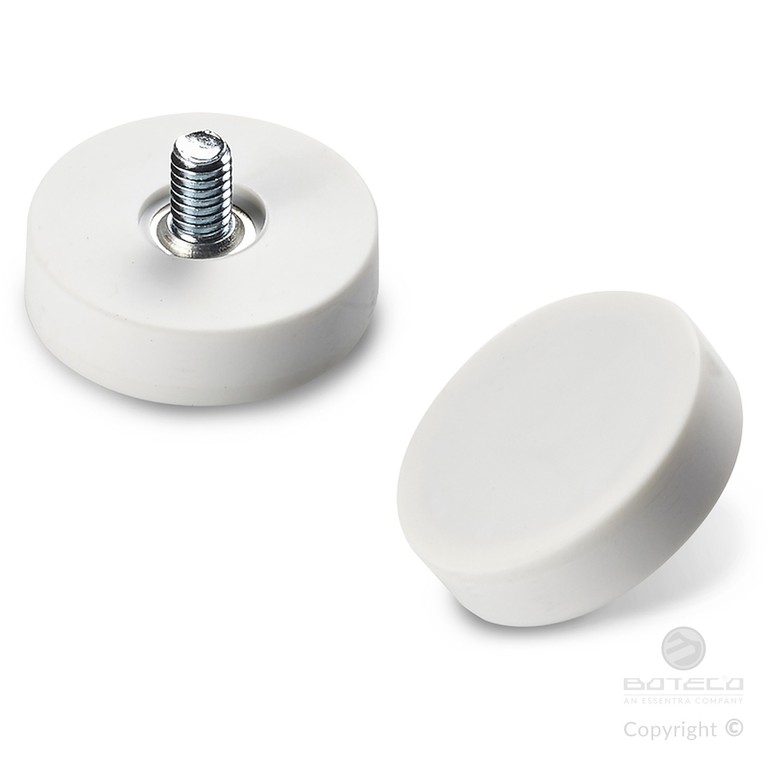

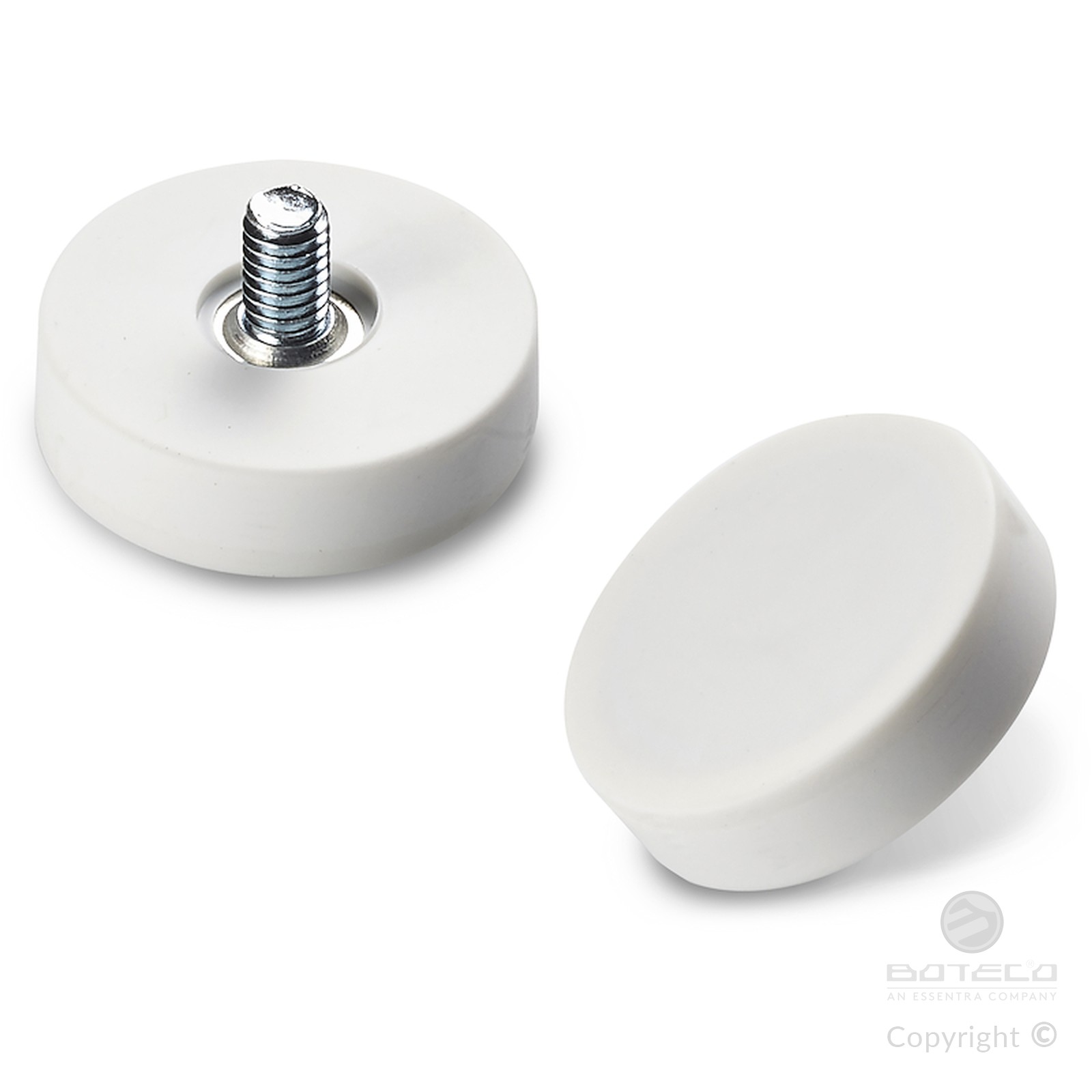

White version (code 04)
| Code | art. | D | h | d1 6g | Q | Weight (g) | F1 (N) |
|---|---|---|---|---|---|---|---|
| T401012.0002 | T401012.GM04X0804 | 12 | 7 | M4 | 08 | 4.5 | 13 |
| T401018.0002 | T401018.GM04X0604 | 18 | 6 | M4 | 06 | 7.5 | 37 |
| T401022.0002 | T401022.GM04X6.504 | 22 | 6 | M4 | 6.5 | 11 | 58 |
| T401043.0002 | T401043.GM06X1504 | 43 | 6 | M6 | 15 | 32 | 100 |
| T401066.0002 | T401066.GM08X1504 | 66 | 8.5 | M8 | 15 | 107 | 250 |
| T401088.0002 | T401088.GM08X1504 | 88 | 8.5 | M8 | 15 | 193 | 550 |
