Materiais:
Poliamida reforçada.
Resistente a óleos e massas lubrificantes.
Superfície:
Acetinada.
Cor:
Preto(RAL 9011).
Furo:
Furo liso passante obtido por moldagem no plástico.
Pedidos especiais:
É possível pedir os dois componentes separadamente, os seus códigos são:
>Flange superior:S804.T01
>Cilindro baixo H=65:S800060.T01
>Cilindro médio H=95:S800086.T01
>Cilindro alto H=125:S800125.T01

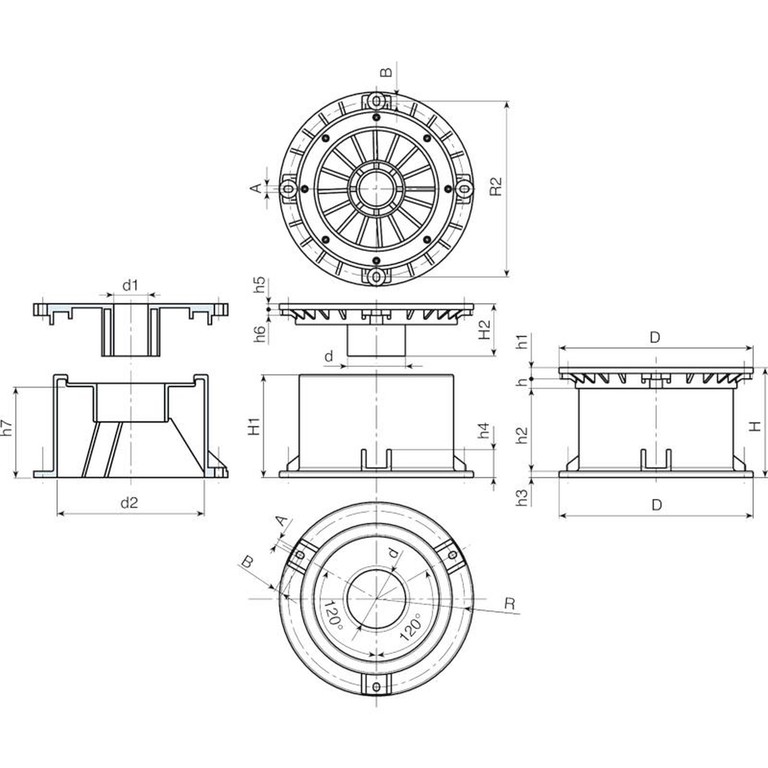

| Código | art. | D | H | H1 | H2 | d | d1 | d2 | h | h1 | h2 | h3 | h4 | h5 | h6 | h7 | R | R1 | A | B | Peso (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S802065.0001 | S802065.T01 | 218 | 66 | 56,5 | 58 | 64,5 | 38 | 163 | 10 | 13 | 36 | 7 | 31 | 6,5 | 6,5 | 41,5 | 195 | 195 | 7 | 9 | 1000 |
| S802095.0001 | S802095.T01 | 218 | 96,5 | 87 | 58 | 64,5 | 38 | 163 | 10 | 13 | 66,5 | 7 | 31 | 6,5 | 6,5 | 72 | 195 | 195 | 7 | 9 | 1115 |
| S802125.0001 | S802125.T01 | 218 | 124 | 114,5 | 58 | 64,5 | 38 | 163 | 10 | 13 | 94 | 7 | 31 | 6,5 | 6,5 | 99,5 | 195 | 195 | 7 | 9 | 1250 |
