Materials:
(1-2) Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black(RAL 9011).
Inserts:
(3-8) Galvanised steel left-hand threaded nut.
(4) Galvanised steel washer.
(5-7) Black oxide treated steel spring washer.
(6) Insert with galvanised steel threaded studs.
Special Requests:
None.
ATTENTION:

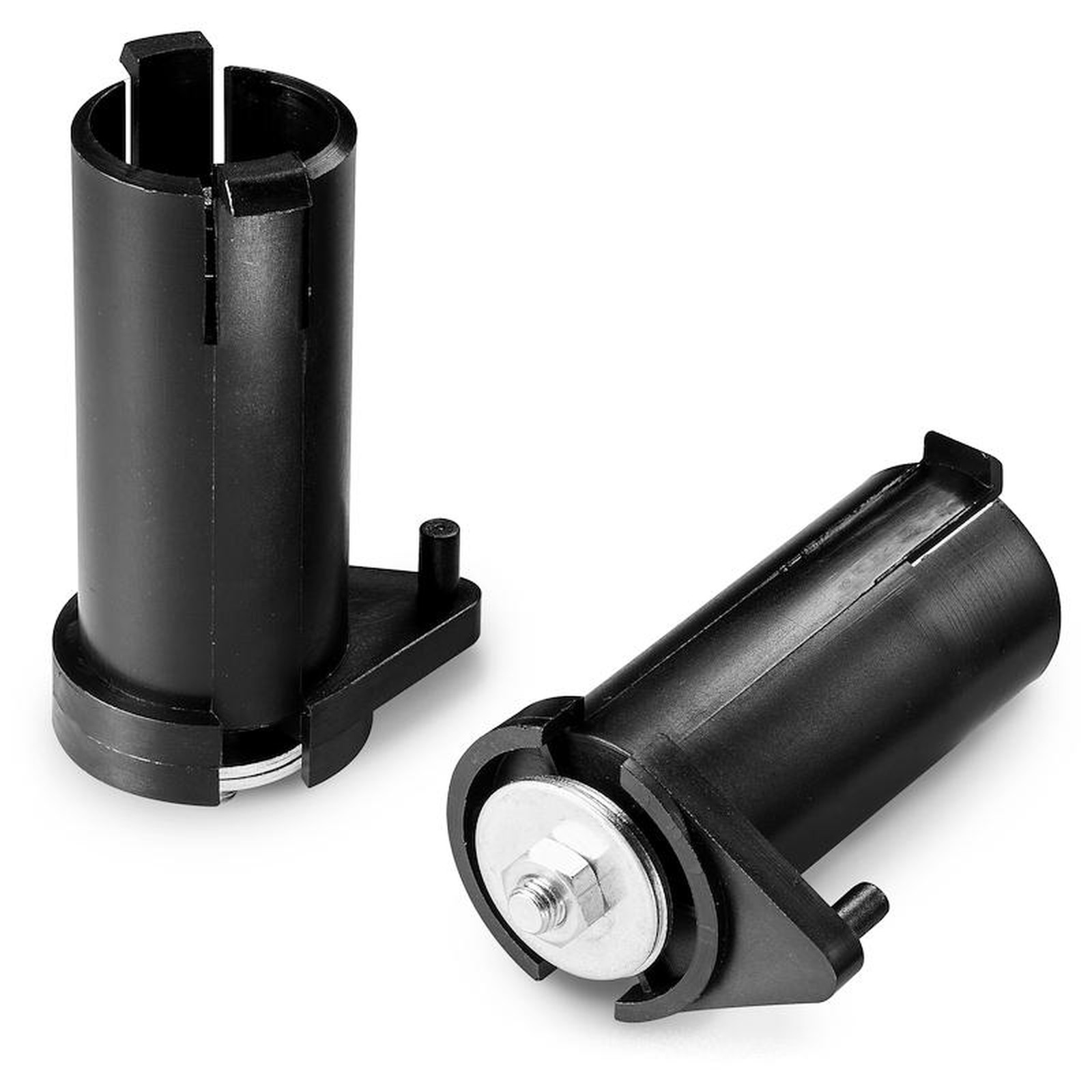

Spool holder S603 can only be used with plastic or iron spools with internal frame diameter d. 53 mm and width 100 mm.
| Code | art. | D | D1 | D2 | HT | H | d | d1 | d2 | d3 | h | A | B | C | E | F | G | I | L | Q | R | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S603118.0001 | S603118.T01 | 60 | 51 | 40 | 137 | 118 | 50 | M10 SX | M8 SX | 8 | 107 | 82 | 3 | 9 | 15 | 63 | 13 | 17 | 15 | 104 | 43.5 | 295 |
| S603124.0001 | S603124.T01 | 60 | 51 | 40 | 145 | 124 | 50 | M10 SX | M8 SX | 8 | 107 | 82 | 9 | 9 | 15 | 63 | 13 | 17 | 15 | 104 | 43.5 | 315 |
