Materials:
(2-3) Phenolic resin.
Resistant to oils and greases.
Resistant to high temperatures.
Surface finish:
Glossy.
Colour:
Black(RAL 9011).
Inserts:
(1) Brass insert with female connector UNI.
(4) Black-oxyde treated steel corrugated washer DIN 137.
(5) Yellow passivated steel threaded hexagon ring nut.
(6) Black-oxide treated steel split washer UNI 1751.
(7) Yellow passivated steel washer.
(8) Yellow passivated hex head screw DIN933/UNI 5739.
Special Requests:
None.

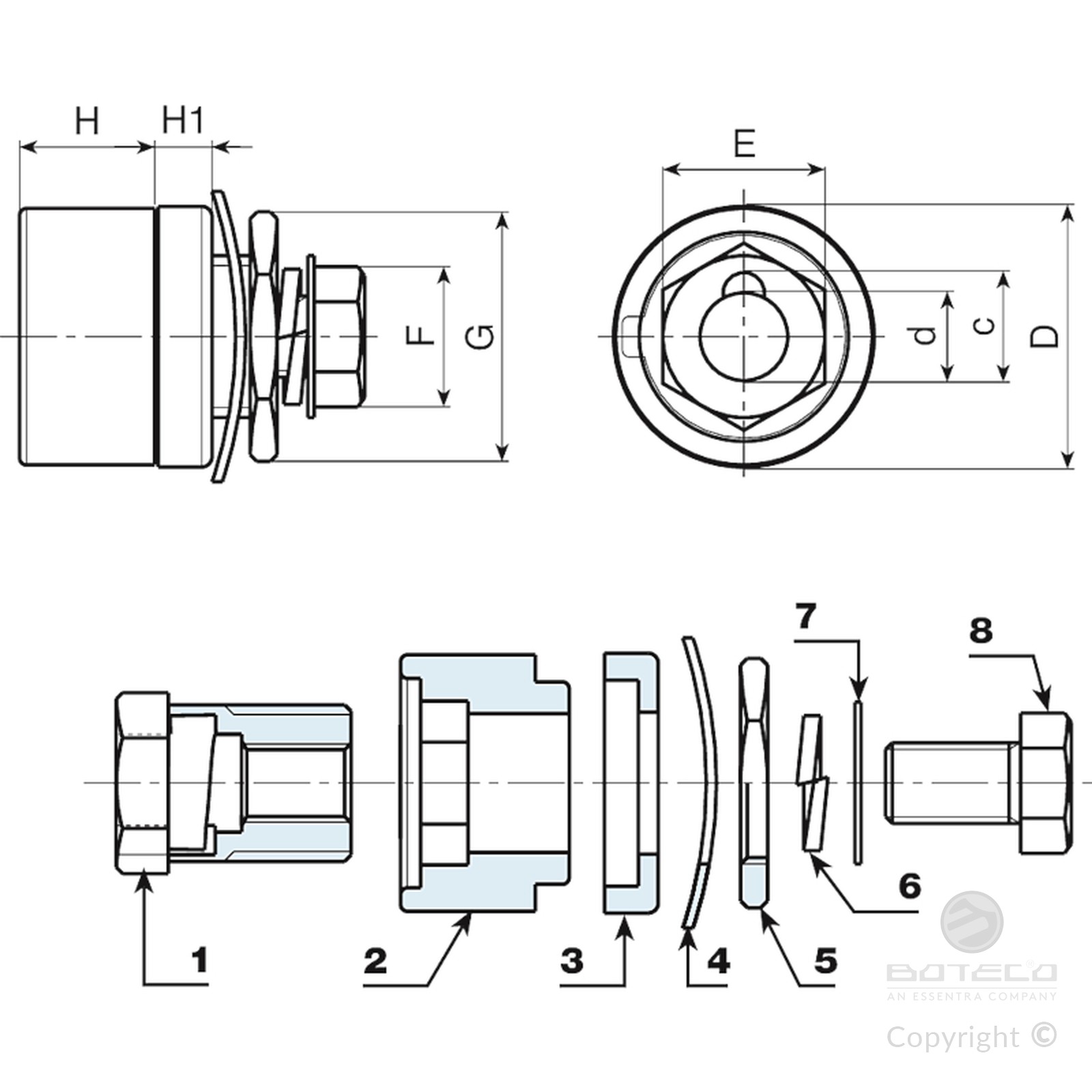

| Code | art. | D | H | H1 | d | c | E | F | G | Weight (g) | Amp. Max |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S119.0001 | S119.F3550 | 38 | 20 | 8 | 13 | 16 | 21 | 17 | 27 | 121 | 200 |
