Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black(RAL 9011).
Inserts:
Version F188:
Brass insert with threaded through hole (thread tolerance 6H).
Version F188PIN:
Stainless steel insert with threaded through hole (Aisi 303) (thread tolerance 6H).
Special Requests:
Upon request and for special quantities inserts can be supplied in different materials.
Upon request and for special quantities available in the colours indicated in the chart (attention: reduced range).

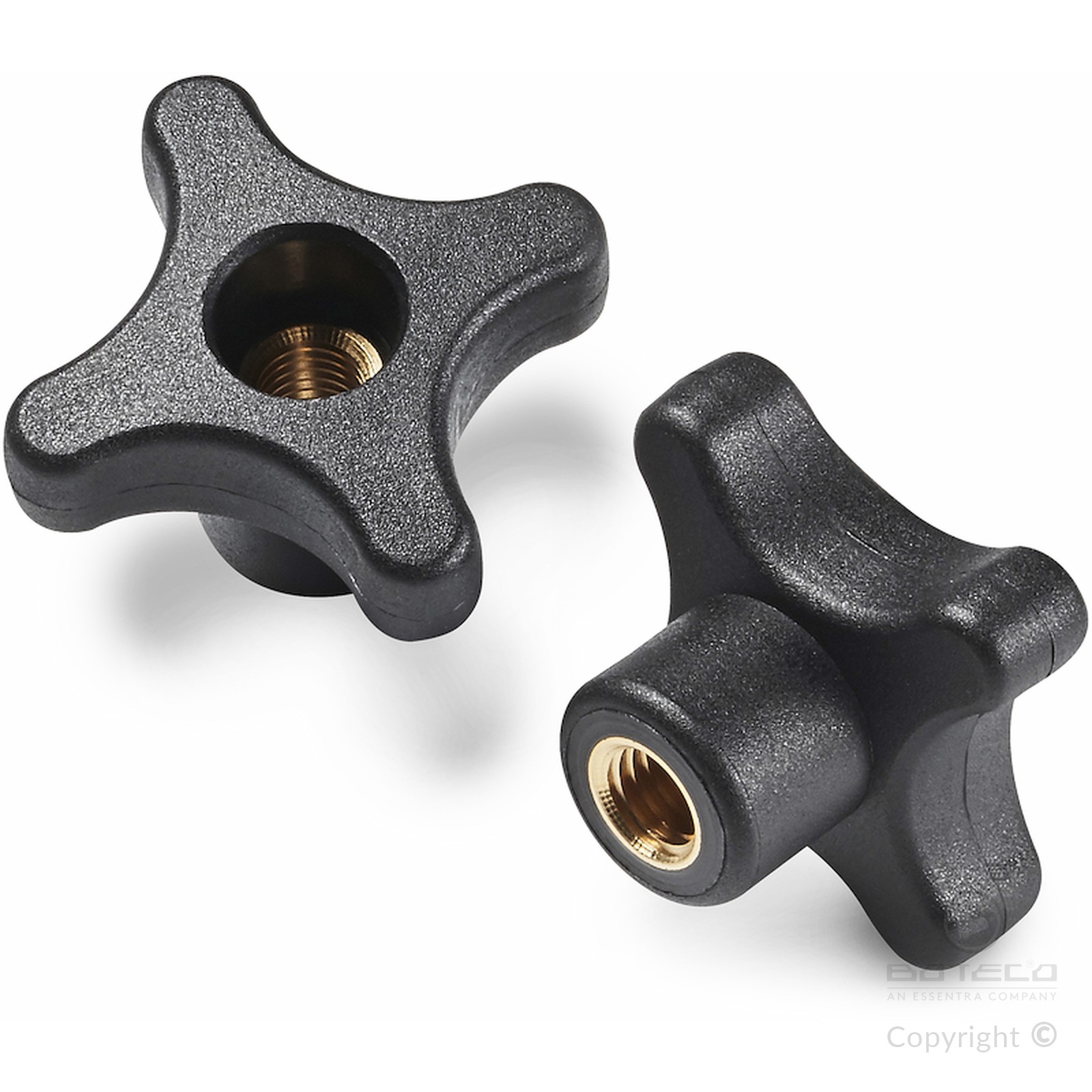

Version F188: with brass insert.

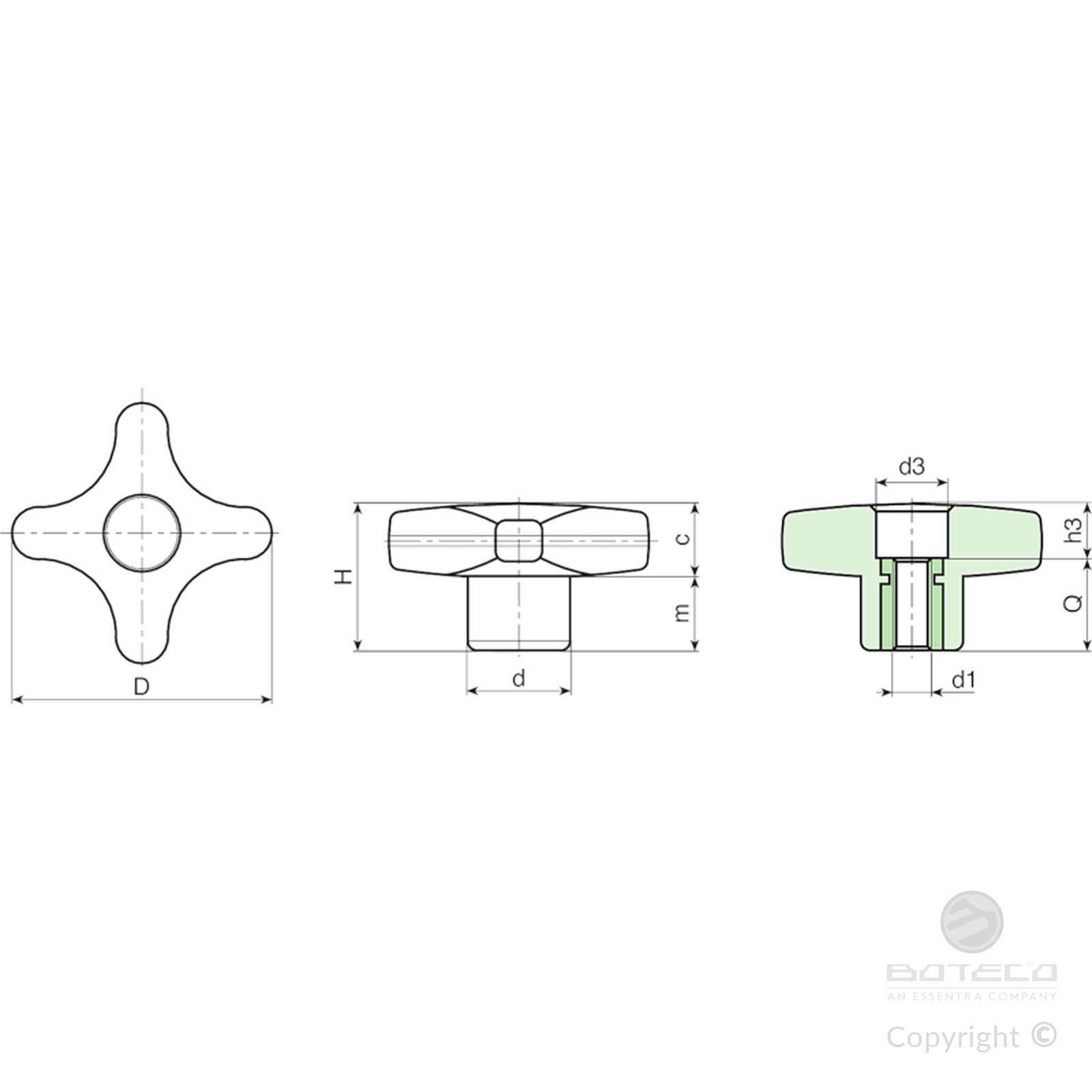

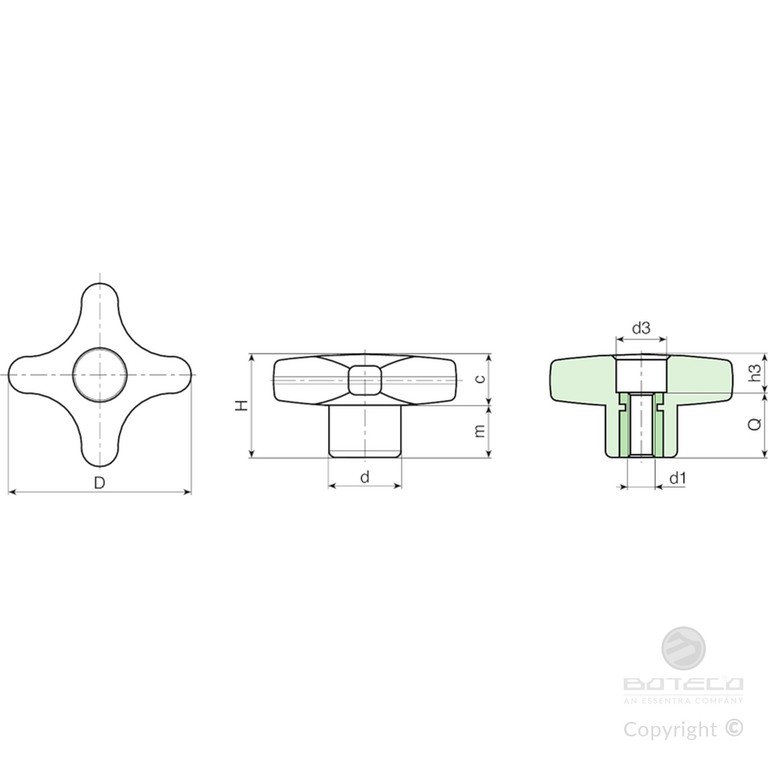

| Code | Art. | D | H | d | c | m | d3 | h3 | d1 6H | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| F18832.0001 | F18832.TM0401 | 32 | 23 | 15 | 11 | 11 | 10 | 5 | M4 | 18 | 9 |
| F18832.0004 | F18832.TM0501 | 32 | 23 | 15 | 11 | 11 | 10 | 5 | M5 | 18 | 10 |
| F18832.0008 | F18832.TM0601 | 32 | 23 | 15 | 11 | 11 | 10 | 5 | M6 | 18 | 10.5 |
| F18832.0013 | F18832.TM0801 | 32 | 23 | 15 | 11 | 11 | 10 | 5 | M8 | 18 | 11 |
| F18840.0002 | F18840.TM0601 | 40 | 24.5 | 16 | 12 | 12.5 | 12 | 6.5 | M6 | 18 | 13 |
| F18840.0007 | F18840.TM0801 | 40 | 24.5 | 16 | 12 | 12.5 | 12 | 6.5 | M8 | 18 | 15 |
| F18840.0013 | F18840.TM1001 | 40 | 24.5 | 16 | 12 | 12.5 | 12 | 6.5 | M10 | 18 | 16 |
| F18850.0001 | F18850.TM0601 | 50 | 29 | 20 | 14 | 15 | 14 | 11 | M6 | 18 | 23 |
| F18850.0004 | F18850.TM0801 | 50 | 29 | 20 | 14 | 15 | 14 | 11 | M8 | 18 | 24 |
| F18850.0008 | F18850.TM1001 | 50 | 29 | 20 | 14 | 15 | 14 | 11 | M10 | 18 | 25 |
| F18850.0012 | F18850.TM1201 | 50 | 29 | 20 | 14 | 15 | 14 | 11 | M12 | 18 | 26 |
| F18860.0001 | F18860.TM0801 | 60 | 34 | 24 | 15.5 | 18.5 | 16 | 16 | M8 | 18 | 34 |
| F18860.0005 | F18860.TM1001 | 60 | 34 | 24 | 15.5 | 18.5 | 16 | 16 | M10 | 18 | 38 |
| F18860.0009 | F18860.TM1201 | 60 | 34 | 24 | 15.5 | 18.5 | 16 | 16 | M12 | 18 | 40 |
| F18860.0013 | F18860.TM1401 | 60 | 34 | 24 | 15.5 | 18.5 | 16 | 16 | M14 | 18 | 45 |

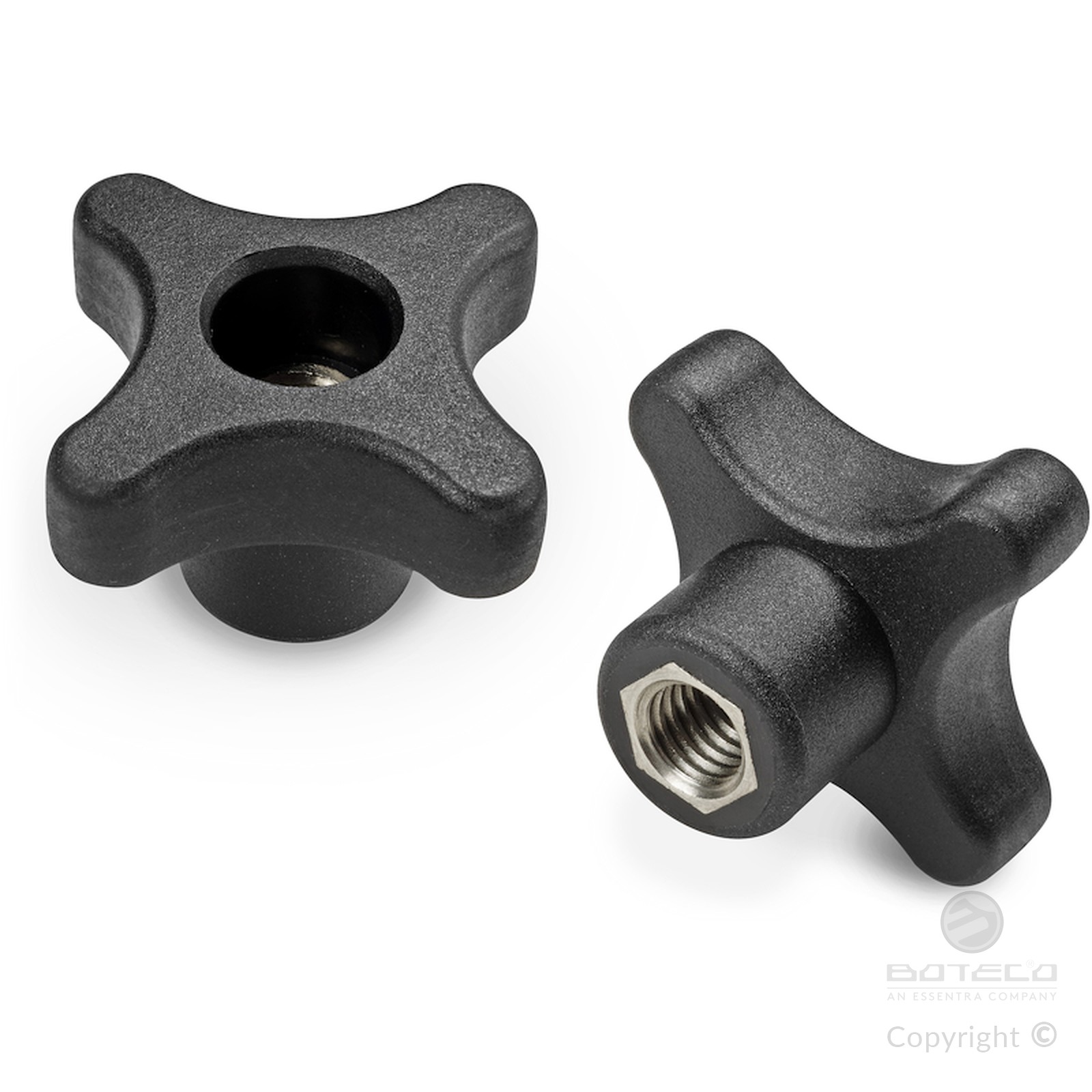

Version F188PIN: with stainless steel insert (Aisi 303).
| Code | Art. | D | H | d | c | m | d3 | h3 | d1 6H | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| F18832.0006 | F18832.TM0501PIN | 32 | 23 | 15 | 11 | 11 | 10 | 5 | M5 | 18 | 10 |
| F18832.0010 | F18832.TM0601PIN | 32 | 23 | 15 | 11 | 11 | 10 | 5 | M6 | 18 | 10.5 |
| F18832.0014 | F18832.TM0801PIN | 32 | 23 | 15 | 11 | 11 | 10 | 5 | M8 | 18 | 11 |
| F18840.0004 | F18840.TM0601PIN | 40 | 24.5 | 16 | 12 | 12.5 | 12 | 6.5 | M6 | 18 | 13 |
| F18840.0009 | F18840.TM0801PIN | 40 | 24.5 | 16 | 12 | 12.5 | 12 | 6.5 | M8 | 18 | 15 |
| F18840.0014 | F18840.TM1001PIN | 40 | 24.5 | 16 | 12 | 12.5 | 12 | 6.5 | M10 | 18 | 16 |
| F18850.0006 | F18850.TM0801PIN | 50 | 29 | 20 | 14 | 15 | 14 | 11 | M8 | 18 | 24 |
| F18850.0010 | F18850.TM1001PIN | 50 | 29 | 20 | 14 | 15 | 14 | 11 | M10 | 18 | 25 |
| F18850.0013 | F18850.TM1201PIN | 50 | 29 | 20 | 14 | 15 | 14 | 11 | M12 | 18 | 26 |
| F18860.0003 | F18860.TM0801PIN | 60 | 34 | 24 | 15.5 | 18.5 | 16 | 16 | M8 | 18 | 34 |
| F18860.0007 | F18860.TM1001PIN | 60 | 34 | 24 | 15.5 | 18.5 | 16 | 16 | M10 | 18 | 38 |
| F18860.0011 | F18860.TM1201PIN | 60 | 34 | 24 | 15.5 | 18.5 | 16 | 16 | M12 | 18 | 40 |
