Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black(RAL 9011).
Inserts:
Version F177:
Brass insert with threaded through hole (thread tolerance 6H).
Version F177PIN:
Stainless steel insert with threaded through hole (Aisi 303) (thread tolerance 6H).
Special Requests:
Upon request and for special quantities inserts can be supplied in different materials.
Upon request and for special quantities available in the colours indicated in the chart (attention: reduced range).

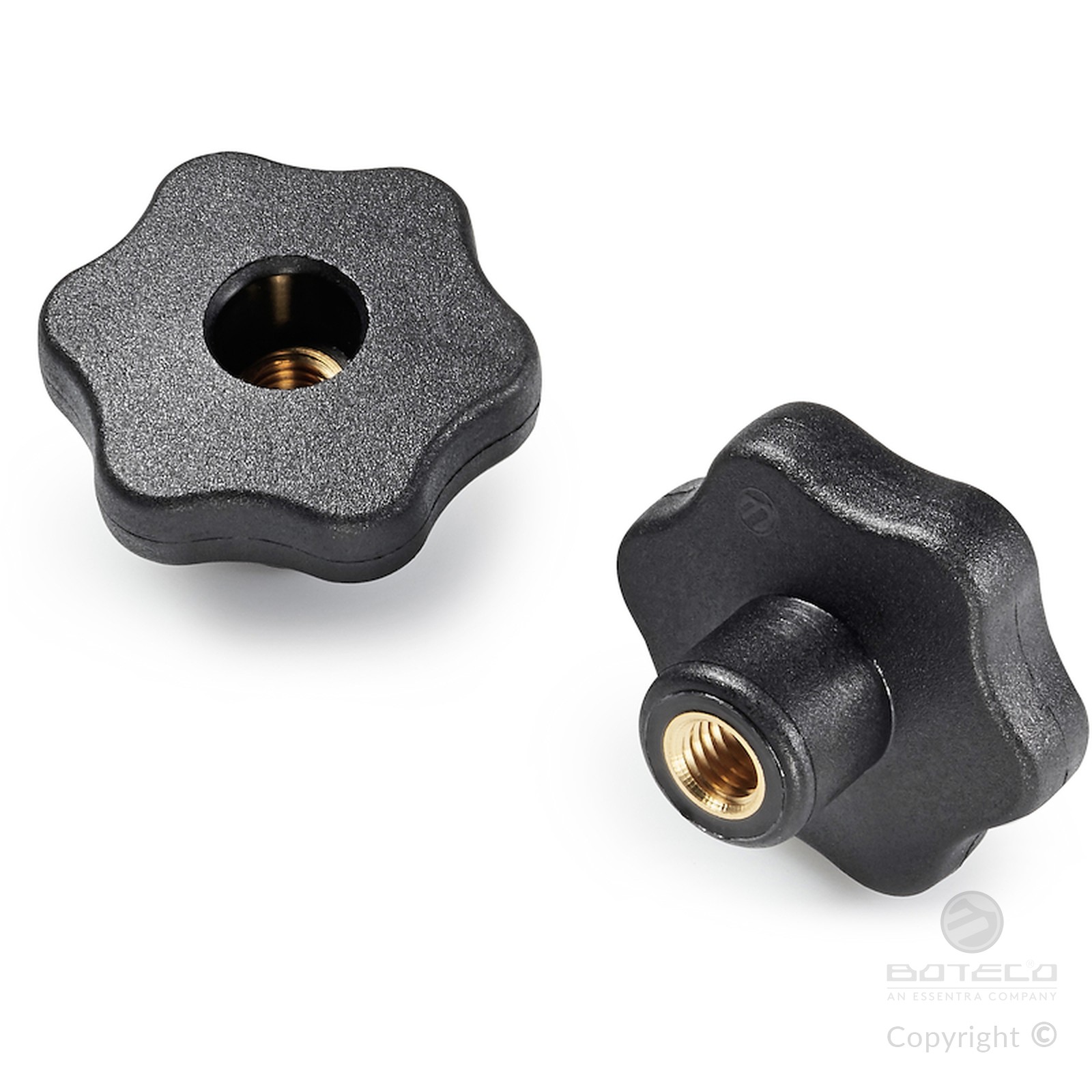

Version F177: with brass insert.

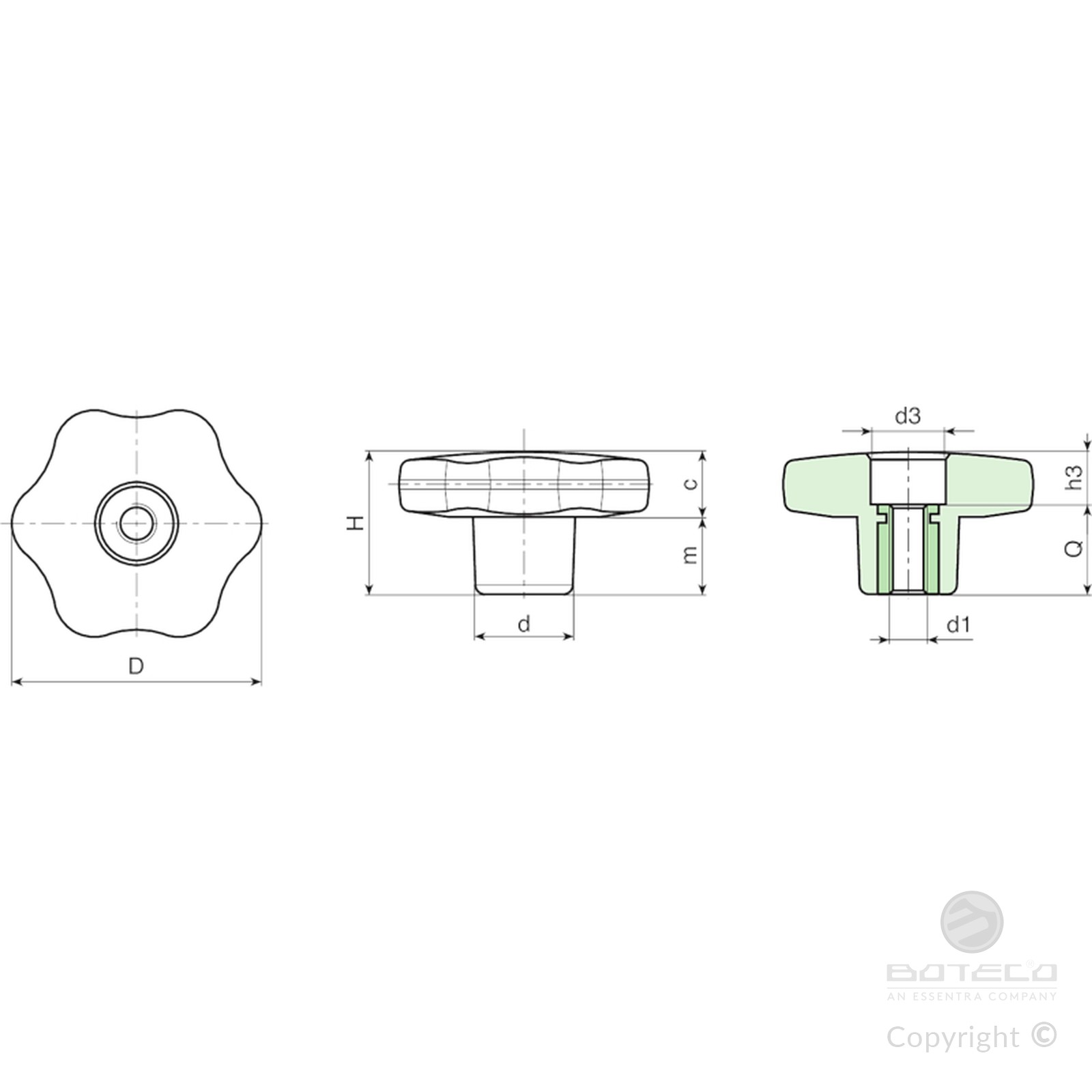

| Code | Art. | D | H | d | c | m | d3 | h3 | d1 6H | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| F17730.0001 | F17730.TM0501 | 30 | 22 | 15 | 11 | 11 | 11 | 4 | M5 | 18 | 12 |
| F17730.0005 | F17730.TM0601 | 30 | 22 | 15 | 11 | 11 | 11 | 4 | M6 | 18 | 13 |
| F17730.0011 | F17730.TM0801 | 30 | 22 | 15 | 11 | 11 | 11 | 4 | M8 | 18 | 13 |
| F17730.0014 | F17730.TM1001 | 30 | 22 | 15 | 11 | 11 | 11 | 4 | M10 | 18 | 14 |
| F17740.0001 | F17740.TM0601 | 40 | 24.5 | 17 | 12 | 12.5 | 12 | 6 | M6 | 18 | 20 |
| F17740.0008 | F17740.TM0801 | 40 | 24.5 | 17 | 12 | 12.5 | 12 | 6 | M8 | 18 | 21 |
| F17740.0014 | F17740.TM1001 | 40 | 24.5 | 17 | 12 | 12.5 | 12 | 6 | M10 | 18 | 22 |
| F17750.0002 | F17750.TM0601 | 50 | 29 | 20 | 14 | 15 | 14 | 11 | M6 | 18 | 33 |
| F17750.0005 | F17750.TM0801 | 50 | 29 | 20 | 14 | 15 | 14 | 11 | M8 | 18 | 34 |
| F17750.0010 | F17750.TM1001 | 50 | 29 | 20 | 14 | 15 | 14 | 11 | M10 | 18 | 35 |
| F17750.0016 | F17750.TM1201 | 50 | 29 | 20 | 14 | 15 | 14 | 11 | M12 | 18 | 35 |
| F17760.0002 | F17760.TM0801 | 60 | 34 | 24 | 16 | 18 | 15 | 16 | M8 | 18 | 54 |
| F17760.0006 | F17760.TM1001 | 60 | 34 | 24 | 16 | 18 | 15 | 16 | M10 | 18 | 55 |
| F17760.0010 | F17760.TM1201 | 60 | 34 | 24 | 16 | 18 | 15 | 16 | M12 | 18 | 55 |
| F17760.0015 | F17760.TM1401 | 60 | 34 | 24 | 16 | 18 | 15 | 16 | M14 | 18 | 56 |

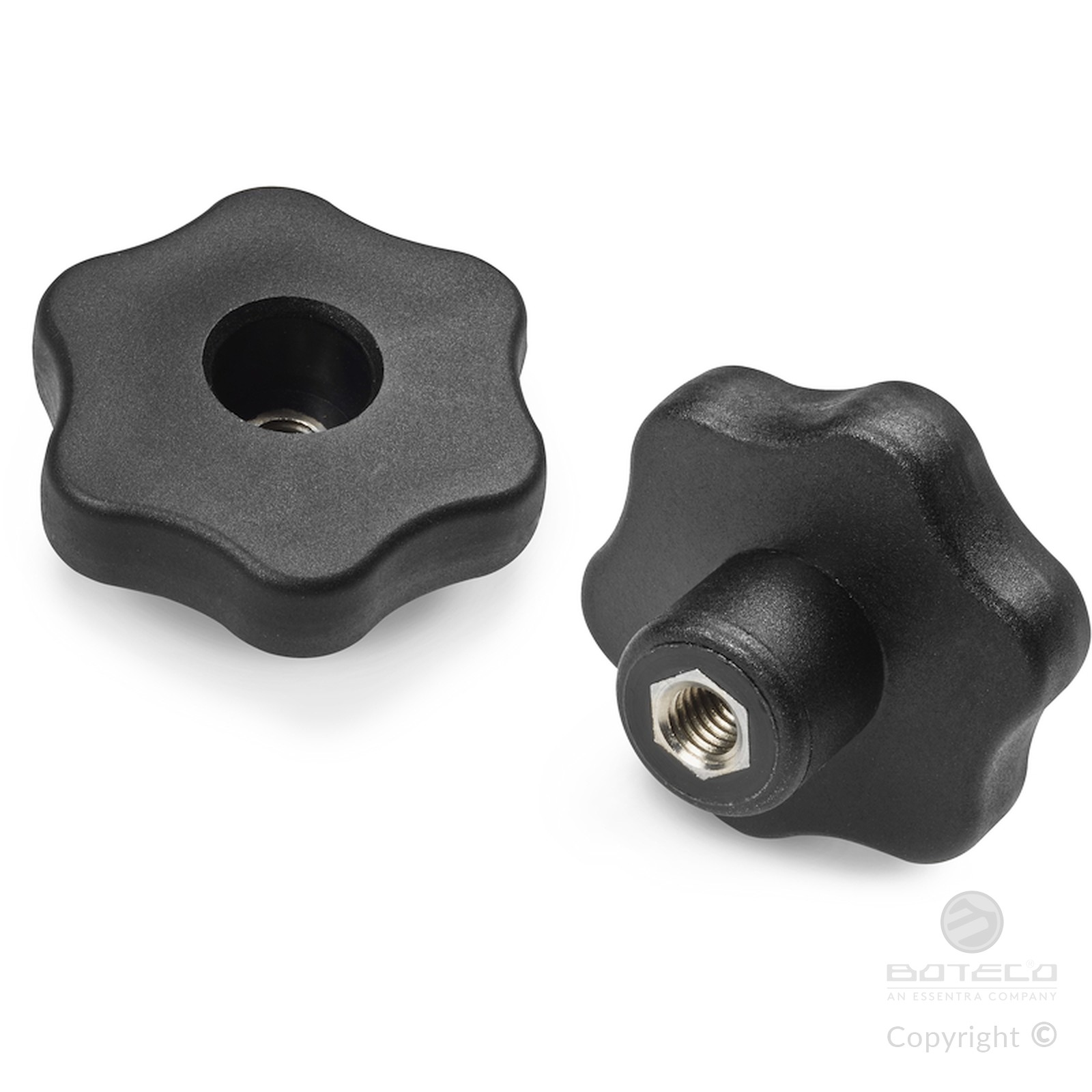

Version F177CIN: with stainless steel insert (Aisi 303).
| Code | Art. | D | H | d | c | m | d3 | h3 | d1 6H | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| F17730.0003 | F17730.TM0501PIN | 30 | 22 | 15 | 11 | 11 | 11 | 4 | M5 | 18 | 12 |
| F17730.0007 | F17730.TM0601PIN | 30 | 22 | 15 | 11 | 11 | 11 | 4 | M6 | 18 | 13 |
| F17730.0012 | F17730.TM0801PIN | 30 | 22 | 15 | 11 | 11 | 11 | 4 | M8 | 18 | 13 |
| F17740.0003 | F17740.TM0601PIN | 40 | 24.5 | 17 | 12 | 12.5 | 12 | 6 | M6 | 18 | 20 |
| F17740.0010 | F17740.TM0801PIN | 40 | 24.5 | 17 | 12 | 12.5 | 12 | 6 | M8 | 18 | 21 |
| F17740.0015 | F17740.TM1001PIN | 40 | 24.5 | 17 | 12 | 12.5 | 12 | 6 | M10 | 18 | 22 |
| F17750.0008 | F17750.TM0801PIN | 50 | 29 | 20 | 14 | 15 | 14 | 11 | M8 | 18 | 34 |
| F17750.0012 | F17750.TM1001PIN | 50 | 29 | 20 | 14 | 15 | 14 | 11 | M10 | 18 | 35 |
| F17750.0017 | F17750.TM1201PIN | 50 | 29 | 20 | 14 | 15 | 14 | 11 | M12 | 18 | 35 |
| F17760.0004 | F17760.TM0801PIN | 60 | 34 | 24 | 16 | 18 | 15 | 16 | M8 | 18 | 54 |
| F17760.0008 | F17760.TM1001PIN | 60 | 34 | 24 | 16 | 18 | 15 | 16 | M10 | 18 | 55 |
| F17760.0012 | F17760.TM1201PIN | 60 | 34 | 24 | 16 | 18 | 15 | 16 | M12 | 18 | 55 |
