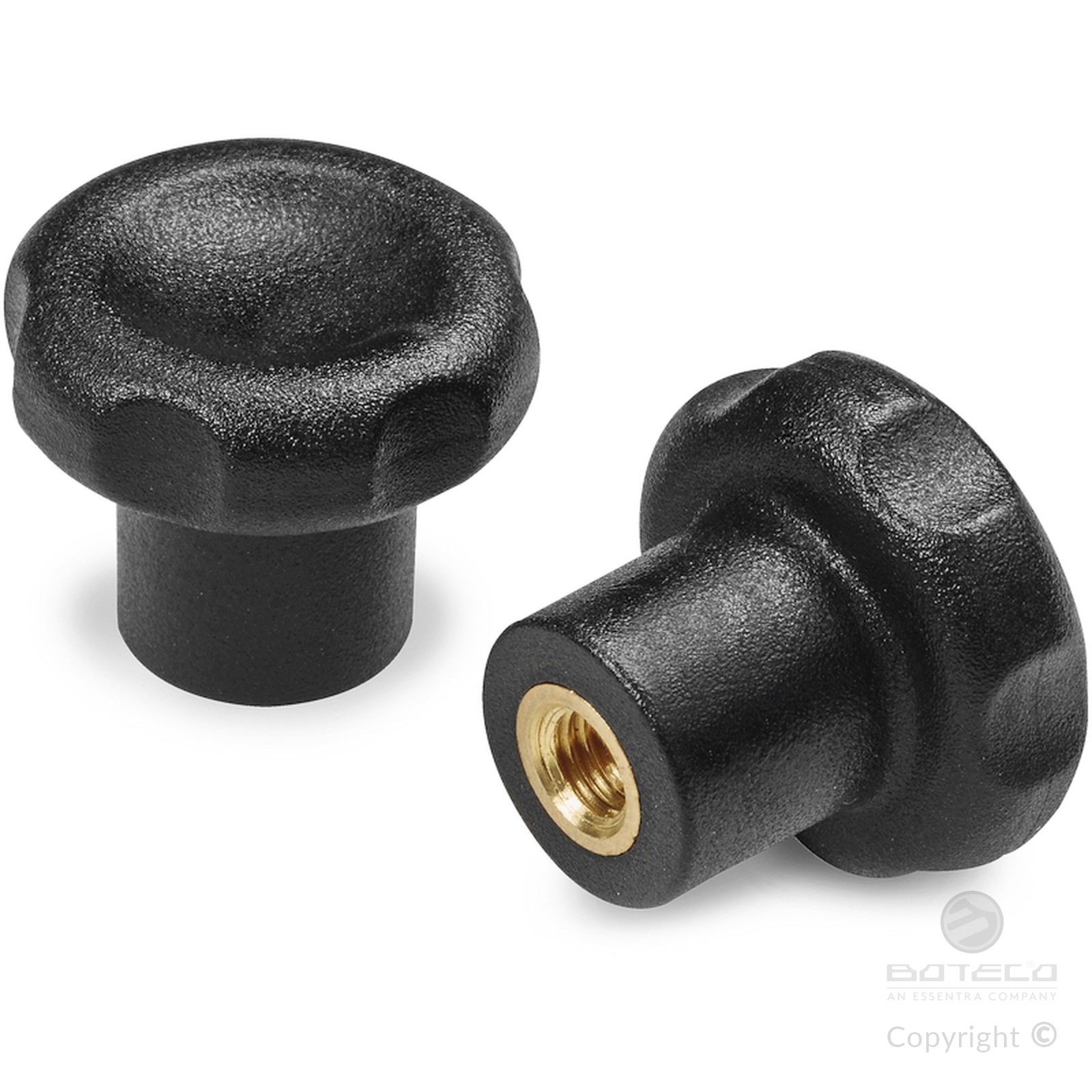

Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black(RAL 9011).
Inserts:
Brass insert with female threaded hole (thread tolerance 6H).
Special Requests:
Upon request and for special quantities inserts can be supplied in different materials.
Upon request and for special quantities available in the colours indicated in the chart (attention: reduced range).

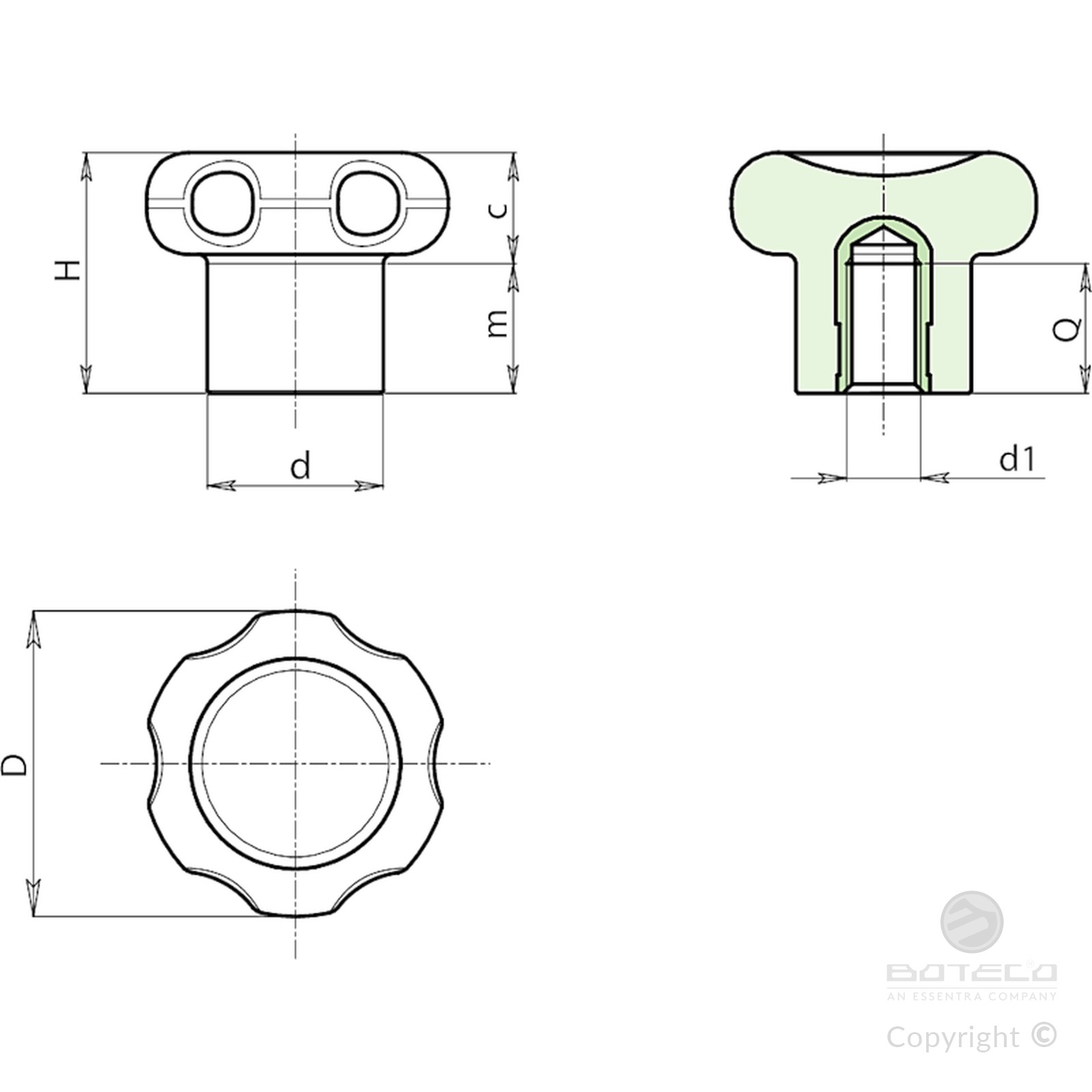

| Code | Art. | D | d | H | m | c | d1 6H | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|
| F110022.0001 | F110022.TM0401 | 22 | 12 | 17.5 | 11 | 6.5 | M4 | 8 | 5.5 |
| F110022.0002 | F110022.TM0501 | 22 | 12 | 17.5 | 11 | 6.5 | M5 | 8 | 6.5 |
| F110027.0002 | F110027.TM0501 | 27 | 14 | 22 | 13 | 9 | M5 | 10 | 9 |
| F110027.0003 | F110027.TM0601 | 27 | 14 | 22 | 13 | 9 | M6 | 10 | 9.5 |
| F110033.0002 | F110033.TM0801 | 33 | 19 | 26 | 15 | 11 | M8 | 13 | 16 |
| F110033.0006 | F110033.TM1001 | 33 | 19 | 26 | 15 | 11 | M10 | 13 | 17 |
