Description

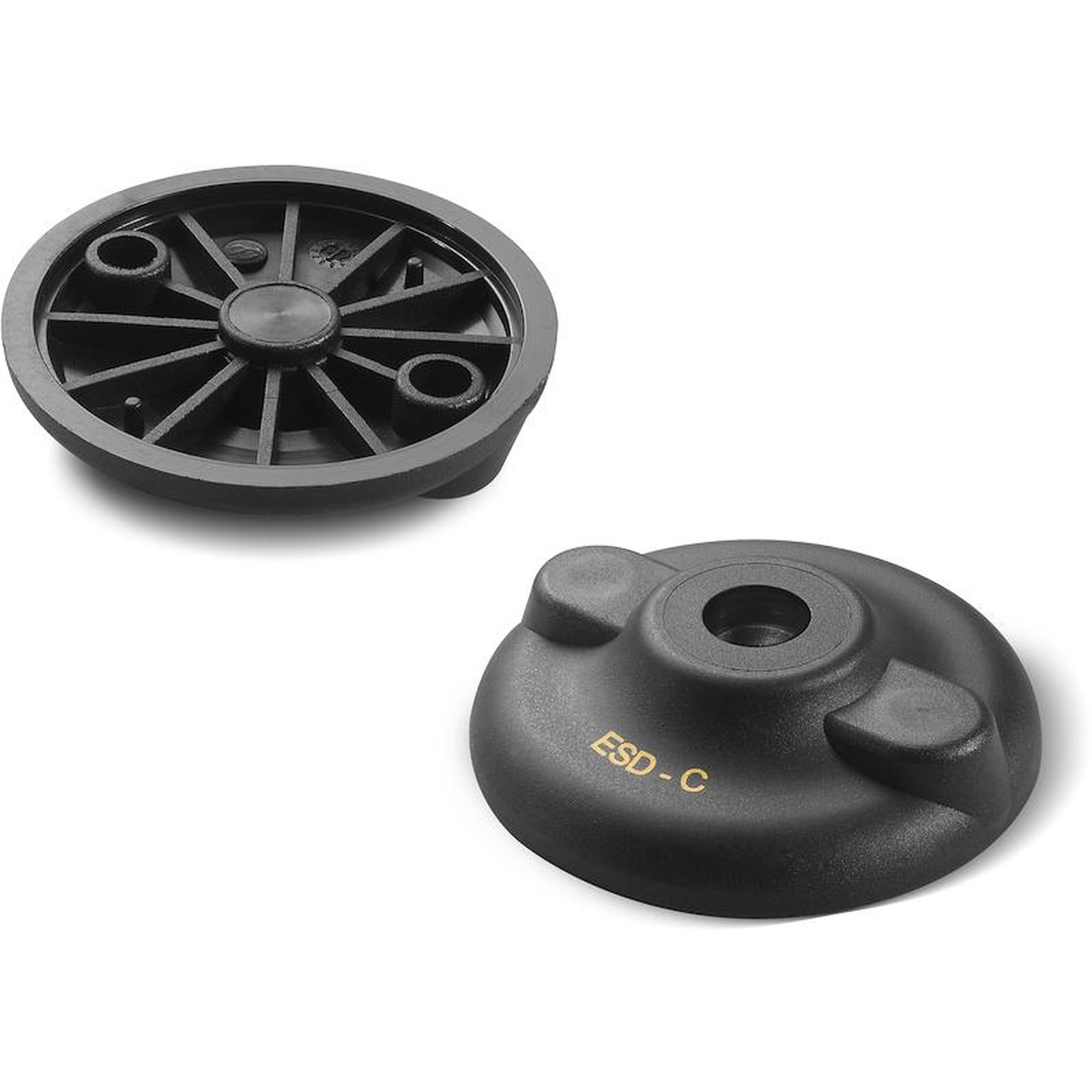

Notes: This item is made from ESD-C (Electro Static Discharge – Conductive) material with fillers in compliance with standards EN IEC 61340-5-1 / IEC 61340-5.1. The product is conductive and prevents the formation of electrostatic discharges by facilitating its grounding. A yellow pad-printed symbol (ESD-C) enables correct identification of the product. Product suitable for the production of electronic material and for use in explosive atmospheres.
Materials:
PIE.80-105-130:
Reinforced polyamide. Resistant to oils and greases.
PIE.80-105-130ESD:
Reinforced polyamide, with conductive fillers (ESD-C). Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black(RAL 9011).
Ground fixing:

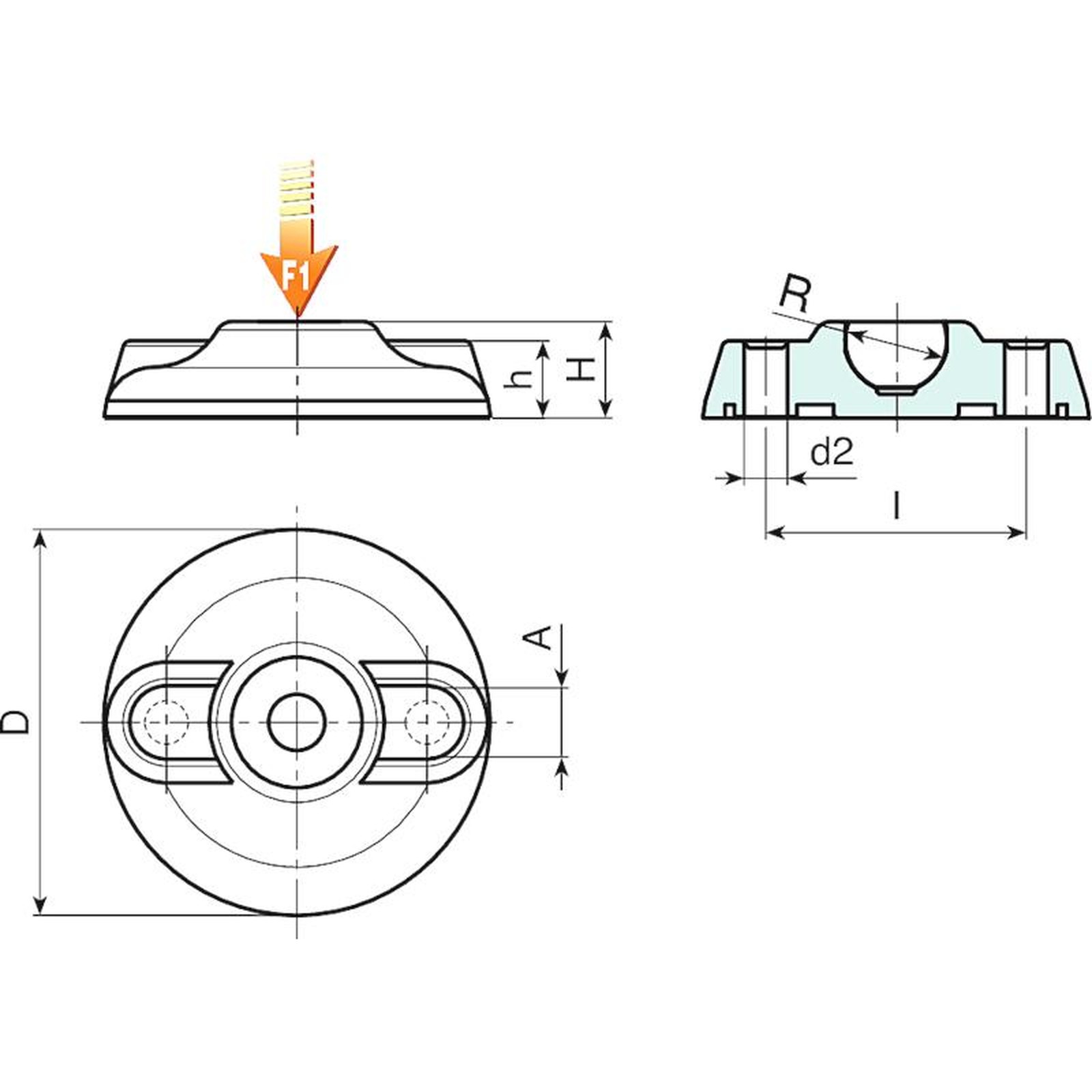

The mounting foot is supplied with closed holes for anchoring to the ground. To open them pierce the plastic membrane (see drawing).
Special requests:
PIE.80-105-130: Upon request and for special quantities the foot can be supplied in Orange (RAL 2004).
PIE.80-105-130ESD: None.
Standard version
| Code | Art. | D | H | R | Weight (g) | F1 (N) | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| PIE.080S12.4 | PIE.080S12.4 | 80 | 20 | 16 | 12,4 | 18,5 | 9 (M8) | 54 | 49 | 10 |
| PIE.080S15 | PIE.080S15 | 80 | 20 | 16 | 15 | 18,5 | 9 (M8) | 54 | 45 | 13 |
| PIE.080S24 | PIE.080S24 | 80 | 20 | 16 | 24 | 18,5 | 9 (M8) | 54 | 47,5 | 25 |
| PIE.105S15 | PIE.105S15 | 105 | 22 | 18 | 15 | 22 | 11 (M10) | 74 | 99 | 15 |
| PIE.105S24 | PIE.105S24 | 105 | 22 | 18 | 24 | 22 | 11 (M10) | 74 | 97 | 25 |
| PIE.130S15 | PIE.130S15 | 130 | 24 | 20 | 15 | 21 | 13 (M12) | 99 | 165 | 17 |
| PIE.130S24 | PIE.130S24 | 130 | 24 | 20 | 24 | 21 | 13 (M12) | 99 | 163 | 25 |
Version ESD
| Code | Art. | D | H | R | Weight (g) | F1 (N) | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| PIE.080S12.4ESD | PIE.080S12.4ESD | 80 | 20 | 16 | 12,4 | 18,5 | 9 (M8) | 54 | 49 | 10 |
| PIE.080S15ESD | PIE.080S15ESD | 80 | 20 | 16 | 15 | 18,5 | 9 (M8) | 54 | 45 | 13 |
| PIE.080S24ESD | PIE.080S24ESD | 80 | 20 | 16 | 24 | 18,5 | 9 (M8) | 54 | 47,5 | 25 |
| PIE.105S15ESD | PIE.105S15ESD | 105 | 22 | 18 | 15 | 22 | 11 (M10) | 74 | 99 | 15 |
| PIE.105S24ESD | PIE.105S24ESD | 105 | 22 | 18 | 24 | 22 | 11 (M10) | 74 | 97 | 25 |
| PIE.130S15ESD | PIE.130S15ESD | 130 | 24 | 20 | 15 | 21 | 13 (M12) | 99 | 165 | 17 |
| PIE.130S24ESD | PIE.130S24ESD | 130 | 24 | 20 | 24 | 21 | 13 (M12) | 99 | 163 | 25 |
