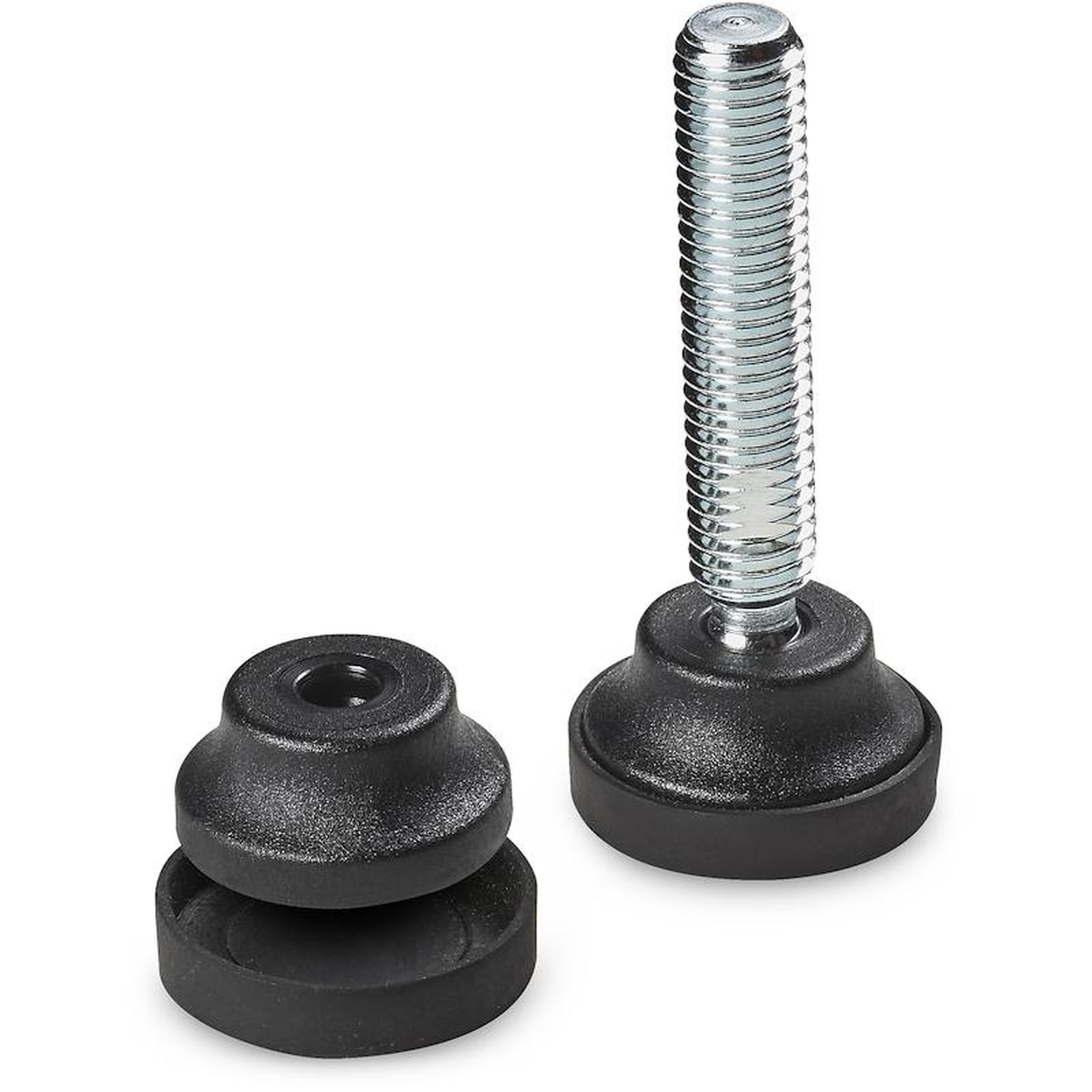

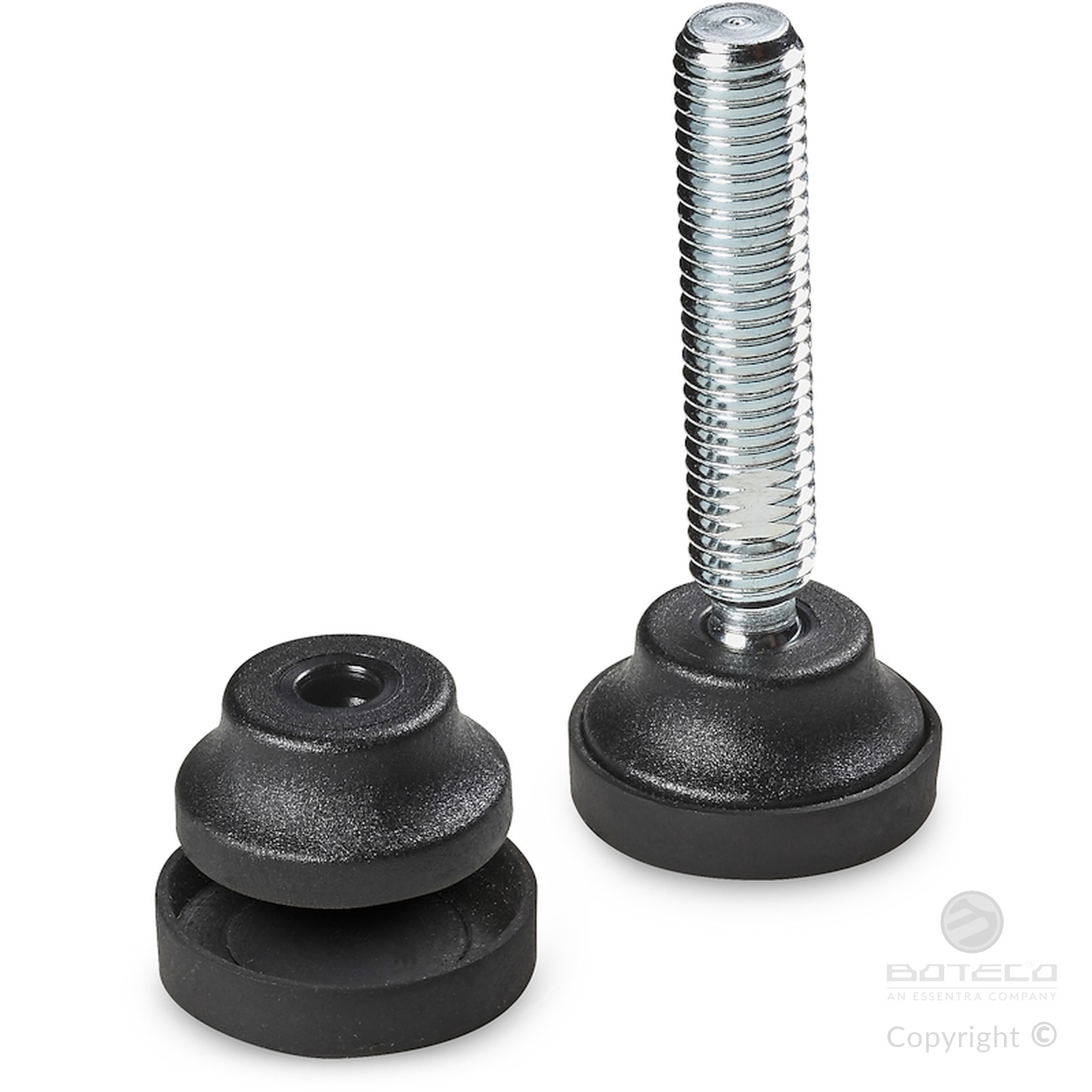

Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black(RAL 9011).
Inserts:
Galvanized steel threaded stem with ball joint (thread tolerance 6g), with milled seat for adjustment wrench.
Non-slip base:
Non-slip base in thermoplastic rubber SBS 75 Shore, only in black RAL 9011. Push-fit assembly.
Special requests:
Upon request and for special quantities inserts can be supplied with customised lengths.
Upon request and for special quantities inserts can be supplied in different materials.
Upon request and for special quantities the foot can be supplied in Orange (RAL 2004).
Note: La base del piedino P821 può essere usata in combinazione con altre impugnature di manovra per avere una superficie di chiusura o spinta maggiore.

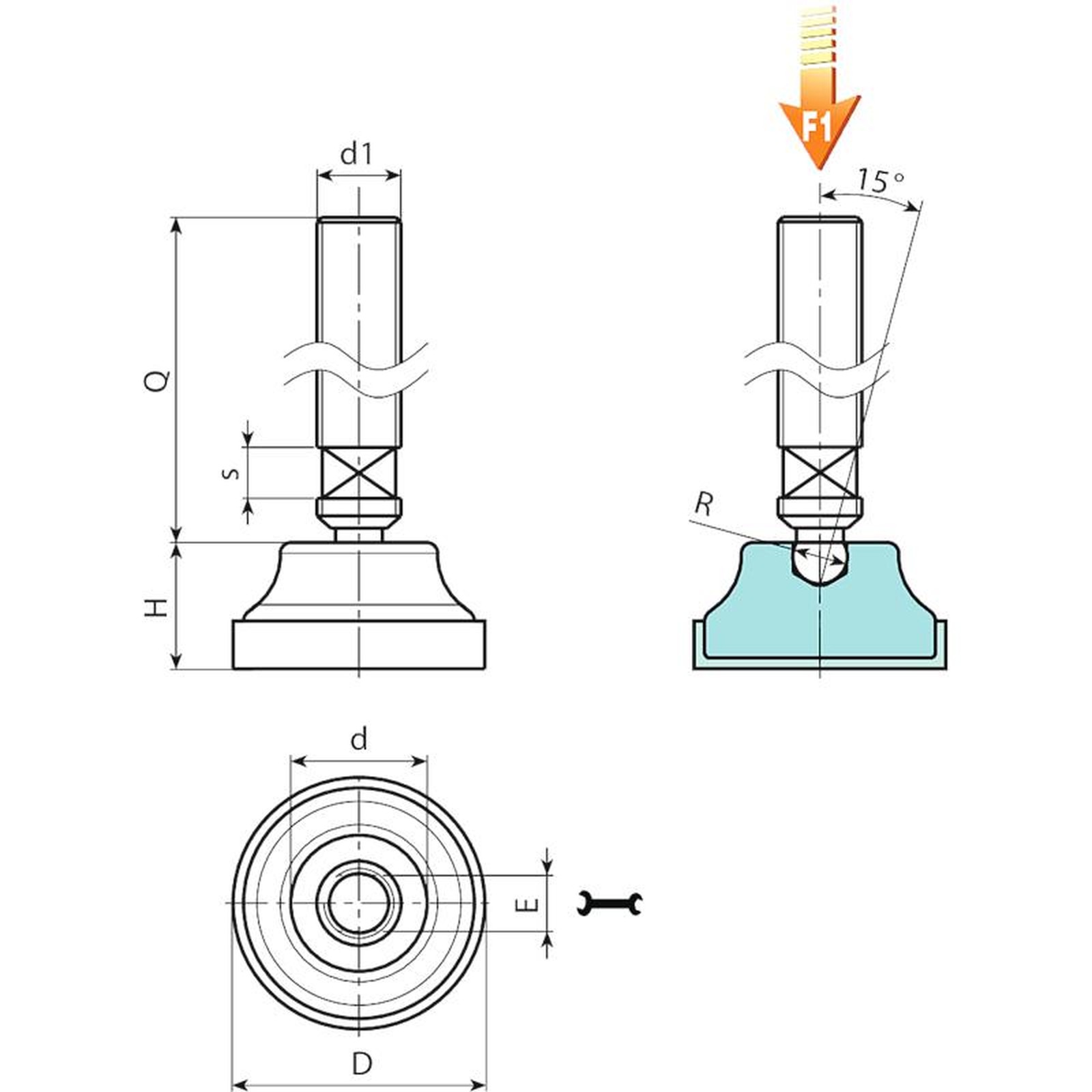

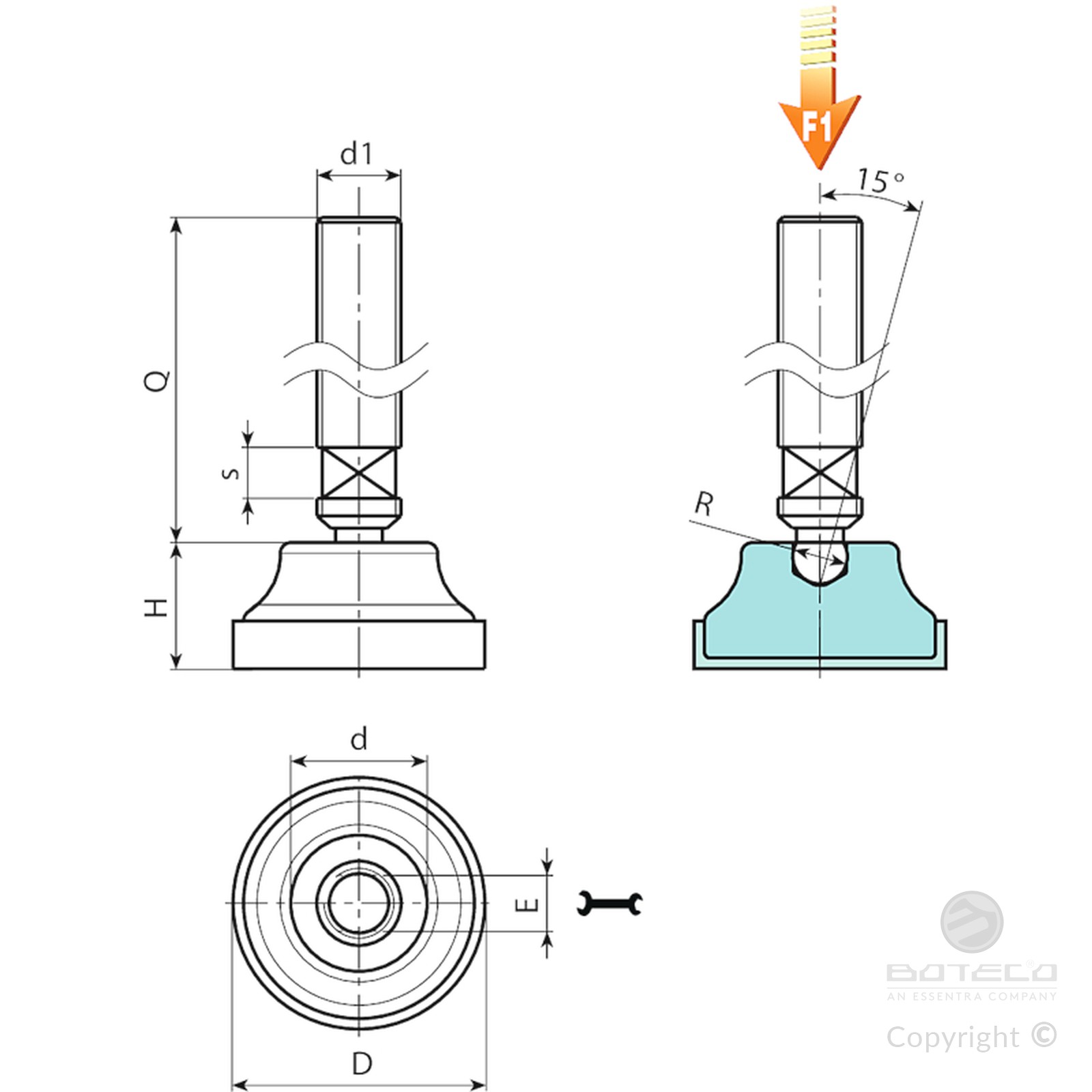

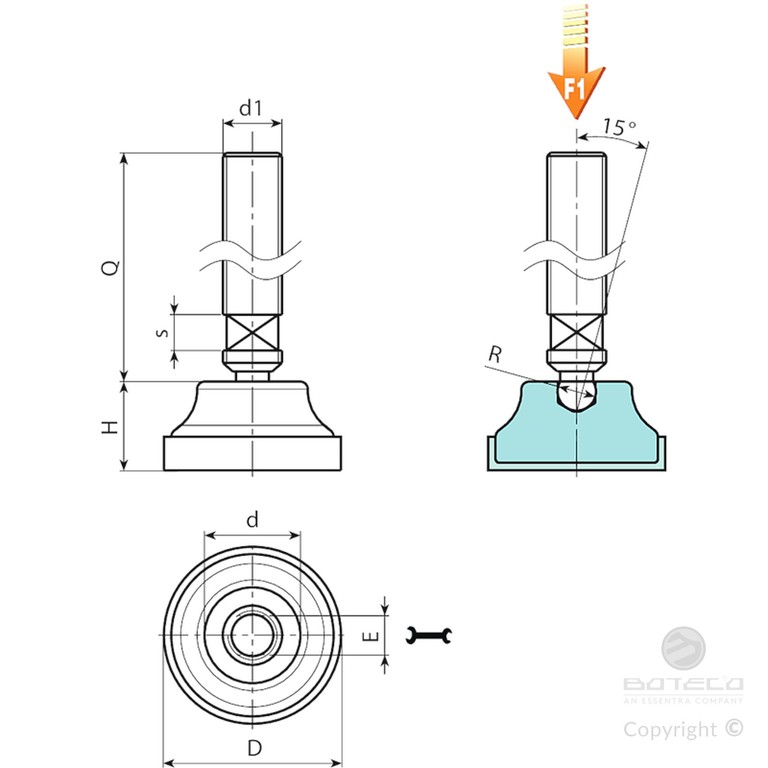

| Code | Art. | D | H | d | E | s | R | d1 6g | Q | Weight (g) | F1 (kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| P821019.0001 | P821019.TM08X5001 | 21 | 12 | 13 | 6 | 6 | 6.1 | M8 | 50 | 21 | 4 |
| P821019.0002 | P821019.TM08X9001 | 21 | 12 | 13 | 6 | 6 | 6.1 | M8 | 90 | 33 | 4 |
| P821022.0001 | P821022.TM08X5001 | 24 | 13 | 15 | 6 | 6 | 6.1 | M8 | 50 | 22 | 4 |
| P821022.0003 | P821022.TM08X9001 | 24 | 13 | 15 | 6 | 6 | 6.1 | M8 | 90 | 34 | 4 |
| P821022.0005 | P821022.TM10X5001 | 24 | 13 | 15 | 8 | 6 | 7.8 | M10 | 50 | 32 | 4 |
| P821022.0006 | P821022.TM10X9001 | 24 | 13 | 15 | 8 | 6 | 7.8 | M10 | 90 | 51 | 4 |
| P821026.0001 | P821026.TM08X5001 | 28 | 14.5 | 18 | 6 | 6 | 6.1 | M8 | 50 | 26 | 4 |
| P821026.0003 | P821026.TM08X9001 | 28 | 14.5 | 18 | 6 | 6 | 6.1 | M8 | 90 | 38 | 4 |
| P821026.0005 | P821026.TM10X5001 | 28 | 14.5 | 18 | 8 | 6 | 7.8 | M10 | 50 | 36 | 4 |
| P821026.0006 | P821026.TM10X9001 | 28 | 14.5 | 18 | 8 | 6 | 7.8 | M10 | 90 | 55 | 4 |
| P821026.0008 | P821026.TM12X5001 | 28 | 14.5 | 18 | 10 | 6 | 9.4 | M12 | 50 | 48 | 4 |
| P821026.0009 | P821026.TM12X9001 | 28 | 14.5 | 18 | 10 | 6 | 9.4 | M12 | 90 | 75 | 4 |
Attention: The expressed load limit F1 is lower than the break load by 30% and is intended as static.
Customised stud length available for a minimum of 150 pieces.
