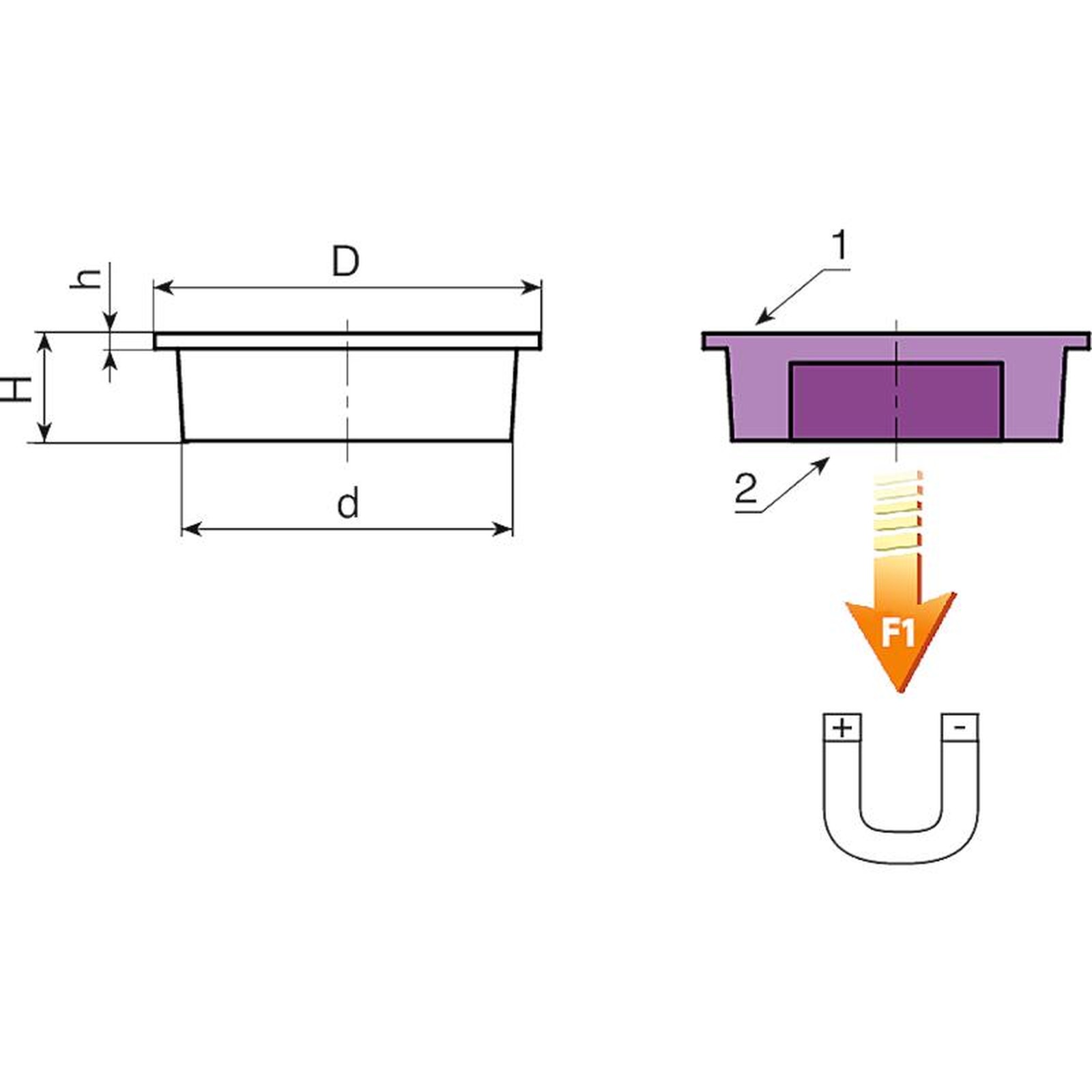

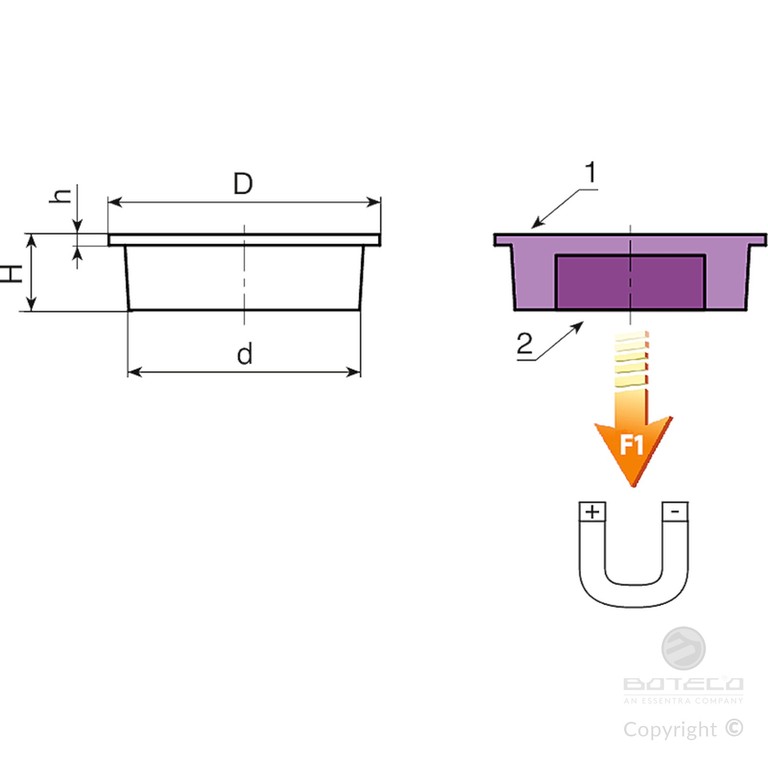

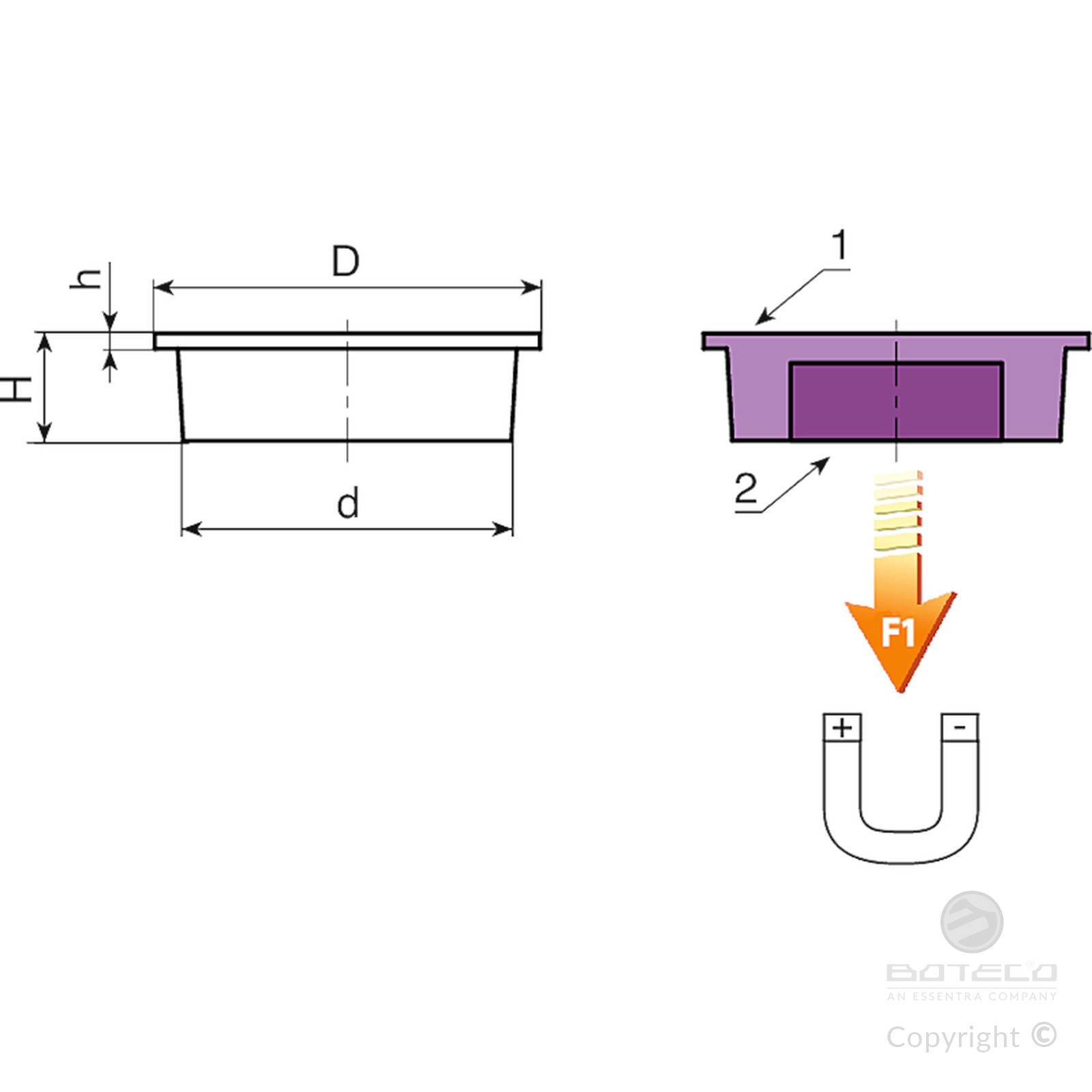

Materials:
(1) Polyamide-based plastic casing.
Resistant to oils and greases.
(2) Flat neodymium magnet (NdFeB).
Surface finish:
Smooth.

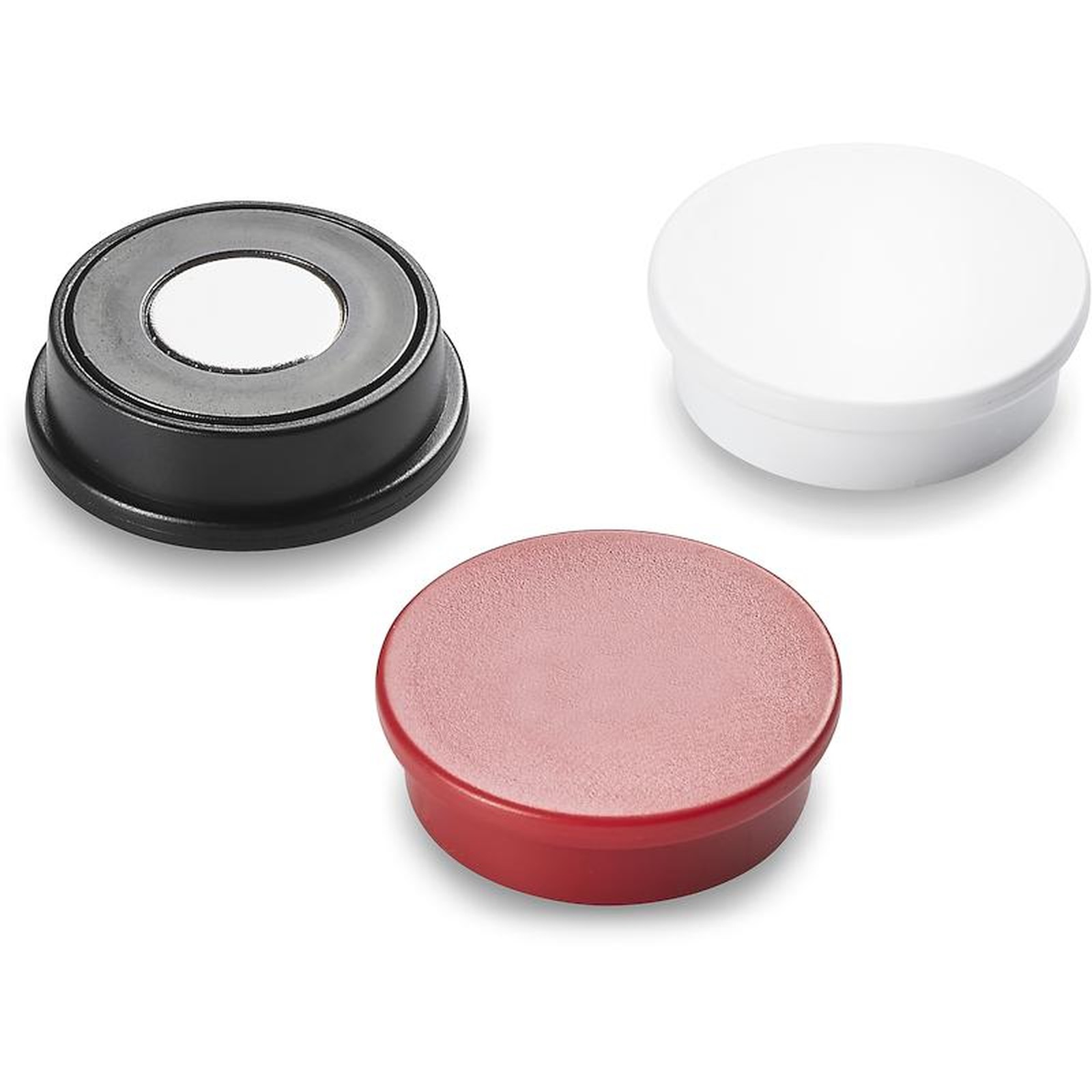

Colour:
Black(RAL 9011 code 01).
White(RAL 9004 code 04).
Red(RAL 9003 code 16).
Special requests:
Upon request and for special quantities a logo or symbol, either pad printed or as a resin badge, can be applied.

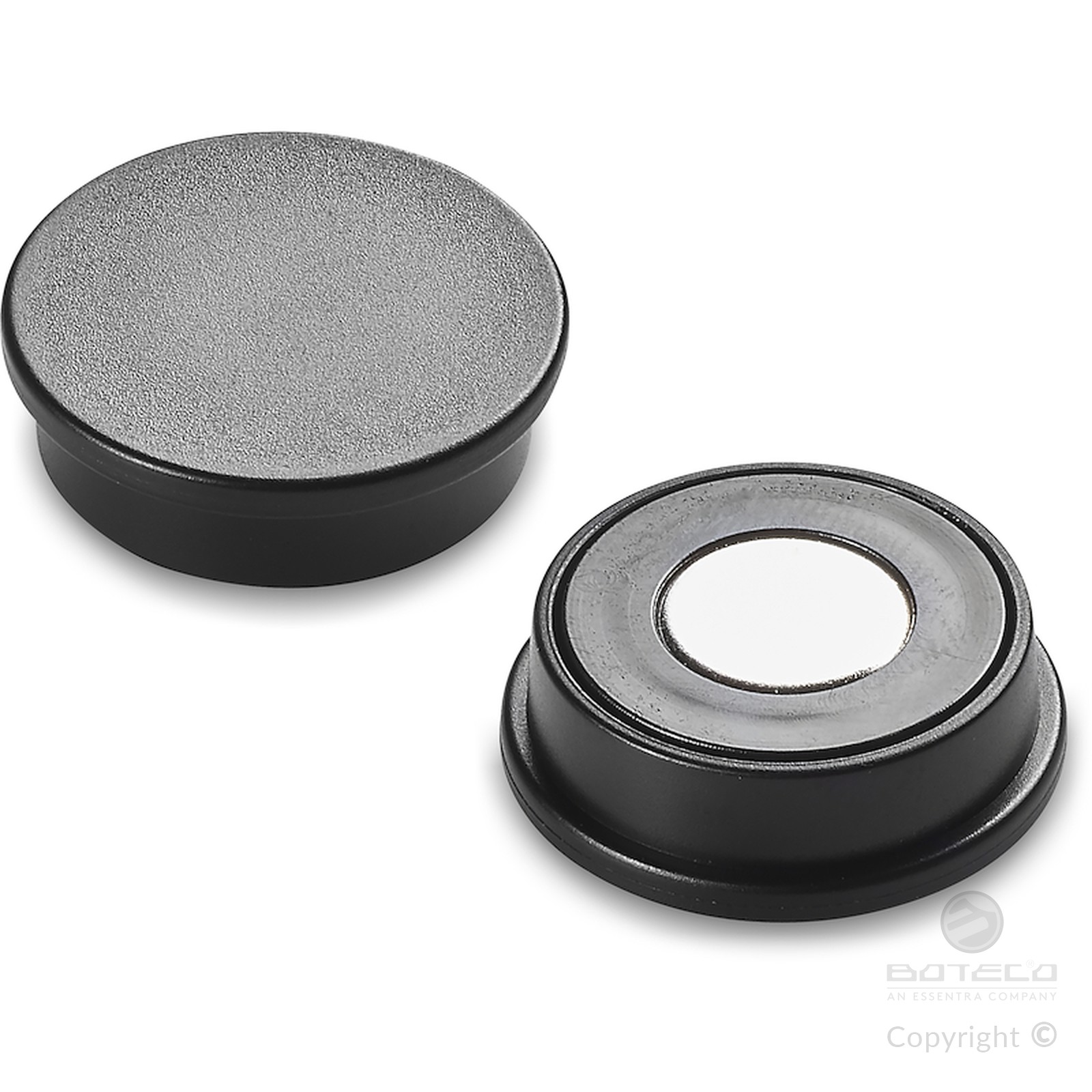

Black version (code 01)
| Code | art. | D | H | d | h | Weight (g) | F1 (N) |
|---|---|---|---|---|---|---|---|
| T405018.0001 | T405018.T01 | 18 | 8 | 14 | 2 | 3 | 10 |
| T405025.0001 | T405025.T01 | 25 | 8 | 22 | 2 | 5 | 14 |
| T405030.0001 | T405030.T01 | 30 | 7,5 | 28,5 | 2 | 8 | 27 |
| T405036.0001 | T405036.T01 | 36 | 8,5 | 32,5 | 2 | 9 | 35 |
| T405040.0001 | T405040.T01 | 40 | 7,8 | 36 | 2 | 10,5 | 35 |

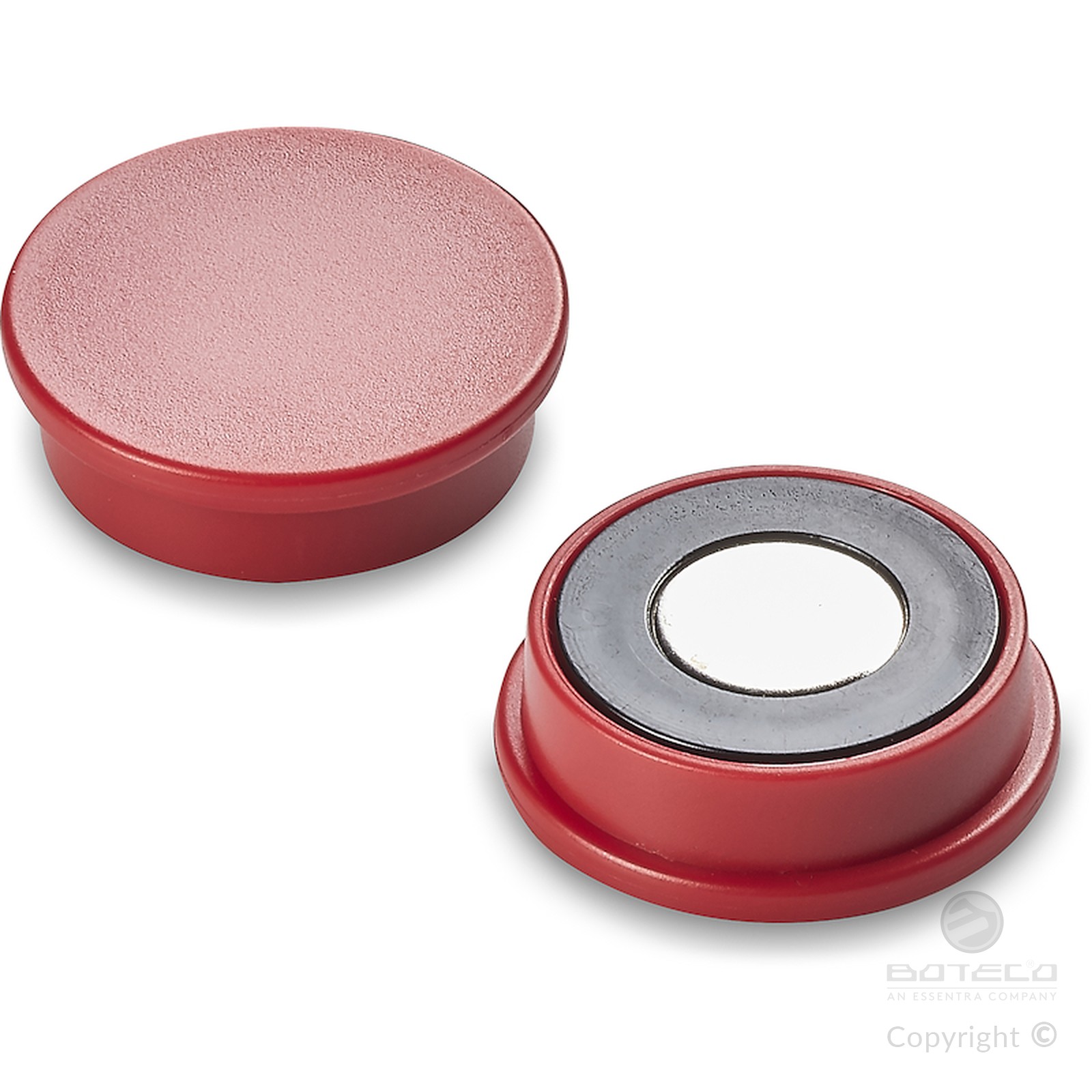

Red version (code 16)
| Code | art. | D | H | d | h | Weight (g) | F1 (N) |
|---|---|---|---|---|---|---|---|
| T405018.0003 | T405018.T16 | 18 | 8 | 14 | 2 | 3 | 10 |
| T405025.0003 | T405025.T16 | 25 | 8 | 22 | 2 | 5 | 14 |
| T405030.0003 | T405030.T16 | 30 | 7,5 | 28,5 | 2 | 8 | 27 |
| T405036.0003 | T405036.T16 | 36 | 8,5 | 32,5 | 2 | 9 | 35 |
| T405040.0003 | T405040.T16 | 40 | 7,8 | 36 | 2 | 10,5 | 35 |

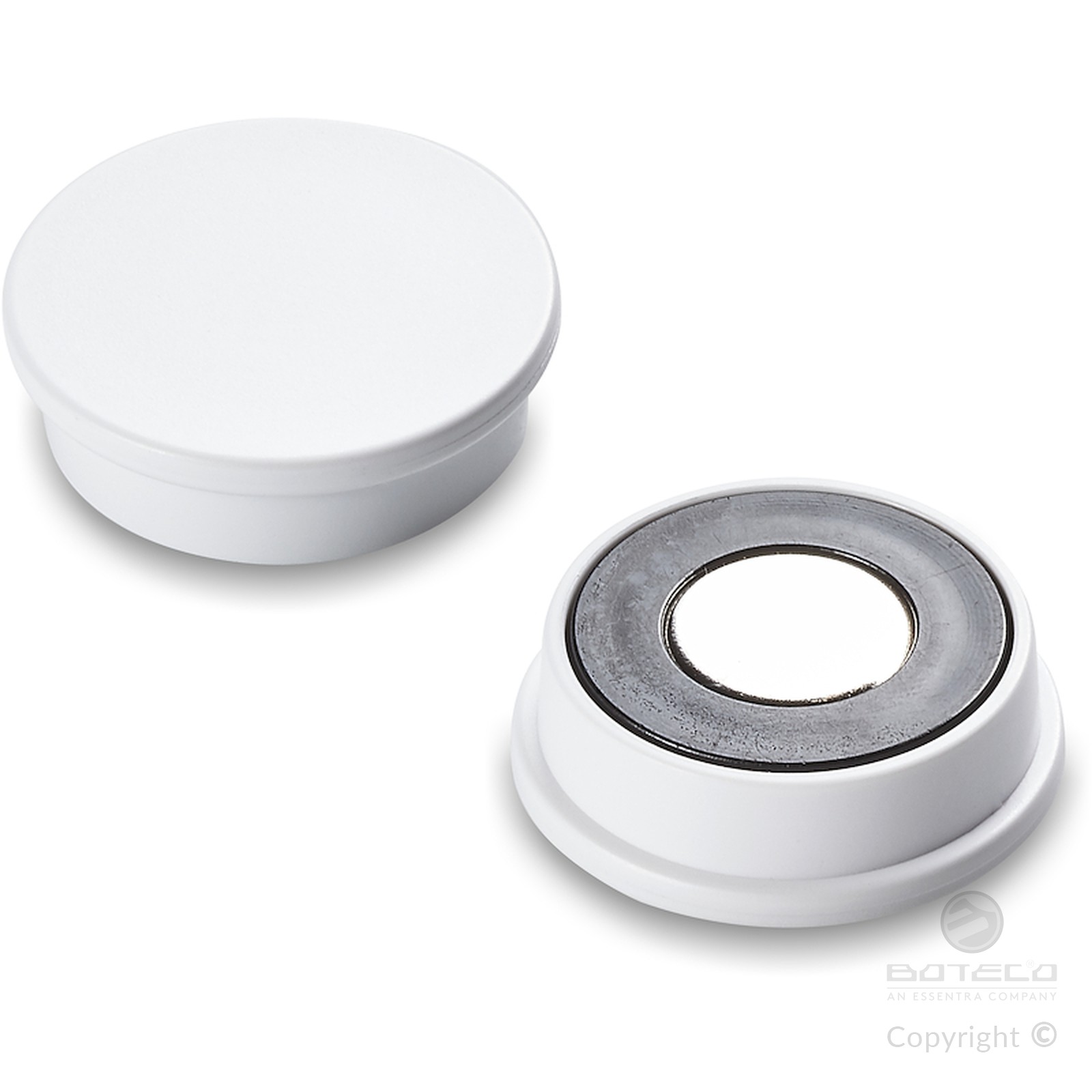

White version (code 04)
| Code | art. | D | H | d | h | Weight (g) | F1 (N) |
|---|---|---|---|---|---|---|---|
| T405018.0002 | T405018.T04 | 18 | 8 | 14 | 2 | 3 | 10 |
| T405025.0002 | T405025.T04 | 25 | 8 | 22 | 2 | 5 | 14 |
| T405030.0002 | T405030.T04 | 30 | 7,5 | 28,5 | 2 | 8 | 27 |
| T405036.0002 | T405036.T04 | 36 | 8,5 | 32,5 | 2 | 9 | 35 |
| T405040.0002 | T405040.T04 | 40 | 7,8 | 36 | 2 | 10,5 | 35 |
