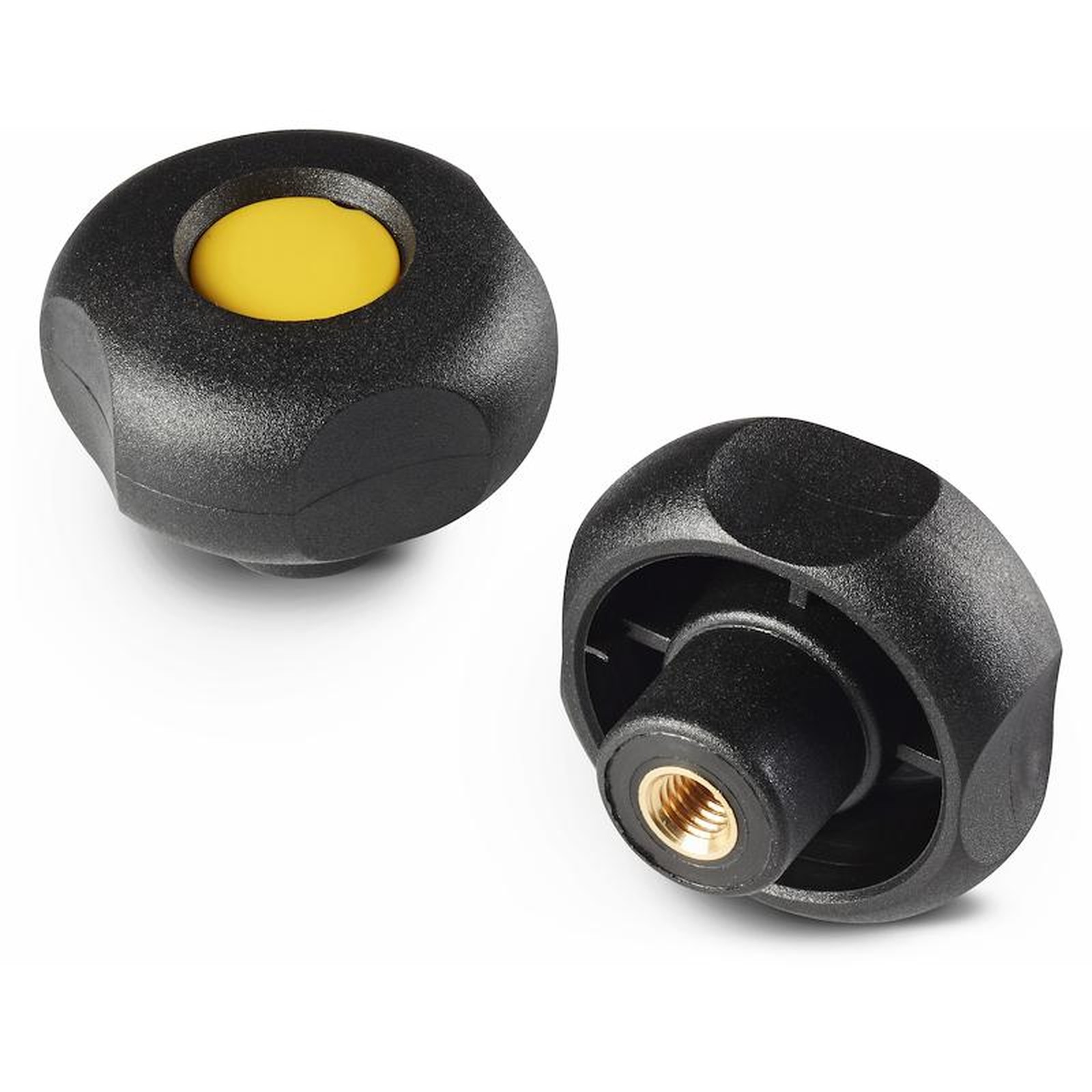

Materials:
Reinforced polyamide. Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black(RAL 9011).
Central cap:
Grey polyamide (RAL 7035). 13).
Alternative cap colours:
Orange(RAL 2004 code 02).
Blue(RAL 5015 code 07).
Yellow(RAL 1021 code 10).
Green(RAL 6024 code 17).
Red(RAL 3000 code 16).
Black(RAL 9011 code 01).
Inserts:
Brass insert with female threaded hole (thread tolerance 6H).
Special requests:
Upon request and for special quantities inserts can be supplied in different materials.
Upon request and for special quantities available in the colours indicated in the chart.

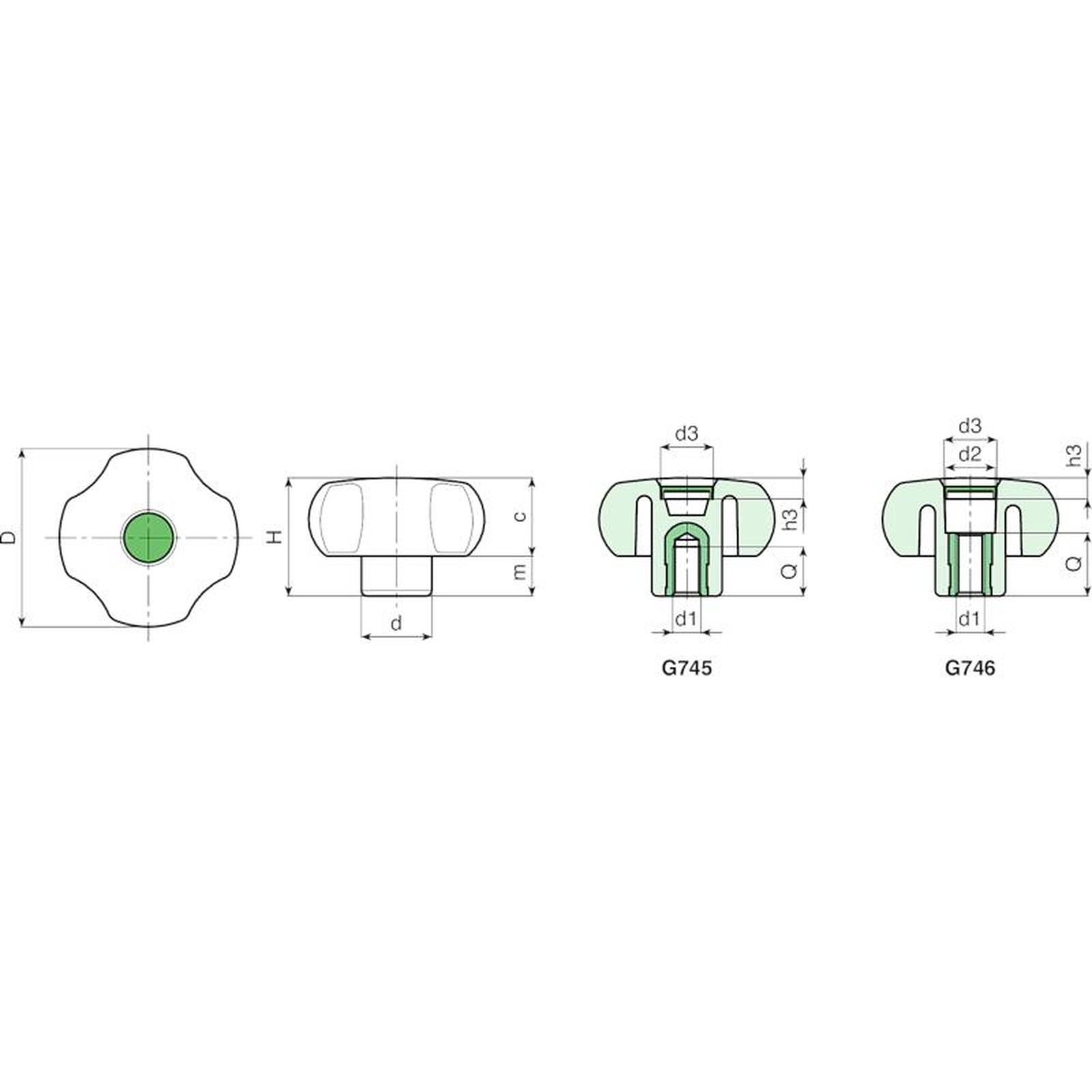

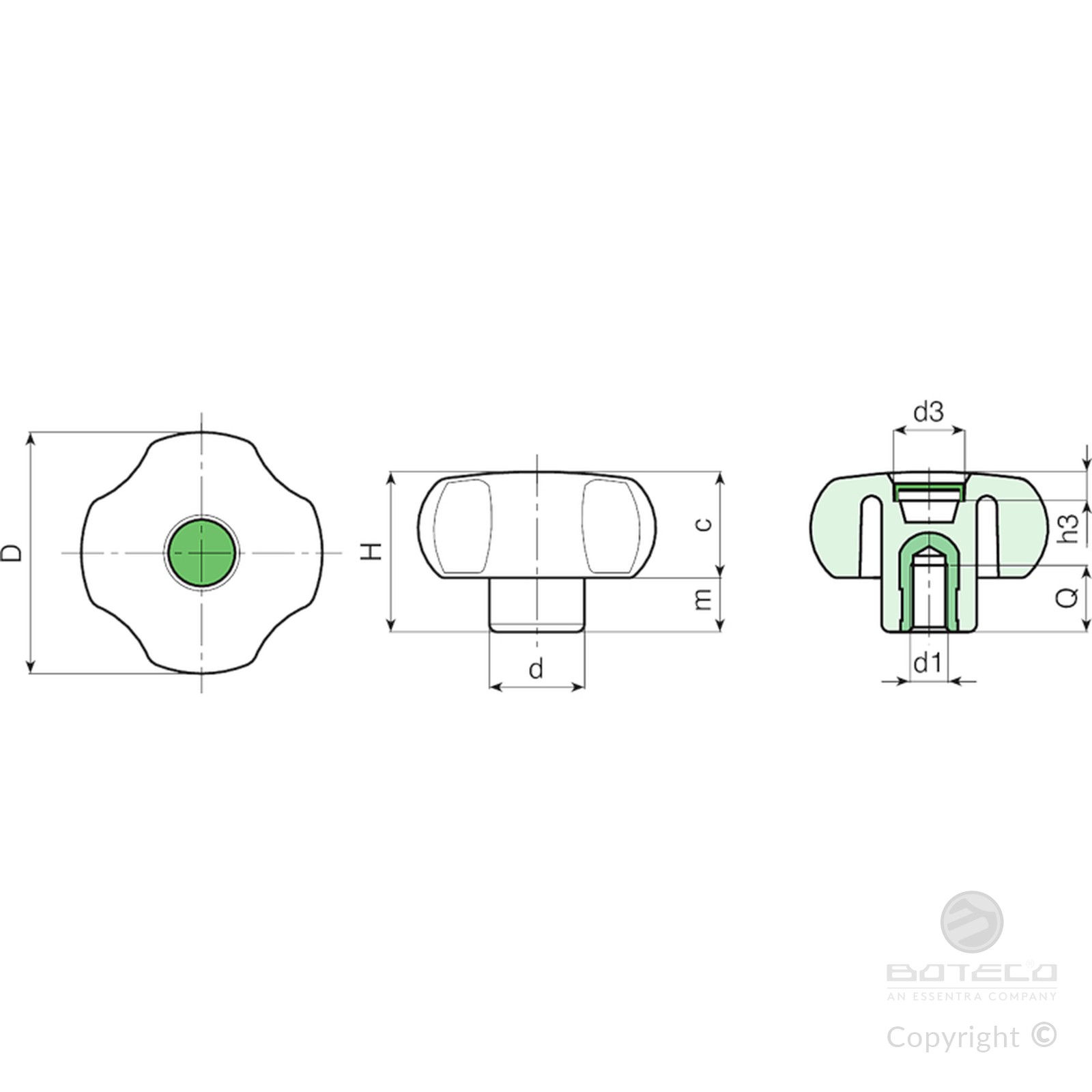

| Code | art. | D | H | d | c | m | d3 | h3 | d1 6H | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| G74540.0001 | G74540.TM0501 | 40.5 | 29.5 | 17 | 18.5 | 11 | 20 | 7.5 | M5 | 13 | 18 |
| G74540.0002 | G74540.TM0601 | 40.5 | 29.5 | 17 | 18.5 | 11 | 20 | 7.5 | M6 | 10 | 18 |
| G74540.0004 | G74540.TM0801 | 40.5 | 29.5 | 17 | 18.5 | 11 | 20 | 7.5 | M8 | 14 | 19 |
| G74540.0005 | G74540.TM1001 | 40.5 | 29.5 | 17 | 18.5 | 11 | 20 | 7.5 | M10 | 13 | 23 |
| G74540.0006 | G74540.TM1201 | 40.5 | 29.5 | 17 | 18.5 | 11 | 20 | 7.5 | M12 | 11 | 27 |
| G74550.0001 | G74550.TM0601 | 49 | 32 | 20.5 | 21.5 | 11 | 20 | 7.5 | M6 | 10 | 32 |
| G74550.0002 | G74550.TM0801 | 49 | 32 | 20.5 | 21.5 | 11 | 20 | 7.5 | M8 | 14 | 39 |
| G74550.0006 | G74550.TM1001 | 49 | 32 | 20.5 | 21.5 | 11 | 20 | 7.5 | M10 | 13 | 40 |
| G74550.0007 | G74550.TM1201 | 49 | 32 | 20.5 | 21.5 | 11 | 20 | 7.5 | M12 | 17 | 44 |
| G74560.0001 | G74560.TM0801 | 59 | 40 | 23 | 25 | 15 | 22 | 7.5 | M8 | 15 | 55 |
| G74560.0003 | G74560.TM1001 | 59 | 40 | 23 | 25 | 15 | 22 | 7.5 | M10 | 14 | 57 |
| G74560.0004 | G74560.TM1201 | 59 | 40 | 23 | 25 | 15 | 22 | 7.5 | M12 | 18 | 62 |
| G74560.0011 | G74560.TM1401 | 59 | 40 | 23 | 25 | 15 | 22 | 7.5 | M14 | 19 | 65 |
