02

B224

FIXED HANDLE WITH THROUGH HOLE

Lightweight handles

Materials:

Reinforced polyamide.

Resistant to oils and greases.

Surface finish:

Satin.

Colour:

Black:(RAL 9011 code 01).

Orange:(RAL 2004 code 02).

Red:(RAL 3000 code 16).

Hole:

Smooth through hole obtained by moulding the plastic.

Special requests:

Upon request and for special quantities available in the colours indicated in the chart.

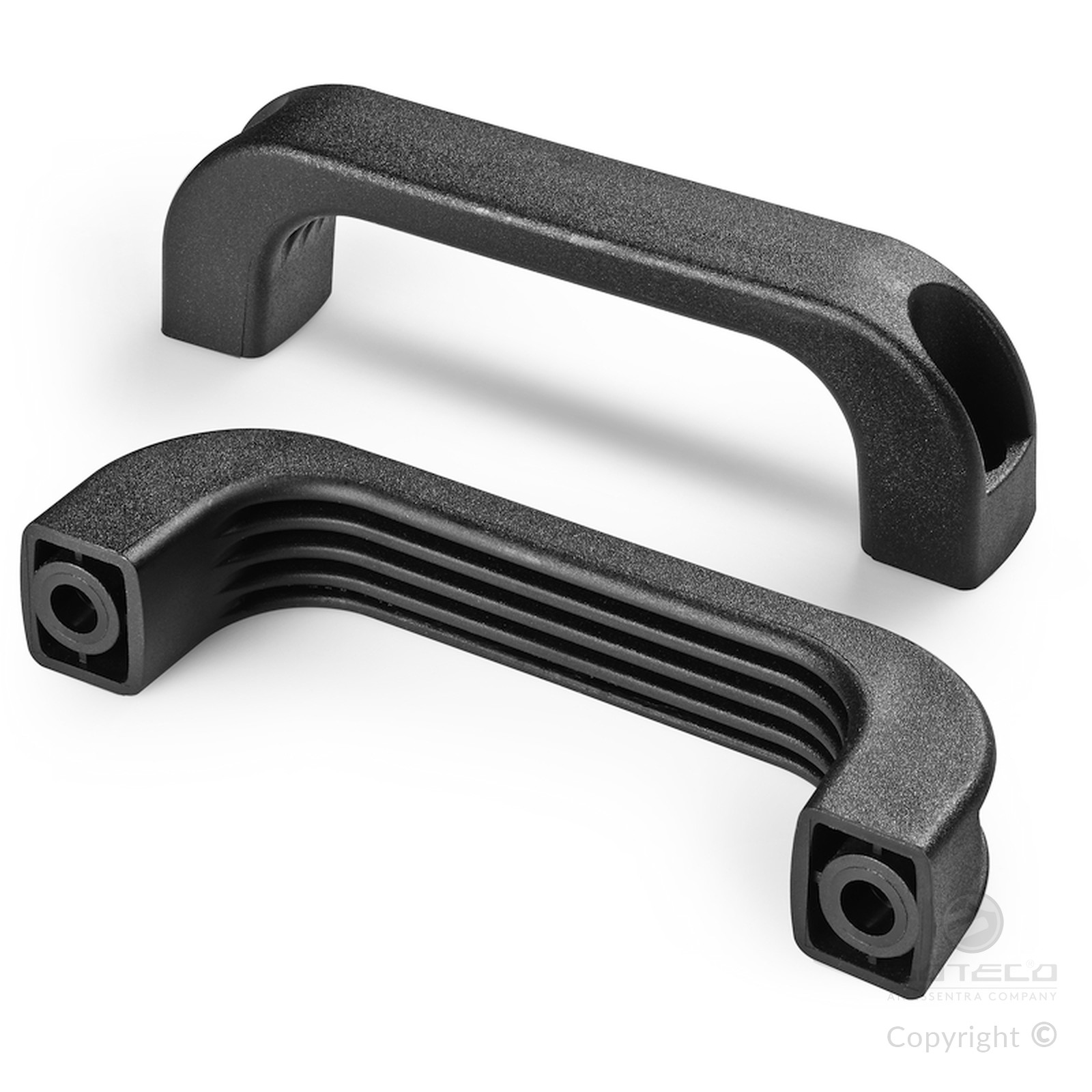

B224 - Black handle (RAL 9011 code 01)

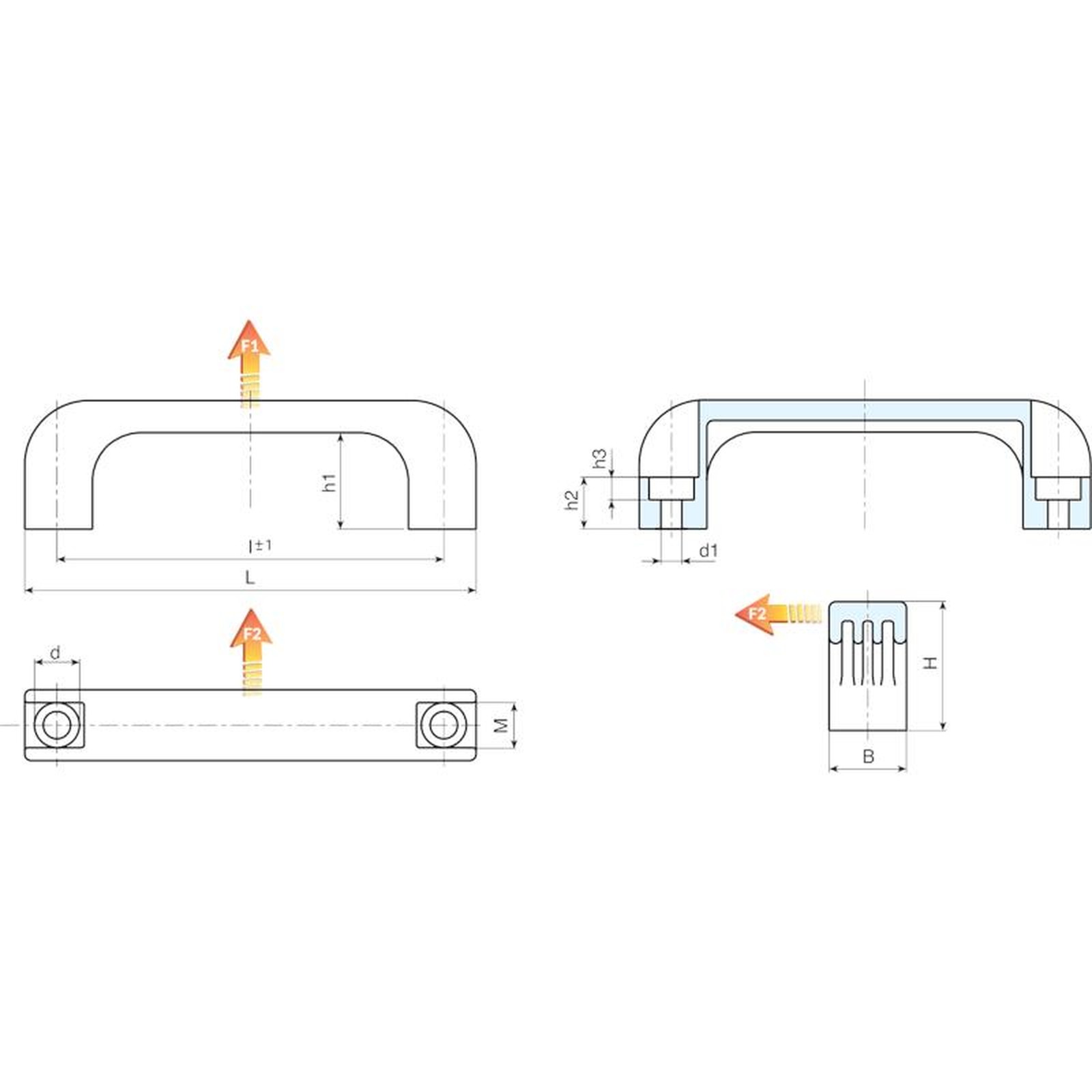

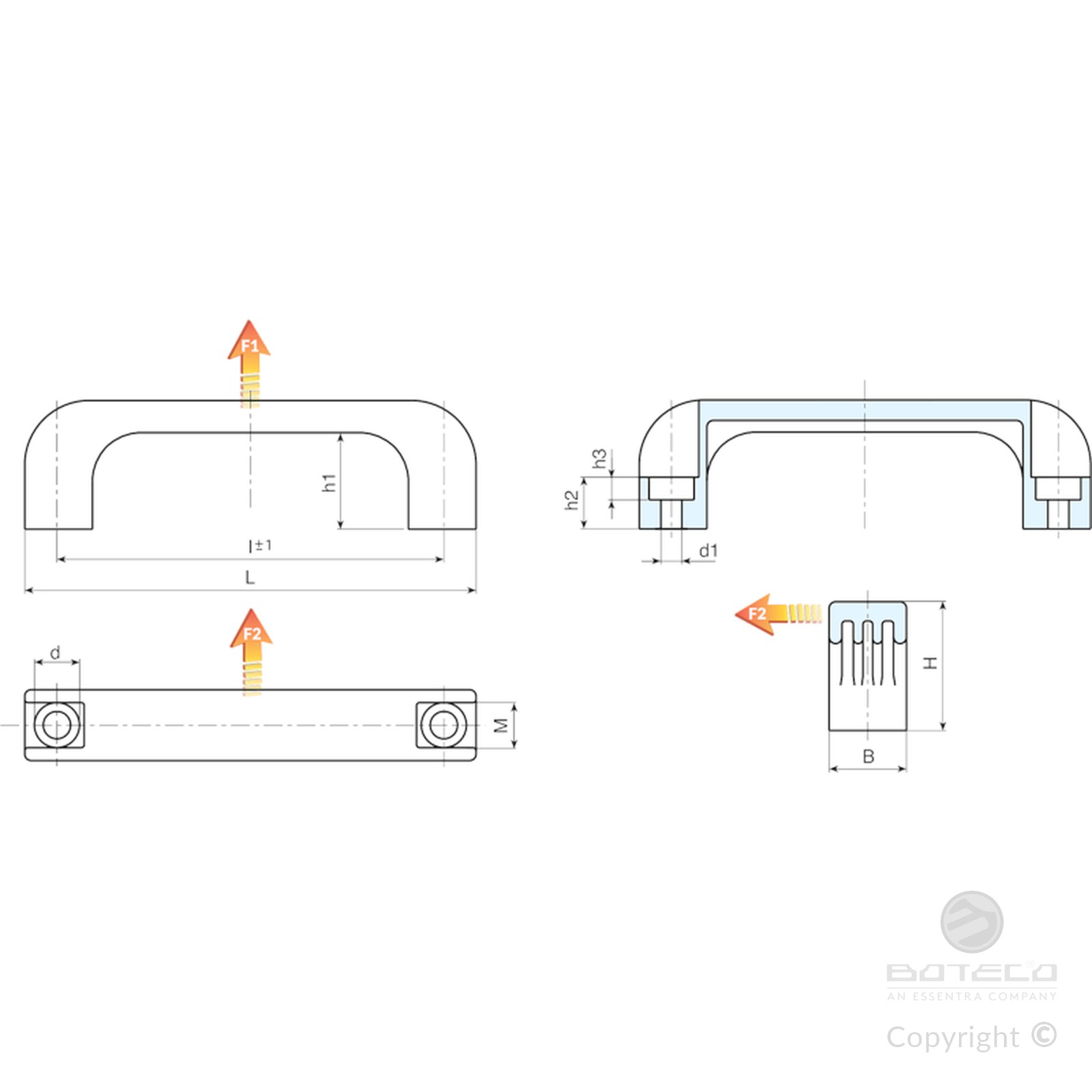

Code art. L I ±1 B M H h1 h2 h3 d d1 Weight (g) F1 (N) F2 (N)
B224094.0002B224094.TG6.501PP110942113372913710,56,52225001251
B224117.0003B224117.TG6.501PP1401172413,540,53015811,56,54344003000
B224117.0010B224117.TG8.501PP1401172413,540,530158,5138,53944003000
B224120.0003B224120.TG6.501PP1401202413,540,530158,51174248003200
B224120.0010B224120.TG8.501PP1401202413,540,530158,51393948003200
B224132.0002B224132.TG8.501PP1511322616,544,53216913,58,56334003200
B224180.0003B224180.TG8.501PP20118028,517,55038,5219148.57440003000
B224235.0002B224235.TG10.501PP2602353220,5544121111710.512338003000

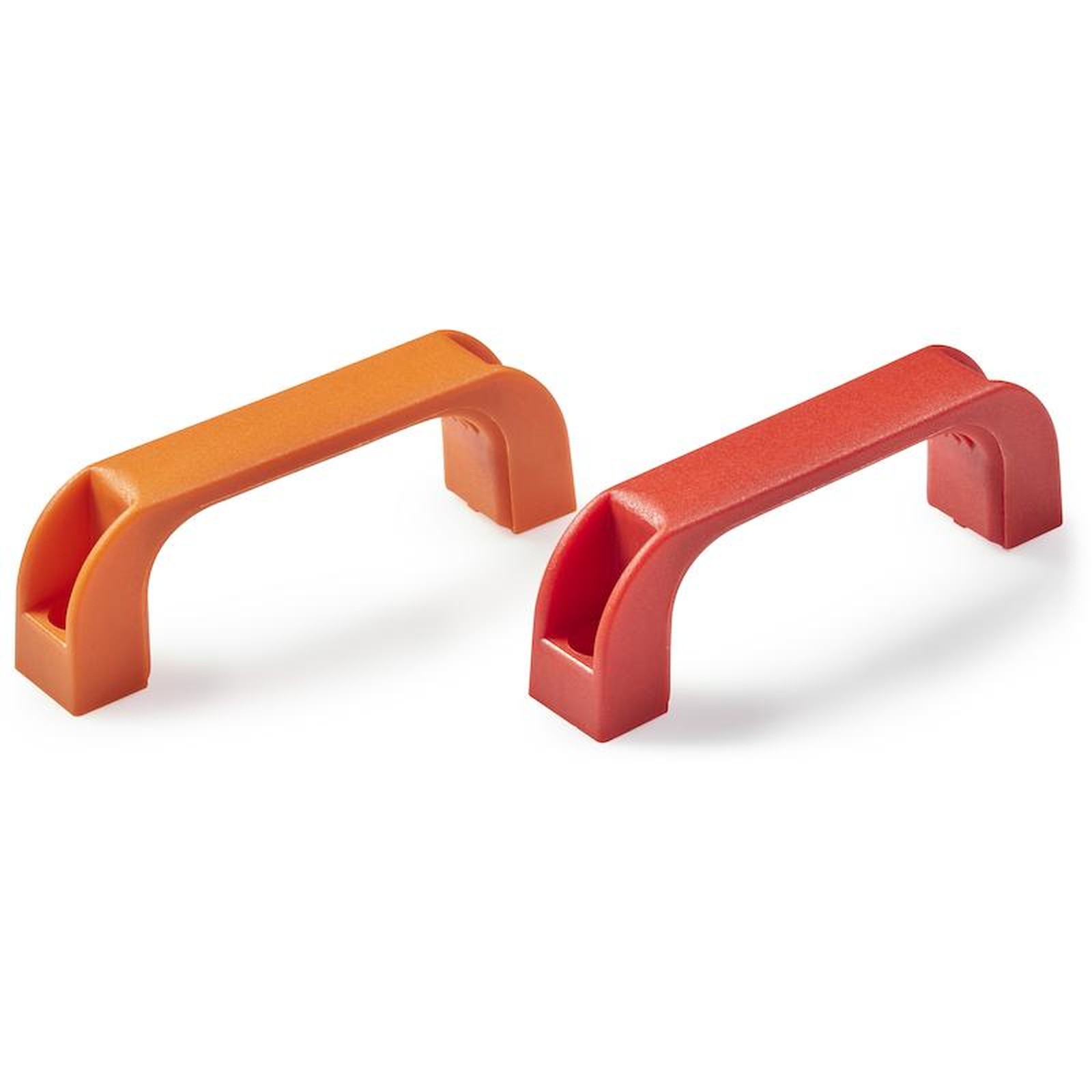

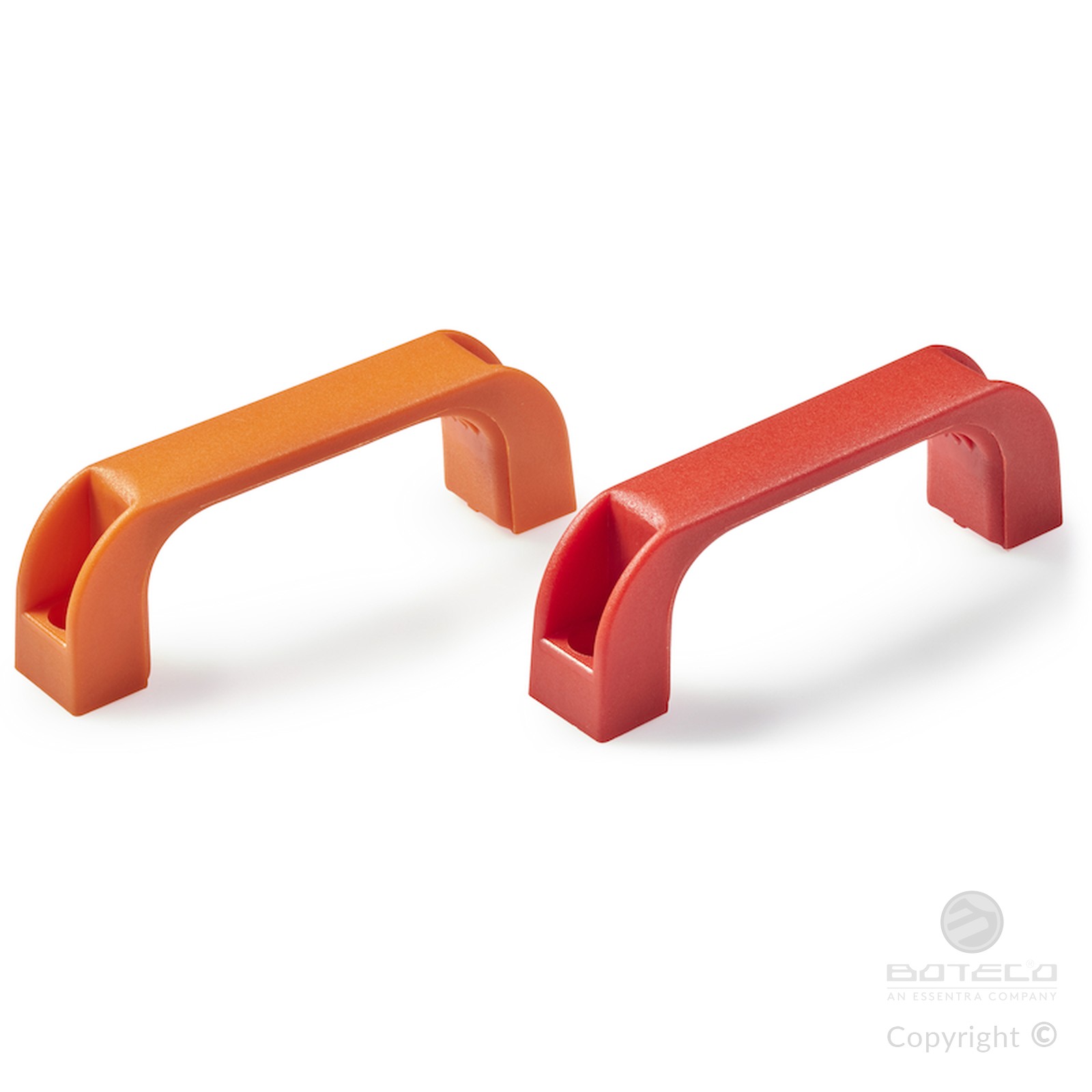

B224 - Orange handle (RAL2004 code 02)

Code art. L I ±1 B M H h1 h2 h3 d d1 Weight (g) F1 (N) F2 (N)
B224094.0004B224094.TG6.502PP110942113372913710,56,52225001250
B224117.0005B224117.TG6.502PP1401172413,540,53015811,56,54344003000
B224117.0016B224117.TG8.502PP1401172413,540,530158,5138,53944003000
B224120.0004B224120.TG6.502PP1401202413,540,530158,51174248003200
B224120.0011B224120.TG8.502PP1401202413,540,530158,51393948003200
B224132.0003B224132.TG8.502PP1511322616,544,53216913,58,56334003200
B224180.0004B224180.TG8.502PP20118028,517,55038,5219148,57440003000
B224235.0003B224235.TG10.502PP2602353220,5544121111710,512338003000

B224 - Red handle (RAL 3000 code 16)

Code art. L I ±1 B M H h1 h2 h3 d d1 Weight (g) F1 (N) F2 (N)
B224094.0005B224094.TG6.516PP110942113372913710,56,52225001250
B224117.0007B224117.TG6.516PP1401172413,540,53015811,56,54344003000
B224117.0020B224117.TG8.516PP1401172413,540,530158,5138,53944003000
B224120.0006B224120.TG6.516PP1401202413,540,530158,51174248003200
B224132.0006B224132.TG8.516PP1511322616,544,53216913,58,56334003200
B224180.0005B224180.TG8.516PP20118028,517,55038,5219148,57440003000
B224235.0005B224235.TG10.516PP2602353220,5544121111710,512338003000
