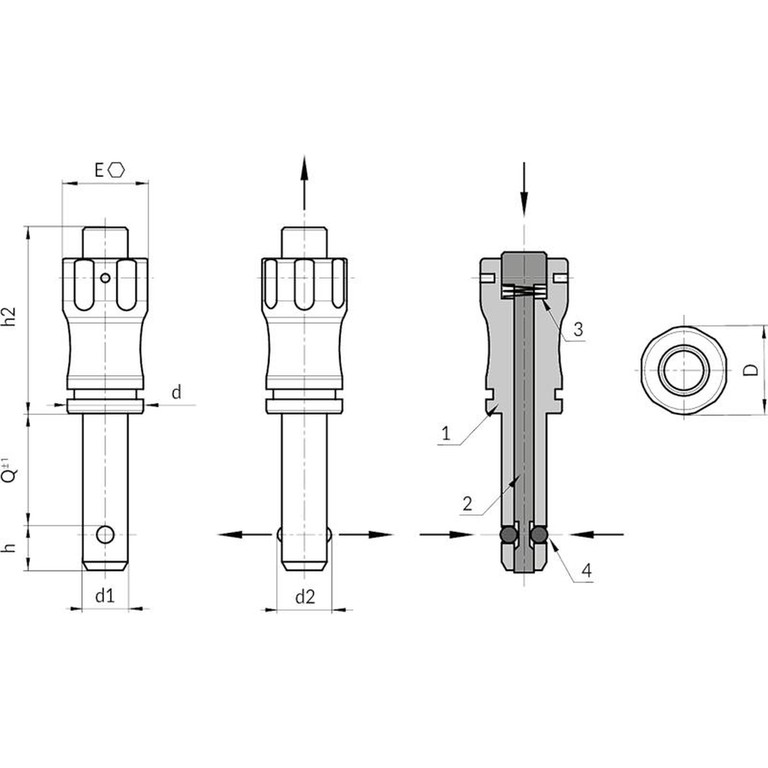

Materiais:
(1) Corpo torneado em aço inoxidável (Aisi 303).
(2) Perno torneado em aço inoxidável (Aisi 303).
(3) Mola em aço inoxidável (Aisi 301).
(4) Esferas em aço inoxidável temperado (Aisi 440C).
Superfície:
Natural.
Cor:
Natural.
ATENÇÃO:
> Recomendamos a realização do furo de alojamento da haste do êmbolo de indexação com tolerância H11.
Notas:
O perno de fixação rápida serve para ligar de modo simples e rápido componentes ou peças a trabalhar.
Pedidos especiais:
Nenhum.
Versão W634CIN: sem anel
| Código | Art. | D | d | d2 | E | h | h2 | d1 H9 | Q (+0.6) | Peso (g) | Esforço de corte por duplo corte máx. kN. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| W634011.0001 | W634011.HD05X10CIN | 11.5 | 10 | 5.5 | 11 | 5.9 | 25 | 5 | 10 | 12 | 15 |
| W634011.0002 | W634011.HD05X15CIN | 11.5 | 10 | 5.5 | 11 | 5.9 | 25 | 5 | 15 | 12 | 15 |
| W634011.0003 | W634011.HD05X20CIN | 11.5 | 10 | 5.5 | 11 | 5.9 | 25 | 5 | 20 | 13 | 15 |
| W634011.0004 | W634011.HD05X25CIN | 11.5 | 10 | 5.5 | 11 | 5.9 | 25 | 5 | 25 | 16 | 15 |
| W634011.0005 | W634011.HD05X30CIN | 11.5 | 10 | 5.5 | 11 | 5.9 | 25 | 5 | 30 | 19 | 15 |
| W634011.0006 | W634011.HD06X10CIN | 11.5 | 10 | 6.85 | 11 | 6.8 | 25 | 6 | 10 | 13 | 22 |
| W634011.0007 | W634011.HD06X15CIN | 11.5 | 10 | 6.85 | 11 | 6.8 | 25 | 6 | 15 | 13 | 22 |
| W634011.0008 | W634011.HD06X20CIN | 11.5 | 10 | 6.85 | 11 | 6.8 | 25 | 6 | 20 | 13.5 | 22 |
| W634011.0009 | W634011.HD06X25CIN | 11.5 | 10 | 6.85 | 11 | 6.8 | 25 | 6 | 25 | 14 | 22 |
| W634011.0010 | W634011.HD06X30CIN | 11.5 | 10 | 6.85 | 11 | 6.8 | 25 | 6 | 30 | 14.5 | 22 |
| W634011.0011 | W634011.HD06X35CIN | 11.5 | 10 | 6.85 | 11 | 6.8 | 25 | 6 | 35 | 17.5 | 22 |
| W634011.0012 | W634011.HD06X40CIN | 11.5 | 10 | 6.85 | 11 | 6.8 | 25 | 6 | 40 | 21 | 22 |
| W634011.0013 | W634011.HD06X45CIN | 11.5 | 10 | 6.85 | 11 | 6.8 | 25 | 6 | 45 | 23 | 22 |
| W634011.0014 | W634011.HD06X50CIN | 11.5 | 10 | 6.85 | 11 | 6.8 | 25 | 6 | 50 | 26 | 22 |
| W634015.0001 | W634015.HD08X20CIN | 15.5 | 13.5 | 9.5 | 15 | 7.8 | 33 | 8 | 20 | 26 | 38 |
| W634015.0002 | W634015.HD08X25CIN | 15.5 | 13.5 | 9.5 | 15 | 7.8 | 33 | 8 | 25 | 27 | 38 |
| W634015.0003 | W634015.HD08X30CIN | 15.5 | 13.5 | 9.5 | 15 | 7.8 | 33 | 8 | 30 | 27.5 | 38 |
| W634015.0004 | W634015.HD08X35CIN | 15.5 | 13.5 | 9.5 | 15 | 7.8 | 33 | 8 | 35 | 28 | 38 |
| W634015.0005 | W634015.HD08X40CIN | 15.5 | 13.5 | 9.5 | 15 | 7.8 | 33 | 8 | 40 | 28.5 | 38 |
| W634015.0006 | W634015.HD08X45CIN | 15.5 | 13.5 | 9.5 | 15 | 7.8 | 33 | 8 | 45 | 28.5 | 38 |
| W634015.0007 | W634015.HD08X50CIN | 15.5 | 13.5 | 9.5 | 15 | 7.8 | 33 | 8 | 50 | 30 | 38 |
| W634015.0008 | W634015.HD10X20CIN | 15.5 | 13.5 | 12 | 15 | 8.9 | 33 | 10 | 20 | 27.5 | 60 |
| W634015.0009 | W634015.HD10X25CIN | 15.5 | 13.5 | 12 | 15 | 8.9 | 33 | 10 | 25 | 28 | 60 |
| W634015.0010 | W634015.HD10X30CIN | 15.5 | 13.5 | 12 | 15 | 8.9 | 33 | 10 | 30 | 28.5 | 60 |
| W634015.0011 | W634015.HD10X35CIN | 15.5 | 13.5 | 12 | 15 | 8.9 | 33 | 10 | 35 | 29 | 60 |
| W634015.0012 | W634015.HD10X40CIN | 15.5 | 13.5 | 12 | 15 | 8.9 | 33 | 10 | 40 | 29.5 | 60 |
| W634015.0013 | W634015.HD10X45CIN | 15.5 | 13.5 | 12 | 15 | 8.9 | 33 | 10 | 45 | 30 | 60 |
| W634015.0014 | W634015.HD10X50CIN | 15.5 | 13.5 | 12 | 15 | 8.9 | 33 | 10 | 50 | 30.5 | 60 |
| W634015.0015 | W634015.HD10X60CIN | 15.5 | 13.5 | 12 | 15 | 8.9 | 33 | 10 | 60 | 31.5 | 60 |
| W634022.0001 | W634022.HD12X25CIN | 22 | 20 | 14.5 | 21 | 9.9 | 39.5 | 12 | 25 | 62.5 | 86 |
| W634022.0002 | W634022.HD12X30CIN | 22 | 20 | 14.5 | 21 | 9.9 | 39.5 | 12 | 30 | 63.5 | 86 |
| W634022.0003 | W634022.HD12X35CIN | 22 | 20 | 14.5 | 21 | 9.9 | 39.5 | 12 | 35 | 64.5 | 86 |
| W634022.0004 | W634022.HD12X40CIN | 22 | 20 | 14.5 | 21 | 9.9 | 39.5 | 12 | 40 | 65.5 | 86 |
| W634022.0005 | W634022.HD12X45CIN | 22 | 20 | 14.5 | 21 | 9.9 | 39.5 | 12 | 45 | 66 | 86 |
| W634022.0006 | W634022.HD12X50CIN | 22 | 20 | 14.5 | 21 | 9.9 | 39.5 | 12 | 50 | 75.5 | 86 |
| W634022.0007 | W634022.HD12X60CIN | 22 | 20 | 14.5 | 21 | 9.9 | 39.5 | 12 | 60 | 77.5 | 86 |
| W634022.0008 | W634022.HD12X70CIN | 22 | 20 | 14.5 | 21 | 9.9 | 39.5 | 12 | 70 | 79 | 86 |
| W634022.0009 | W634022.HD12X80CIN | 22 | 20 | 14.5 | 21 | 9.9 | 39.5 | 12 | 80 | 81 | 86 |
| W634022.0010 | W634022.HD16X30CIN | 22 | 20 | 19 | 21 | 13.1 | 39.5 | 16 | 30 | 74 | 153 |
| W634022.0011 | W634022.HD16X35CIN | 22 | 20 | 19 | 21 | 13.1 | 39.5 | 16 | 35 | 75 | 153 |
| W634022.0012 | W634022.HD16X40CIN | 22 | 20 | 19 | 21 | 13.1 | 39.5 | 16 | 40 | 76 | 153 |
| W634022.0013 | W634022.HD16X45CIN | 22 | 20 | 19 | 21 | 13.1 | 39.5 | 16 | 45 | 77 | 153 |
| W634022.0014 | W634022.HD16X50CIN | 22 | 20 | 19 | 21 | 13.1 | 39.5 | 16 | 50 | 78 | 153 |
| W634022.0015 | W634022.HD16X60CIN | 22 | 20 | 19 | 21 | 13.1 | 39.5 | 16 | 60 | 80.5 | 153 |
| W634022.0016 | W634022.HD16X70CIN | 22 | 20 | 19 | 21 | 13.1 | 39.5 | 16 | 70 | 83 | 153 |
| W634022.0017 | W634022.HD16X80CIN | 22 | 20 | 19 | 21 | 13.1 | 39.5 | 16 | 80 | 85 | 153 |
