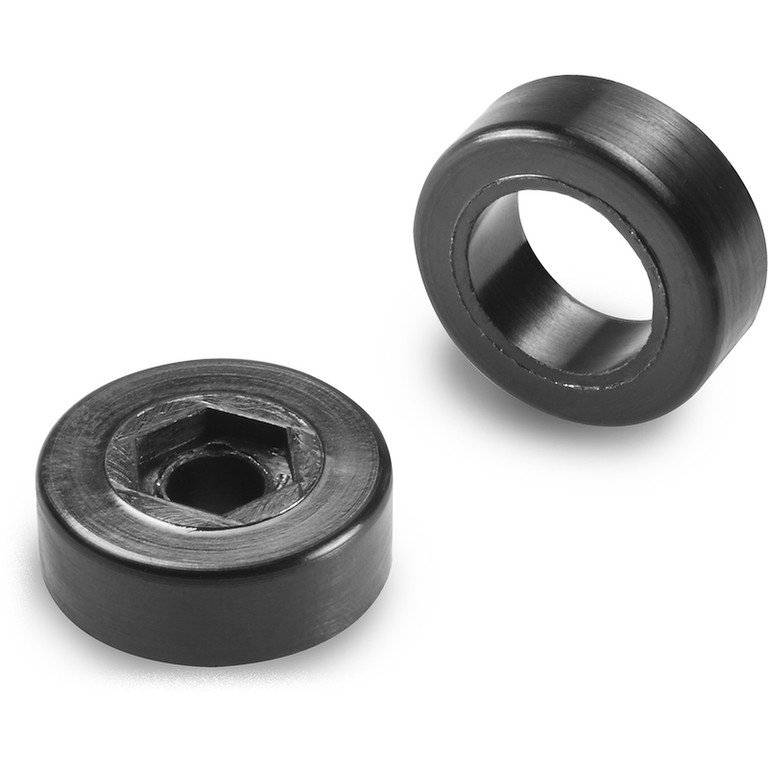

PAR DE ANILHAS ISOLANTES

19

S230


Rondelle isolanti

Materiais:

Resina fenólica.

Resistente a óleos e massas lubrificantes.

Resistente a altas temperaturas.

Superfície:

Brilhante.

Cor:

Preto (RAL 9011).

Furo:

Furo liso passante obtido por moldagem no plástico.

Pedidos especiais:

Nenhum.

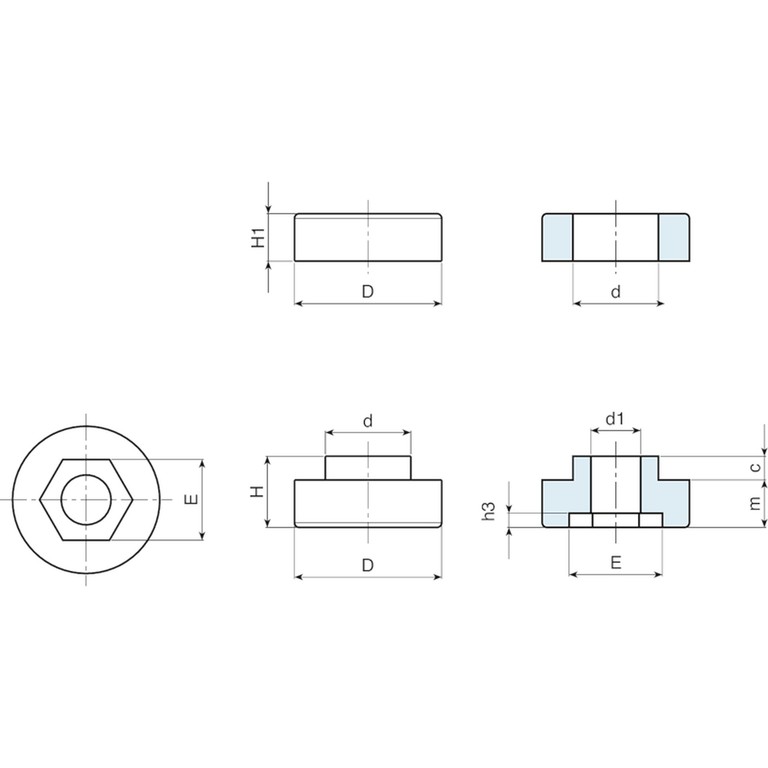

Ficha de dados
Código art. D d H H1 c m E h3 d1 Peso (g)
S23020C.0001 S23020C.BG06 20 11 12 5 4 8 10 3 6,5 8
S23031C.0001 S23031C.BG08 31 18 15 10,5 4,5 10,5 13 3 9 22
S23031C.BG10 S23031C.BG10 31 18 15 10 5 10 17 3 10,5 18
S23031C.0003 S23031C.BG12 31 18 15 10,5 4,5 10,5 19 3 13,5 15
S23038C.0001 S23038C.BG14 35 22 18 10 5 12 22 5 14,5 24
