W695CIN
UCHWYT Z TRZPIENIEM DO SZYBKIEGO MOCOWANIA Z INTEGRALNEJ STALI INOX
Pozycjonery z kulką i sprężyną

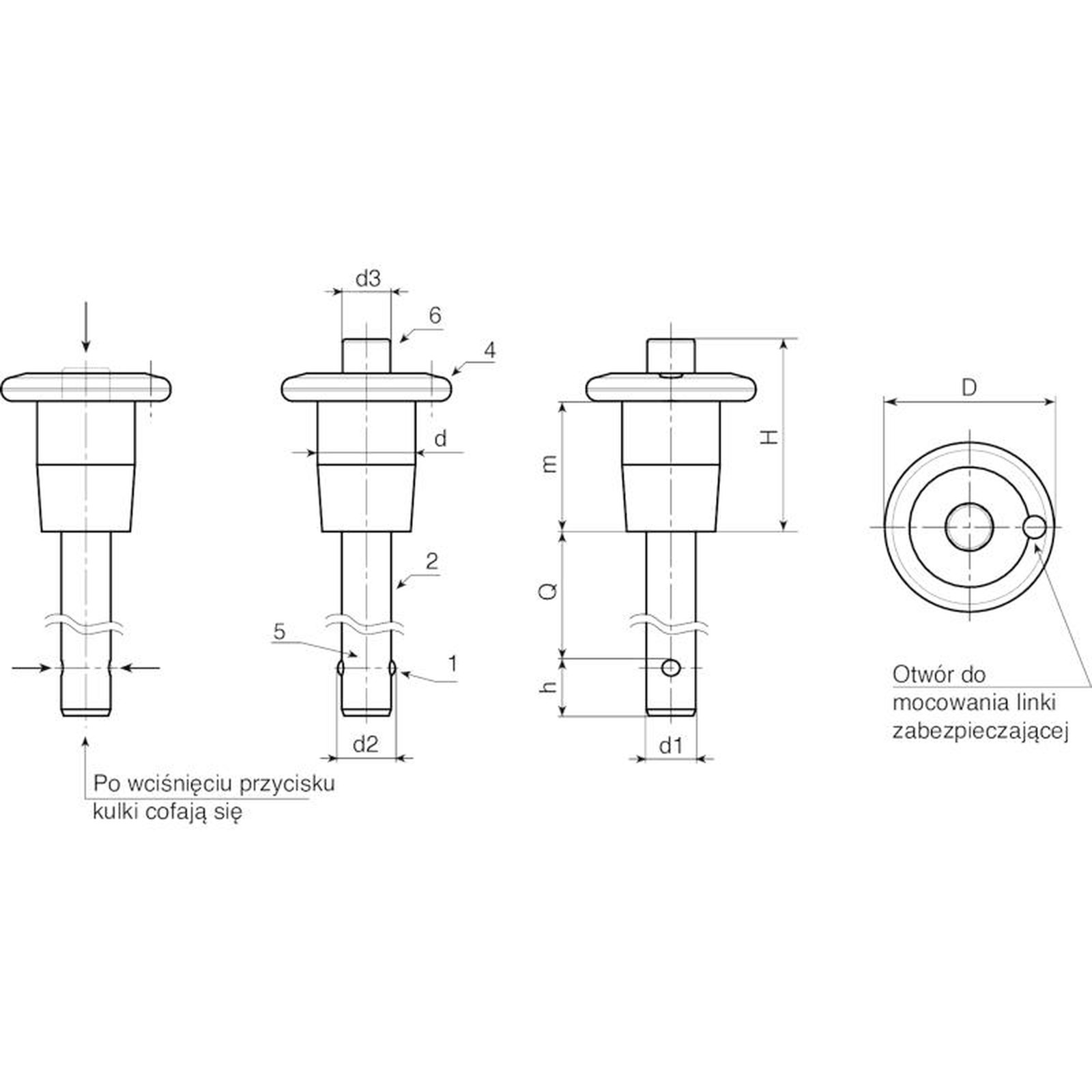

Materiały:
(1) Kulki z hartowanej stali inox (AISI 440C).
(2) Trzpień ze stali inox (AISI 630), o wysokiej wytrzymałości mechanicznej i chemicznej, hartowany (HRC 40).
(4) Uchwyt toczony ze stali inox (AISI 303).
(5) Sprężyna ze stali inox (AISI 301).
(6) Przycisk toczony ze stali inox (AISI 303).
Powierzchnia:
Naturalna, pasywacja ochronna.
Kolor:
Naturalny.
UWAGA:
> Zalecamy wykonanie otworu obsadowego trzonu trzpienia ustalającego w tolerancji H11.
Wykonanie na specjalne zamówienie:
Nie uwzględnia się.
| Kod | Art. | D | H | m | d | d2 (±0.25) | d3 | d1 (-0,04 -0,08) | Q (+0.5) | h (±1) | Waga (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| W69521.0001 | W69521.I05X10CIN | 21 | 23,5 | 16 | 12 | 5,54 | 6 | 5 | 10 | 6 | 22 |
| W69521.0002 | W69521.I05X15CIN | 21 | 23,5 | 16 | 12 | 5,54 | 6 | 5 | 15 | 6 | 23 |
| W69521.0003 | W69521.I05X20CIN | 21 | 23,5 | 16 | 12 | 5,54 | 6 | 5 | 20 | 6 | 23 |
| W69521.0004 | W69521.I05X25CIN | 21 | 23,5 | 16 | 12 | 5,54 | 6 | 5 | 25 | 6 | 24 |
| W69521.0005 | W69521.I05X30CIN | 21 | 23,5 | 16 | 12 | 5,54 | 6 | 5 | 30 | 6 | 25 |
| W69521.0006 | W69521.I05X35CIN | 21 | 23,5 | 16 | 12 | 5,54 | 6 | 5 | 35 | 6 | 25 |
| W69521.0007 | W69521.I05X40CIN | 21 | 23,5 | 16 | 12 | 5,54 | 6 | 5 | 40 | 6 | 26 |
| W69521.0008 | W69521.I05X50CIN | 21 | 23,5 | 16 | 12 | 5,54 | 6 | 5 | 50 | 6 | 28 |
| W69521.0009 | W69521.I05X60CIN | 21 | 23,5 | 16 | 12 | 5,54 | 6 | 5 | 60 | 6 | 29 |
| W69521.0010 | W69521.I05X70CIN | 21 | 23,5 | 16 | 12 | 5,54 | 6 | 5 | 70 | 6 | 30 |
| W69521.0011 | W69521.I06X10CIN | 21 | 23,5 | 16 | 12 | 6,99 | 6 | 6 | 10 | 7 | 23 |
| W69521.0012 | W69521.I06X15CIN | 21 | 23,5 | 16 | 12 | 6,99 | 6 | 6 | 15 | 7 | 24 |
| W69521.0013 | W69521.I06X20CIN | 21 | 23,5 | 16 | 12 | 6,99 | 6 | 6 | 20 | 7 | 25 |
| W69521.0014 | W69521.I06X25CIN | 21 | 23,5 | 16 | 12 | 6,99 | 6 | 6 | 25 | 7 | 26 |
| W69521.0015 | W69521.I06X30CIN | 21 | 23,5 | 16 | 12 | 6,99 | 6 | 6 | 30 | 7 | 27 |
| W69521.0016 | W69521.I06X35CIN | 21 | 23,5 | 16 | 12 | 6,99 | 6 | 6 | 35 | 7 | 28 |
| W69521.0017 | W69521.I06X40CIN | 21 | 23,5 | 16 | 12 | 6,99 | 6 | 6 | 40 | 7 | 29,5 |
| W69521.0018 | W69521.I06X50CIN | 21 | 23,5 | 16 | 12 | 6,99 | 6 | 6 | 50 | 7 | 32 |
| W69521.0019 | W69521.I06X60CIN | 21 | 23,5 | 16 | 12 | 6,99 | 6 | 6 | 60 | 7 | 34 |
| W69521.0020 | W69521.I06X70CIN | 21 | 23,5 | 16 | 12 | 6,99 | 6 | 6 | 70 | 7 | 36 |
| W69521.0021 | W69521.I06X80CIN | 21 | 23,5 | 16 | 12 | 6,99 | 6 | 6 | 80 | 7 | 38,5 |
| W69521.0022 | W69521.I08X10CIN | 21 | 23,5 | 16 | 12 | 9,42 | 6 | 8 | 10 | 8 | 27 |
| W69521.0023 | W69521.I08X15CIN | 21 | 23,5 | 16 | 12 | 9,42 | 6 | 8 | 15 | 8 | 29 |
| W69521.0024 | W69521.I08X20CIN | 21 | 23,5 | 16 | 12 | 9,42 | 6 | 8 | 20 | 8 | 31 |
| W69521.0025 | W69521.I08X25CIN | 21 | 23,5 | 16 | 12 | 9,42 | 6 | 8 | 25 | 8 | 32 |
| W69521.0026 | W69521.I08X30CIN | 21 | 23,5 | 16 | 12 | 9,42 | 6 | 8 | 30 | 8 | 35 |
| W69521.0027 | W69521.I08X35CIN | 21 | 23,5 | 16 | 12 | 9,42 | 6 | 8 | 35 | 8 | 36 |
| W69521.0028 | W69521.I08X40CIN | 21 | 23,5 | 16 | 12 | 9,42 | 6 | 8 | 40 | 8 | 38 |
| W69521.0029 | W69521.I08X50CIN | 21 | 23,5 | 16 | 12 | 9,42 | 6 | 8 | 50 | 8 | 42 |
| W69521.0030 | W69521.I08X60CIN | 21 | 23,5 | 16 | 12 | 9,42 | 6 | 8 | 60 | 8 | 46 |
| W69521.0031 | W69521.I08X70CIN | 21 | 23,5 | 16 | 12 | 9,42 | 6 | 8 | 70 | 8 | 50 |
| W69521.0032 | W69521.I08X80CIN | 21 | 23,5 | 16 | 12 | 9,42 | 6 | 8 | 80 | 8 | 54 |
| W69525.0001 | W69525.I10X100CIN | 25,5 | 26 | 18 | 14 | 11,86 | 7,5 | 10 | 100 | 9 | 96 |
| W69535.0002 | W69535.I12X20CIN | 35 | 32,5 | 22 | 18 | 14,45 | 10,5 | 12 | 20 | 10 | 98 |
| W69535.0003 | W69535.I12X25CIN | 35 | 32,5 | 22 | 18 | 14,45 | 10,5 | 12 | 25 | 10 | 102 |
| W69535.0004 | W69535.I12X30CIN | 35 | 32,5 | 22 | 18 | 14,45 | 10,5 | 12 | 30 | 10 | 107 |
| W69535.0005 | W69535.I12X35CIN | 35 | 32,5 | 22 | 18 | 14,45 | 10,5 | 12 | 35 | 10 | 110 |
| W69535.0006 | W69535.I12X40CIN | 35 | 32,5 | 22 | 18 | 14,45 | 10,5 | 12 | 40 | 10 | 115 |
| W69535.0007 | W69535.I12X50CIN | 35 | 32,5 | 22 | 18 | 14,45 | 10,5 | 12 | 50 | 10 | 123 |
| W69535.0008 | W69535.I12X60CIN | 35 | 32,5 | 22 | 18 | 14,45 | 10,5 | 12 | 60 | 10 | 132 |
| W69535.0009 | W69535.I12X70CIN | 35 | 32,5 | 22 | 18 | 14,45 | 10,5 | 12 | 70 | 10 | 140 |
| W69535.0010 | W69535.I12X80CIN | 35 | 32,5 | 22 | 18 | 14,45 | 10,5 | 12 | 80 | 10 | 150 |
| W69535.0011 | W69535.I12X90CIN | 35 | 32,5 | 22 | 18 | 14,45 | 10,5 | 12 | 90 | 10 | 157 |
| W69535.0001 | W69535.I12X100CIN | 35 | 32,5 | 22 | 18 | 14,45 | 10,5 | 12 | 100 | 10 | 168 |
