Materiały:
Poliamid wzmocniony. Odporna na oleje i tłuszcze.
Powierzchnia:
Satynowana.
Kolor:
Czarny(RAL 9011).
Wkładki:
Tuleja mosiężna z nieprzelotowym otworem gwintowanym (tolerancja gwintu 6H).
(*)Tuleja ze stali ocynkowanej z nieprzelotowym otworem gwintowanym (tolerancja gwintu 6H).
Wykonanie na specjalne zamówienie:
Na życzenie i w zależności od ilości, wkładki mogą być wykonane z innego materiału.
Na życzenie, w zależności od ilości, zgodnie z tabelą barw.

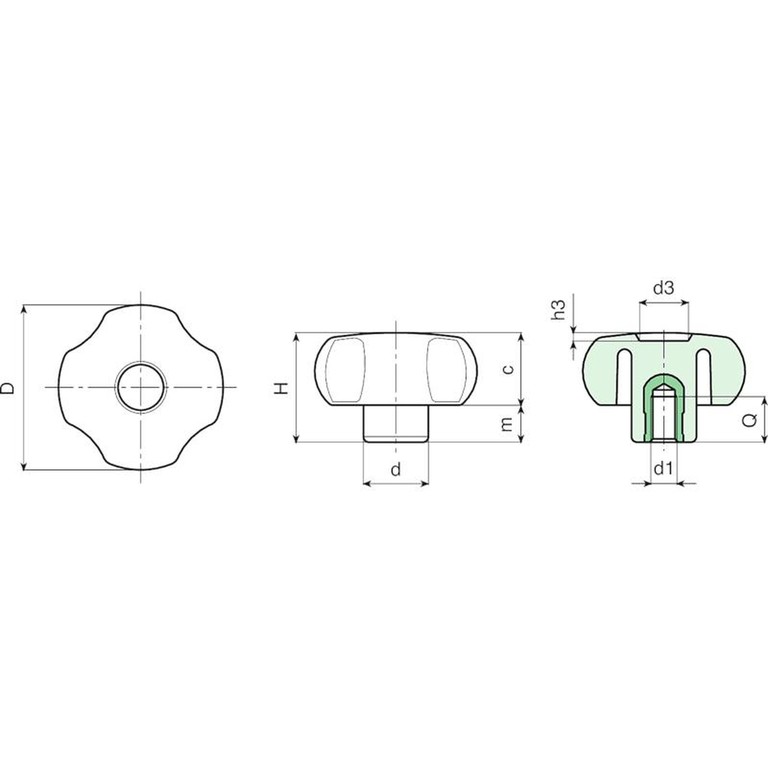

| Kod | art. | D | H | d | c | m | d3 | h3 | d1 6H | Q | Waga (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| G73020.0002 | G73020.TM0401 | 21 | 14 | 11 | 8.5 | 5.5 | 8 | 1.5 | M4 | 6 | 5 |
| G73020.0004 | G73020.TM0501 | 21 | 14 | 11 | 8.5 | 5.5 | 8 | 1.5 | M5 | 6 | 5 |
| G73020.0006 | G73020.TM0601 | 21 | 14 | 11 | 8.5 | 5.5 | 8 | 1.5 | M6 | 6 | 5 |
| G73025.0001 | G73025.TM0401 | 26 | 16 | 12 | 10 | 6 | 10 | 1.5 | M8 | 7 | 6 |
| G73025.0002 | G73025.TM0501 | 26 | 16 | 12 | 10 | 6 | 10 | 1.5 | M5 | 7 | 6 |
| G73025.0007 | G73025.TM0601 | 26 | 16 | 12 | 10 | 6 | 10 | 1.5 | M6 | 7 | 7 |
| G73025.0010 | G73025.TM0801 | 26 | 16 | 12 | 10 | 6 | 10 | 1.5 | M8 | 7 | 8 |
| G73030.0001 | G73030.TM0501 | 30 | 23 | 15 | 13.5 | 9.5 | 12 | 2 | M5 | 13 | 12 |
| G73030.0004 | G73030.TM0601 | 30 | 23 | 15 | 13.5 | 9.5 | 12 | 2 | M6 | 10 | 12 |
| G73030.0008 | G73030.TM0801 | 30 | 23 | 15 | 13.5 | 9.5 | 12 | 2 | M8 | 16 | 14 |
| G73030.0012 | G73030.TM1001 | 30 | 23 | 15 | 13.5 | 9.5 | 12 | 2 | M10 | 16 | 14 |
| G73040.0005 | G73040.TM0501 | 41 | 30 | 16 | 19 | 11 | 12 | 3 | M5 | 13 | 21 |
| G73040.0009 | G73040.TM0601 | 41 | 30 | 16 | 19 | 11 | 12 | 3 | M6 | 10 | 21 |
| G73040.0014 | G73040.TM0801 | 41 | 30 | 16 | 19 | 11 | 12 | 3 | M8 | 14 | 22 |
| G73040.0023 | G73040.TM1001 | 41 | 30 | 17 | 19 | 11 | 12 | 3 | M10 | 13 | 26 |
| G73040.0029 | G73040.TM1201 | 41 | 30 | 17 | 19 | 11 | 12 | 3 | M12 | 11 | 30 |
| G73050.0003 | G73050.TM0601 | 50 | 34.5 | 20 | 21.5 | 13 | 20 | 3 | M6 | 10 | 39 |
| G73050.0004 | G73050.TM0801 | 50 | 34,5 | 20 | 21.5 | 13 | 20 | 3 | M8 | 14 | 40 |
| G73050.0008 | G73050.TM1001 | 50 | 34.5 | 20 | 21.5 | 13 | 20 | 3 | M10 | 13 | 45 |
| G73050.0011 | G73050.TM1201 | 50 | 34.5 | 20 | 21.5 | 13 | 20 | 3 | M12 | 17 | 45 |
| G73060.0003 | G73060.TM0801 | 59 | 40 | 23 | 25 | 15 | 24 | 4 | M8 | 15 | 60 |
| G73060.0006 | G73060.TM1001 | 59 | 40 | 23 | 25 | 15 | 24 | 4 | M10 | 14 | 62 |
| G73060.0012 | G73060.TM1201 | 59 | 40 | 23 | 25 | 15 | 24 | 4 | M12 | 18 | 67 |
| G73060.0016 | G73060.TM1401 | 59 | 40 | 23 | 25 | 15 | 24 | 4 | M14 | 19 | 70 |
| G73060.0018 | G73060.TM1601 | 59 | 40 | 23 | 25 | 15 | 24 | 4 | (*) M16 | 17 | 82 |
| G73080.0013 | G73080.TM1001 | 79 | 41 | 30 | 24 | 17 | 21 | 3 | M10 | 14 | 88 |
| G73080.0015 | G73080.TM1201 | 79 | 41 | 30 | 24 | 17 | 21 | 3 | M12 | 16 | 88 |
| G73080.0018 | G73080.TM1401 | 79 | 41 | 30 | 24 | 17 | 21 | 3 | M14 | 19 | 97 |
| G73080.0019 | G73080.TM1601 | 79 | 41 | 30 | 24 | 17 | 21 | 3 | (*) M16 | 17 | 109 |
| G73080.0023 | G73080.TM2001 | 79 | 41 | 30 | 24 | 17 | 21 | 3 | (*) M20 | 16 | 115 |
