KABELKLEM MET ZESKANTMOER
19
S600
Accessori vari per saldatrici
Materiaal:
Versterkte polyamide.
Bestand tegen oliën en vetten.
Oppervlak:
Gesatineerd.
Kleur:
Zwart (RAL 9011).
Boring:
Doorlopende gladde boring bekomen door vormpersen in plastic.
Speciale verzoeken:
Geen.

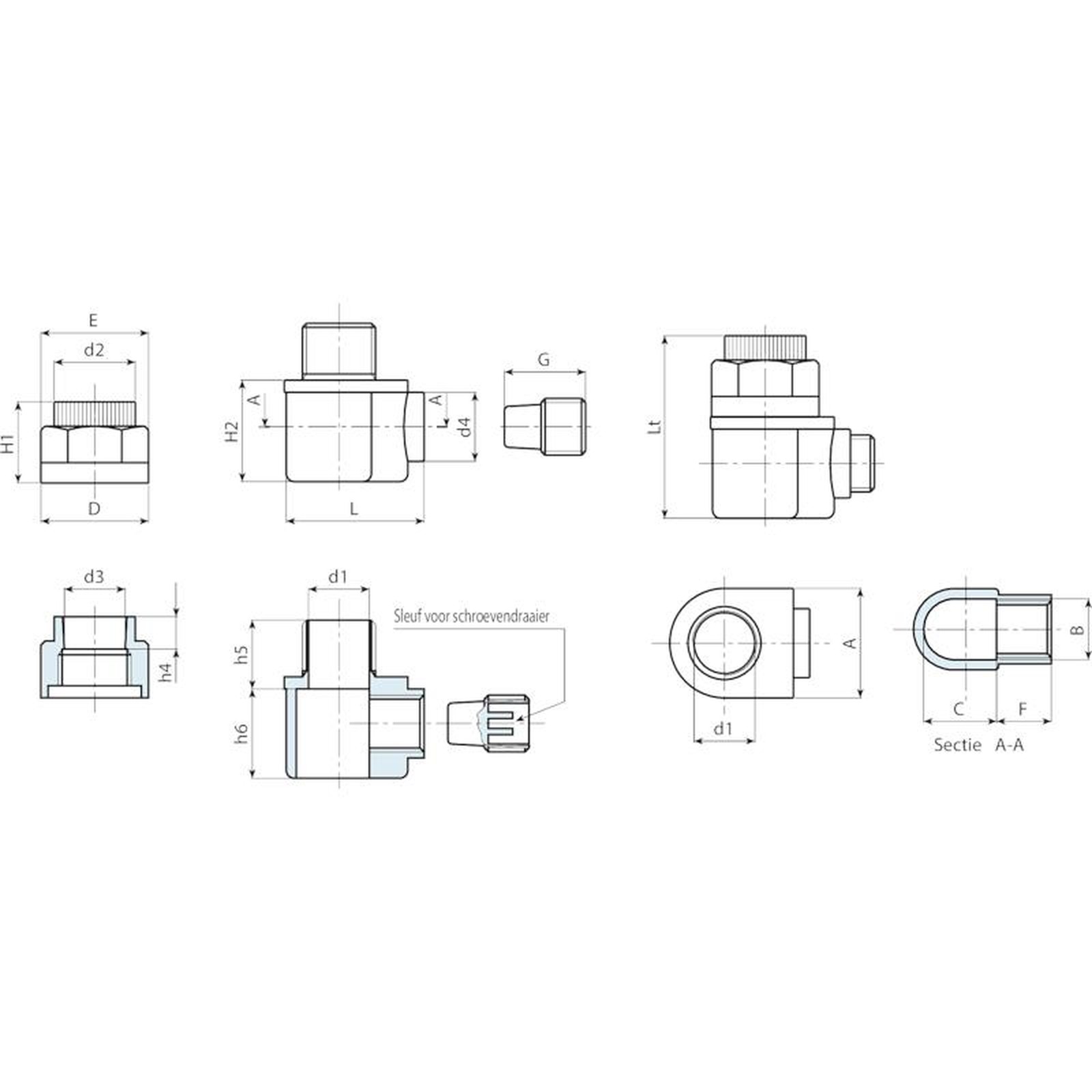

| Code | art. | B | C | D | E | F | G | L | H1 | H2 | h4 | h5 | h6 | d1 | d2 | d3 | d4 | Lt | Gewicht (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S60038.0001 | S60038.TG1001 | M14 | 17.5 | 26 | 23 | 14.5 | 19 | 34.5 | 20 | 22 | 7 | 16.5 | 19 | 10.5 | 19 | 14 | 17 | 43 | 13 |
| S60038.0002 | S60038.TG1101 | M14 | 17.5 | 26 | 23 | 14.5 | 19 | 34.5 | 20 | 22 | 7 | 16.5 | 19 | 11.5 | 19 | 14 | 17 | 43 | 13 |
| S60038.0003 | S60038.TG1401 | M14 | 17.5 | 26 | 23 | 14.5 | 19 | 34.5 | 20 | 22 | 7 | 16.5 | 19 | 14.5 | 19 | 14 | 17 | 43 | 13 |
