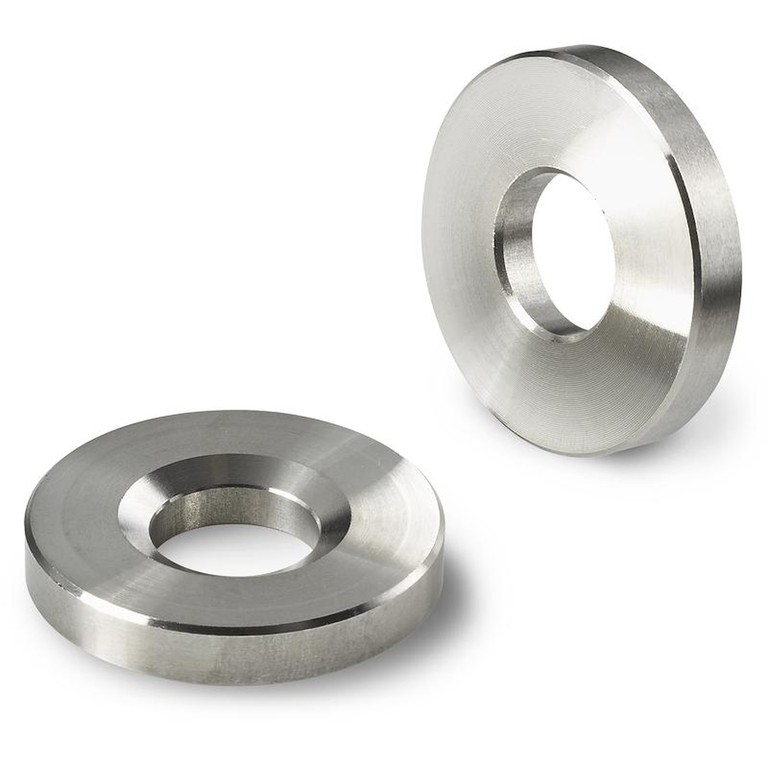

DIN 6319 ed. 10/01 - STALEN HOLRING VORM G

17

Y321


Rondelle DIN6319

    Materiaal:

    Y321:

    Veredeld staal.

    Y321PIN:

    RVS (AISI 303).

    Oppervlak:

    Y321:

    Thermisch behandeld HV 390 ±40.

    Y321PIN:

    Natuurlijk, onbehandeld.

    Kleur:

    Y321:

    Standaard gebruineerd.

    Y321PIN:

    Natuurlijk.

    Speciale verzoeken:

    Geen.

    Opmerkingen:

    Opgelet: de holring Y321 moet worden gebruikt in combinatie met de bolring Y319, afzonderlijk te bestellen.

    Gegevensblad

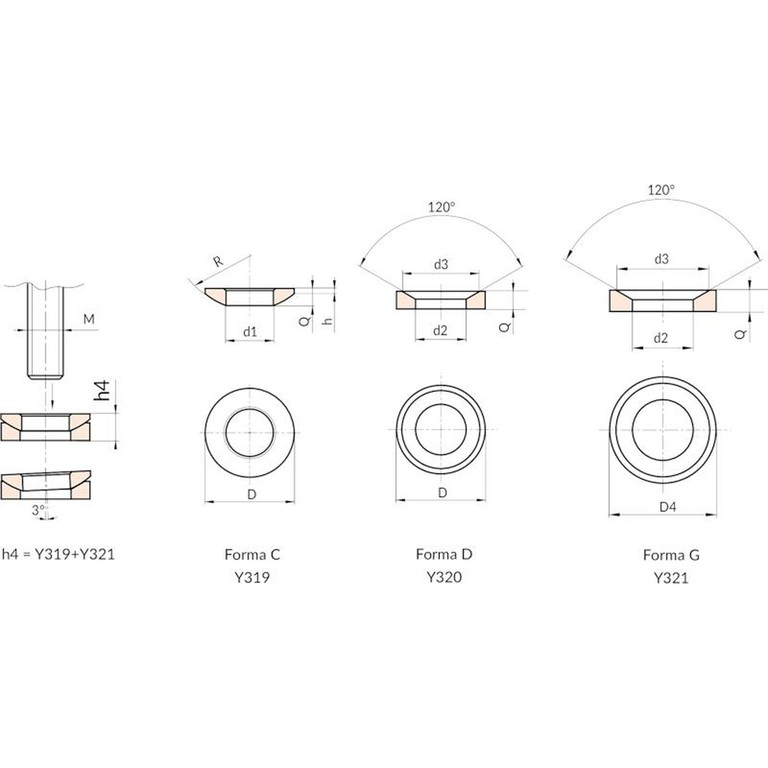

    Versie DIN 6319 vorm G - holring in gebruineerd staal

    Code Art. D d3 h4 (Y319+Y321) d2 H13 M Q Max. toelaatbare statische belasting kN Gewicht (g)
    Y321015.0001 Y321015.SD06 15 9.25 3.5 6 M05 2.5 - 3.6
    Y321017.0002 Y321017.SD07.1 17 11 5.2 7.1 M06 4 9 3.6
    Y321024.0002 Y321024.SD09.6 24 14.5 6.8 9.6 M08 5 17 10
    Y321030.0002 Y321030.SD12 30 18.5 7.1 12 M10 5 26 18
    Y321036.0002 Y321036.SD14.2 36 20 9 14.2 M12 6 38 30
    Y321040.0001 Y321040.SD16.5 40 24.8 8.6 16.5 M14 6 53 38
    Y321044.0002 Y321044.SD19 44 26 10.1 19 M16 7 73 61
    Y321050.0002 Y321050.SD23.2 50 31 12 23.2 M20 8 117 124
    Y321060.0002 Y321060.SD28 60 37 15.5 28 M24 10 168 232
    Y321068.0002 Y321068.SD35 68 49 18.7 35 M30 12 269 360
    Y321080.0001 Y321080.SD42 80 60 20.3 42 M36 12 394 633

    Versie DIN 6319 vorm G - holring in RVS (AISI 303)

    Code Art. D d3 h4 (Y319+Y321) d2 H13 M Q Max. toelaatbare statische belasting kN Gewicht (g)
    - Y321017.SD07.1PIN 17 11 5.2 7.1 M06 4 6 3.6
    Y321024.0001 Y321024.ID09.6PIN 24 14.5 6.8 9.6 M08 5 12 10
    Y321030.0001 Y321030.ID12PIN 30 18.5 7.1 12 M10 5 16 18
    Y321036.0001 Y321036.ID14.2PIN 36 20 9 14.2 M12 6 24 30
    Y321044.0001 Y321044.ID19PIN 44 26 10.1 19 M16 7 45 61
    Y321050.0001 Y321050.ID23.2PIN 50 31 12 23.2 M20 8 71 124
    Y321060.0001 Y321060.ID28PIN 60 37 15.5 28 M24 10 105 232
    Y321068.0001 Y321068.ID35PIN 68 49 18.7 35 M30 12 191 360
