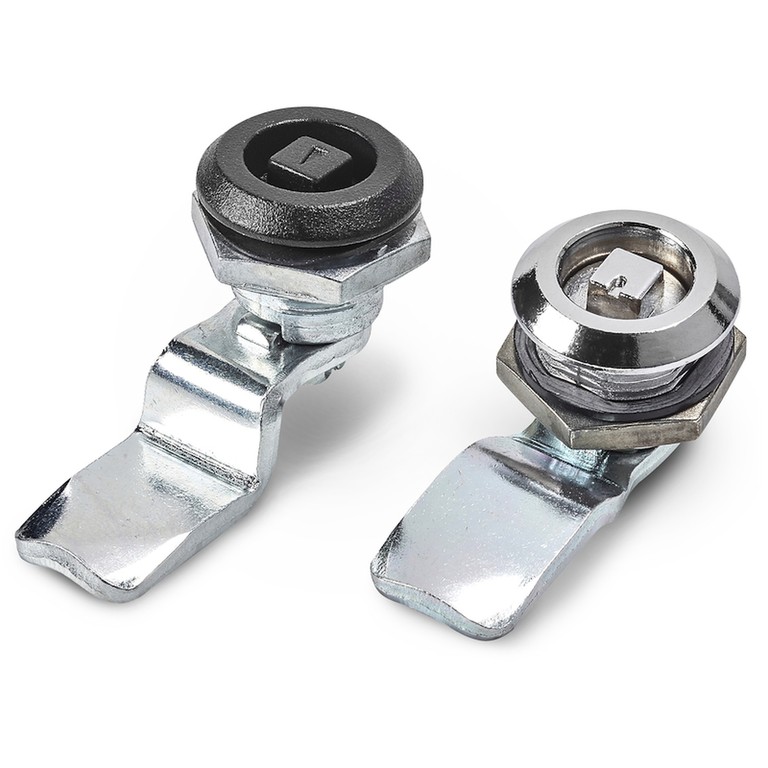

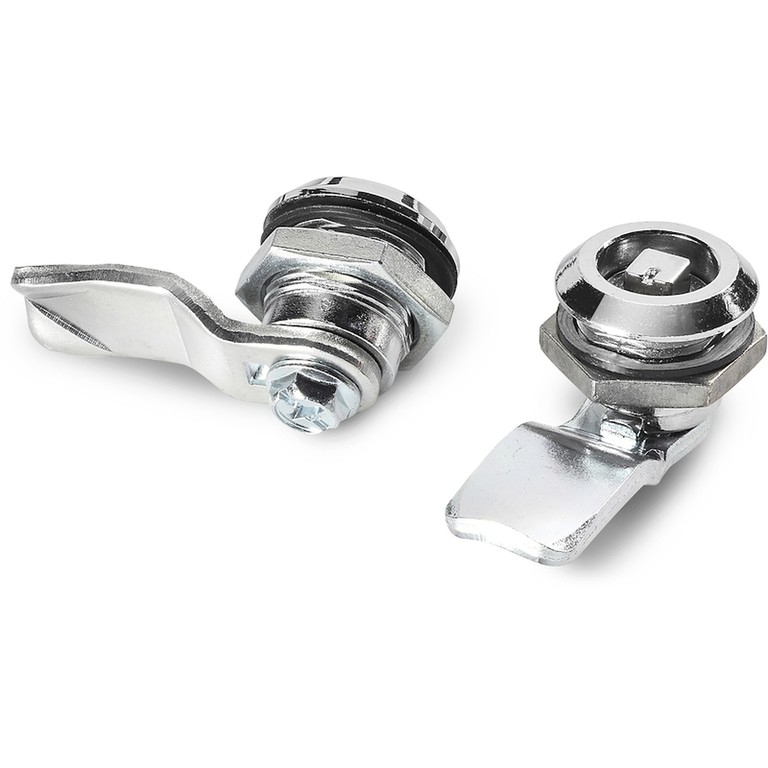

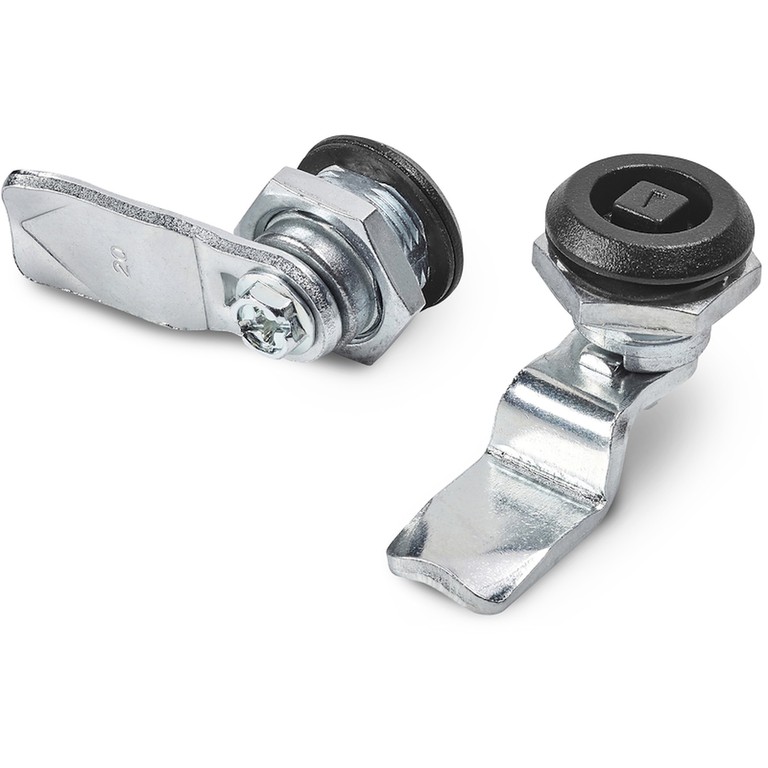

UNIVERSELE ZAMAK KWARTSLAGSLUITING SCHROEFDRAAD M22 MET SLEUTEL MET VIERKANT
10
J116
Serrature 1/4 giro M22

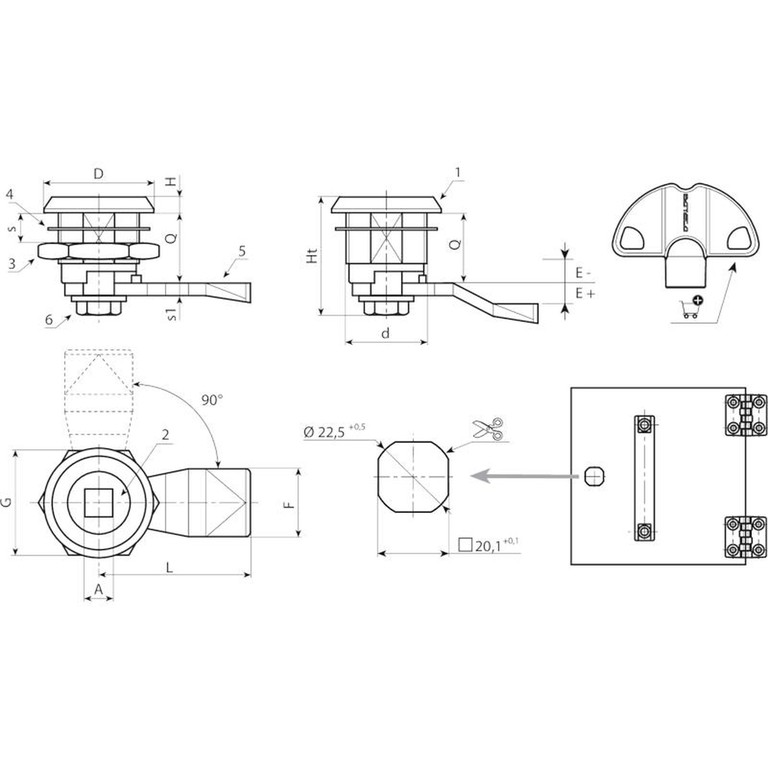

Materiaal:
(1) Slotlichaam M22x1,5 (stator) in gegoten zamak.
(2) Vierkante spindel in gegoten zamak.
(3) Zeskant-bevestigingsmoer M22x1,5 in gegoten zamak.
(4) Rubber pakking.
(5) Stalen sluithendel (E=0 rechte vorm, E=2,4,6,8,10 extern gebogen vorm, E=-2 intern gebogen vorm).
(6) Bevestigingsschroef M6x10 met stalen kruiskop.
Oppervlak:
L116-01
(1) Gesatineerd.
(2-3-4-5-6) Glad.
L116-L
Glad.
Kleur:
L116-01
(1) Zwarte epoxy poedercoating (RAL 9011).
(2-3-4-5-6) Standaard verzinkt.
L116-L
(1) Glanzend verchroomd.
(2-3-4-5-6) Standaard verzinkt.
Sleutel (Optie):
Sleutel in rode polyamide (PA6) art. J090.
OPGELET: Sleutel niet bijgeleverd. Afzonderlijk te bestellen.
Rotatie: 90°
Speciale verzoeken:
Versie J116-01: zwarte coating.
| Code | Art. | A | d | D | L | Q | E | F | G | Ht | H | s (max.) | s1 | Gewicht (g) | Sleutel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| - | J11622.Z08E-4X4501 | 8 | M22 | 28 | 45 | 18 | -4 | 19 | 27 | 31,5 | 4 | 8 | 4 | - | J09050.TQ0816 |
| - | J11622.Z08E-2X4501 | 8 | M22 | 28 | 45 | 18 | -2 | 19 | 27 | 31,5 | 4 | 8 | 4 | - | J09050.TQ0816 |
| - | J11622.Z08E00X4501 | 8 | M22 | 28 | 45 | 18 | 0 | 19 | 27 | 31,5 | 4 | 8 | 4 | - | J09050.TQ0816 |
| - | J11622.Z08E02X4501 | 8 | M22 | 28 | 45 | 18 | 2 | 19 | 27 | 31,5 | 4 | 8 | 4 | - | J09050.TQ0816 |
| - | J11622.Z08E04X4501 | 8 | M22 | 28 | 45 | 18 | 4 | 19 | 27 | 31,5 | 4 | 8 | 4 | - | J09050.TQ0816 |
| - | J11622.Z08E06X4501 | 8 | M22 | 28 | 45 | 18 | 6 | 19 | 27 | 31,5 | 4 | 8 | 4 | - | J09050.TQ0816 |
| - | J11622.Z08E08X4501 | 8 | M22 | 28 | 45 | 18 | 8 | 19 | 27 | 31,5 | 4 | 8 | 4 | - | J09050.TQ0816 |
| - | J11622.Z08E10X4501 | 8 | M22 | 28 | 45 | 18 | 10 | 19 | 27 | 31,5 | 4 | 8 | 4 | - | J09050.TQ0816 |
| - | J11622.Z08E12X4501 | 8 | M22 | 28 | 45 | 18 | 12 | 19 | 27 | 31,5 | 4 | 8 | 4 | - | J09050.TQ0816 |
Versie J116-L: verchroomd.
| Code | Art. | A | d | D | L | Q | E | F | G | Ht | H | s (max.) | s1 | Gewicht (g) | Sleutel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| - | J11622.Z08E-4X45L | 8 | M22 | 28 | 45 | 18 | -4 | 19 | 27 | 31,5 | 4 | 8 | 4 | - | J09050.TQ0816 |
| - | J11622.Z08E-2X45L | 8 | M22 | 28 | 45 | 18 | -2 | 19 | 27 | 31,5 | 4 | 8 | 4 | - | J09050.TQ0816 |
| - | J11622.Z08E00X45L | 8 | M22 | 28 | 45 | 18 | 0 | 19 | 27 | 31,5 | 4 | 8 | 4 | - | J09050.TQ0816 |
| - | J11622.Z08E04X45L | 8 | M22 | 28 | 45 | 18 | 4 | 19 | 27 | 31,5 | 4 | 8 | 4 | - | J09050.TQ0816 |
| - | J11622.Z08E06X45L | 8 | M22 | 28 | 45 | 18 | 6 | 19 | 27 | 31,5 | 4 | 8 | 4 | - | J09050.TQ0816 |
| - | J11622.Z08E08X45L | 8 | M22 | 28 | 45 | 18 | 8 | 19 | 27 | 31,5 | 4 | 8 | 4 | - | J09050.TQ0816 |
| - | J11622.Z08E10X45L | 8 | M22 | 28 | 45 | 18 | 10 | 19 | 27 | 31,5 | 4 | 8 | 4 | - | J09050.TQ0816 |
| - | J11622.Z08E12X45L | 8 | M22 | 28 | 45 | 18 | 12 | 19 | 27 | 31,5 | 4 | 8 | 4 | - | J09050.TQ0816 |
