Materiaal:
Versterkte polyamide.
Bestand tegen oliën en vetten.
Oppervlak:
Gesatineerd.
Kleur:
Zwart(RAL 9011).
Inzetstuk:
H765:
Bus met doorlopende schroefdraadboring in messing (schroefdraad tolerantie 6H).
H765PIN:
Bus met doorlopende schroefdraadboring in RVS (AISI 303) (schroefdraad tolerantie 6H).
Speciale verzoeken:
Op aanvraag en voor grote hoeveelheden zijn de kleuren uit de kleurentabel leverbaar.

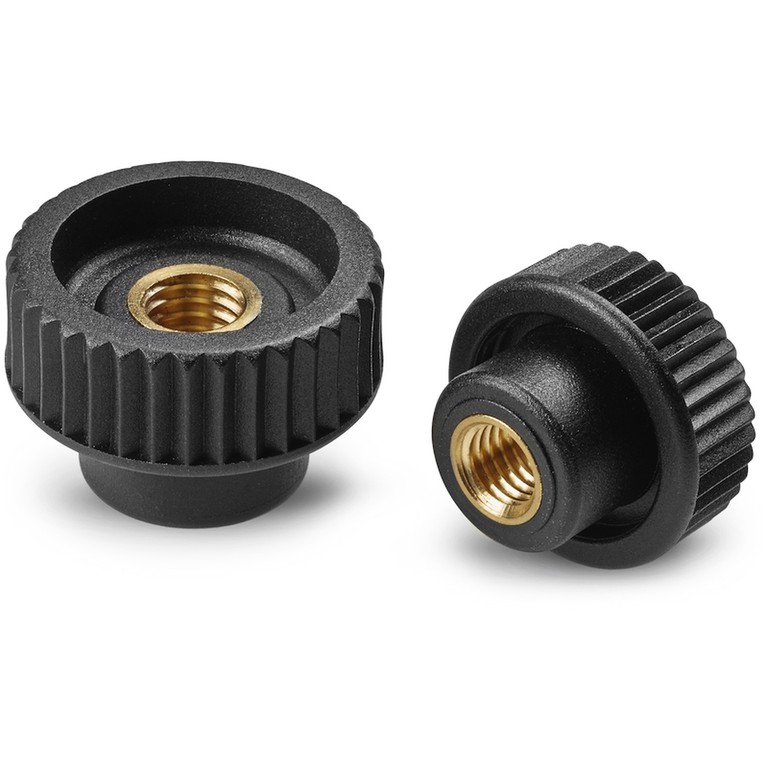

Versie H765: met messing inzetstuk.

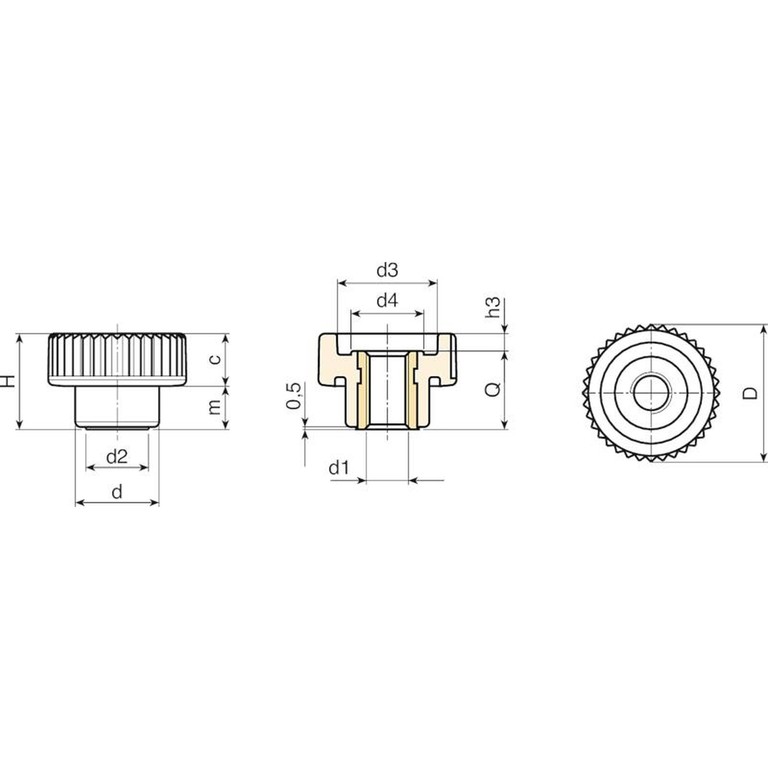

| Code | art. | D | H | d | m | c | d2 | d3 | d4 | h3 | d1 6H | Q | Gewicht (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| H76515.0002 | H76515.TM0401 | 15 | 10.5 | 10 | 4.5 | 6 | 8 | 10 | 7.5 | 2 | M4 | 8.5 | 2 |
| H76515.0006 | H76515.TM0501 | 15 | 10.5 | 10 | 4.5 | 6 | 8 | 10 | 7.5 | 2 | M5 | 8.5 | 2 |
| H76521.0002 | H76521.TM0501 | 21 | 15 | 13 | 6.5 | 8.5 | 9.5 | 15 | 10.5 | 2.5 | M5 | 12.5 | 5 |
| H76521.0006 | H76521.TM0601 | 21 | 15 | 13 | 6.5 | 8.5 | 9.5 | 15 | 10.5 | 2.5 | M6 | 12.5 | 5 |
| H76526.0002 | H76526.TM0601 | 26 | 18 | 16 | 8.5 | 9.5 | 12 | 19 | 13 | 3 | M6 | 15 | 10 |
| H76526.0004 | H76526.TM0801 | 26 | 18 | 16 | 8.5 | 9.5 | 12 | 19 | 13 | 3 | M8 | 15 | 10 |
| H76533.0002 | H76533.TM0801 | 32 | 23 | 20 | 10.5 | 12.5 | 15 | 23 | 16 | 5 | M8 | 18 | 16 |
| H76533.0004 | H76533.TM1001 | 32 | 23 | 20 | 10.5 | 12.5 | 15 | 23 | 16 | 5 | M10 | 18 | 16 |
| H76540.0002 | H76540.TM0801 | 40 | 28 | 25 | 12.5 | 15.5 | 18 | 29 | 20,5 | 6 | M8 | 22 | 31 |
| H76540.0004 | H76540.TM1001 | 40 | 28 | 25 | 12.5 | 15.5 | 18 | 29 | 20,5 | 6 | M10 | 22 | 32 |
| H76540.0006 | H76540.TM1201 | 40 | 28 | 25 | 12.5 | 15.5 | 18 | 29 | 20,5 | 6 | M12 | 22 | 32 |
| H76540.0008 | H76540.TM1401 | 40 | 28 | 25 | 12.5 | 15.5 | 18 | 29 | 20,5 | 6 | M14 | 22 | 34 |

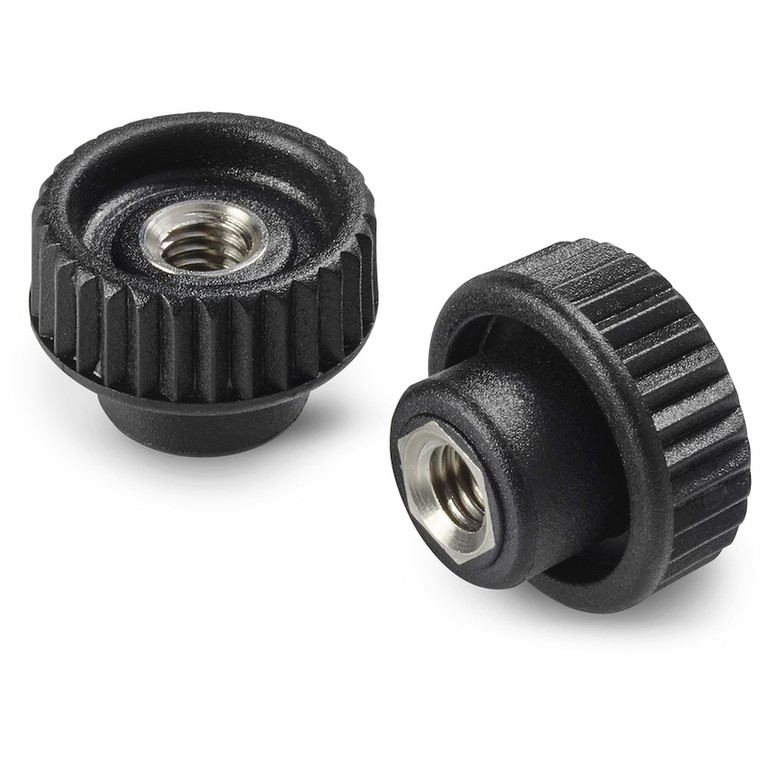

Versie H765PIN: met inzetstuk in RVS (AISI 303).
| Code | art. | D | H | d | m | c | d2 | d3 | d4 | h3 | d1 6H | Q | Gewicht (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| H76515.0003 | H76515.TM0401PIN | 15 | 10.5 | 10 | 4.5 | 6 | 8 | 10 | 7.5 | 2 | M4 | 8.5 | 3 |
| H76515.0007 | H76515.TM0501PIN | 15 | 10.5 | 10 | 4.5 | 6 | 8 | 10 | 7.5 | 2 | M5 | 8.5 | 3 |
| H76521.0003 | H76521.TM0501PIN | 21 | 15 | 13 | 6.5 | 8.5 | 9.5 | 15 | 10.5 | 2.5 | M5 | 12.5 | 6 |
| H76521.0007 | H76521.TM0601PIN | 21 | 15 | 13 | 6.5 | 8.5 | 9.5 | 15 | 10.5 | 2.5 | M6 | 12.5 | 6 |
| H76526.0003 | H76526.TM0601PIN | 26 | 18 | 16 | 8.5 | 9.5 | 12 | 19 | 13 | 3 | M6 | 15 | 11.5 |
| H76526.0005 | H76526.TM0801PIN | 26 | 18 | 16 | 8.5 | 9.5 | 12 | 19 | 13 | 3 | M8 | 15 | 11.5 |
| H76533.0003 | H76533.TM0801PIN | 32 | 23 | 20 | 10.5 | 12.5 | 15 | 23 | 16 | 5 | M8 | 18 | 18 |
| H76533.0005 | H76533.TM1001PIN | 32 | 23 | 20 | 10.5 | 12.5 | 15 | 23 | 16 | 5 | M10 | 18 | 18 |
| H76540.0003 | H76540.TM0801PIN | 40 | 28 | 25 | 12.5 | 15.5 | 18 | 29 | 20,5 | 6 | M8 | 22 | 32 |
| H76540.0005 | H76540.TM1001PIN | 40 | 28 | 25 | 12.5 | 15.5 | 18 | 29 | 20,5 | 6 | M10 | 22 | 31 |
| H76540.0007 | H76540.TM1201PIN | 40 | 28 | 25 | 12.5 | 15.5 | 18 | 29 | 20,5 | 6 | M12 | 22 | 34 |
