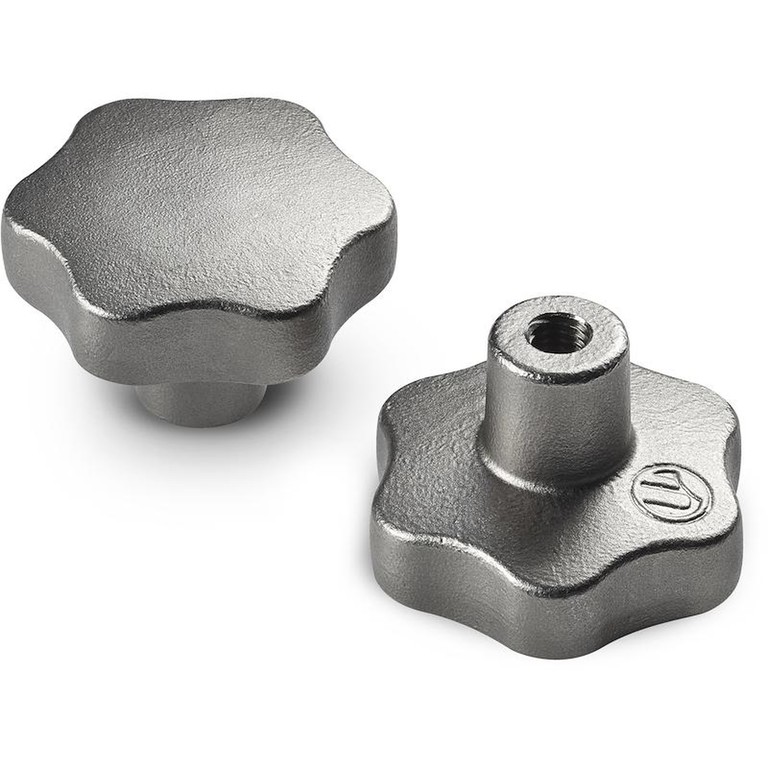

MASSIEF GELOBT HANDWIEL IN RVS MET SCHROEFDRAADBORING
06
W102HIN
Metalline Pomelli
Materiaal:
Microfusie RVS (AISI 304).
Oppervlak:
Gesatineerd door elektrolytisch polijsten.
Kleur:
Natuurlijk.
Boring:
Versie HNM:
Blinde schroefdraadboring (schroefdraad tolerantie 6H).
Versie HND:
Blinde gladde boring (tolerantie boring H7).
Speciale verzoeken:
Geen.

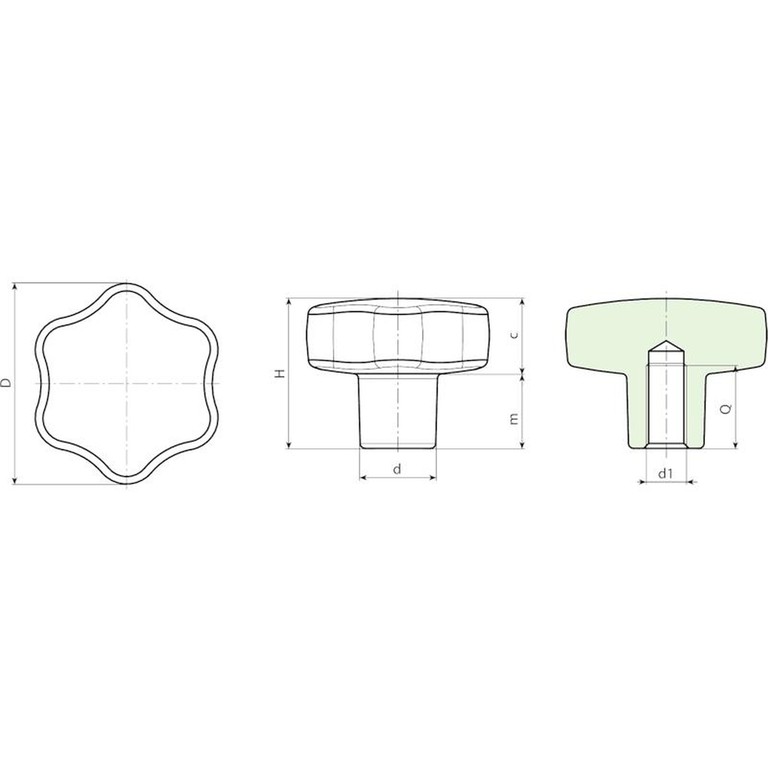

| Code | Art. | D | H | d | m | d1 6H | Q | Gewicht (g) |
|---|---|---|---|---|---|---|---|---|
| W10230.0002 | W10230.HNM05HIN | 30 | 21 | 11 | 11 | M5 | 10 | - |
| W10230.0003 | W10230.HNM06HIN | 30 | 21 | 11 | 11 | M6 | 12 | - |
| W10240.0003 | W10240.HNM06HIN | 40 | 30 | 15 | 15 | M6 | 12 | - |
| W10240.0004 | W10240.HNM08HIN | 40 | 30 | 15 | 15 | M8 | 15 | - |
| W10250.0003 | W10250.HNM08HIN | 50 | 34 | 17 | 17 | M8 | 15 | - |
| W10250.0004 | W10250.HNM10HIN | 50 | 34 | 17 | 17 | M10 | 18 | - |
| W10260.0003 | W10260.HNM08HIN | 60 | 39 | 21 | 18 | M08 | 15 | 360 |
| W10260.0004 | W10260.HNM10HIN | 60 | 39 | 21 | 18 | M10 | 18 | 360 |
| W10260.0005 | W10260.HNM12HIN | 60 | 39 | 21 | 18 | M12 | 22 | 360 |
| Code | Art. | D | H | d | m | d1 H7 | Q | Gewicht (g) |
|---|---|---|---|---|---|---|---|---|
| W10240.0002 | W10240.HND08HIN | 40 | 30 | 15 | 15 | 8 | 15 | - |
| W10250.0002 | W10250.HND10HIN | 50 | 34 | 17 | 17 | 10 | 18 | - |
| W10260.0002 | W10260.HND12HIN | 60 | 39 | 21 | 18 | 12 | 22 | 360 |
