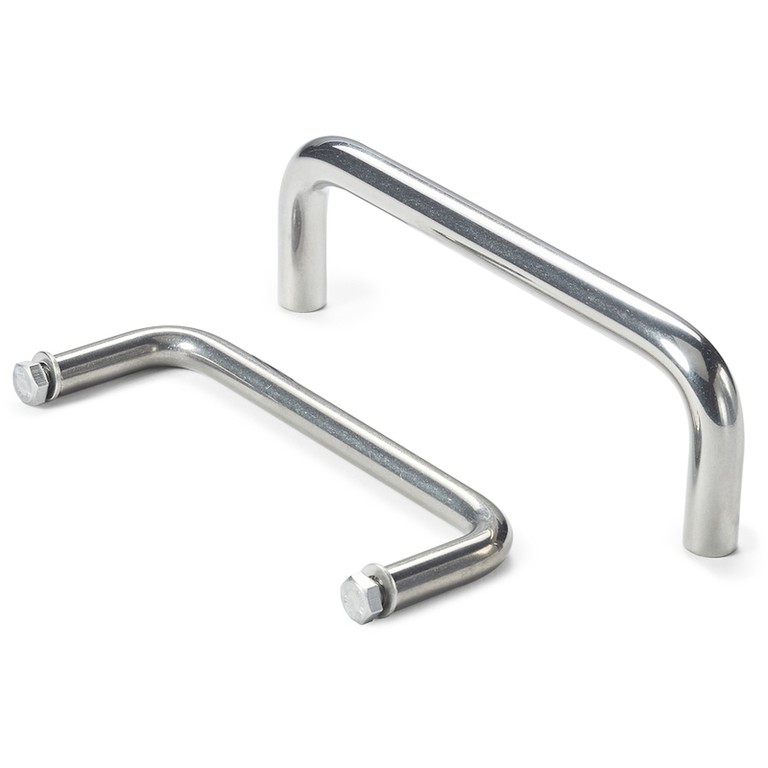

RONDE HANDGREEP IN RVS (met schroef en ringetje inbegrepen)
02
B413GIN
Maniglie in metallo
Materiaal:
Handgreep in RVS (AISI 316).
Oppervlak:
Glad.
Kleur:
Natuurlijk.
Inzetstuk:
(1) Schroef M5x10 in RVS (AISI 316).
(2) Ring in RVS (AISI 316).
Speciale verzoeken:
Geen.

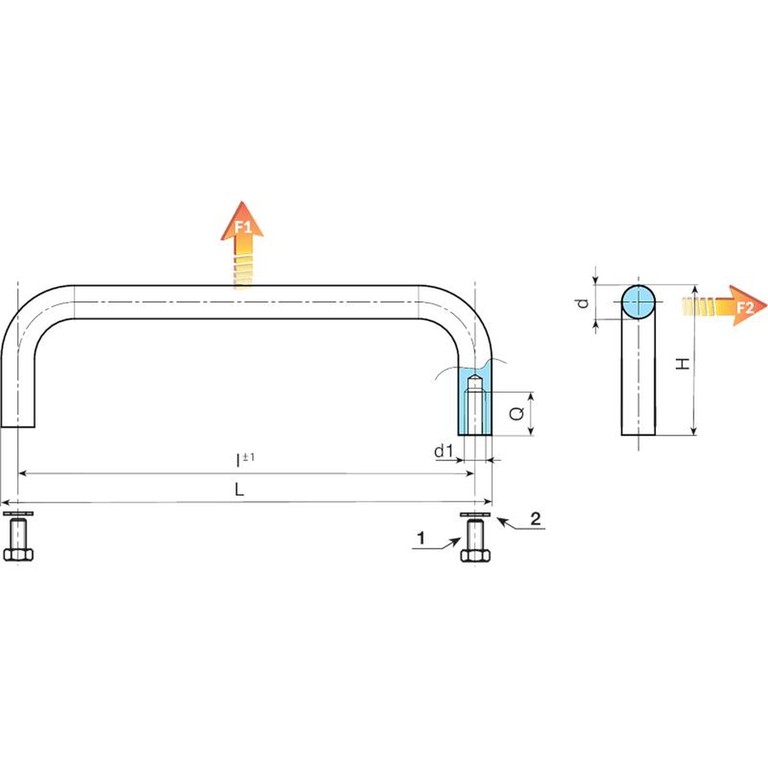

| Code | art. | L | I ±1 | H | d | Q | d1 | Gewicht (g) | F1 (N) | F2 (N) |
|---|---|---|---|---|---|---|---|---|---|---|
| B413100.0001 | B413100.G08M05GIN | 108 | 100 | 35 | 8 | 10 | M5 | - | 1000 | 1000 |
| B413120.0001 | B413120.G10M05GIN | 130 | 120 | 40 | 10 | 10 | M5 | 116 | 1000 | 1000 |
| B413250.0001 | B413250.G10M05GIN | 260 | 250 | 40 | 10 | 10 | M5 | 200 | 1000 | 1000 |
| B413350.0001 | B413350.G10M05GIN | 360 | 350 | 40 | 10 | 10 | M5 | 263 | 1000 | 1000 |
