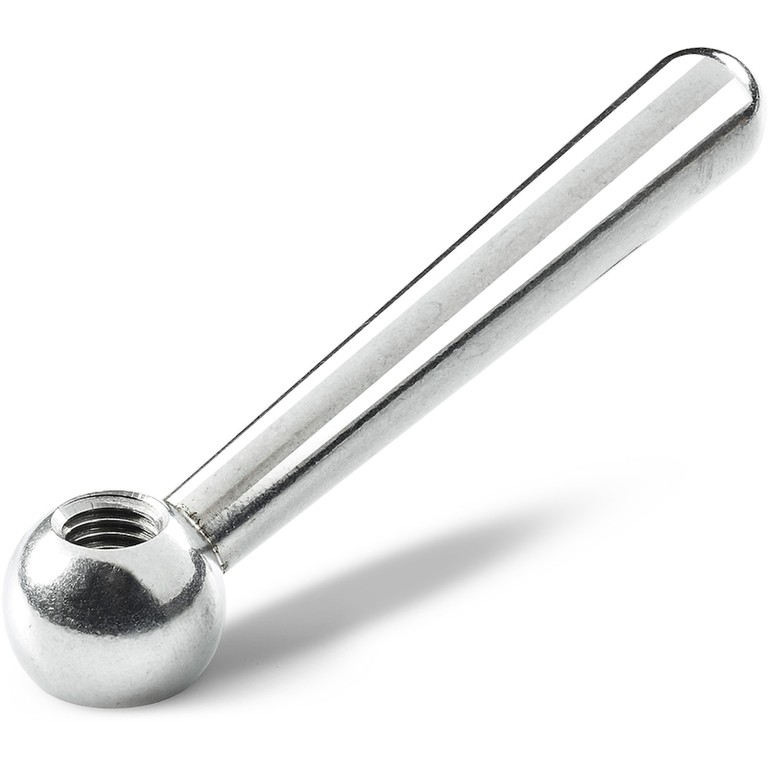

DIN 99 - VORM L en N - RVS KEGELGREEP
01
Y099PIN
Leve fisse
Materiaal:
Gedraaid lichaam in RVS (AISI 303).
Oppervlak:
Gezandstraalde satijnafwerking.
Kleur:
Natuurlijk.
Boring:
versie INM:
Doorlopende schroefdraadboring (tolerantie schroefdraad 6H).
versie IND:
Doorlopende gladde boring (tolerantie boring H7).
Speciale verzoeken:
Geen.
Versie Y099 INM - Vorm N met schroefdraadboring

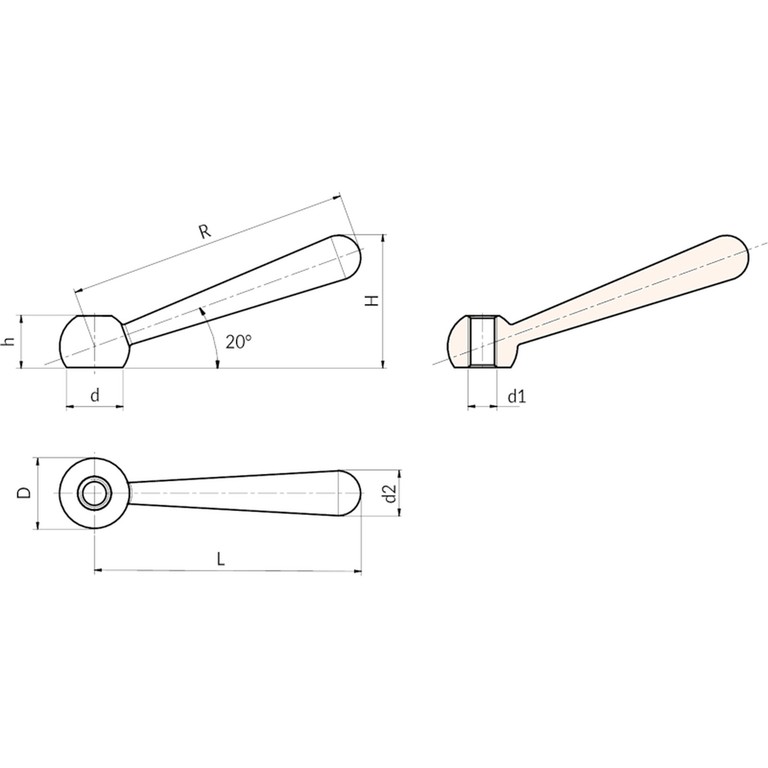

| Code | art. | R | L | D | d | d2 | h | H | d1 6H | Gewicht (g) |
|---|---|---|---|---|---|---|---|---|---|---|
| Y099063.0002 | Y099063.INM08PIN | 63 | 60 | 16 | 12.5 | 10 | 12 | 30 | M8 | 36 |
| Y099080.0002 | Y099080.INM10PIN | 80 | 76 | 20 | 16 | 13 | 14.5 | 38 | M10 | 74 |
| Y099100.0002 | Y099100.INM12PIN | 100 | 95 | 25 | 20 | 16 | 18.5 | 47 | M12 | 141 |
| Y099125.0002 | Y099125.INM16PIN | 125 | 119 | 32 | 25 | 20 | 24 | 59.5 | M16 | 278 |
| Y099160.0002 | Y099160.INM20PIN | 160 | 152 | 40 | 31 | 25 | 30 | 75.5 | M20 | 564 |
Versie Y099 IND - Vorm L met gladde boring
| Code | art. | R | L | D | d | d2 | h | H | d1 H7 | Gewicht (g) |
|---|---|---|---|---|---|---|---|---|---|---|
| Y099063.0001 | Y099063.IND08PIN | 63 | 60 | 16 | 12.5 | 10 | 12 | 30 | 08 | 36 |
| Y099080.0001 | Y099080.IND10PIN | 80 | 76 | 20 | 16 | 13 | 14.5 | 38 | 10 | 74 |
| Y099100.0001 | Y099100.IND12PIN | 100 | 95 | 25 | 20 | 16 | 18.5 | 47 | 12 | 141 |
| Y099125.0001 | Y099125.IND16PIN | 125 | 119 | 32 | 25 | 20 | 24 | 59.5 | 16 | 278 |
| Y099160.0001 | Y099160.IND20PIN | 160 | 152 | 40 | 31 | 25 | 30 | 75.5 | 20 | 564 |
