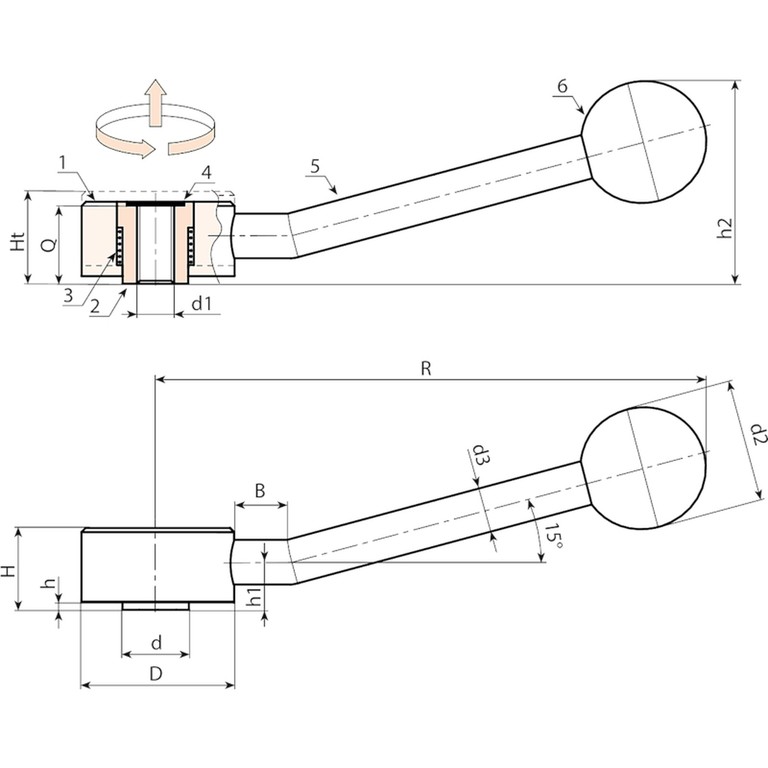

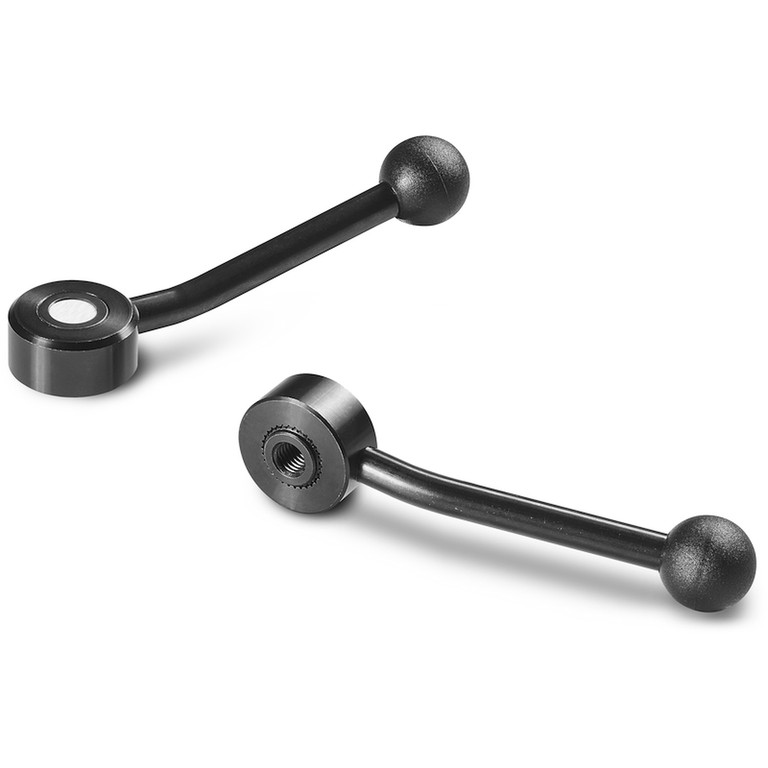

VERSTELBARE METALEN SPANGREEP MET SCHUINE ARM EN DRAADBUS

01

W516


Leve a scatto con vite

Materiaal:

(1-2-5) Lichaam, arm en geïndexeerd inzetstuk in staal met sterkteklasse 5.8.

Oppervlak:

(1-2-5) #tab# Gedraaid met lage ruwheid.

(6) #tab# Gesatineerd.

Kleur:

(1-2-5) Standaard gebruineerd.

Handgreep:

(6) Kogelknop I103 in zwart versterkt polyamide RAL 9011.

Bevestiging handgreep:

Vastgedraaid en gelijmd.

Boring:

Blinde draadbus (tolerantie boring 6H).

Veer:

(3) Veer in RVS (AISI 302).

Dop:

(4) Vastgekleefde aluminium afdekdoppen.

Speciale verzoeken:

Geen.

Gegevensblad
Code Art. D R d B H Ht h h1 h2 d2 d3 d1 6H Q Gewicht (g)
W516114.0001 W516114.VBM0601 33 112 13,5 15 19 23 2 12 41 25 10 M6 18 166
W516114.0002 W516114.VBM0801 33 112 13,5 15 19 23 2 12 41 25 10 M8 18 164
W516146.0001 W516146.VBM1001 41 142 19 15 22 26 2 13,5 53 30 12 M10 21 295
W516146.0002 W516146.VBM1201 41 142 19 15 22 26 2 13,5 53 30 12 M12 21 290
W516165.0001 W516165.VBM1201 45 162 23 15 28 33 2 17 66 35 14 M12 27 467
W516165.0002 W516165.VBM1601 45 162 23 15 28 33 2 17 66 35 14 M16 27 451
