Matériaux :
Caoutchouc naturel (NR).
Dureté caoutchouc :
Dureté 55 Shore A (tolérance ±5%).
Surface :
Lisse.
Couleur :
Noir(RAL 9011).

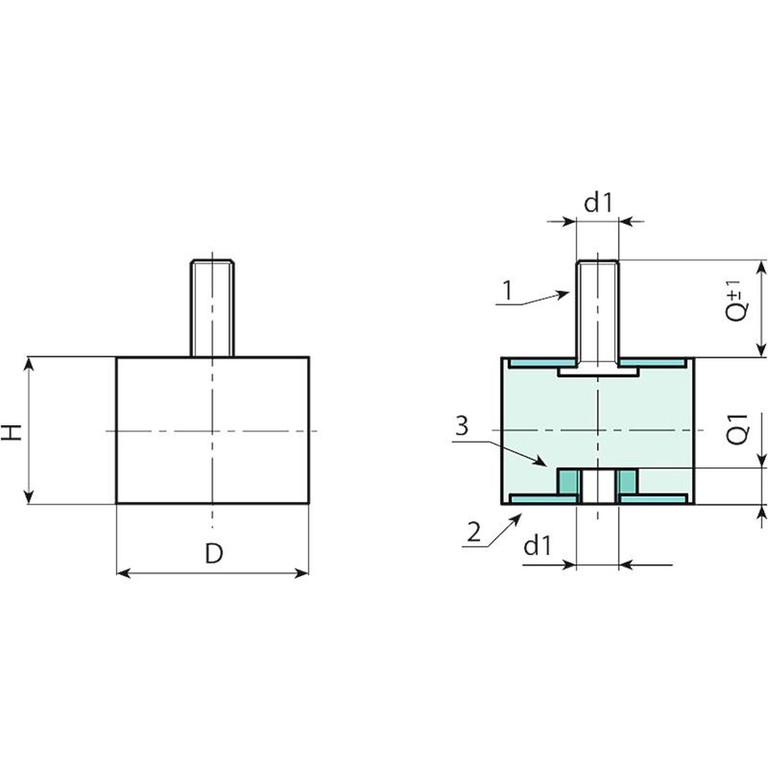

Inserts :
(1) Goujon fileté en acier au bore zingué (tolérance filetage 6g).
(2) Rondelle en acier zingué soudable.
(3) Douille avec trou fileté borgne en acier au bore zingué (tolérance filetage 6H).
Demandes spéciales :
Sur demande et pour une quantité minimale de 100 pièces, les plots antivibratoires peuvent être fournis avec dureté 45 ou 70 Shore A.
| Code | Art. | D | H | d1 6g/6H | Q | Q1 | Poids (g) | Rigidité à la compression (N/mm) |
|---|---|---|---|---|---|---|---|---|
| P305010.0001 | P305010.F15M04X1055 | 10 | 15 | M4 | 10 | 4 | 5 | 46.6 |
| P305015.0001 | P305015.F15M04X1055 | 15 | 15 | M4 | 10 | 4 | 7 | 57.1 |
| P305015.0002 | P305015.F20M04X1055 | 15 | 20 | M4 | 10 | 4 | 7.5 | 45.1 |
| P305020.0001 | P305020.F20M06X1555 | 20 | 20 | M6 | 15 | 6 | 18 | 79.2 |
| P305020.0003 | P305020.F25M06X1555 | 20 | 25 | M6 | 15 | 6 | 21 | 36.3 |
| P305025.0001 | P305025.F15M06X1855 | 25 | 15 | M6 | 18 | 6 | 27 | 213.8 |
| P305025.0002 | P305025.F20M06X1855 | 25 | 20 | M6 | 18 | 6 | 26 | 131.9 |
| P305025.0003 | P305025.F30M06X1855 | 25 | 30 | M6 | 18 | 8 | 37 | 67.9 |
| P305030.0001 | P305030.F15M08X2055 | 30 | 15 | M8 | 20 | 8 | 41 | 461.7 |
| P305030.0002 | P305030.F20M08X2055 | 30 | 20 | M8 | 20 | 8 | 47 | 192.9 |
| P305030.0003 | P305030.F30M08X2055 | 30 | 30 | M8 | 20 | 8 | 52 | 101.4 |
| P305040.0001 | P305040.F20M08X2355 | 40 | 20 | M8 | 23 | 8 | 73 | 298.3 |
| P305040.0002 | P305040.F30M08X2355 | 40 | 30 | M8 | 23 | 8 | 86 | 180.5 |
| P305040.0004 | P305040.F40M10X2855 | 40 | 40 | M10 | 28 | 10 | 113 | 126.9 |
| P305050.0001 | P305050.F30M10X2855 | 50 | 30 | M10 | 28 | 10 | 142 | 373.2 |
| P305050.0003 | P305050.F40M10X2855 | 50 | 40 | M10 | 28 | 10 | 156 | 245.3 |
| P305050.0004 | P305050.F45M10X2855 | 50 | 45 | M10 | 28 | 10 | 172 | 180.5 |
| P305050.0005 | P305050.F50M10X2855 | 50 | 50 | M10 | 28 | 10 | 176 | 164.4 |
| P305060.0001 | P305060.F30M10X2855 | 60 | 30 | M10 | 28 | 10 | 195 | 591.9 |
| P305060.0002 | P305060.F40M10X2855 | 60 | 40 | M10 | 28 | 10 | 233 | 350.6 |
| P305070.0001 | P305070.F40M10X2855 | 70 | 40 | M10 | 28 | 10 | 314 | 510.2 |
| P305075.0001 | P305075.F25M12X3755 | 75 | 25 | M12 | 37 | 12 | 296 | 1177.1 |
| P305075.0002 | P305075.F40M12X3755 | 75 | 40 | M12 | 37 | 12 | 383 | 598.5 |
| P305075.0004 | P305075.F55M14X3755 | 75 | 55 | M14 | 37 | 14 | 482 | 412.7 |
| P305100.0001 | P305100.F40M16X4255 | 100 | 40 | M16 | 42 | 16 | 768 | 1478.5 |
| P305100.0002 | P305100.F55M16X4255 | 100 | 55 | M16 | 42 | 16 | 865 | 888.3 |
| P305100.0004 | P305100.F75M16X4255 | 100 | 75 | M16 | 42 | 16 | 1058 | 541.5 |
