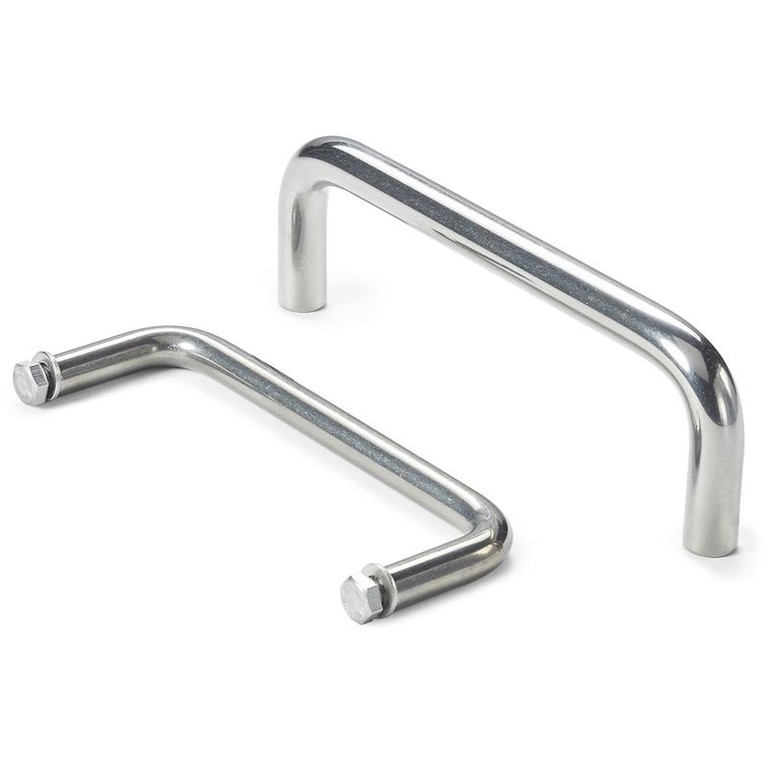

POIGNÉE RONDE EN ACIER INOXYDABLE (avec vis et rondelle)
02
B413GIN
Maniglie in metallo
Matériaux :
Poignée en acier inox (Aisi 316).
Surface :
Lisse.
Couleur :
Naturelle.
Inserts :
(1) Vis filetée M5x10 en acier inox (Aisi 316).
(2) Rondelle en acier inox (Aisi 316).
Demandes spéciales :
Aucune.

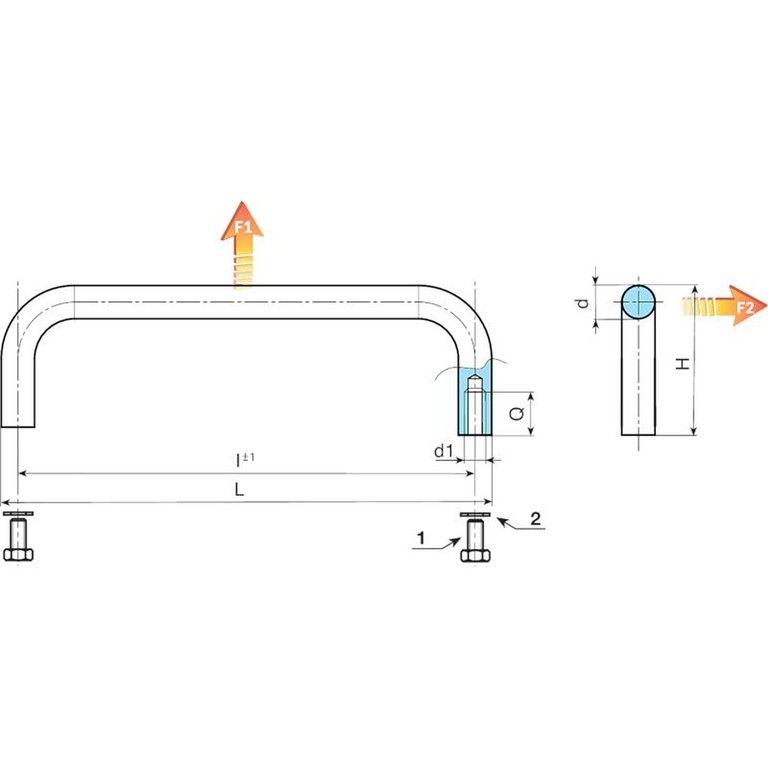

Code | art. | L | I ±1 | H | d | Q | d1 | Poids (g) | F1 (N) | F2 (N) |
---|---|---|---|---|---|---|---|---|---|---|
B413100.0001 | B413100.G08M05GIN | 108 | 100 | 35 | 8 | 10 | M5 | - | 1000 | 1000 |
B413120.0001 | B413120.G10M05GIN | 130 | 120 | 40 | 10 | 10 | M5 | 116 | 1000 | 1000 |
B413250.0001 | B413250.G10M05GIN | 260 | 250 | 40 | 10 | 10 | M5 | 200 | 1000 | 1000 |
B413350.0001 | B413350.G10M05GIN | 360 | 350 | 40 | 10 | 10 | M5 | 263 | 1000 | 1000 |
