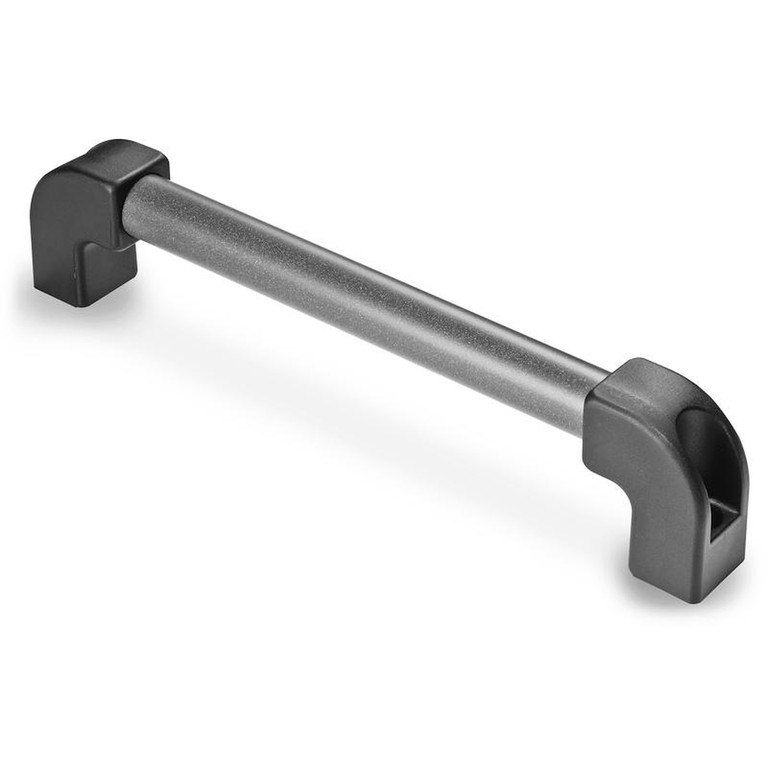

POIGNÉE AVEC TUBE D. 30
02
B330
Maniglie con tubo
Matériaux :
Finales en Plastique:
Polyamide renforcé. Résistant aux huiles et aux graisses.
Tube:
Aluminium alliage 6060.
Surface :
Finales en Plastique: Satinée.
Tube: Lisse.
Couleur :
Finales en Plastique:
Noir (Ral 9011).
Tube:
Version B330-99: Argent anodisé.
Version B330-98: Noir marbré avec peinture aux poudres époxy.
Trou :
Trou lisse passant obtenu par moulage dans le plastique.
Demandes spéciales :
Sur demande et pour des quantités importantes la longueur de la poignée peut être personnalisée.
Sur demande des bouchons couvre-vis peuvent être fournis.
Sur demande et pour des quantités importantes, les couleurs disponibles sont celles indiquées dans le tableau.







Version B330-99 : avec tube anodisé argent.

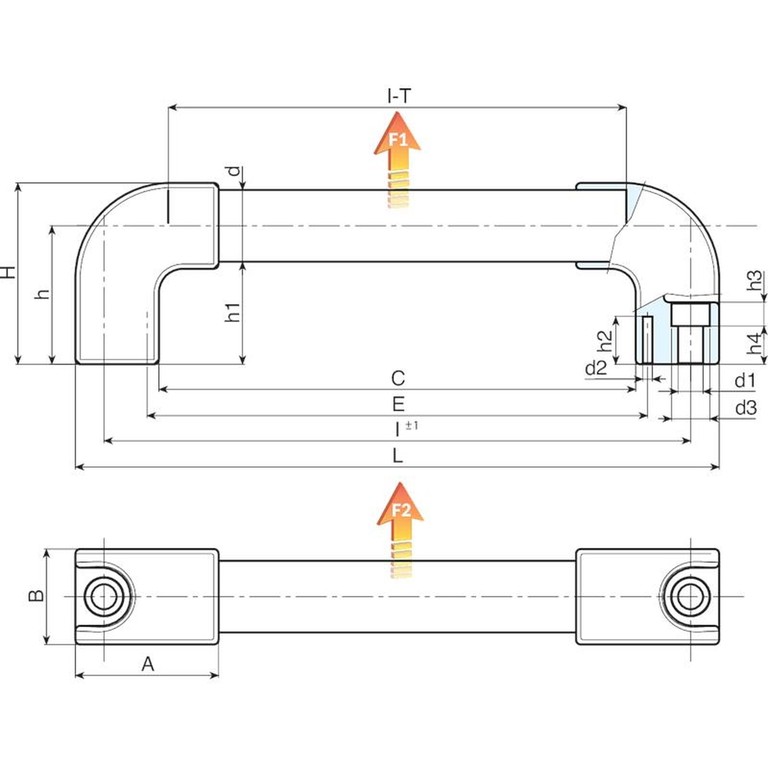

Code | art. | L | I ±1 | C | E | A | B | T | H | h | h1 | h4 | h3 | h2 | d | d3 | d2 | d1 | Poids (g) | F1 (kN) | F2 (kN) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
B330200.0003 | B330200.TG3099 | 224 | 200 | 154 | 164 | 60 | 40 | 54 | 77 | 58 | 43 | 12 | 15 | 19 | 30 | 16 | 4 | 10.5 | 235 | 3,4 | 2,9 |
B330250.0003 | B330250.TG3099 | 274 | 250 | 204 | 214 | 60 | 40 | 54 | 77 | 58 | 43 | 12 | 15 | 19 | 30 | 16 | 4 | 10.5 | 250 | 3,8 | 3,2 |
B330300.0003 | B330300.TG3099 | 324 | 300 | 254 | 264 | 60 | 40 | 54 | 77 | 58 | 43 | 12 | 15 | 19 | 30 | 16 | 4 | 10.5 | 270 | 3,2 | 2,9 |
B330350.0003 | B330350.TG3099 | 374 | 350 | 304 | 314 | 60 | 40 | 54 | 77 | 58 | 43 | 12 | 15 | 19 | 30 | 16 | 4 | 10.5 | 285 | 2,7 | 2,4 |
B330400.0004 | B330400.TG3099 | 424 | 400 | 354 | 364 | 60 | 40 | 54 | 77 | 58 | 43 | 12 | 15 | 19 | 30 | 16 | 4 | 10.5 | 305 | 2,4 | 2,2 |
B330500.0003 | B330500.TG3099 | 524 | 500 | 454 | 464 | 60 | 40 | 54 | 77 | 58 | 43 | 12 | 15 | 19 | 30 | 16 | 4 | 10.5 | 340 | 1,9 | 1,7 |
B330600.0003 | B330600.TG3099 | 624 | 600 | 554 | 564 | 60 | 40 | 54 | 77 | 58 | 43 | 12 | 15 | 19 | 30 | 16 | 4 | 10.5 | 370 | 1,6 | 1,4 |
B330700.0003 | B330700.TG3099 | 724 | 700 | 654 | 664 | 60 | 40 | 54 | 77 | 58 | 43 | 12 | 15 | 19 | 30 | 16 | 4 | 10.5 | 405 | 1,4 | 1,25 |
Version B330-98 : avec tube noir marbré.
Code | art. | L | I ±1 | C | E | A | B | T | H | h | h1 | h4 | h3 | h2 | d | d3 | d2 | d1 | Poids (g) | F1 (kN) | F2 (kN) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
B330200.0002 | B330200.TG3098 | 224 | 200 | 154 | 164 | 60 | 40 | 54 | 77 | 58 | 43 | 12 | 15 | 19 | 30 | 16 | 4 | 10.5 | 235 | 3,4 | 2,9 |
B330250.0002 | B330250.TG3098 | 274 | 250 | 204 | 214 | 60 | 40 | 54 | 77 | 58 | 43 | 12 | 15 | 19 | 30 | 16 | 4 | 10.5 | 250 | 3,8 | 3,2 |
B330300.0002 | B330300.TG3098 | 324 | 300 | 254 | 264 | 60 | 40 | 54 | 77 | 58 | 43 | 12 | 15 | 19 | 30 | 16 | 4 | 10.5 | 270 | 3,2 | 2,9 |
B330350.0002 | B330350.TG3098 | 374 | 350 | 304 | 314 | 60 | 40 | 54 | 77 | 58 | 43 | 12 | 15 | 19 | 30 | 16 | 4 | 10.5 | 285 | 2,7 | 2,4 |
B330400.0003 | B330400.TG3098 | 424 | 400 | 354 | 364 | 60 | 40 | 54 | 77 | 58 | 43 | 12 | 15 | 19 | 30 | 16 | 4 | 10.5 | 305 | 2,4 | 2,2 |
B330500.0002 | B330500.TG3098 | 524 | 500 | 454 | 464 | 60 | 40 | 54 | 77 | 58 | 43 | 12 | 15 | 19 | 30 | 16 | 4 | 10.5 | 340 | 1,9 | 1,7 |
B330600.0002 | B330600.TG3098 | 624 | 600 | 554 | 564 | 60 | 40 | 54 | 77 | 58 | 43 | 12 | 15 | 19 | 30 | 16 | 4 | 10.5 | 370 | 1,6 | 1,4 |
B330700.0002 | B330700.TG3098 | 724 | 700 | 654 | 664 | 60 | 40 | 54 | 77 | 58 | 43 | 12 | 15 | 19 | 30 | 16 | 4 | 10.5 | 405 | 1,4 | 1,25 |
