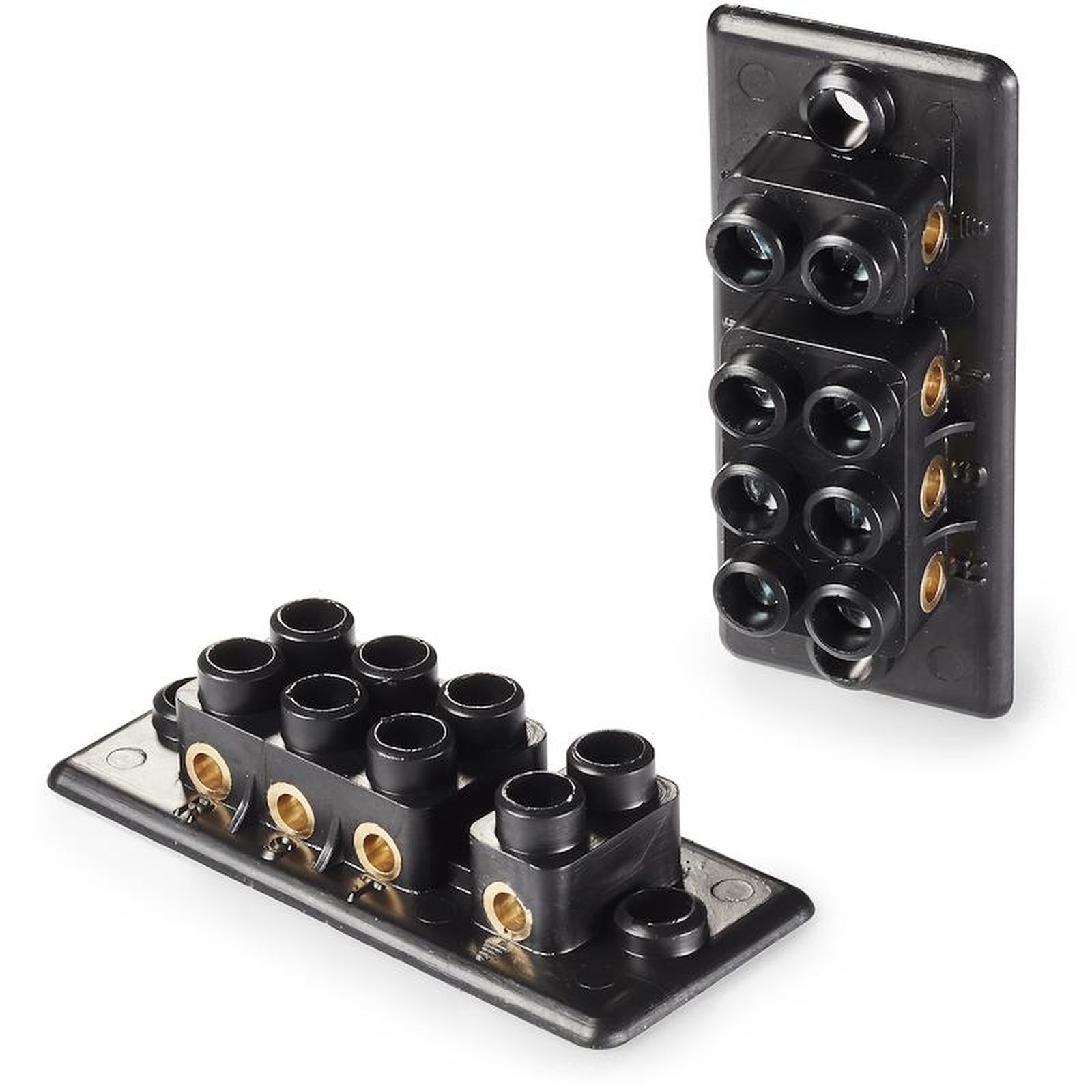

SUURI LIITÄNTÄKOTELO, 4 LIITINTÄ

20

R530


Morsettiere e coperchi

Materiaalit:

Iskunkestävää polystyreeniä.

Pinta:

Sileä.

Väri:

Musta (RAL 9011).

Istukat:

Rei'itetty ja kierteitetty holkki, messinkiä.

Ruuvi sinkittyä terästä M04x10 DIN 84.

Erikoistilaukset:

Ei mitään.

Yhteensopivat lisälaitteet:

Liitäntäkotelon suojakansi R531.

Tietolehti

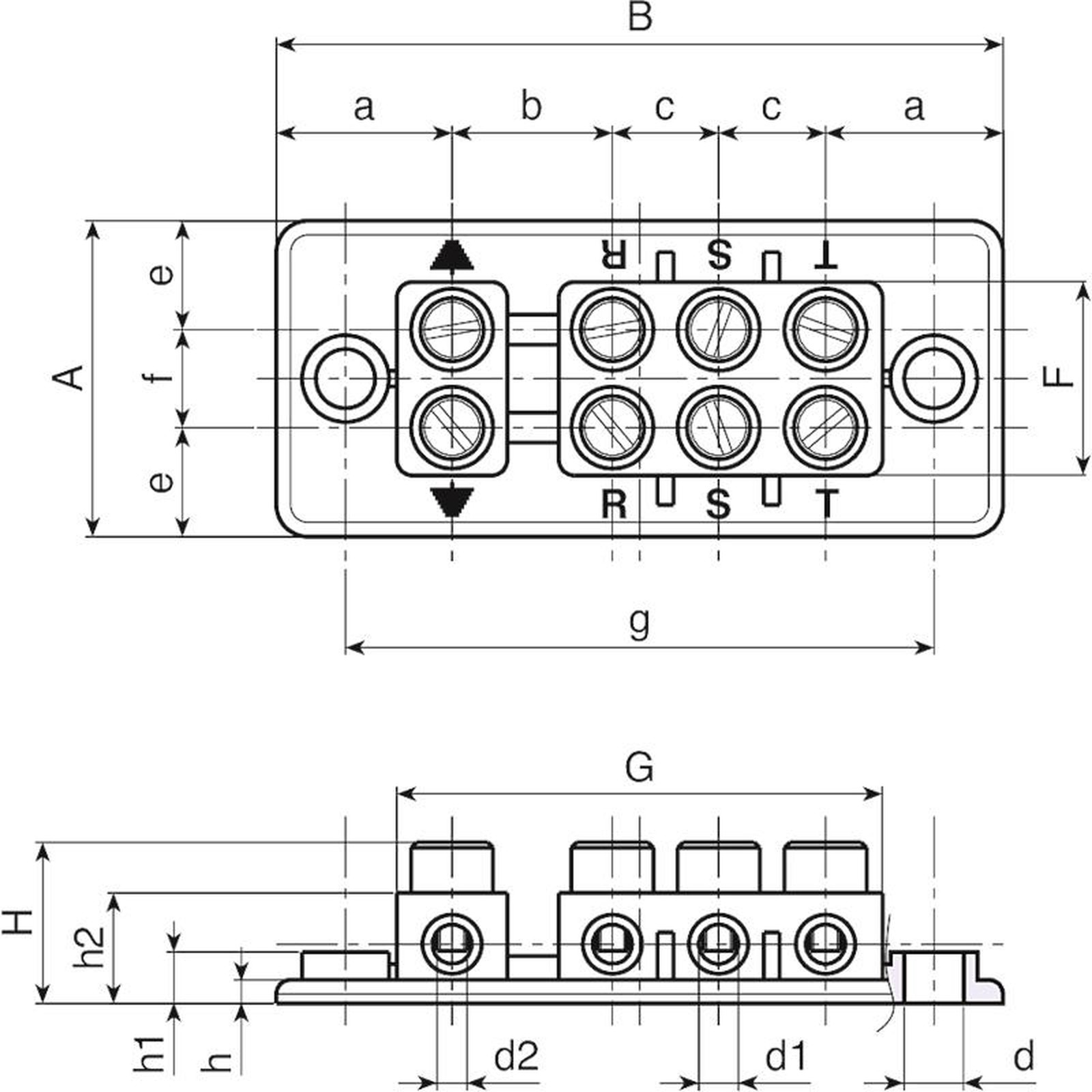

Koodi Art. A B H F G a b c e f g h h1 h2 d d1 d2 Paino (g)
R53091.0001 R53091.P01 40,5 92,5 21 25 62,5 22 20,5 13.5 14 12.5 75 3,5 7 15,5 7,5 5 M4 70
