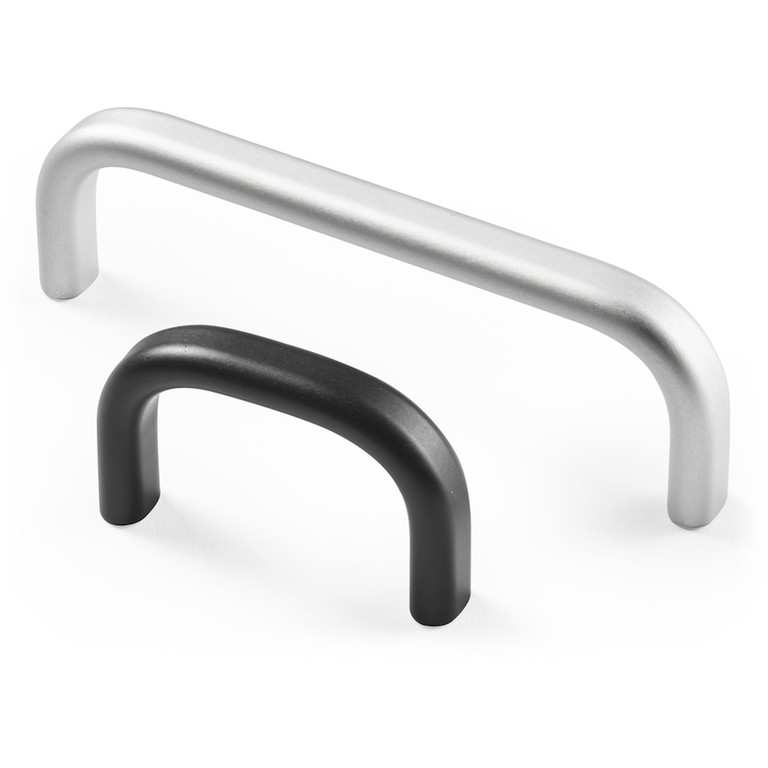

KAPEA, LITTEÄ OVAALI ALUMIINIKAHVA
02
B408
Maniglie in metallo
Materiaalit:
Alumiinikahva, seos 6060.
Pinta:
Satinoitu hiekkapuhalluksella.
Väri:
B408-01
Anodisoitu musta.
B408-99
Anodisoitu luonnollinen hopea.
Erikoistilaukset:
Ei mitään.
B408 - Versio, anodisoitu musta - koodi 01

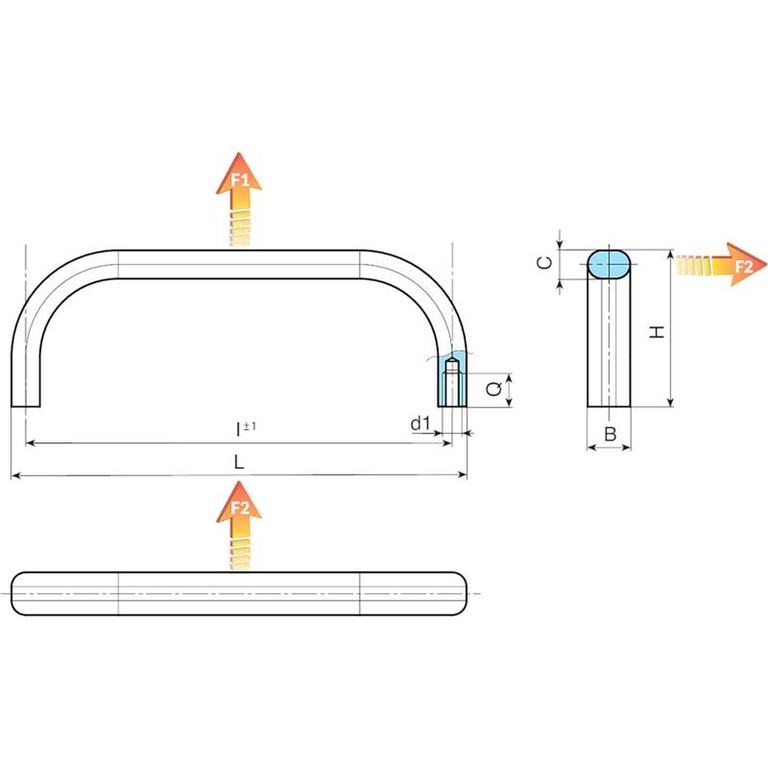

| Koodi | art. | L | I ±1 | H | B | C | Q | d1 | Paino (g) | F1 (N) | F2 (N) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| B408055.0001 | B408055.A12M0501 | 63 | 55 | 40 | 12 | 8 | 10 | M5 | 24 | 500 | 500 |
| B408088.0001 | B408088.A12M0501 | 96 | 88 | 40 | 12 | 8 | 10 | M5 | 30 | 500 | 500 |
| B408100.0001 | B408100.A12M0501 | 108 | 100 | 40 | 12 | 8 | 10 | M5 | 32 | 500 | 500 |
| B408120.0001 | B408120.A12M0501 | 128 | 120 | 40 | 12 | 8 | 10 | M5 | 37 | 500 | 500 |
| B408180.0001 | B408180.A12M0501 | 188 | 180 | 40 | 12 | 8 | 10 | M5 | 50 | 500 | 500 |
| B408200.0001 | B408200.A12M0501 | 208 | 200 | 40 | 12 | 8 | 10 | M5 | 55 | 500 | 500 |
| B408235.0001 | B408235.A12M0501 | 243 | 235 | 40 | 12 | 8 | 10 | M5 | 64 | 500 | 500 |
| B408250.0001 | B408250.A12M0501 | 258 | 250 | 40 | 12 | 8 | 10 | M5 | 68 | 500 | 500 |
B408 - Versio, luonnollinen anodisoitu hopea - koodi 99
| Koodi | art. | L | I ±1 | H | B | C | Q | d1 | Paino (g) | F1 (N) | F2 (N) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| B408055.0002 | B408055.A12M0599 | 63 | 55 | 40 | 12 | 8 | 10 | M5 | 24 | 500 | 500 |
| B408088.0002 | B408088.A12M0599 | 96 | 88 | 40 | 12 | 8 | 10 | M5 | 30 | 500 | 500 |
| B408100.0002 | B408100.A12M0599 | 108 | 100 | 40 | 12 | 8 | 10 | M5 | 32 | 500 | 500 |
| B408120.0002 | B408120.A12M0599 | 128 | 120 | 40 | 12 | 8 | 10 | M5 | 37 | 500 | 500 |
| B408180.0002 | B408180.A12M0599 | 188 | 180 | 40 | 12 | 8 | 10 | M5 | 50 | 500 | 500 |
| B408200.0002 | B408200.A12M0599 | 208 | 200 | 40 | 12 | 8 | 10 | M5 | 55 | 500 | 500 |
| B408235.0002 | B408235.A12M0599 | 243 | 235 | 40 | 12 | 8 | 10 | M5 | 64 | 500 | 500 |
| B408250.0002 | B408250.A12M0599 | 258 | 250 | 40 | 12 | 8 | 10 | M5 | 68 | 500 | 500 |
