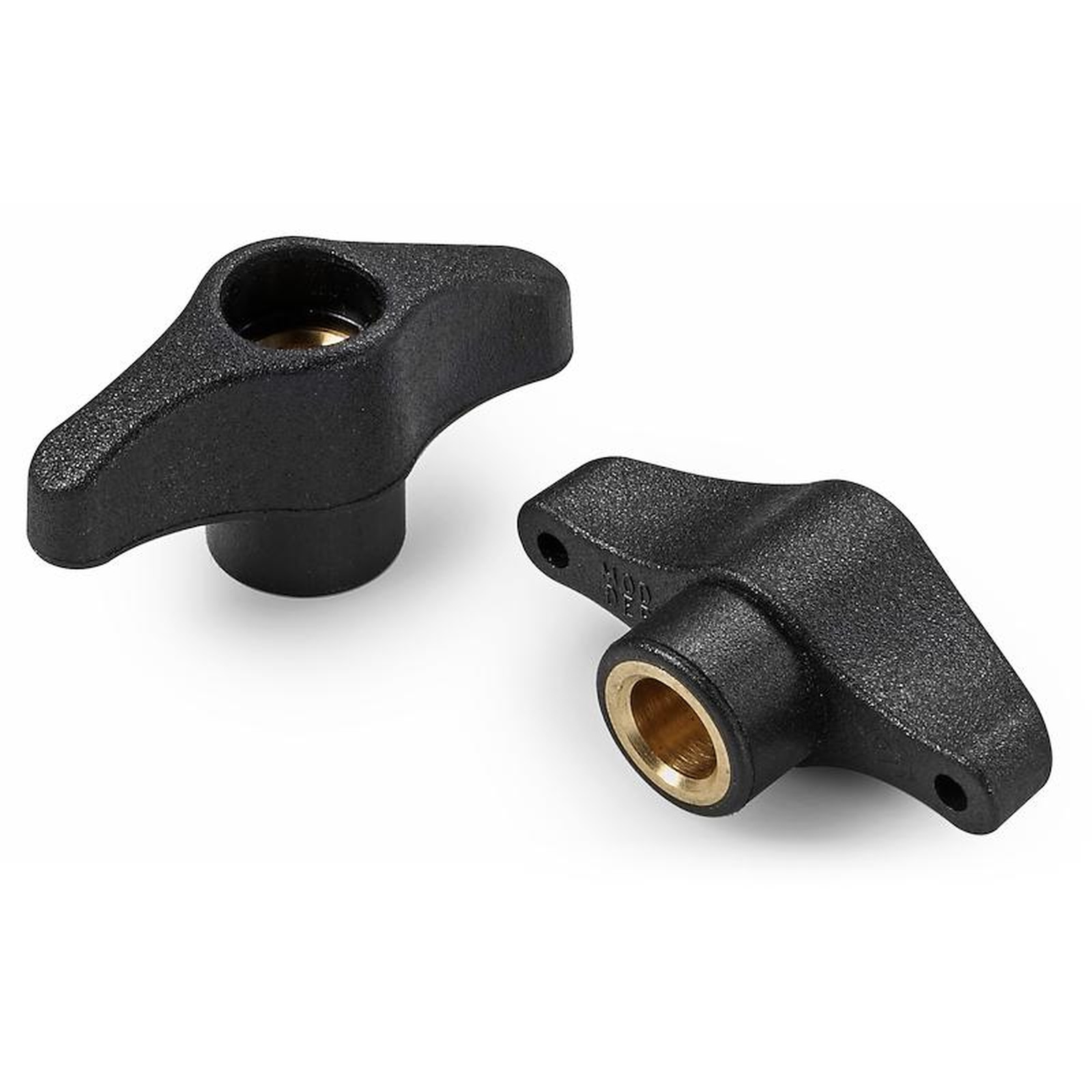

“EUROMODEL” WING NUT WITH SMOOTH THROUGH BORE WITHOUT CAP
12
L808
Galletti Euromodel
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Inserts:
L808:
Brass insert with smooth through bore (bore tolerance H9).
L808PIN:
Galvanised steel insert with smooth through bore (Aisi 303) (bore tolerance H9).
Special requests:
Upon request and for special quantities inserts can be supplied in different materials.
Upon request and for special quantities available in the colours indicated in the chart (attention: reduced range).







Version L808: standard brass insert.

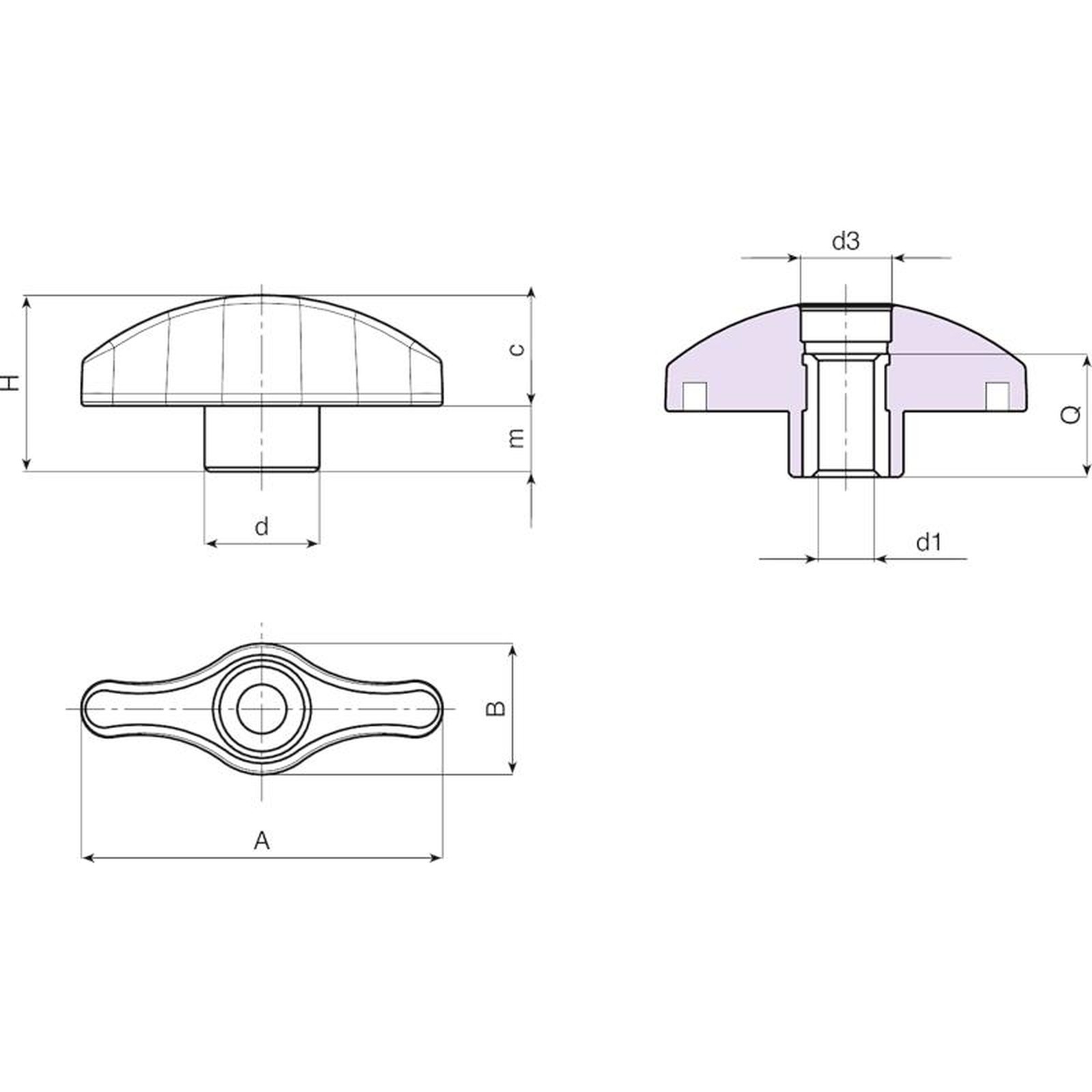

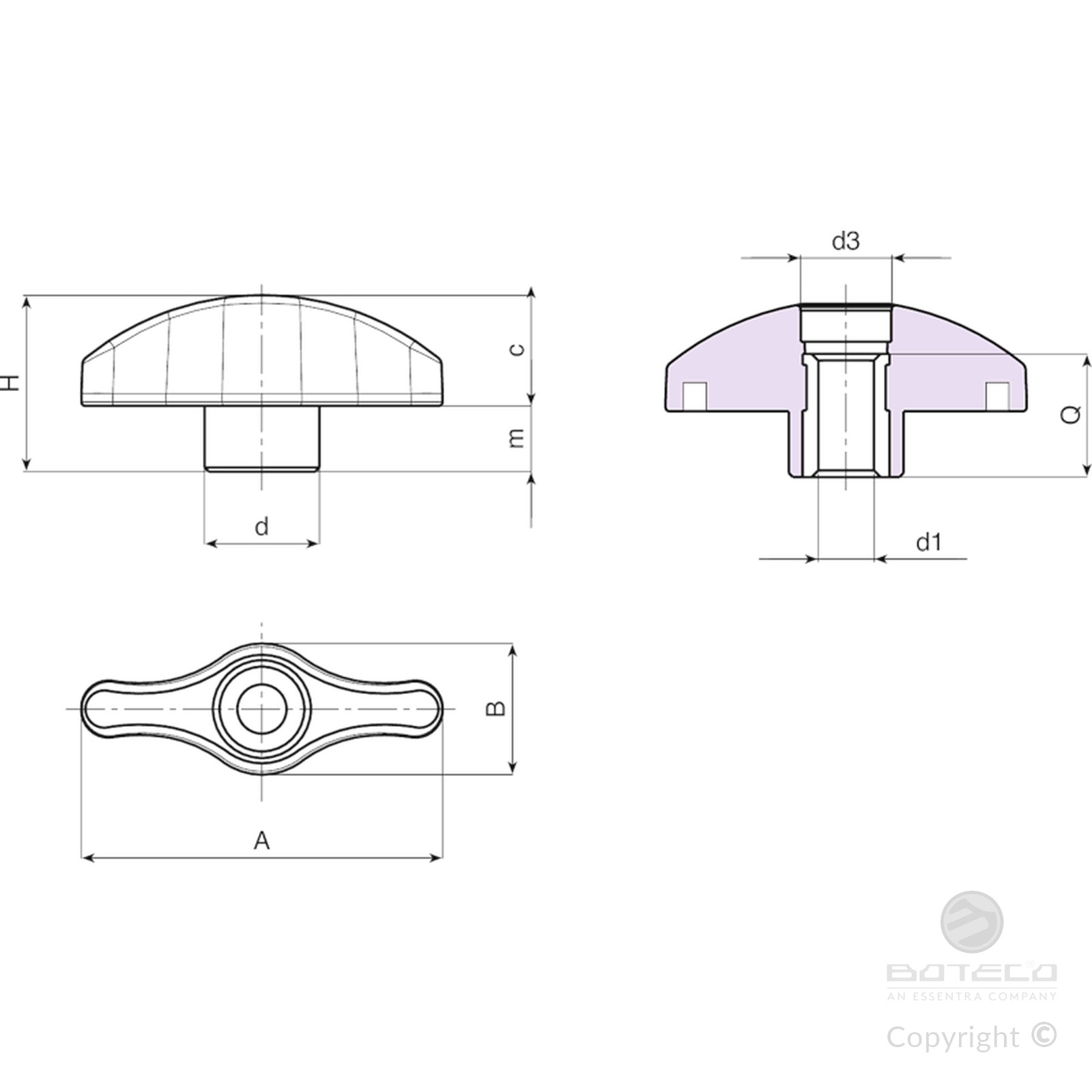

Code | art. | A | B | H | m | c | d | d3 | d1 H9 | Q | Weight (g) |
---|---|---|---|---|---|---|---|---|---|---|---|
L80844.0001 | L80844.TD0501 | 44 | 16 | 21.5 | 8 | 14 | 14 | 10 | 5 | 15 | 8 |
L80844.0002 | L80844.TD0601 | 44 | 16 | 21.5 | 8 | 14 | 14 | 10 | 6 | 15 | 8 |
L80844.0004 | L80844.TD0801 | 44 | 16 | 21.5 | 8 | 14 | 14 | 10 | 8 | 15 | 9 |
L80852.0005 | L80852.TD0501 | 52 | 19 | 25.5 | 9.5 | 16.5 | 17 | 13 | 5 | 18 | 13 |
L80852.0001 | L80852.TD0601 | 52 | 19 | 25.5 | 9.5 | 16.5 | 17 | 13 | 6 | 18 | 13 |
L80852.0002 | L80852.TD0801 | 52 | 19 | 25.5 | 9.5 | 16.5 | 17 | 13 | 8 | 18 | 14 |
L80852.0004 | L80852.TD1001 | 52 | 19 | 25.5 | 9.5 | 16.5 | 17 | 13 | 10 | 18 | 15 |
L80867.0001 | L80867.TD0601 | 67 | 24 | 32 | 11 | 21.5 | 21 | 16 | 6 | 18 | 24 |
L80867.0002 | L80867.TD0801 | 67 | 24 | 32 | 11 | 21.5 | 21 | 16 | 8 | 18 | 24 |
L80867.0003 | L80867.TD1001 | 67 | 24 | 32 | 11 | 21.5 | 21 | 16 | 10 | 18 | 25 |
L80867.0005 | L80867.TD1201 | 67 | 24 | 32 | 11 | 21.5 | 21 | 16 | 12 | 18 | 25 |
Version L808PIN: stainless steel insert (Aisi 303).
Code | art. | A | B | H | m | c | d | d3 | d1 H9 | Q | Weight (g) |
---|---|---|---|---|---|---|---|---|---|---|---|
L80844.0003 | L80844.TD0601PIN | 44 | 16 | 21.5 | 8 | 14 | 14 | 10 | 6 | 15 | 8 |
L80852.0003 | L80852.TD0801PIN | 52 | 19 | 25.5 | 9.5 | 16.5 | 17 | 13 | 8 | 18 | 14 |
L80867.0004 | L80867.TD1001PIN | 67 | 24 | 32 | 11 | 21.5 | 21 | 16 | 10 | 18 | 25 |
