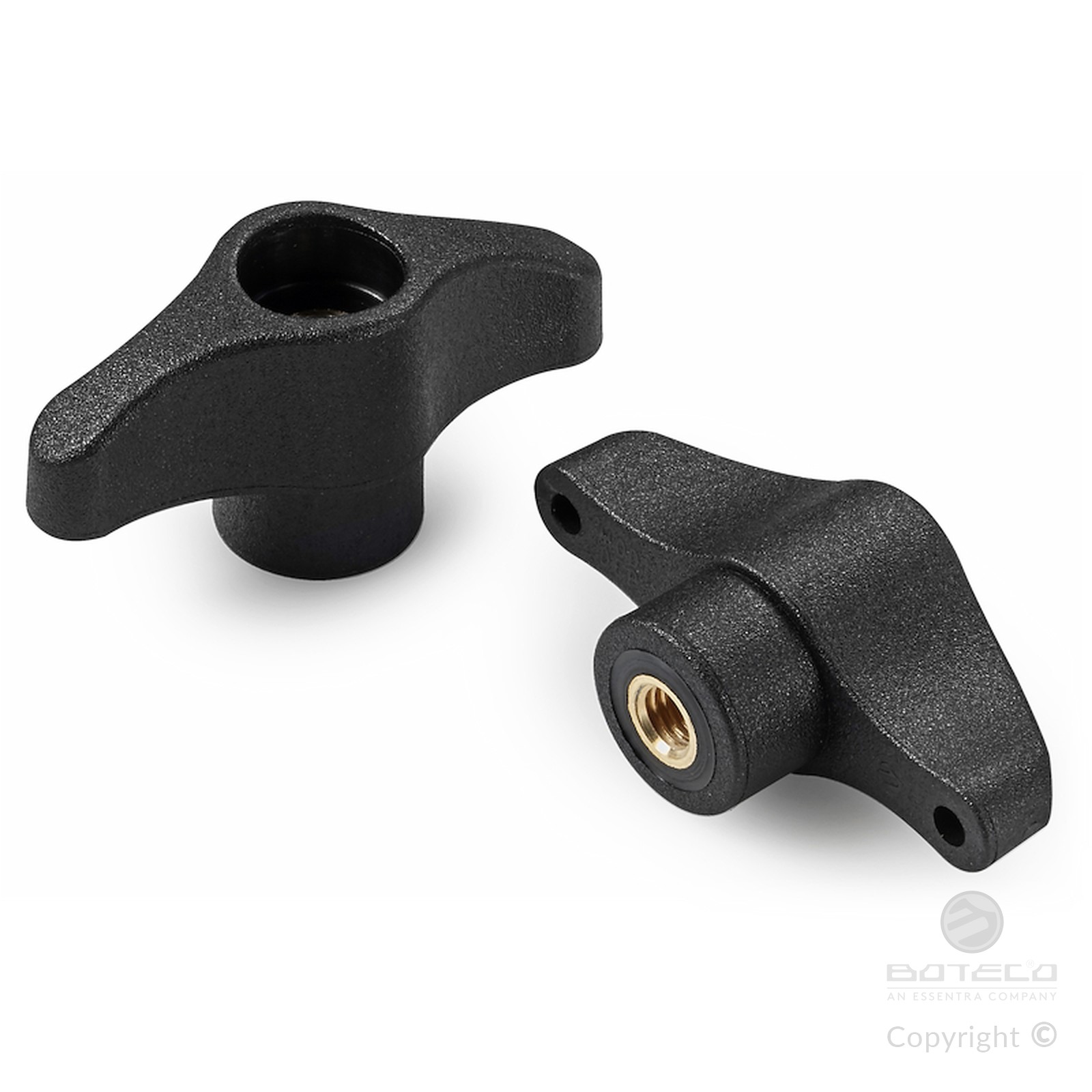

“EUROMODEL” WING NUT WITH THREADED THROUGH-HOLE INSERT WITHOUT CAP

12

L806


Galletti Euromodel

Materials:

Reinforced polyamide.

Resistant to oils and greases.

Surface finish:

Satin.

Colour:

Black (RAL 9011).

Inserts:

L806: Brass insert with threaded through hole (thread tolerance 6H).

L806PIN: Stainless steel insert with threaded through hole (Aisi 303) (thread tolerance 6H).

Special requests:

Upon request and for special quantities inserts can be supplied in different materials.

Upon request and for special quantities available in the colours indicated in the chart (attention: reduced range).

Data sheet

Version L806: standard brass insert.

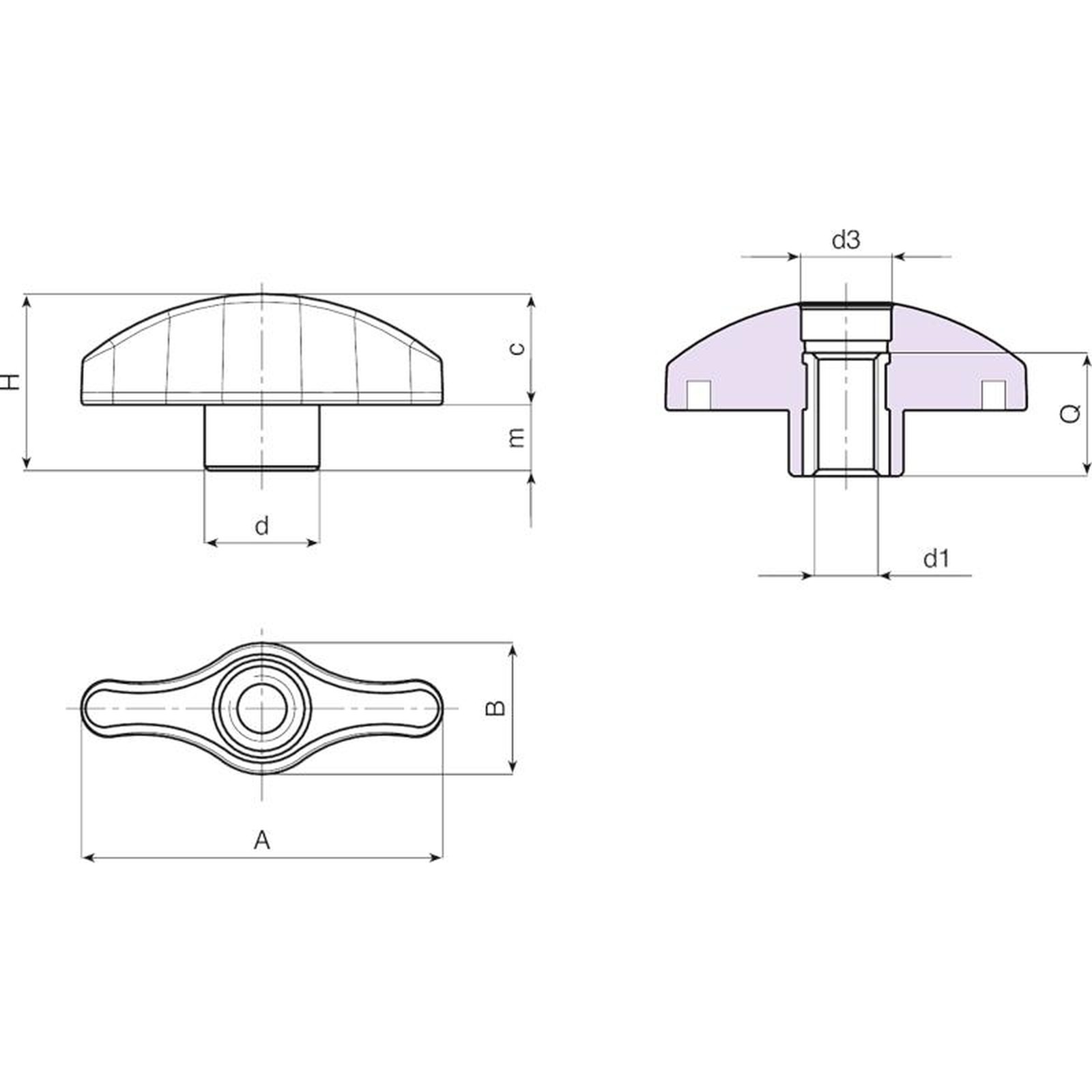

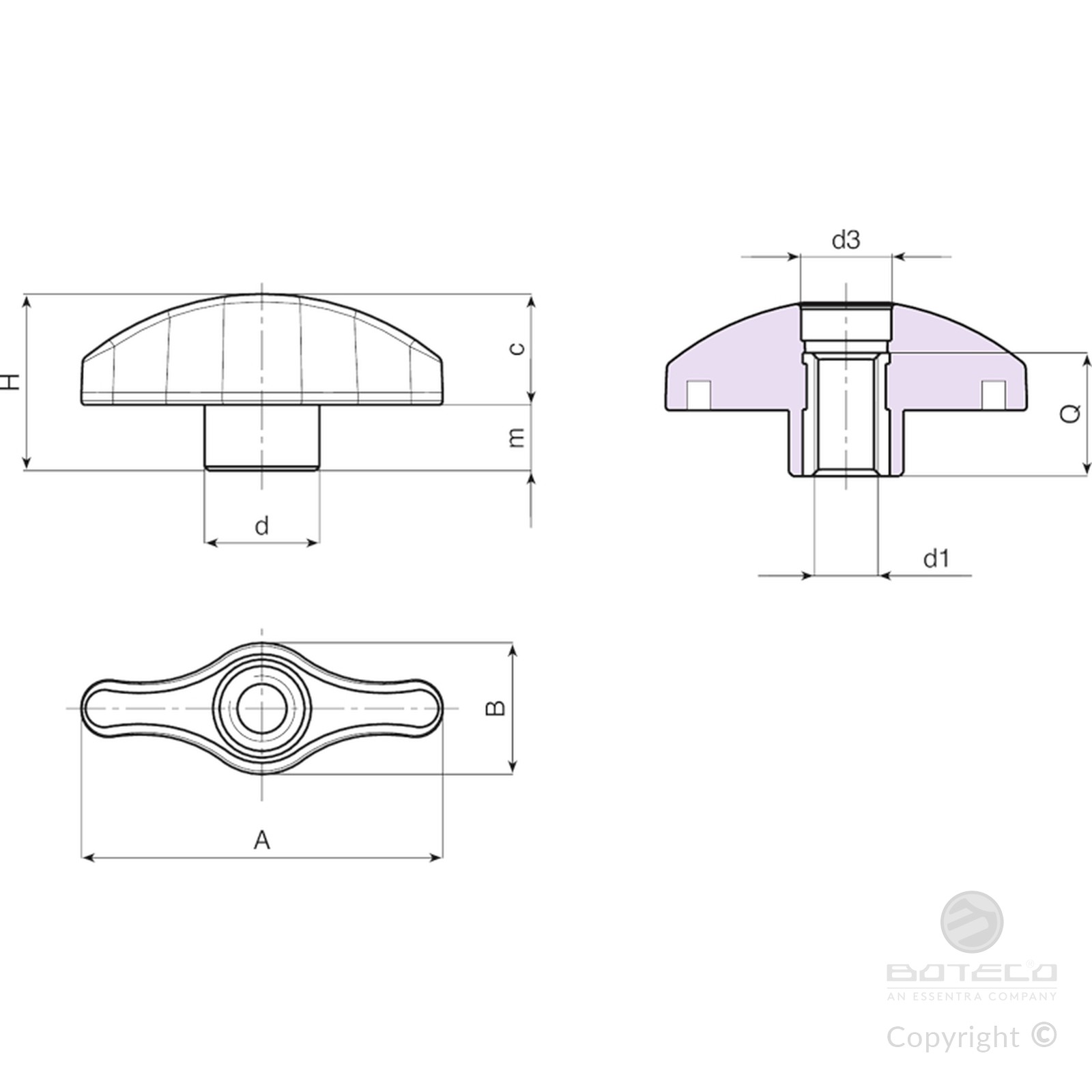

Code art. A B H m c d d3 d1 6H Q Weight (g)
L80644.0001 L80644.TM0501 44 16 21.5 8 14 14 10 M5 15 9
L80644.0002 L80644.TM0601 44 16 21.5 8 14 14 10 M6 15 9
L80644.0004 L80644.TM0801 44 16 21.5 8 14 14 10 M8 15 10
L80652.0001 L80652.TM0501 52 19 25.5 9.5 16.5 17 13 M5 18 14
L80652.0002 L80652.TM0601 52 19 25.5 9.5 16.5 17 13 M6 18 15
L80652.0003 L80652.TM0801 52 19 25.5 9.5 16.5 17 13 M8 18 16
L80652.0005 L80652.TM1001 52 19 25.5 9.5 16.5 17 13 M10 18 16
L80667.0001 L80667.TM0601 67 24 32 11 21.5 21 16 M6 18 25
L80667.0002 L80667.TM0801 67 24 32 11 21.5 21 16 M8 18 25
L80667.0004 L80667.TM1001 67 24 32 11 21.5 21 16 M10 18 26
L80667.0006 L80667.TM1201 67 24 32 11 21.5 21 16 M12 18 26

Version L806PIN: stainless steel insert (Aisi 303).

Code art. A B H m c d d3 d1 6H Q Weight (g)
L80644.0003 L80644.TM0601PIN 44 16 21.5 8 14 14 10 M6 15 9
L80652.0004 L80652.TM0801PIN 52 19 25.5 9.5 16.5 17 13 M8 18 16
L80667.0005 L80667.TM1001PIN 67 24 32 11 21.5 21 16 M10 18 26
