Description

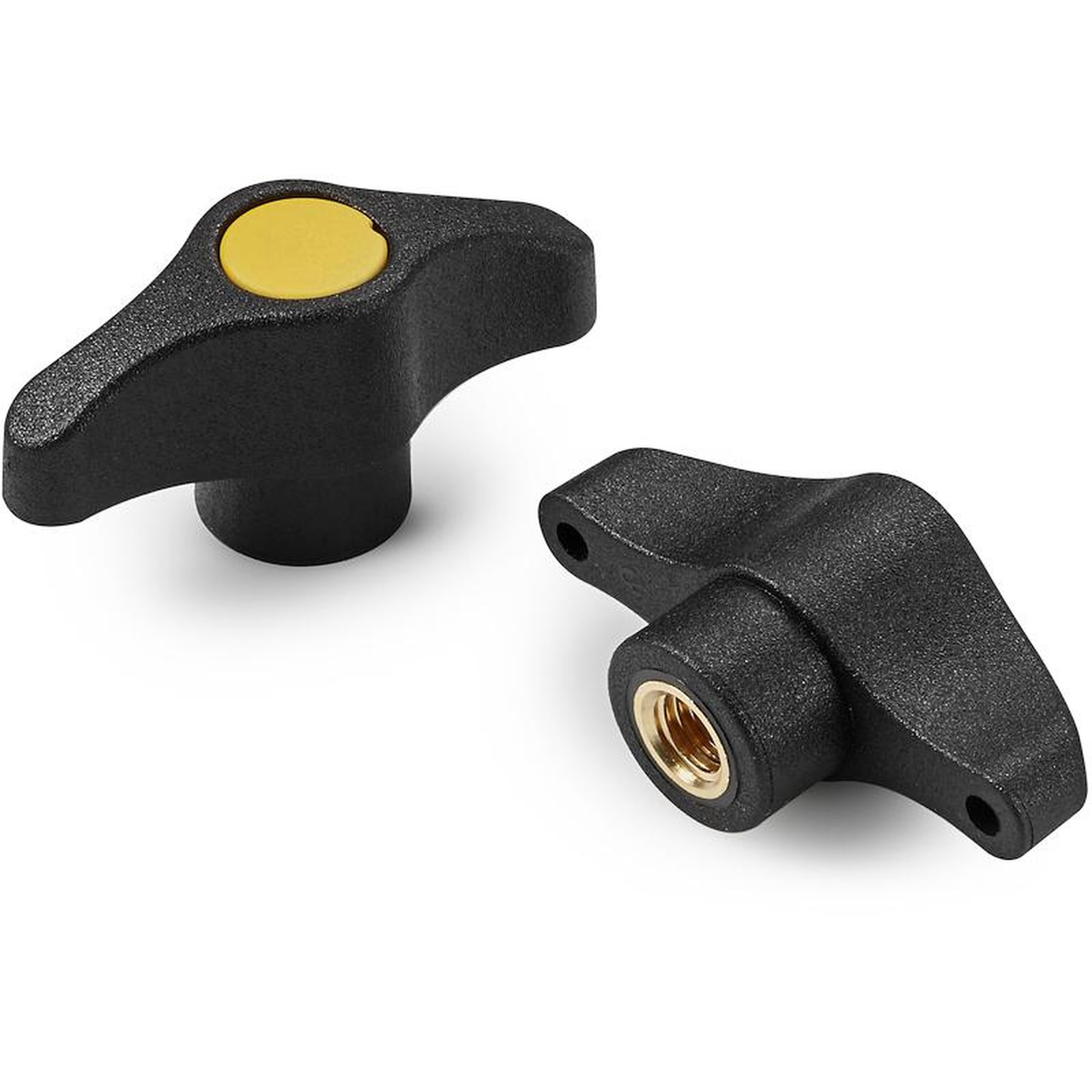

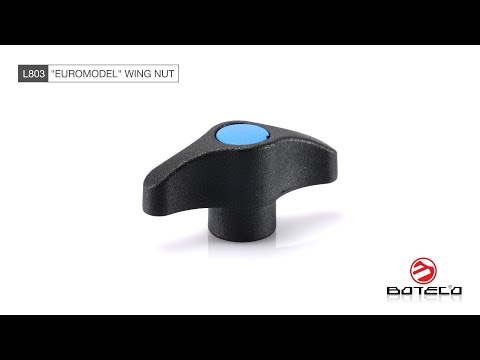

The ‘Euromodel’ wing nut with threaded insert is part of the wing nut product group, but has a more sophisticated design and a coloured cap, characteristics common to all products in the Euromodel line. The design of the wing nut is curved and rounded and features two grooves designed to fit your fingers, thus facilitating rotation and the application of force on the wing nut. This series of wing nuts has a patented design. The article has brass or stainless steel insert with a threaded through hole, which is closed by a coloured cap that does not have the function of a stop. This adds a touch of colour to the product, making it more attractive or customisable. The “Euromodel” wing nut with threaded bushing L803 is made of reinforced polyamide-based materials. Colours available for the cap: Orange, Blue, Yellow, Red, Green, Grey.
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black(RAL 9011).
Central Cap:
Grey polyamide (RAL 7035 code 13).
Alternative Cap colours:
Orange(RAL 2004 code 02).
Blue(RAL 5015 code 07).
Yellow(RAL 1021 code 10).
Red(RAL 3000 code 16).
Green(RAL 6024 code 17).
Black(RAL 9011 code 01).
Inserts:
L803:
Brass insert with threaded through hole (thread tolerance 6H).
L803PIN:
Stainless steel insert with threaded through hole (Aisi 303) (thread tolerance 6H).
Special requests:
Upon request and for special quantities inserts can be supplied in different materials.
Upon request and for special quantities available in the colours indicated in the chart (attention: reduced range).
Version L803: standard brass insert.

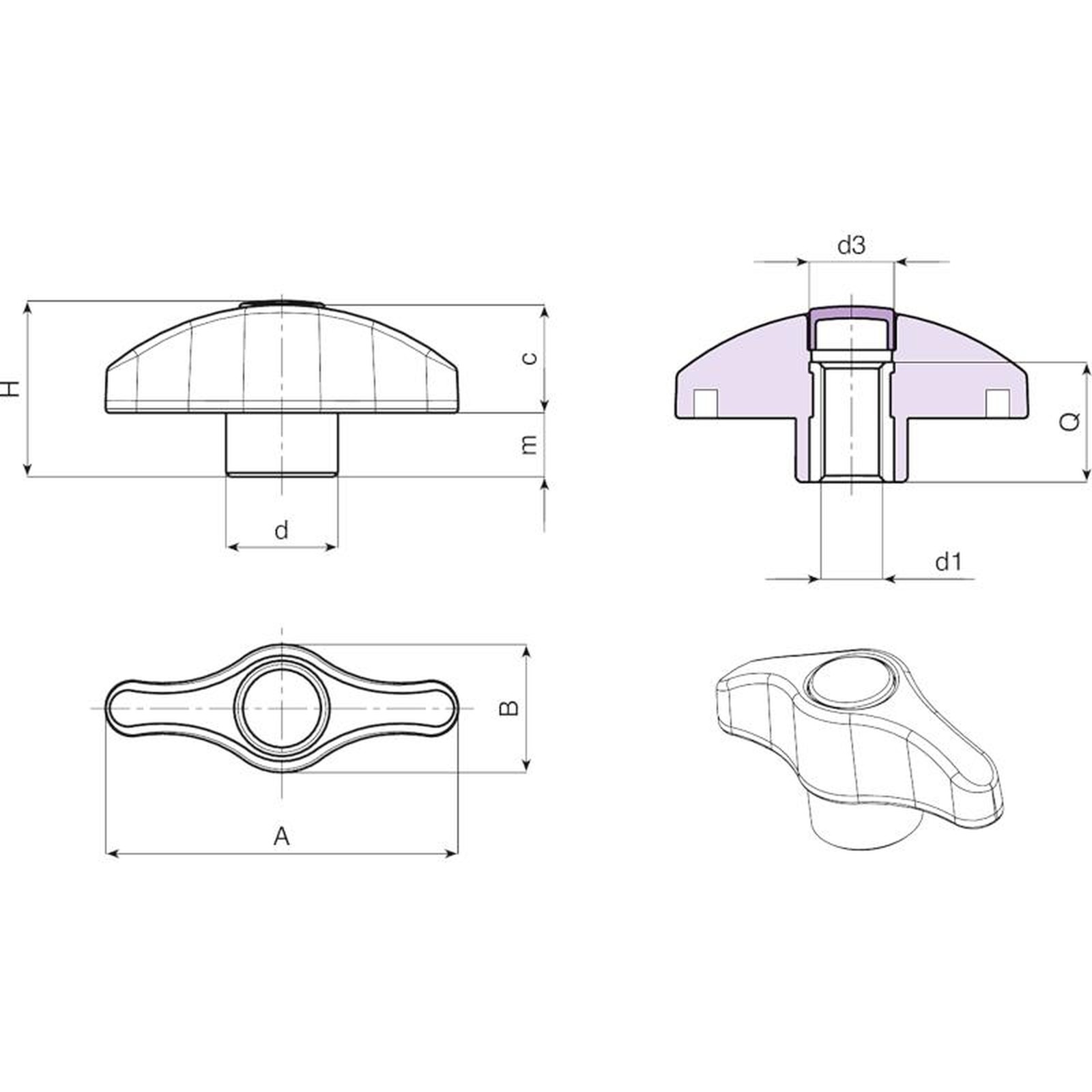

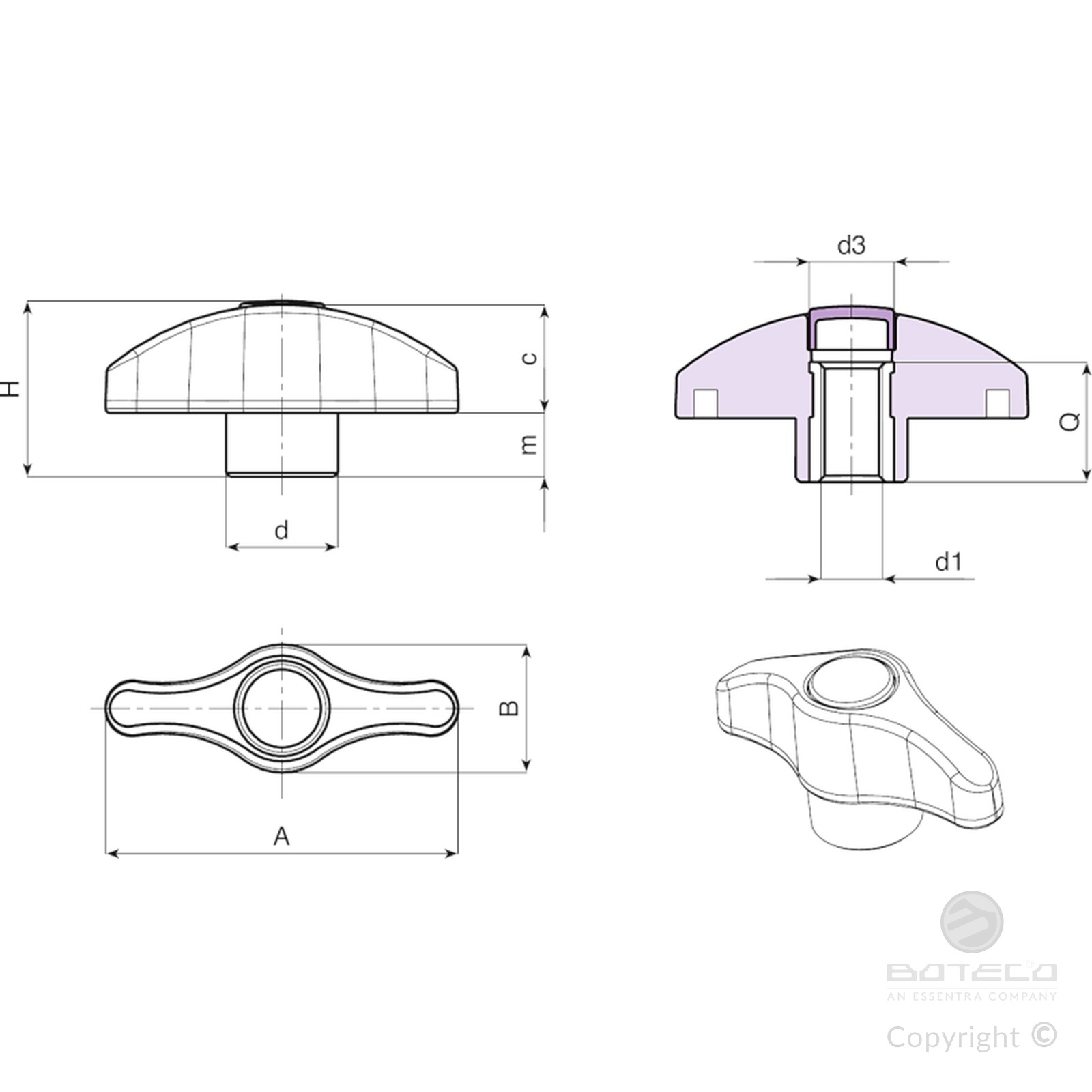

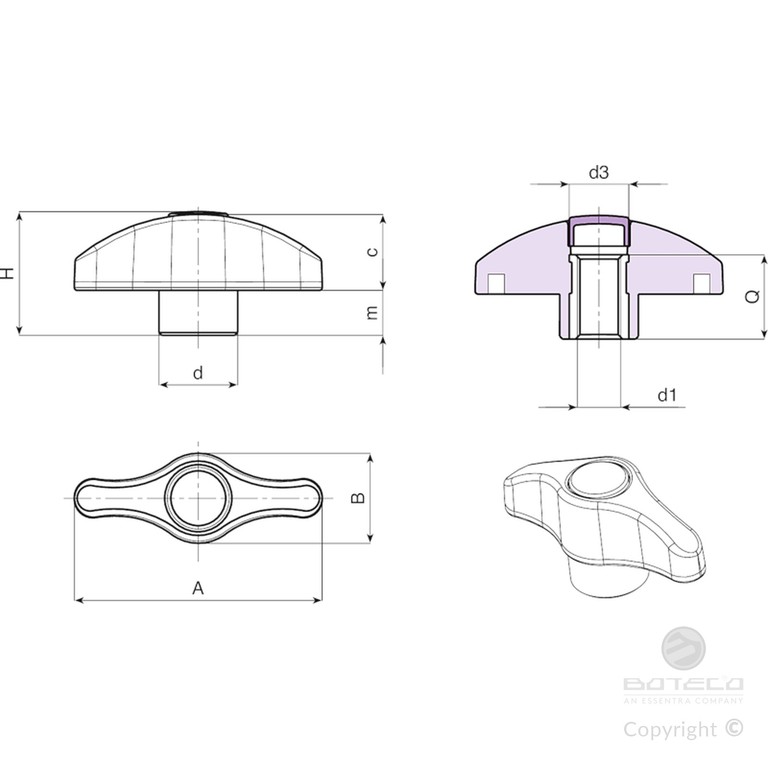

| Code | art. | A | B | H | m | c | d | d3 | d1 6H | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| L80344.0004 | L80344.TM050113 | 44 | 16 | 22 | 8 | 14 | 14 | 10 | M5 | 15 | 10 |
| L80344.0010 | L80344.TM060113 | 44 | 16 | 22 | 8 | 14 | 14 | 10 | M6 | 15 | 10 |
| L80344.0017 | L80344.TM080113 | 44 | 16 | 22 | 8 | 14 | 14 | 10 | M8 | 15 | 11 |
| L80352.0017 | L80352.TM050113 | 52 | 19 | 26 | 9.5 | 16.5 | 17 | 13 | M5 | 18 | 15 |
| L80352.0005 | L80352.TM060113 | 52 | 19 | 26 | 9.5 | 16.5 | 17 | 13 | M6 | 18 | 15 |
| L80352.0013 | L80352.TM080113 | 52 | 19 | 26 | 9.5 | 16.5 | 17 | 13 | M8 | 18 | 16 |
| L80352.0016 | L80352.TM100113 | 52 | 19 | 26 | 9.5 | 16.5 | 17 | 13 | M10 | 18 | 16 |
| L80367.0002 | L80367.TM060113 | 67 | 24 | 32.5 | 11 | 21.5 | 21 | 16 | M6 | 18 | 26 |
| L80367.0004 | L80367.TM080113 | 67 | 24 | 32.5 | 11 | 21.5 | 21 | 16 | M8 | 18 | 26 |
| L80367.0011 | L80367.TM100113 | 67 | 24 | 32.5 | 11 | 21.5 | 21 | 16 | M10 | 18 | 27 |
| L80367.0015 | L80367.TM120113 | 67 | 24 | 32.5 | 11 | 21.5 | 21 | 16 | M12 | 18 | 27 |
Version L803 PIN - stainless steel insert (Aisi 303)
| Code | art. | A | B | H | m | c | d | d3 | d1 6H | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| L80344.0011 | L80344.TM060113PIN | 44 | 16 | 22 | 8 | 14 | 14 | 10 | M6 | 15 | 10 |
| L80352.0014 | L80352.TM080113PIN | 52 | 19 | 26 | 9.5 | 16.5 | 17 | 13 | M8 | 18 | 16 |
| L80367.0012 | L80367.TM100113PIN | 67 | 24 | 32.5 | 11 | 21.5 | 21 | 16 | M10 | 18 | 27 |
