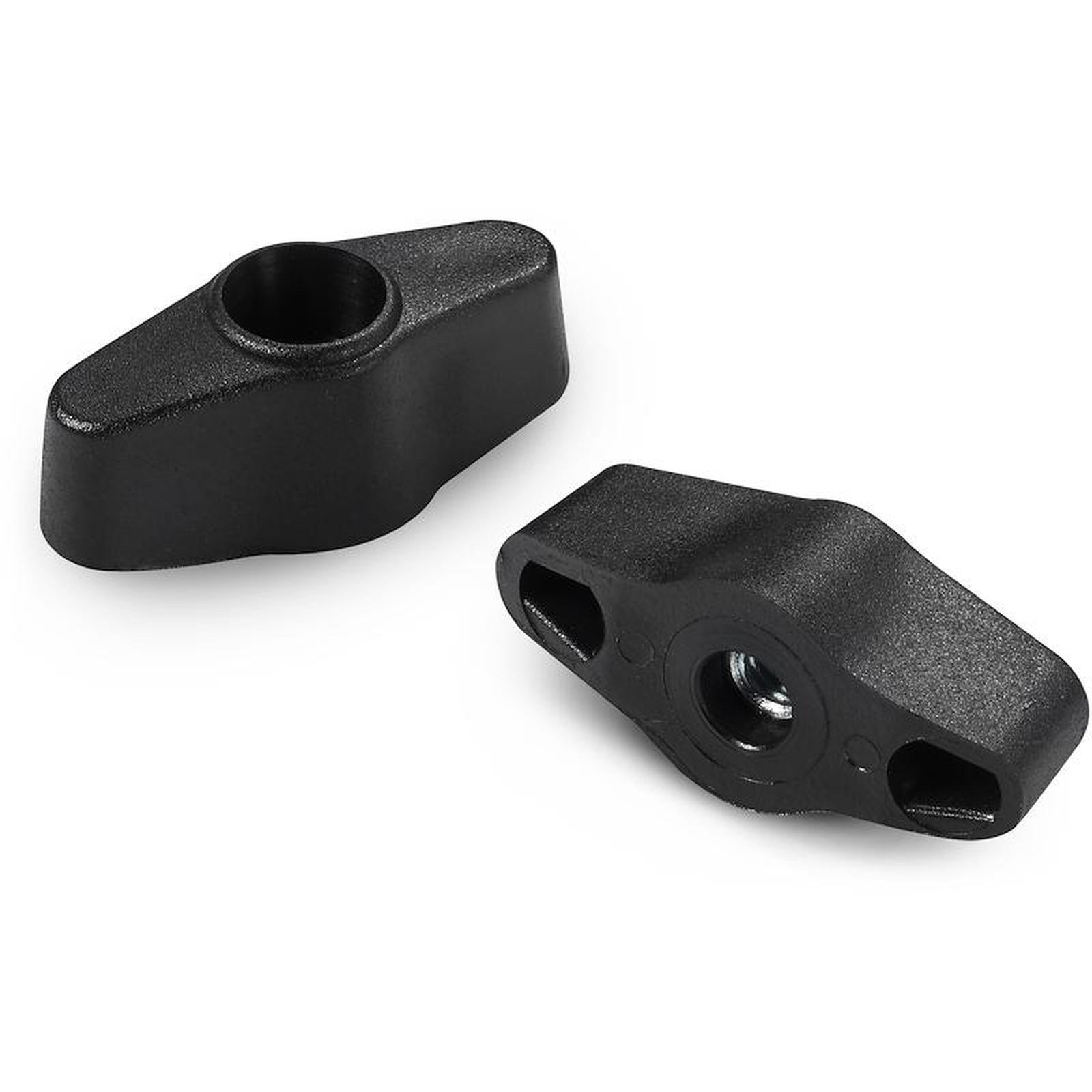

LARGE WING NUT WITH INSERT AND THREADED THROUGH HOLE
12
L755
Galletti standard
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Inserts:
Galvanised steel insert with threaded through hole (thread tolerance 6H).
Special Requests:
Upon request and for special quantities inserts can be supplied in different materials.
Upon request and for special quantities available in the colours indicated in the chart (attention: reduced range).

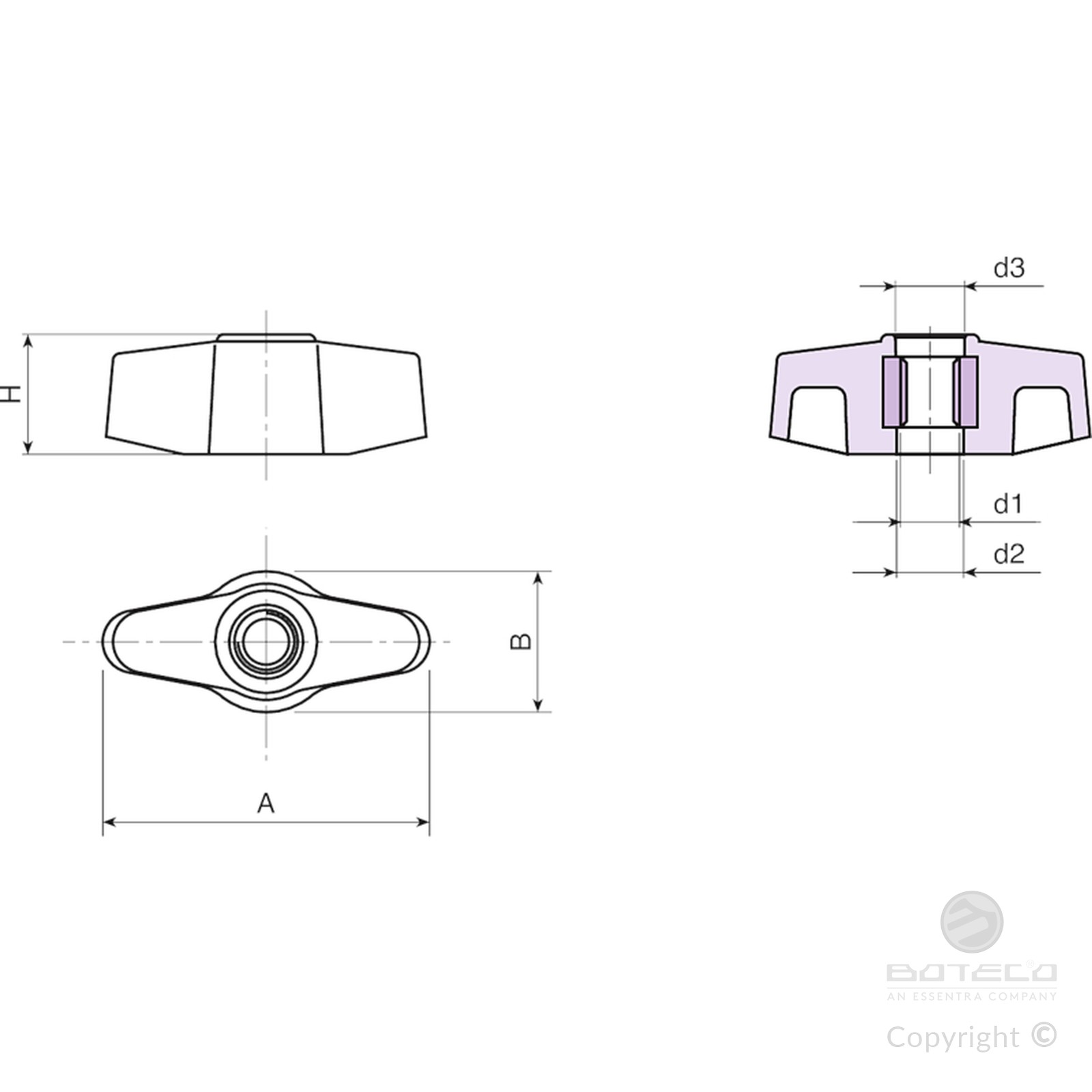

| Code | Art. | A | B | H | d2 | d3 | d1 6H | Weight (g) |
|---|---|---|---|---|---|---|---|---|
| L75548.0001 | L75548.TM0601 | 45 | 20 | 17 | 9.5 | 10 | M6 | 17 |
| L75548.0002 | L75548.TM0801 | 45 | 20 | 17 | 9.5 | 10 | M8 | 16 |
