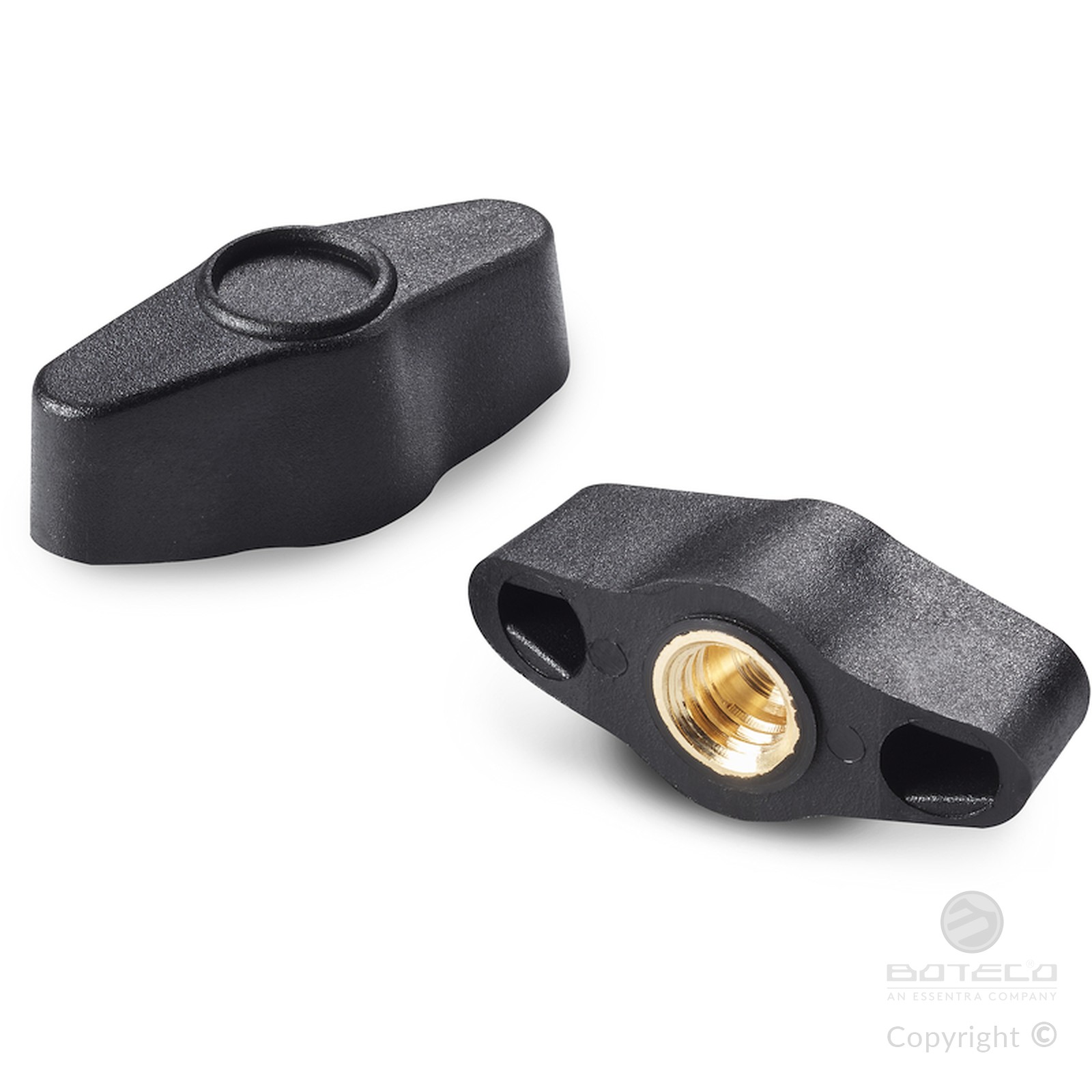

LARGE WING NUT WITH THREADED HOLE INSERT
12
L754
Galletti standard
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Inserts:
Brass insert with female threaded hole (thread tolerance 6H).
Special Requests:
Upon request and for special quantities inserts can be supplied in different materials.
Upon request and for special quantities available in the colours indicated in the chart.

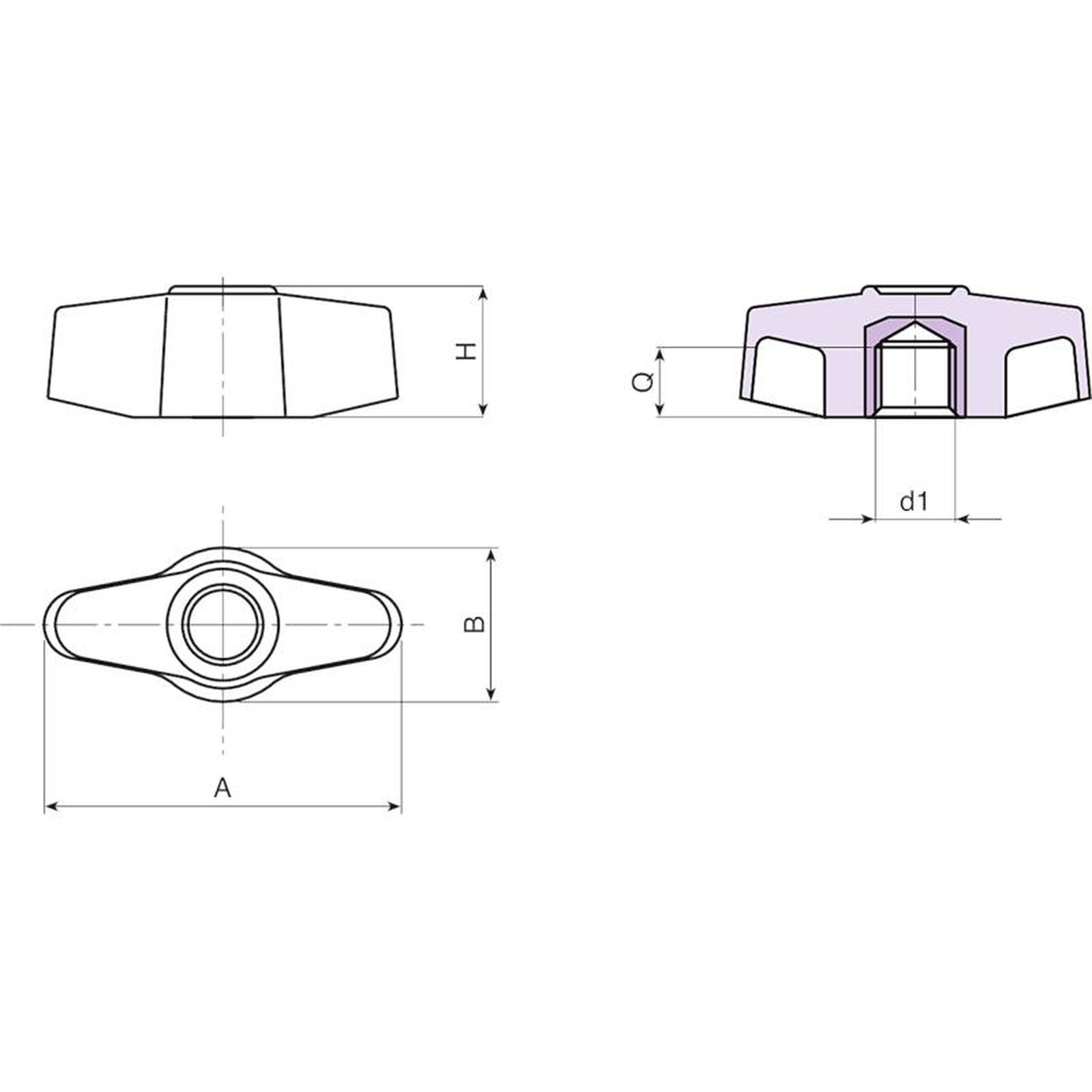

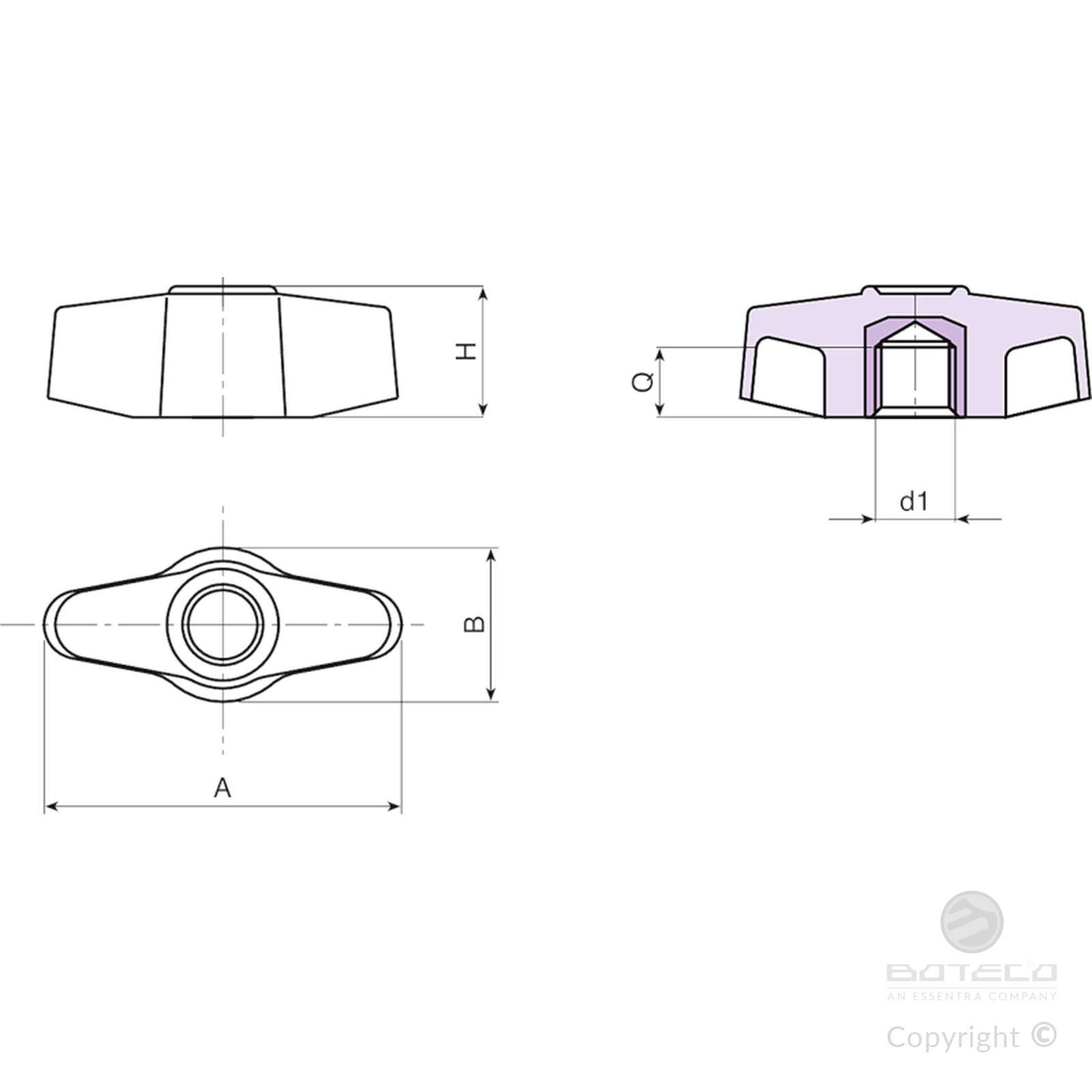

| Code | Art. | A | B | H | d1 6H | Q | Weight (g) |
|---|---|---|---|---|---|---|---|
| L75448.0001 | L75448.TM0601 | 45 | 20 | 17 | M6 | 7 | 11 |
| L75448.0002 | L75448.TM0801 | 45 | 20 | 17 | M8 | 7 | 11 |
| L75448.0005 | L75448.TM1001 | 45 | 20 | 17 | M10 | 6 | 12 |
