WING NUT WITH INSERT AND FEMALE THREADED HOLE
12
L750
Galletti standard
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Inserts:

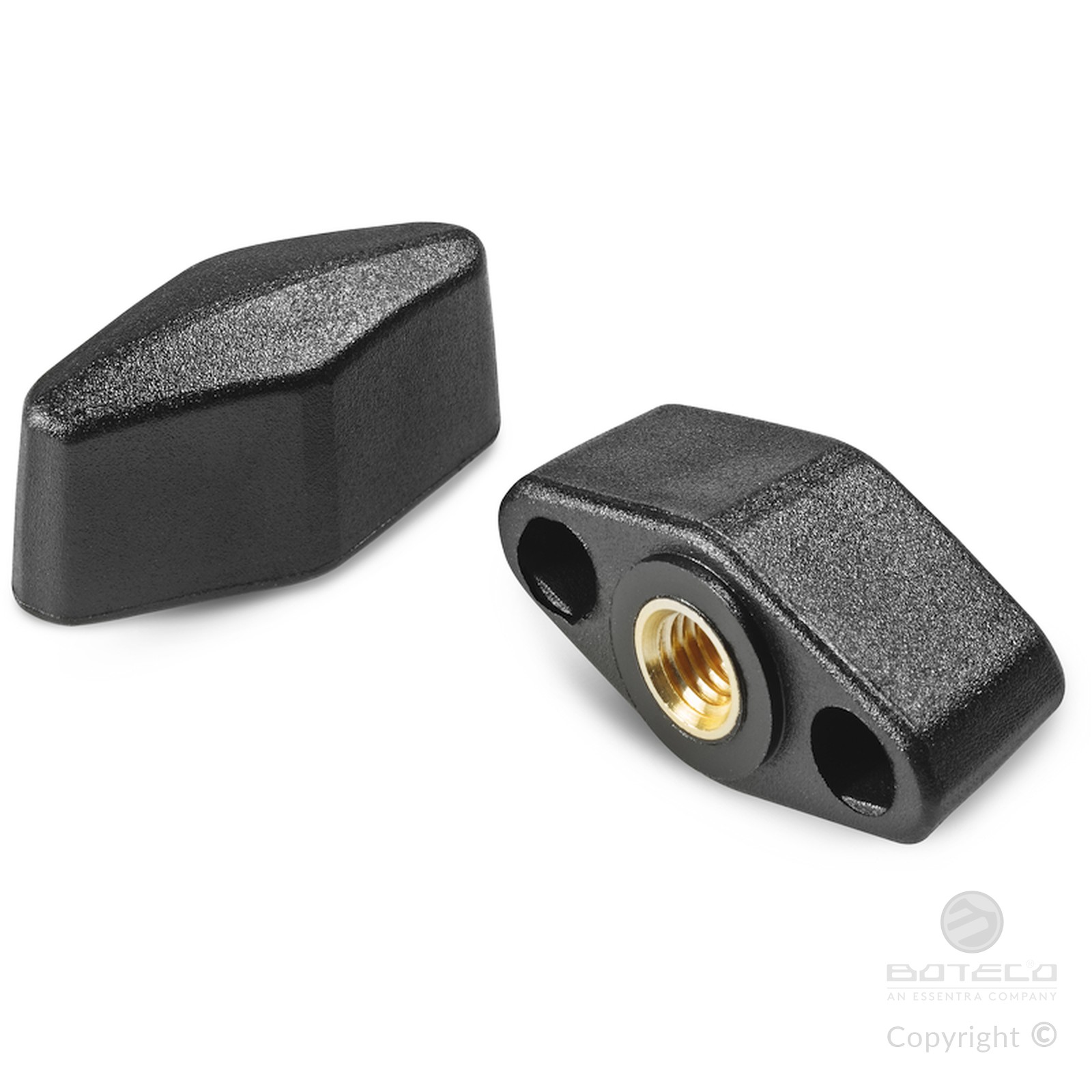

L750:
Brass insert with female threaded hole (thread tolerance 6H).

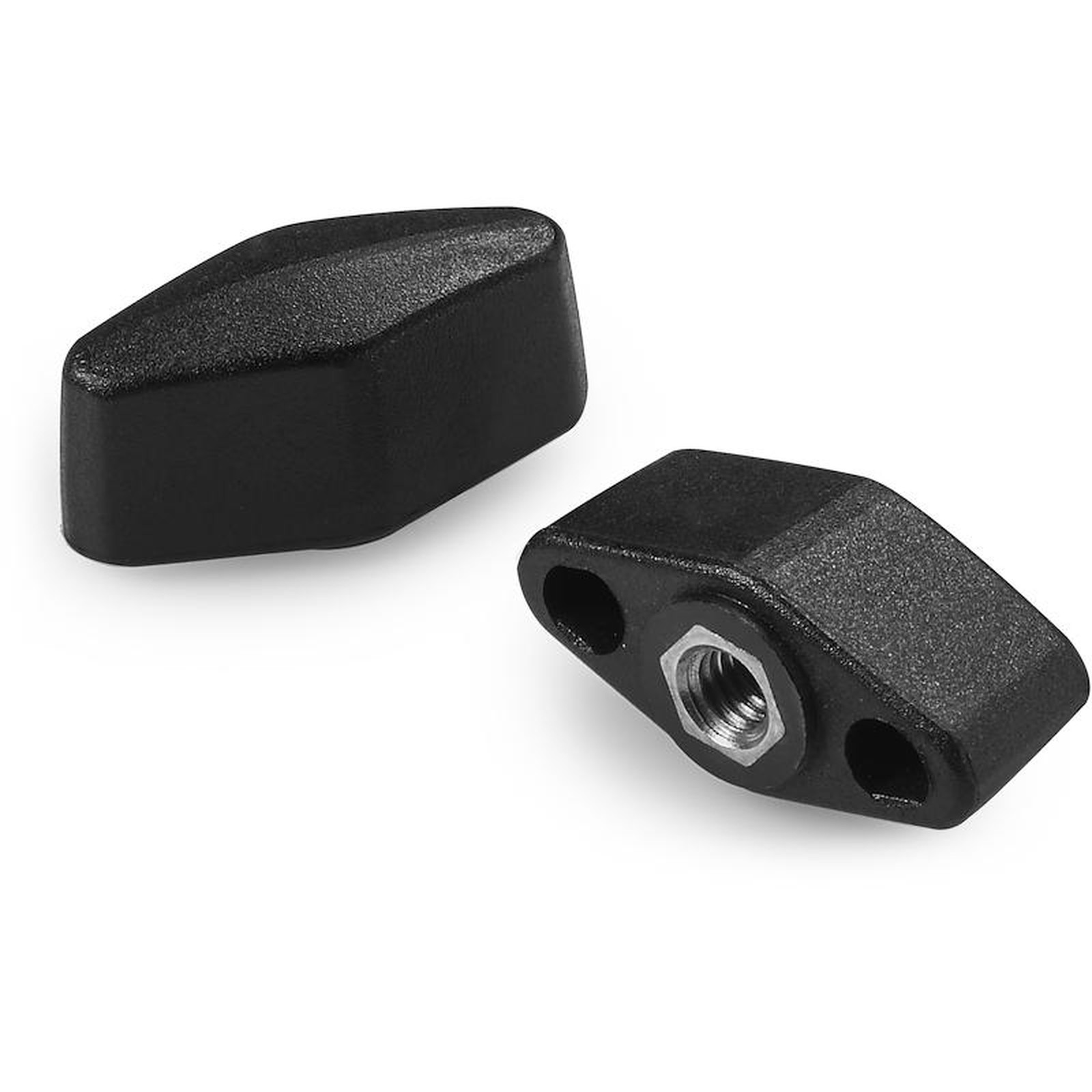

L750CIN:
Stainless steel insert with female threaded hole (Aisi 303) (thread tolerance 6H).
Special Requests:
Version L750: brass insert.

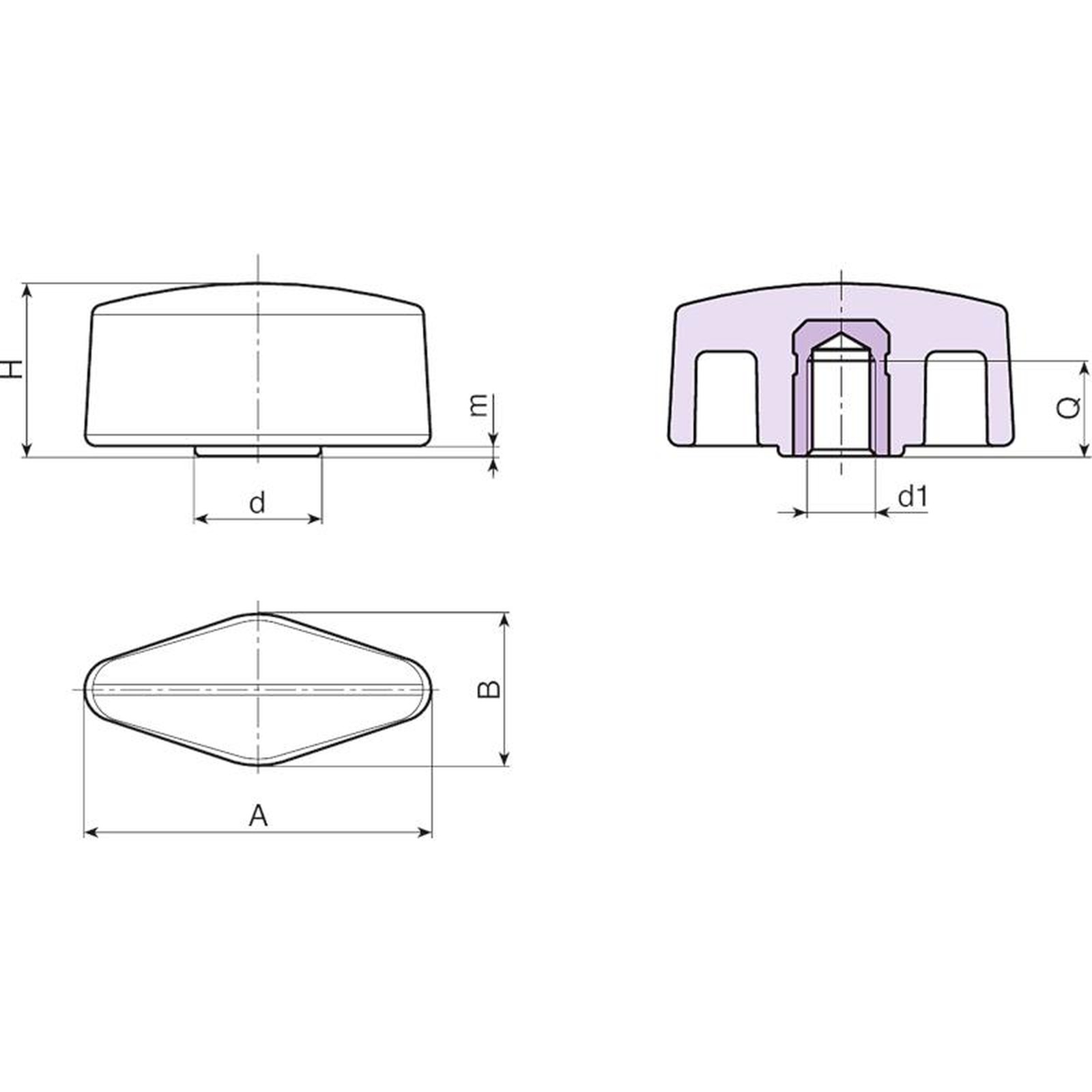

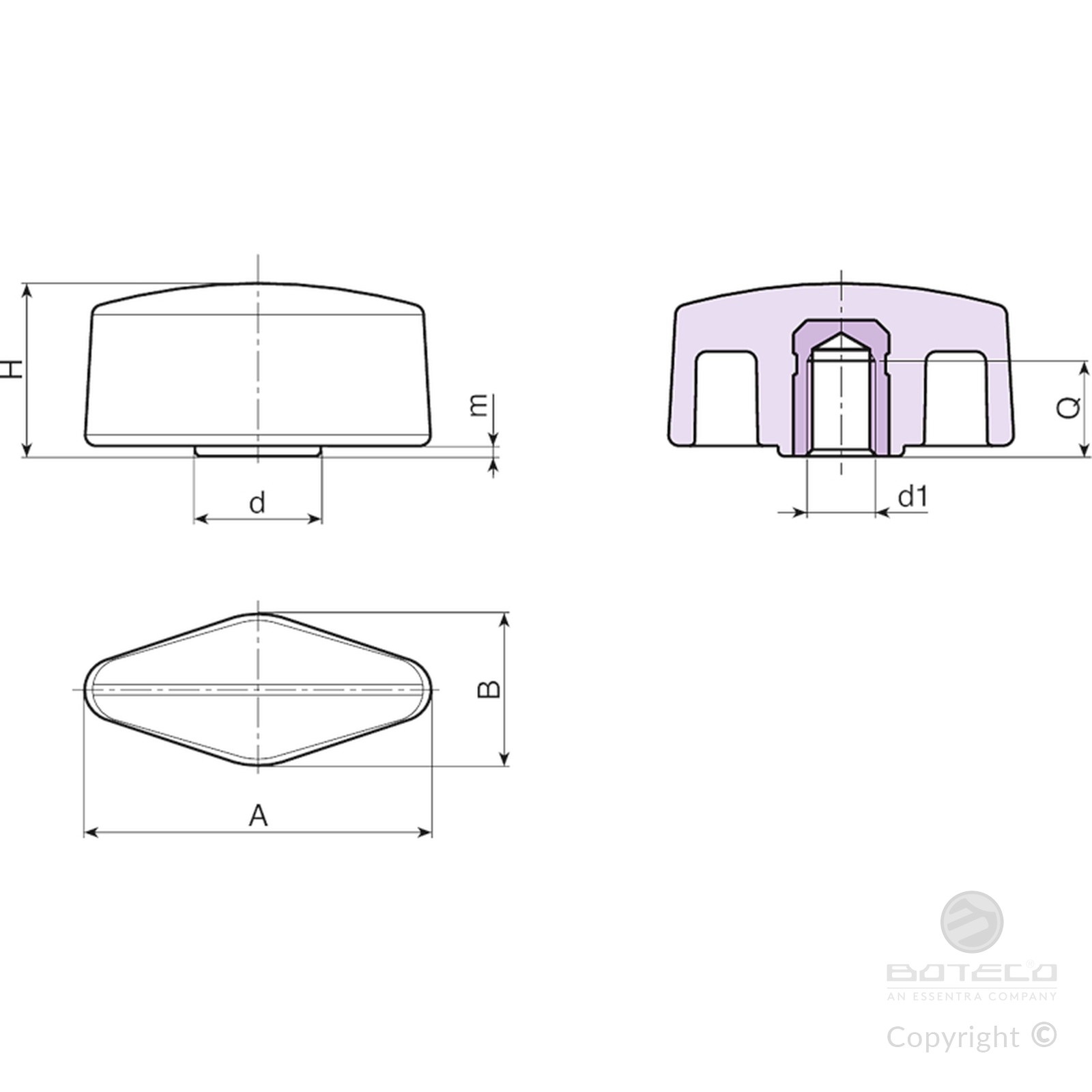

| Code | Art. | A | B | H | m | d | d1 6H | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|
| L75032.0001 | L75032.TM0501 | 33 | 15 | 16.5 | 1 | 12 | M5 | 7 | 7 |
| L75032.0003 | L75032.TM0601 | 33 | 15 | 16.5 | 1 | 12 | M6 | 7 | 6 |
| L75032.0007 | L75032.TM0801 | 33 | 15 | 16.5 | 1 | 12 | M8 | 7 | 6 |
| L75048.0001 | L75048.TM0601 | 48 | 15 | 16 | 1 | 12.5 | M6 | 8 | 10 |
| L75048.0002 | L75048.TM0801 | 48 | 15 | 16 | 1 | 12.5 | M8 | 8 | 10 |
Version L750CIN: stainless steel insert (Aisi 303).
| Code | Art. | A | B | H | m | d | d1 6H | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|
| L75032.0002 | L75032.TM0501CIN | 33 | 15 | 16.5 | 1 | 12 | M5 | 7 | 9 |
| L75032.0004 | L75032.TM0601CIN | 33 | 15 | 16.5 | 1 | 12 | M6 | 7 | 8 |
| L75032.0008 | L75032.TM0801CIN | 33 | 15 | 16.5 | 1 | 12 | M8 | 7 | 8 |
| L75048.0003 | L75048.TM0801CIN | 48 | 15 | 16 | 1 | 12.5 | M8 | 7 | 8 |
