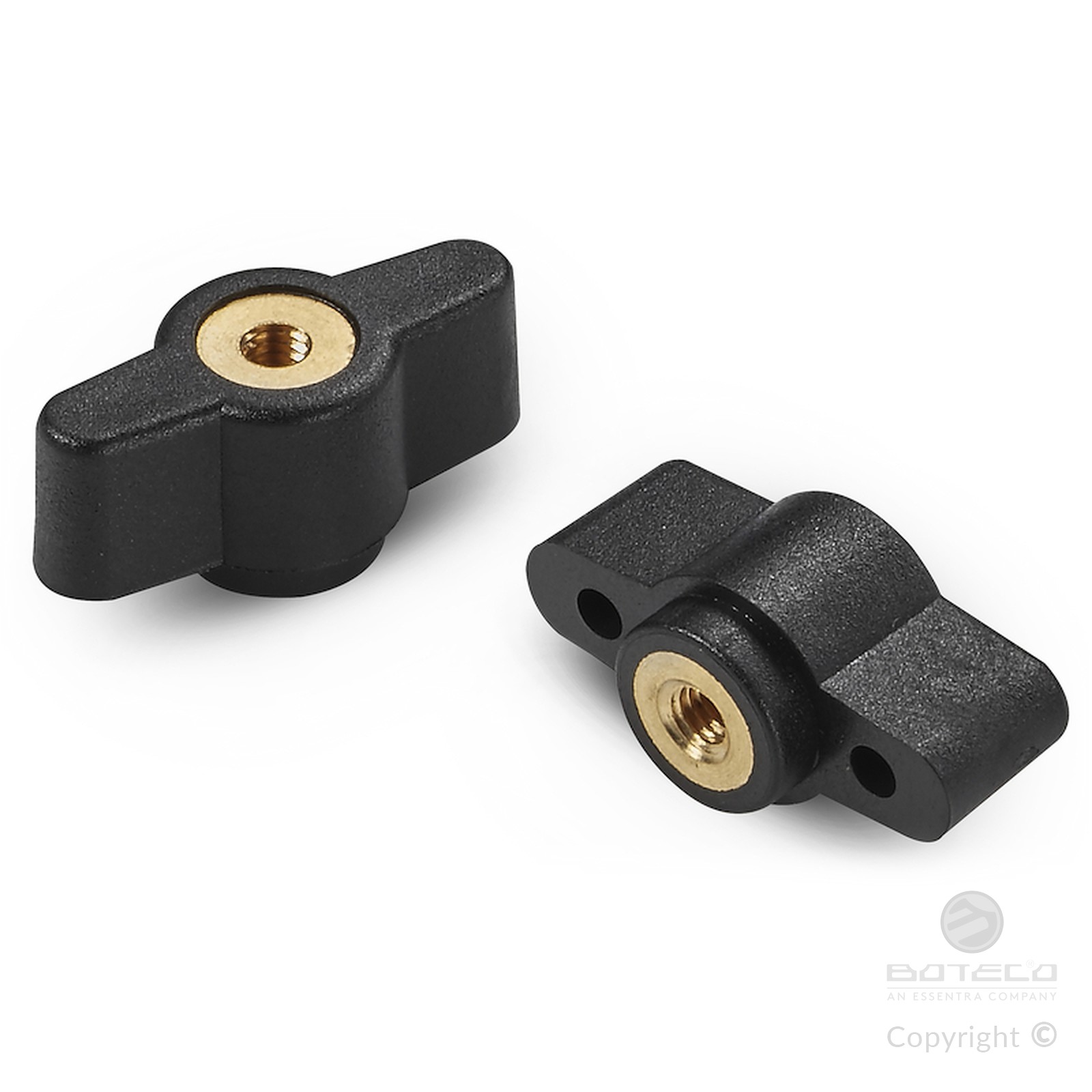

28 mm WING NUT WITH WITH INSERT AND THREADED THROUGH HOLE
12
L748
Galletti standard
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Inserts:
Brass insert with threaded through hole (thread tolerance 6H).
Special Requests:
Upon request and for special quantities inserts can be supplied in different materials.
Upon request and for special quantities available in the colours indicated in the chart.

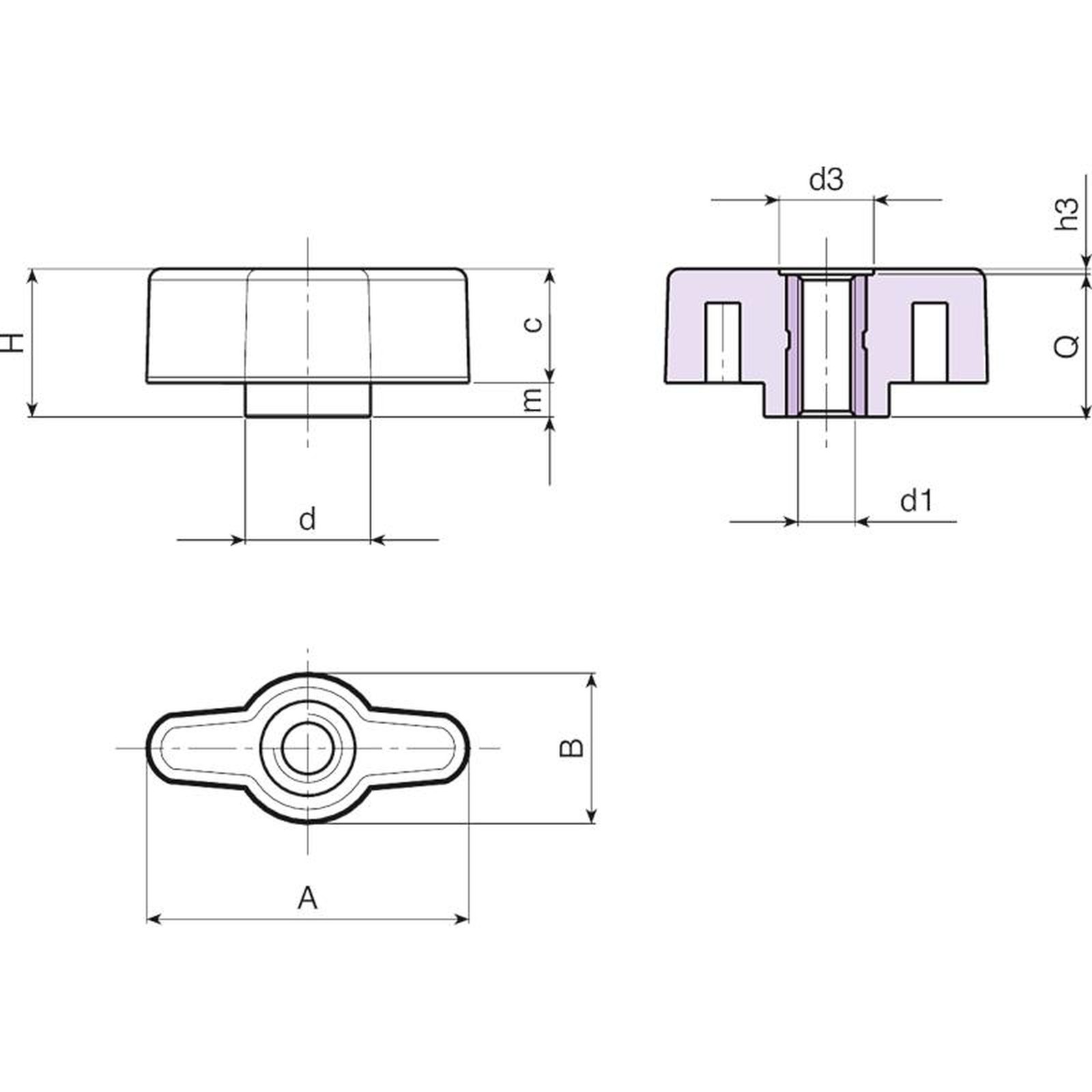

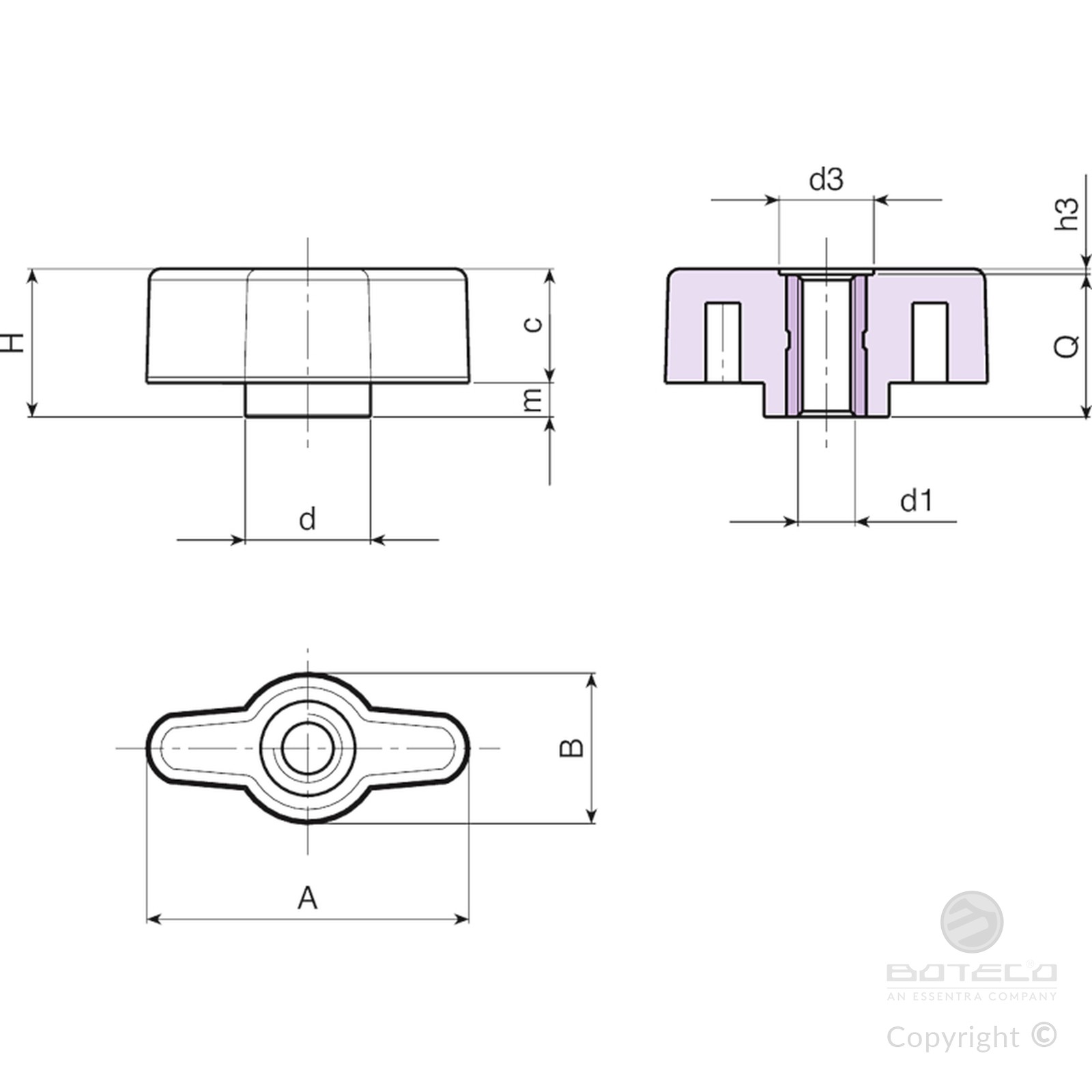

| Code | Art. | A | B | H | m | c | d | d3 | h3 | d1 6H | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L74828.0001 | L74828.TM0401 | 28 | 13 | 13 | 3 | 10 | 11 | 8 | 0.5 | M4 | 12.5 | 5 |
| L74828.0002 | L74828.TM0501 | 28 | 13 | 13 | 3 | 10 | 11 | 8 | 0.5 | M5 | 12.5 | 5 |
| L74828.0003 | L74828.TM0601 | 28 | 13 | 13 | 3 | 10 | 11 | 8 | 0.5 | M6 | 12.5 | 6 |
