Materials:

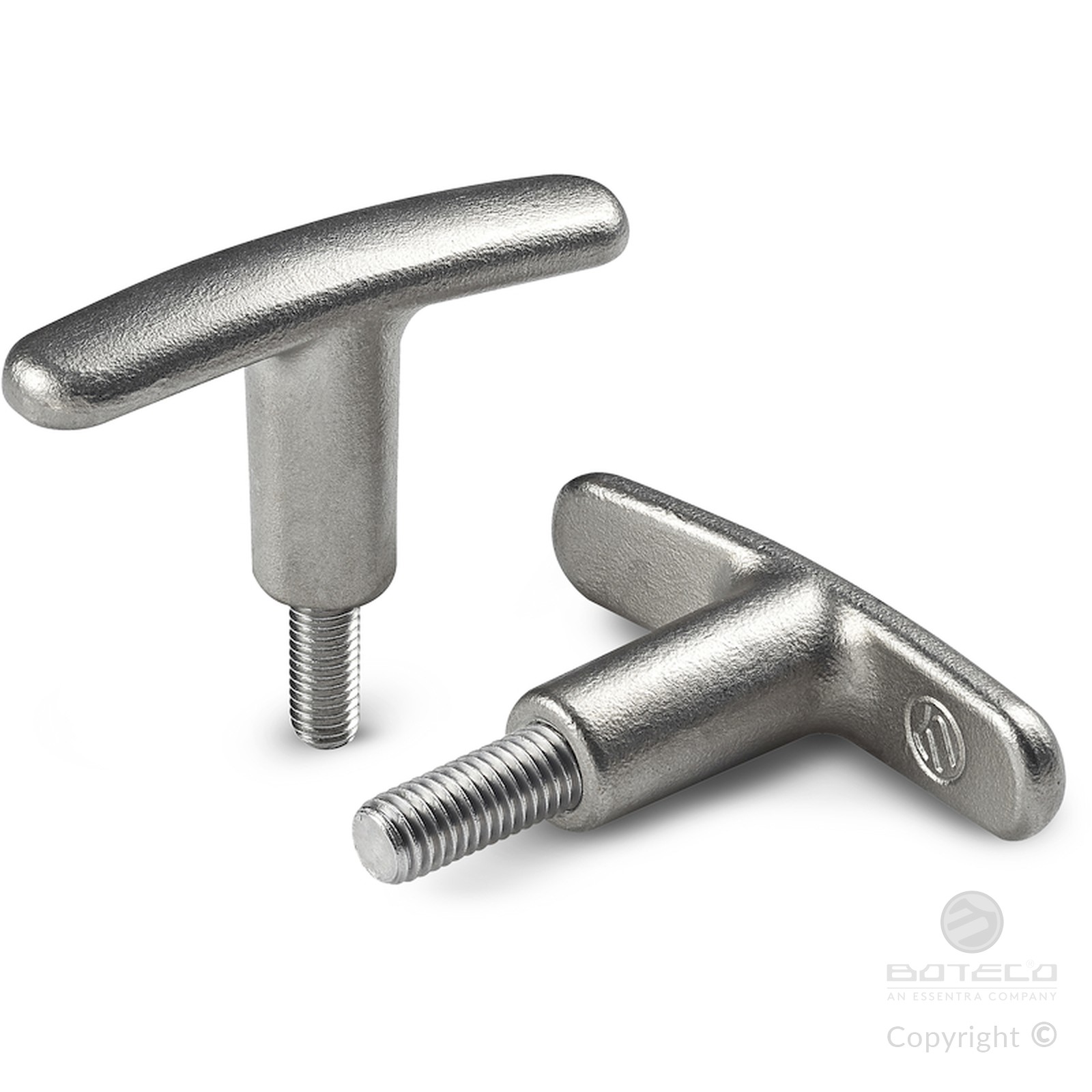

Knob:
Precision-cast stainless steel, (Aisi 304).
Stud:
Stainless steel (Aisi 303).
Surface finish:
Satin.
Colour:
Natural
Inserts:
Turned threaded stud (thread tolerance 6g).
ATTENTION: The stud is fixed with glue.
Special Requests:
Upon request and for a minimum of 50 pieces inserts can be supplied with customised lengths.

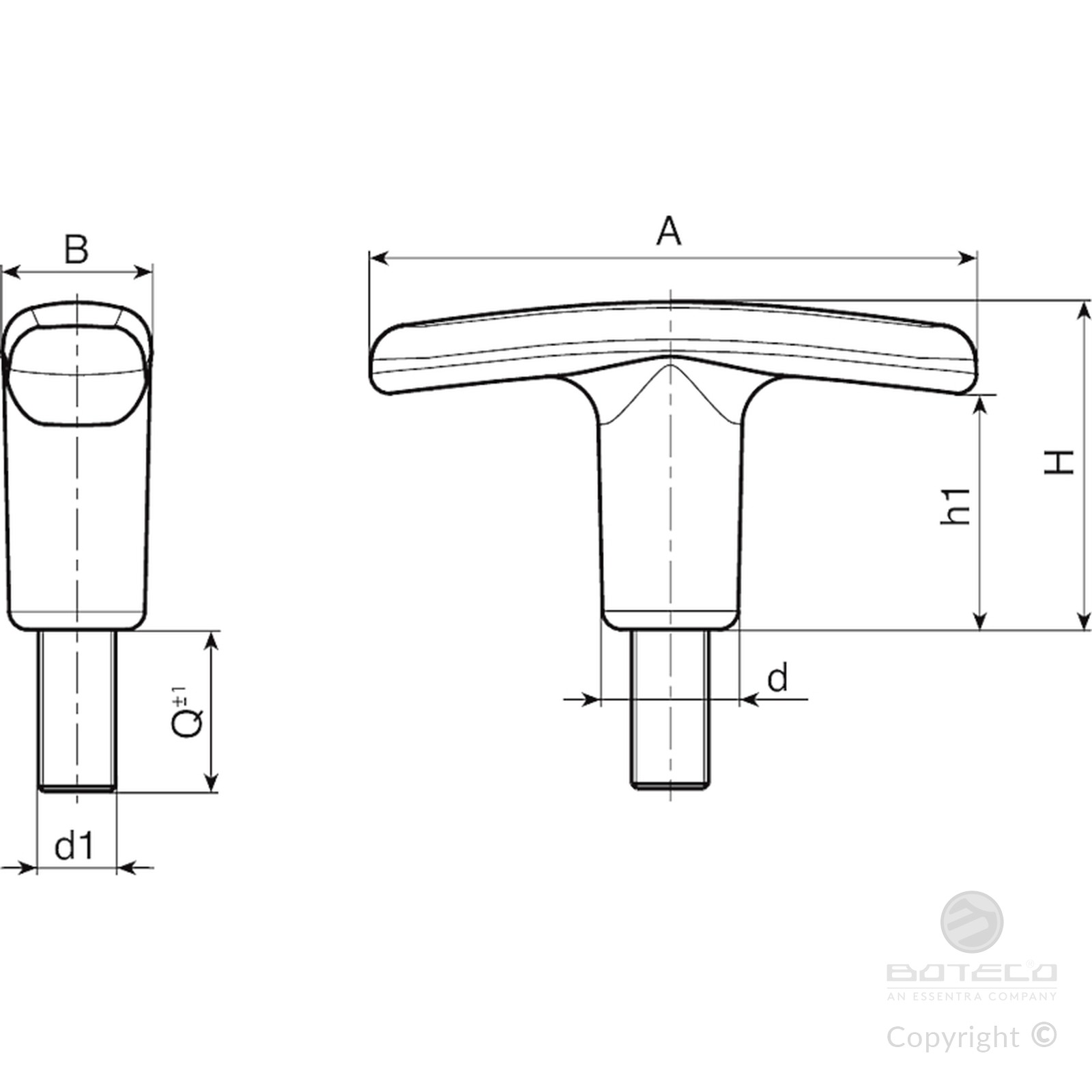

| Code | Art. | A | B | H | h1 | d | d1 6H | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|
| L27550.0001 | L27550.HNM06X30HIN | 50 | 12 | 27 | 19 | 11 | M6 | 30 | -- |
| L27560.0001 | L27560.HNM08X30HIN | 60 | 14 | 34 | 24 | 13 | M8 | 30 | -- |
| L27572.0001 | L27572.HNM08X30HIN | 72 | 16 | 40 | 30 | 15 | M8 | 30 | -- |
| L27572.0002 | L27572.HNM10X30HIN | 72 | 16 | 40 | 30 | 15 | M10 | 30 | -- |
