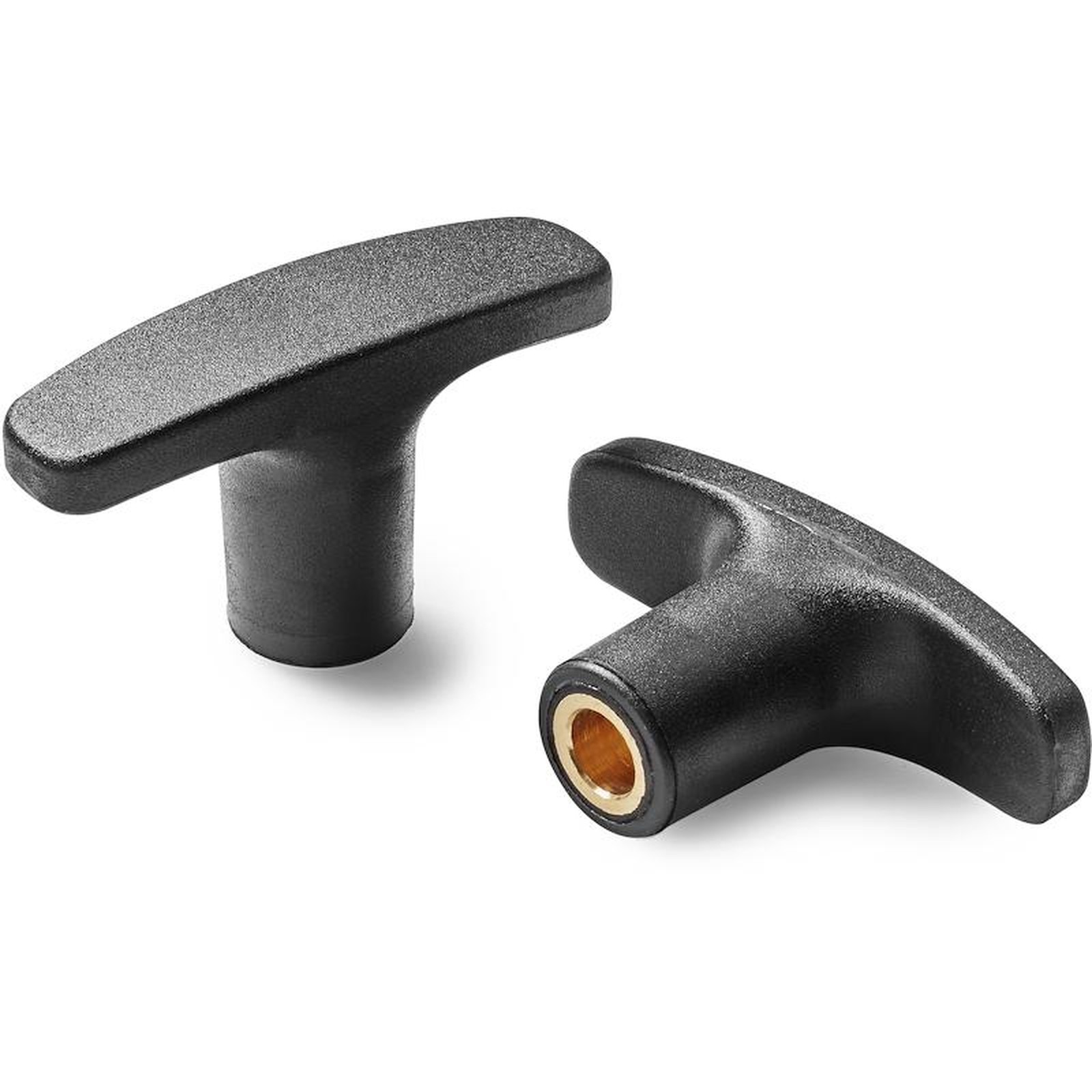

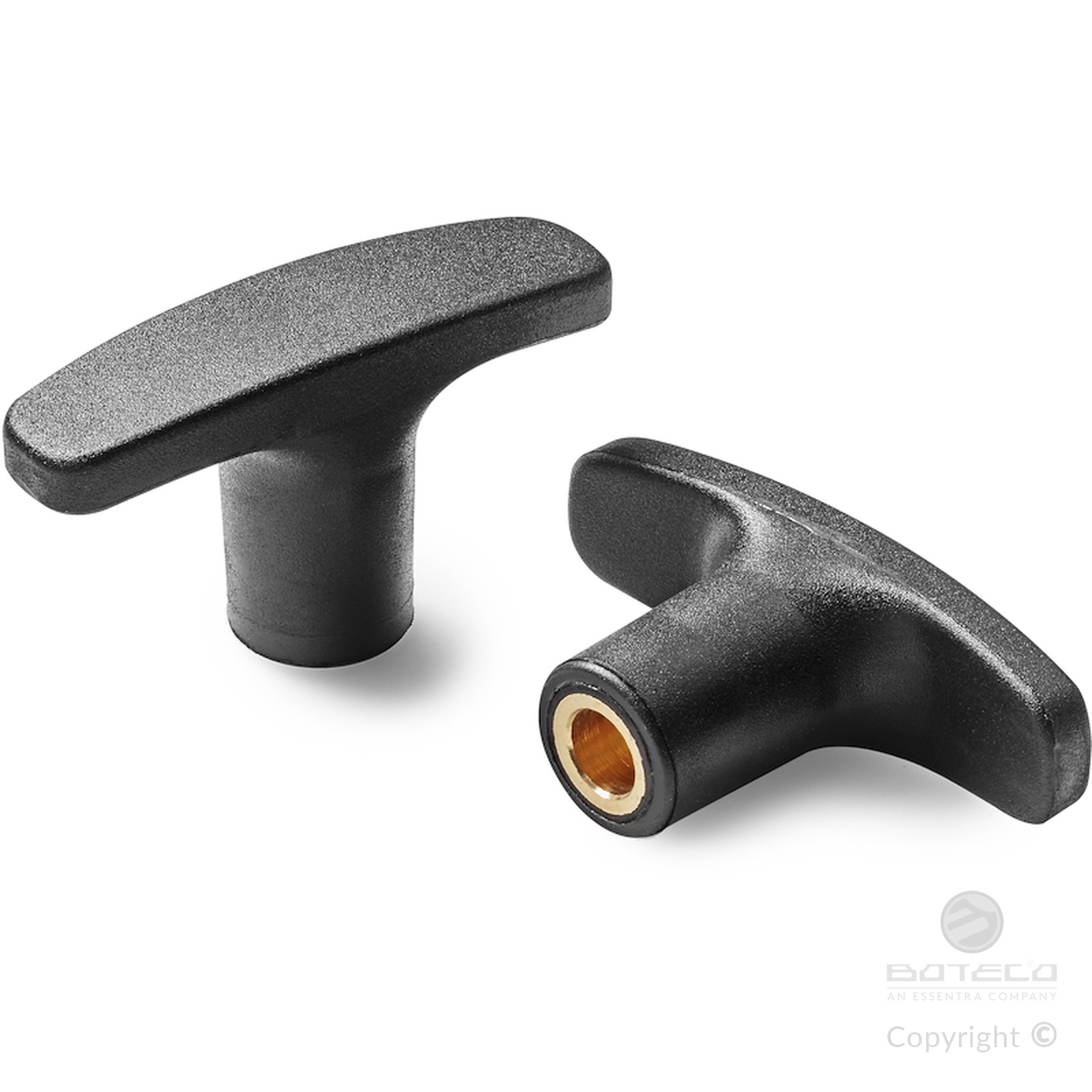

T-HANDLE WITH INSERT AND SMOOTH BORE
12
L273
Tiranti
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Inserts:
Brass insert with blind smooth bore (bore tolerance H9).
ATTENTION: bore cannot be widened.
(*) Galvanised steel insert with blind smooth bore (bore tolerance H10).
Special Requests:
Upon request and for special quantities inserts can be supplied in different materials.
Upon request and for special quantities available in the colours indicated in the chart.

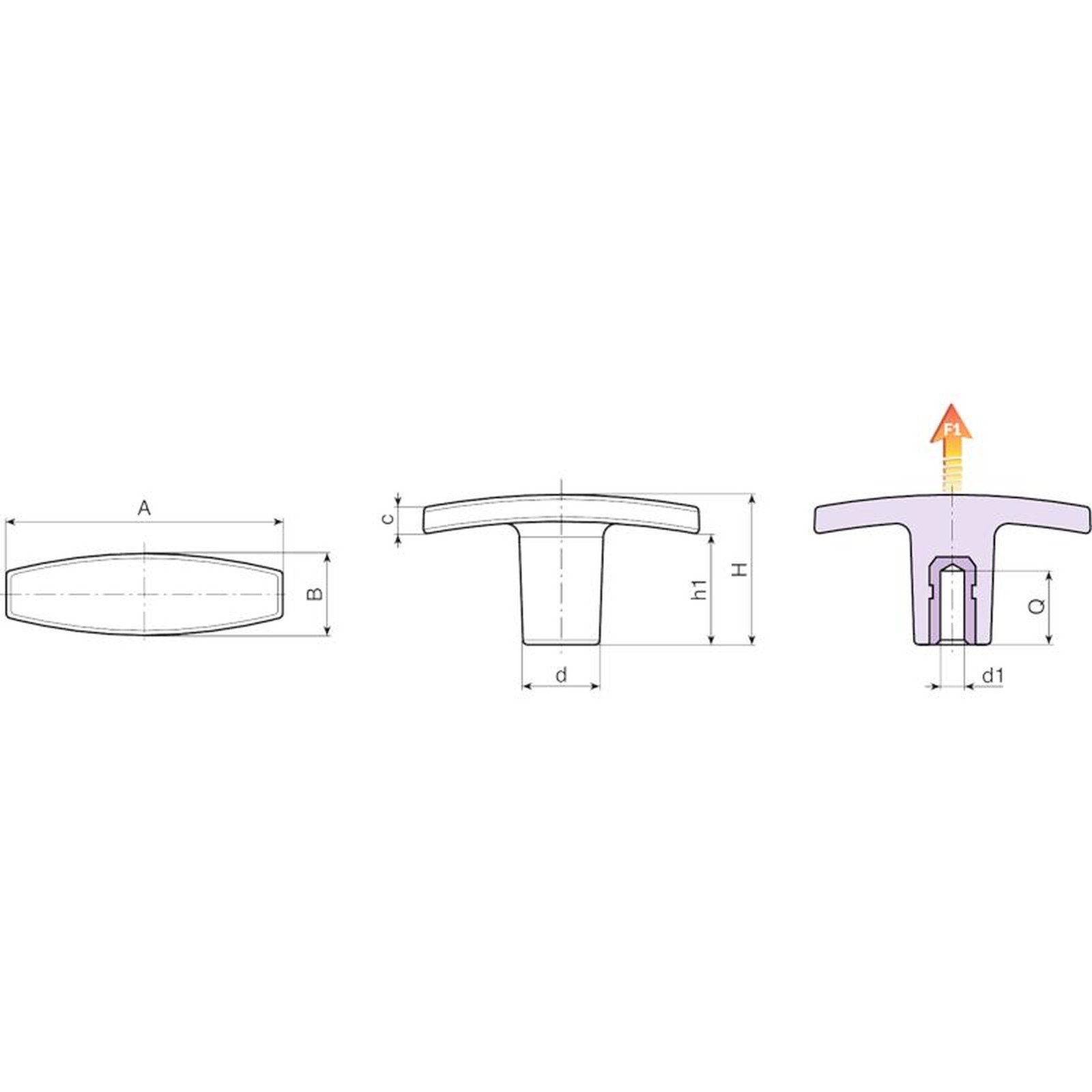

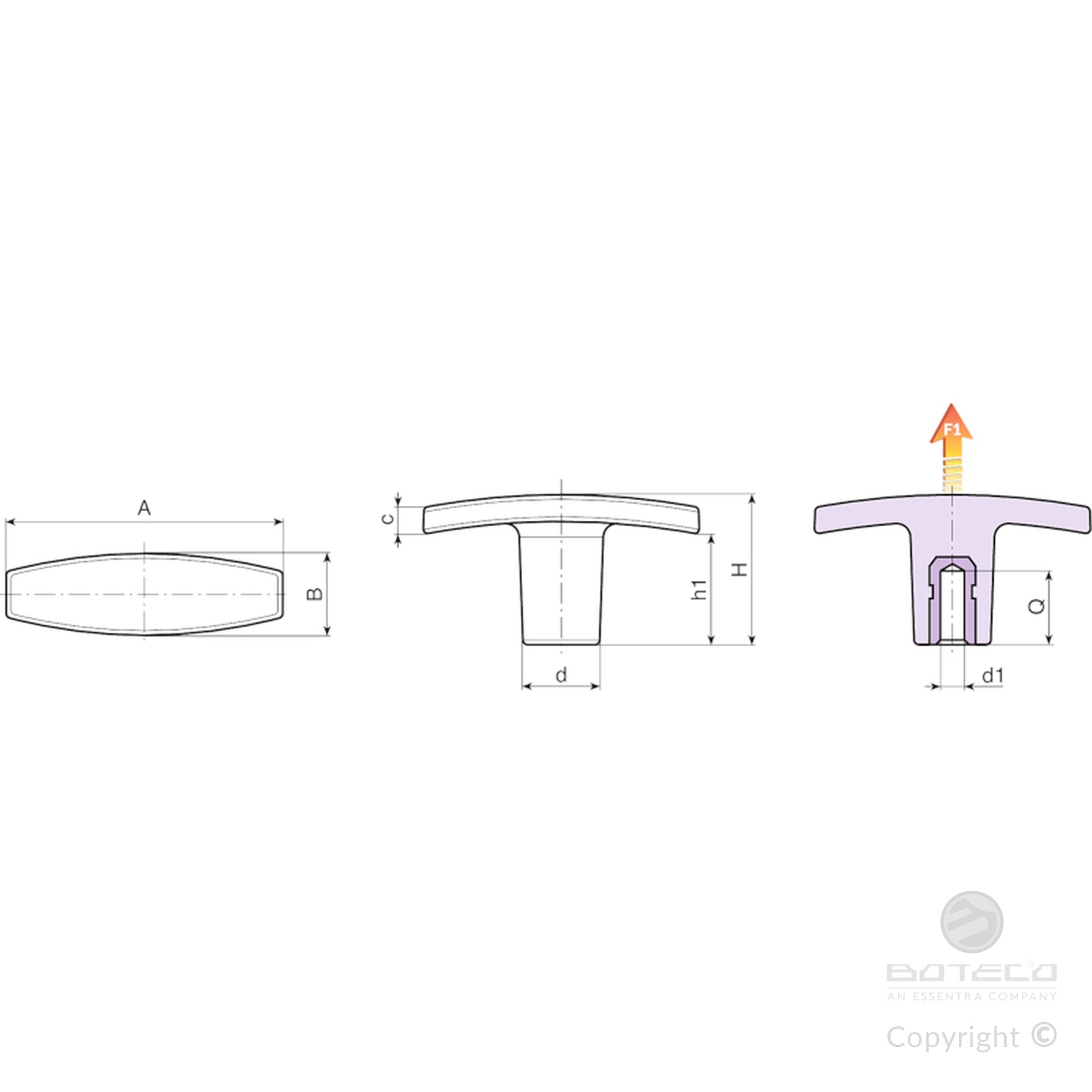

| Code | Art. | A | B | H | h1 | c | d | d1 H9 | Q | Weight (g) | F1 (N) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| L27350.0001 | L27350.TD0601CON | 50 | 15 | 24 | 17 | 5 | 14 | 6 | 14 | 12 | 4100 |
| L27360.0001 | L27360.TD0601CON | 60 | 18 | 33 | 24 | 6 | 16.5 | 6 | 14 | 19 | 5800 |
| L27360.0002 | L27360.TD0801CON | 60 | 18 | 33 | 24 | 6 | 16.5 | 8 | 13 | 21 | 5800 |
| L27372.0002 | L27372.TD0801CON | 72 | 19 | 34 | 20 | 10 | 18 | 8 | 13 | 28 | 6500 |
| L27372.0003 | L27372.TD1001 | 72 | 19 | 34 | 20 | 10 | 18 | (*) 10 | 24 | 30 | 6500 |
