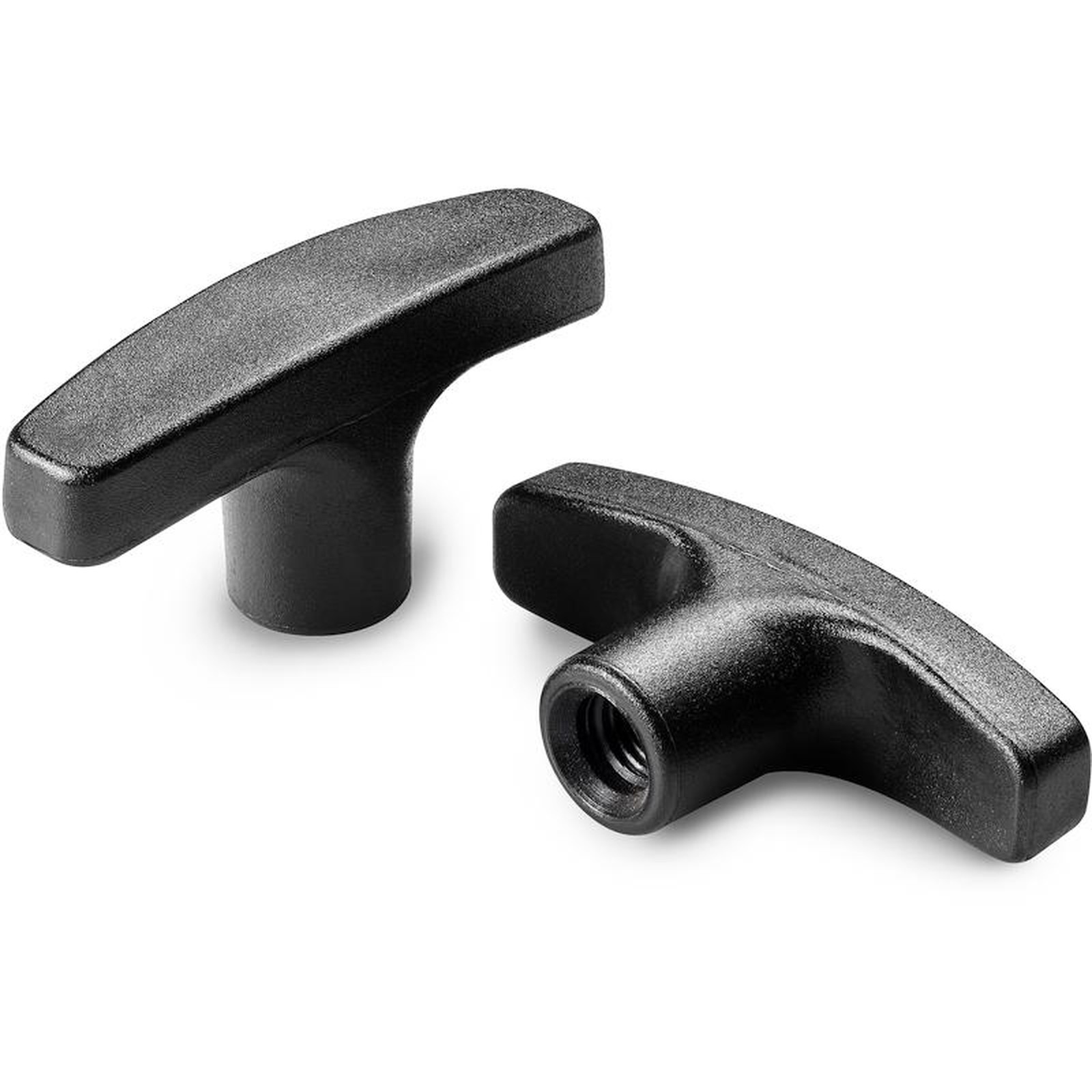

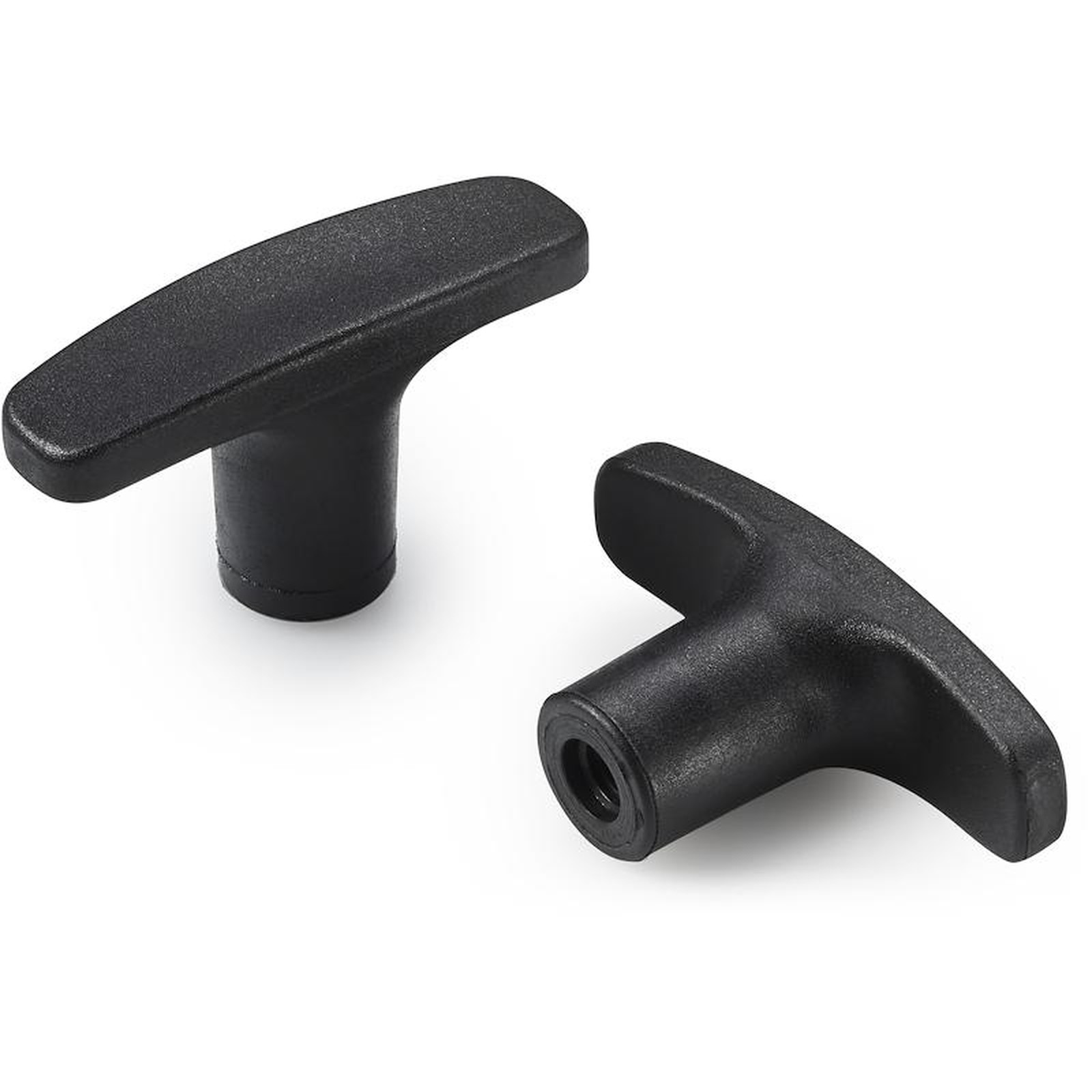

T-HANDLE WITH PLASTIC THREADED HOLE
12
L272
Tiranti
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Hole:
Female threaded hole obtained by moulding the plastic (thread tolerance not applicable).
Special Requests:
Upon request and for special quantities available in the colours indicated in the chart.
| Code | Art. | A | B | H | h1 | c | d | d1 | Q | Weight (g) | F1 (N) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| L27250.0003 | L27250.TM0501 | 50 | 15 | 24 | 17 | 5 | 14 | M5 | 20 | 8 | 2800 |
| L27250.0004 | L27250.TM0601 | 50 | 15 | 24 | 17 | 5 | 14 | M6 | 20 | 8 | 2800 |
| L27260.0006 | L27260.TM0501 | 60 | 18 | 33,5 | 24 | 6 | 16.5 | M5 | 19 | 14 | 3000 |
| L27260.0007 | L27260.TM0601 | 60 | 18 | 33,5 | 24 | 6 | 16.5 | M6 | 19 | 14 | 3000 |
| L27260.0008 | L27260.TM0801 | 60 | 18 | 33,5 | 24 | 6 | 17 | M8 | 19 | 14 | 3000 |
| L27260.0009 | L27260.TM1001 | 60 | 18 | 33,5 | 24 | 6 | 18 | M10 | 19 | 13 | 3000 |
| L27272.0004 | L27272.TM0801 | 72 | 19 | 34 | 20 | 10 | 18 | M8 | 21 | 20 | 4600 |
| L27272.0006 | L27272.TM1001 | 72 | 19 | 34 | 20 | 10 | 18 | M10 | 21 | 20 | 4600 |
| L27272.0007 | L27272.TM1201 | 72 | 19 | 34 | 20 | 10 | 18 | M12 | 20 | 19 | 4600 |
