T-HANDLE WITH THREADED INSERT
L270
Tiranti
Description

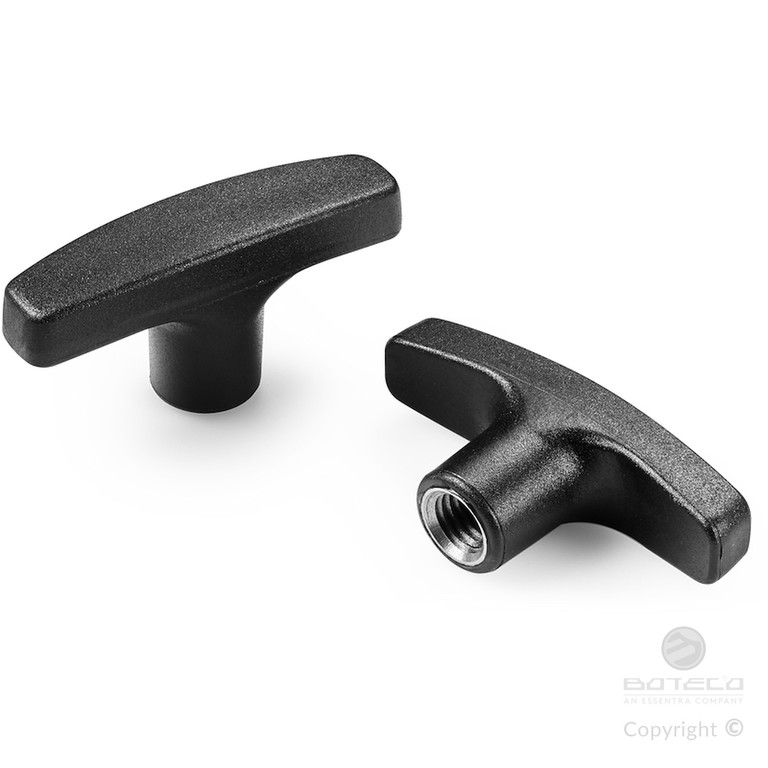

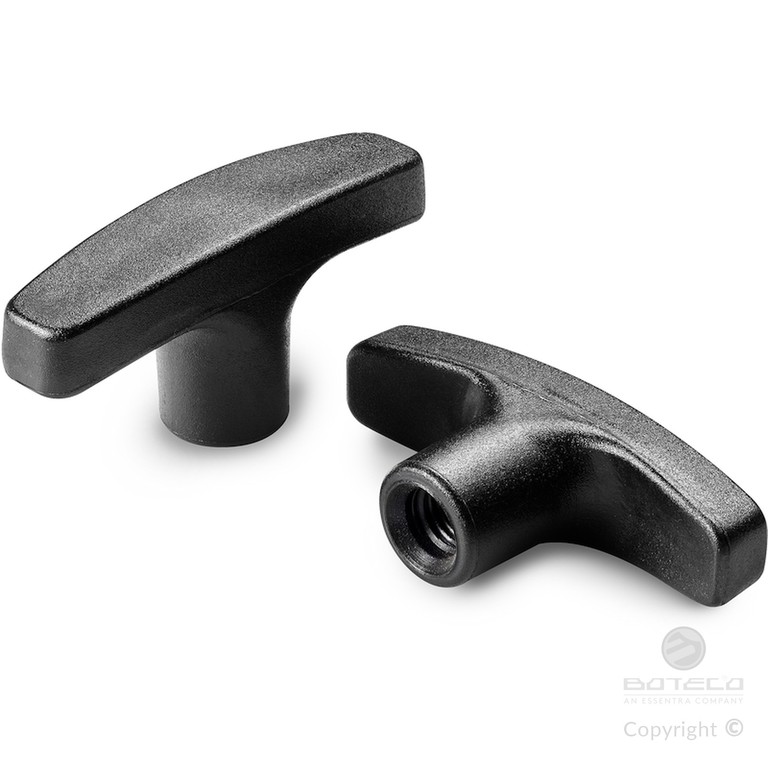

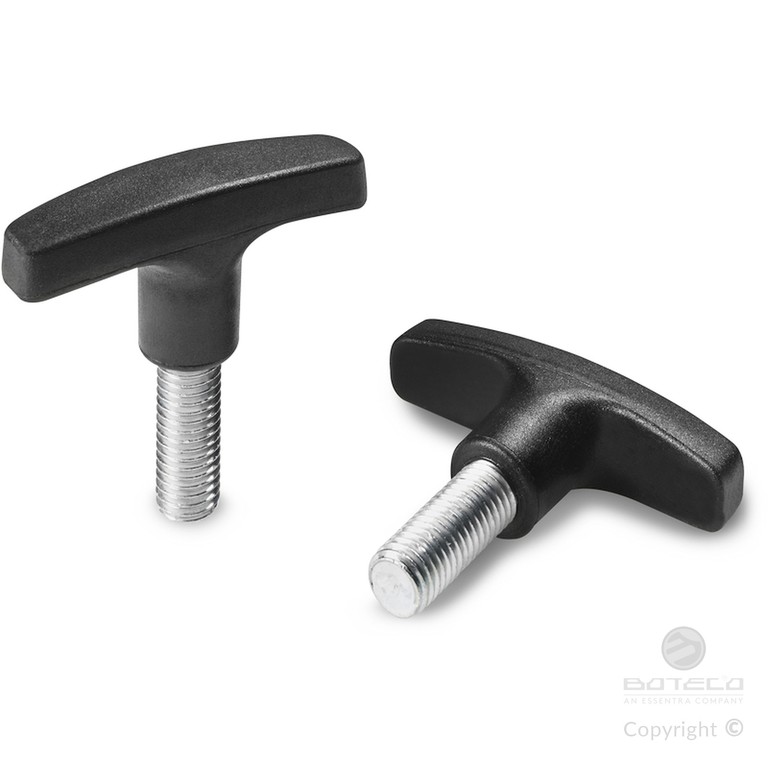

The T-handle with insert with female threaded hole is designed for two uses: the first and most important, given the design, is the push-pull mode. That is, connected to a shaft and 'pulled' or 'pushed'. The second is a combination of rotation and push/pull. The handle is solid, without cavities, so it is also suitable for the food and medical sector. Several versions of the product are available such as with stainless steel insert or thread on the plastic without insert. Suitable for special uses where a metal-free product is required. Its use is a little more limited than other more universal handles. Indeed, it is mainly used on hand tools, automotive equipment, woodworking machines and a wide range of sports or gym equipment. The L270 T-handle is made from reinforced polyamide based materials. Also available with smooth bore or threaded stud insert.
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black: (RAL 9011 code 01).

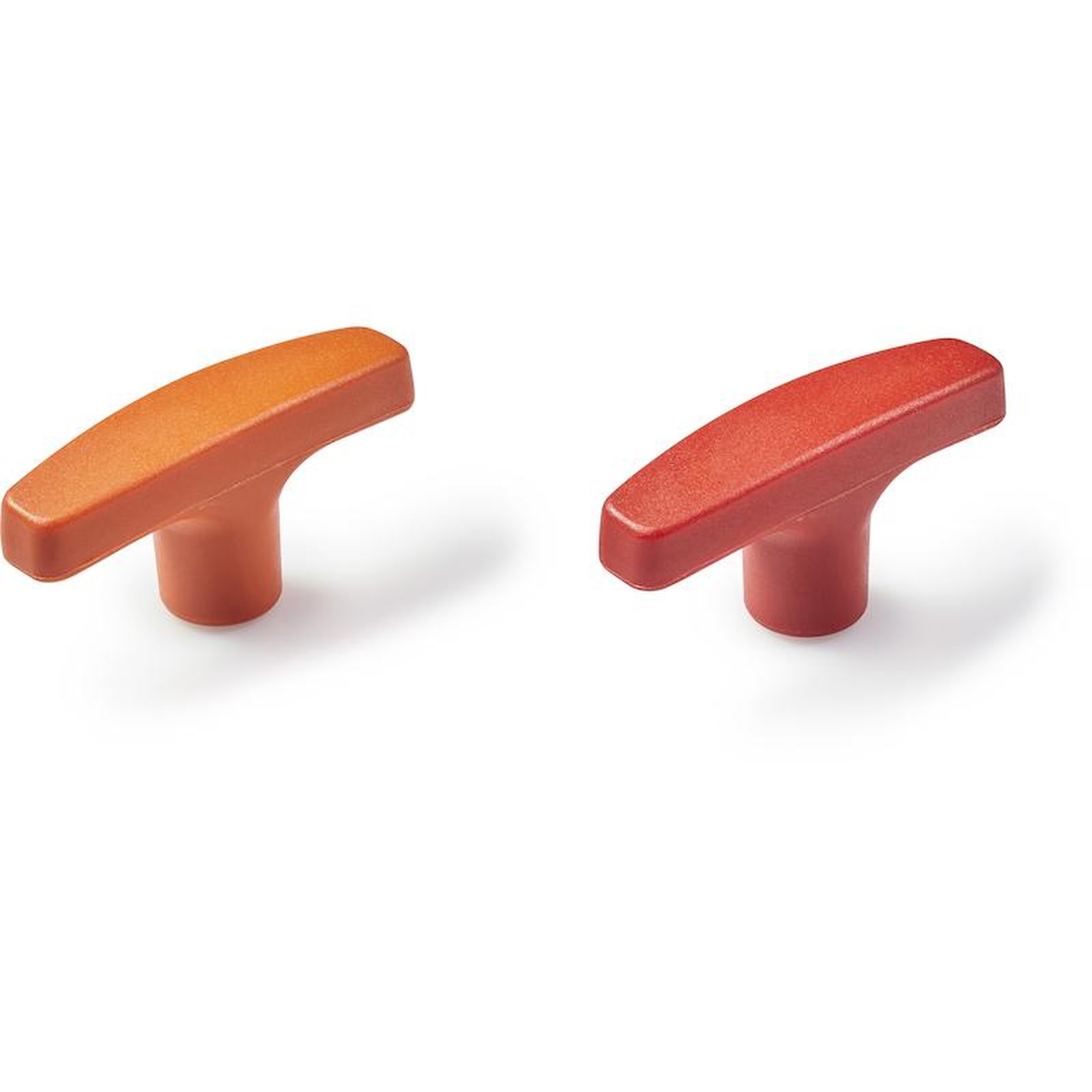

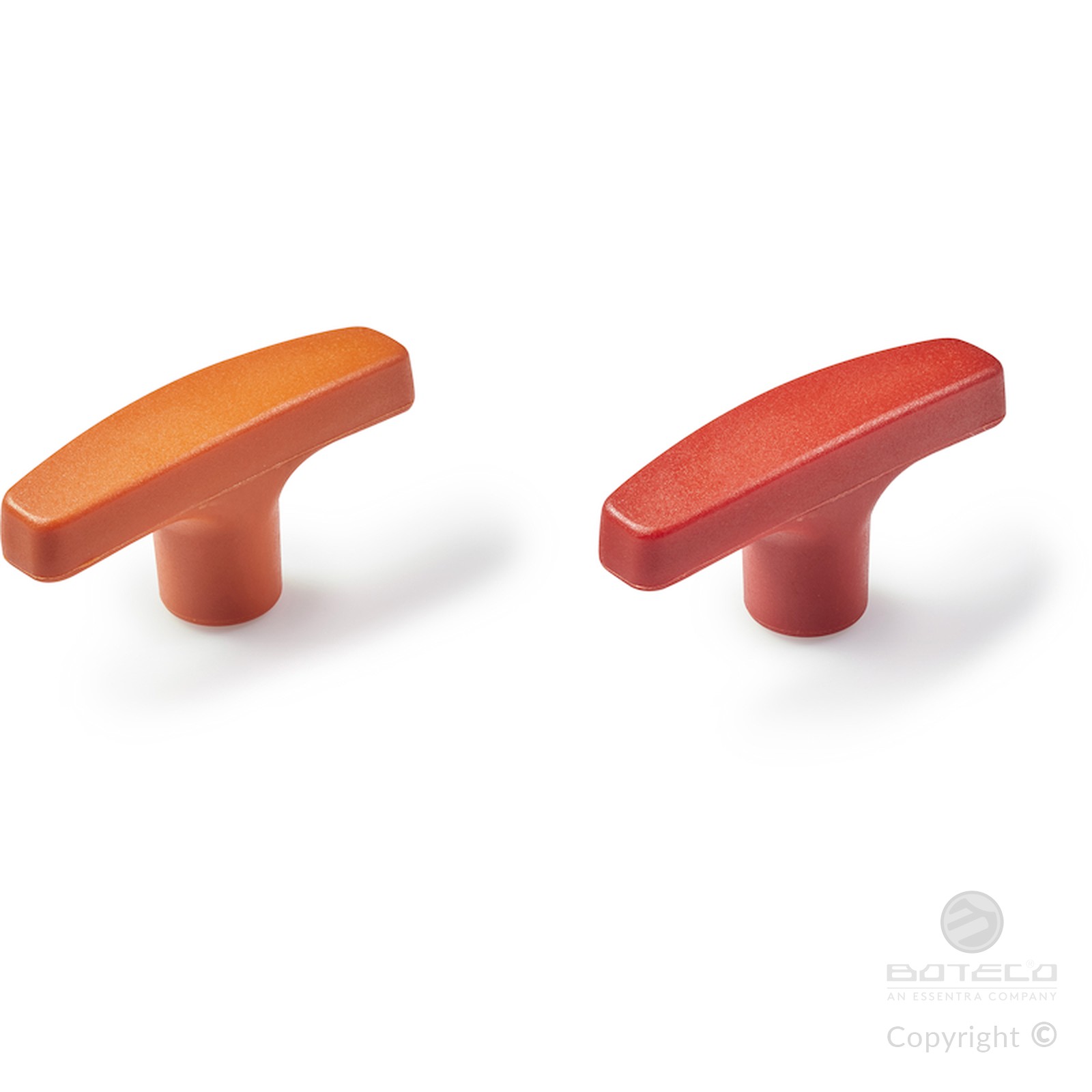

Orange: (RAL 2004 code 02).
Red: (RAL 3000 code 16).
Inserts:

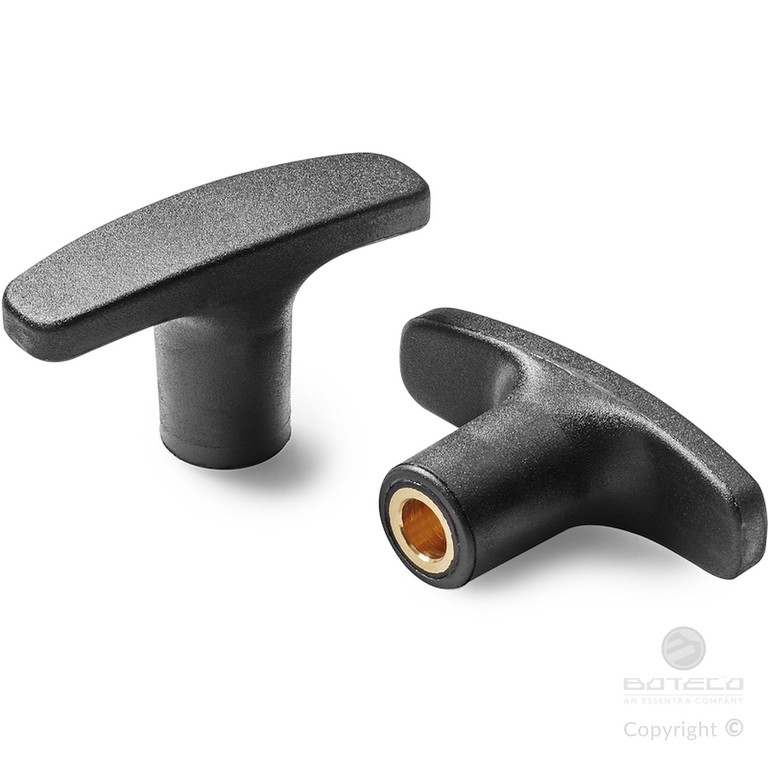

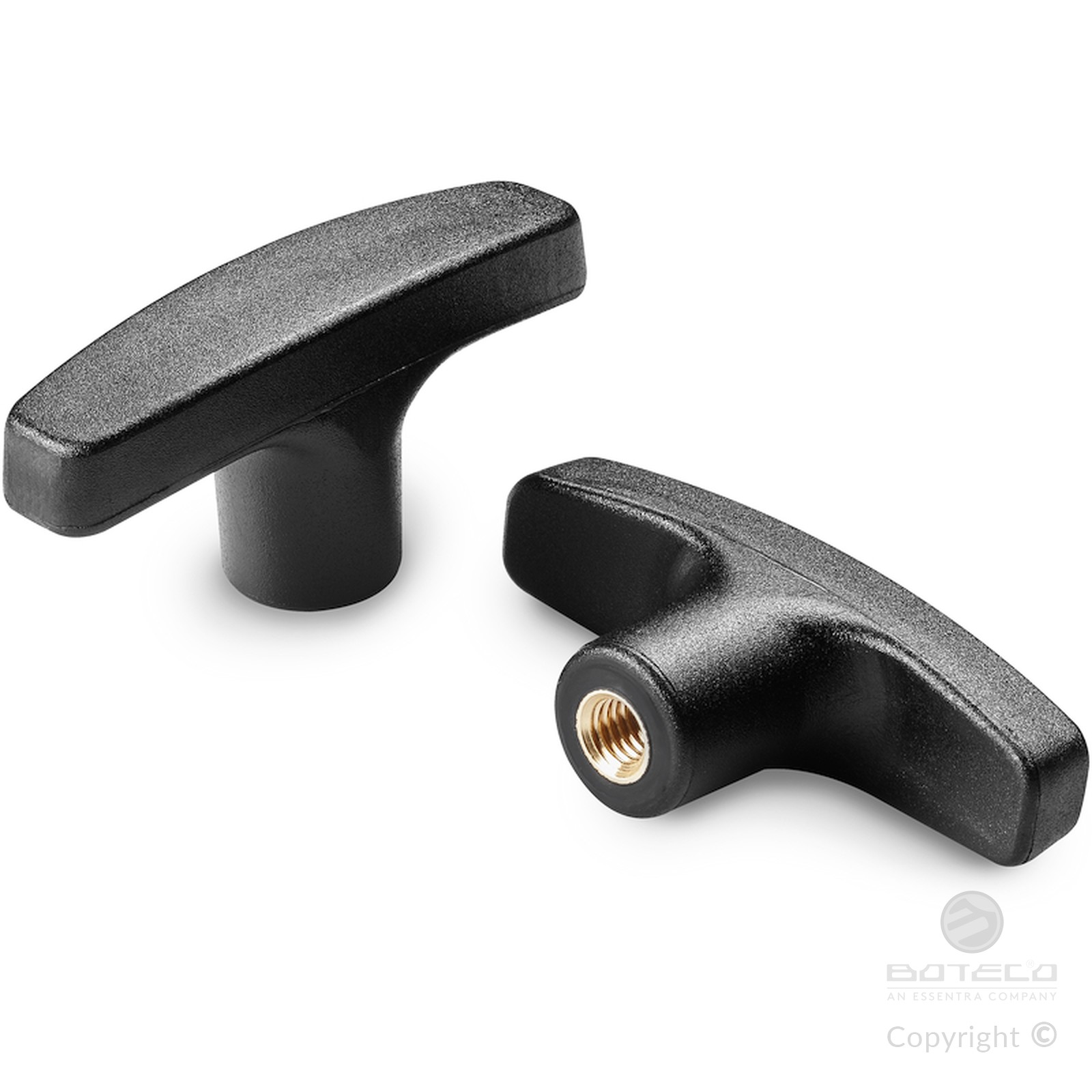

Brass insert with female threaded hole (thread tolerance 6H).
Special Requests:
Upon request and for special quantities inserts can be supplied in different materials.
Upon request and for special quantities available in the colours indicated in the chart.

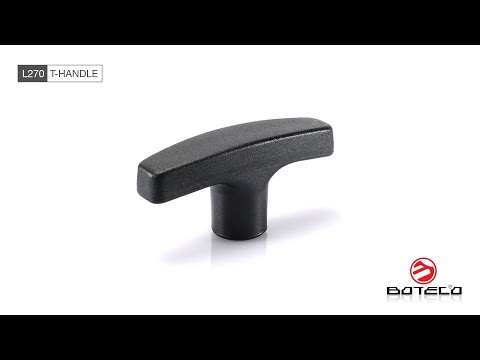

Video:







Version L270 - 01 Black T-handle (RAL 9001 code 01)

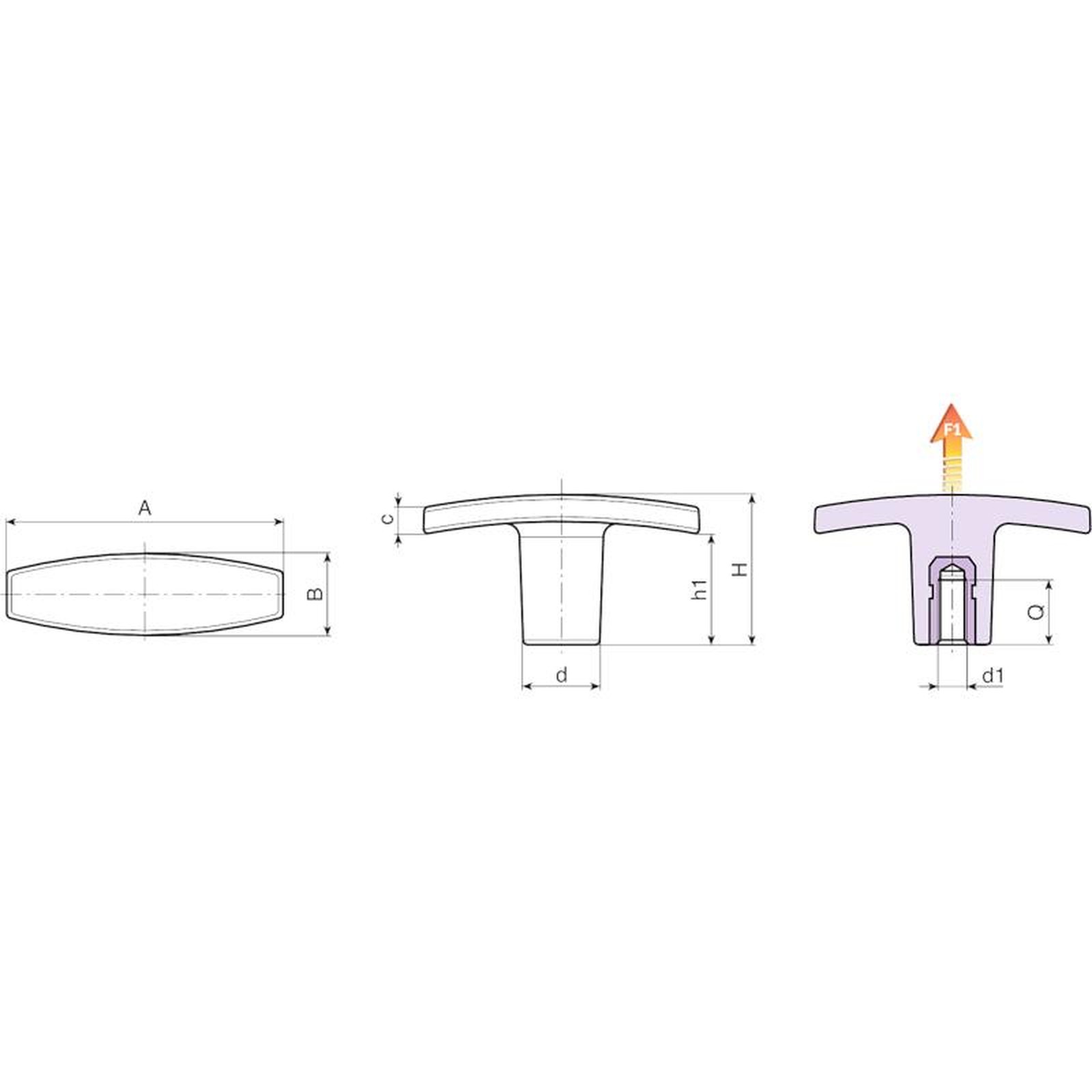

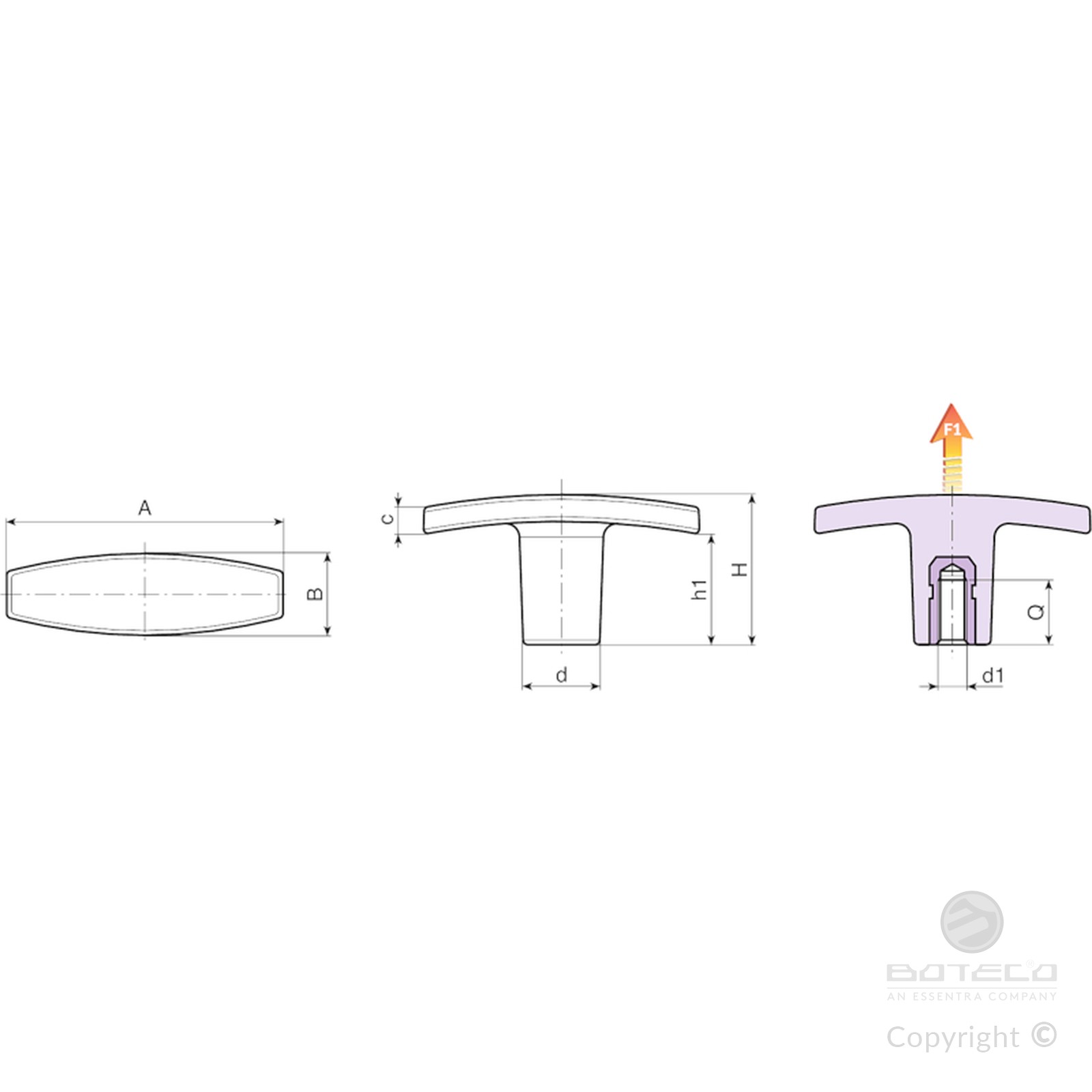

Code | Art. | A | B | H | h1 | c | d | d1 6H | Q | Weight (g) | F1 (N) |
---|---|---|---|---|---|---|---|---|---|---|---|
L27050.0002 | L27050.TM0501 | 50 | 15 | 24 | 17 | 5 | 14 | M5 | 12 | 13 | 4100 |
L27050.0009 | L27050.TM0601 | 50 | 15 | 24 | 17 | 5 | 14 | M6 | 10 | 11 | 4100 |
L27050.0015 | L27050.TM0801 | 50 | 15 | 24 | 17 | 5 | 14 | M8 | 14 | 12 | 4100 |
L27060.0003 | L27060.TM0501 | 60 | 18 | 33 | 24 | 6 | 16.5 | M5 | 12 | 19 | 5800 |
L27060.0006 | L27060.TM0601 | 60 | 18 | 33 | 24 | 6 | 16.5 | M6 | 10 | 16.5 | 5800 |
L27060.0010 | L27060.TM0801 | 60 | 18 | 33 | 24 | 6 | 16.5 | M8 | 14 | 17.5 | 5800 |
L27060.0014 | L27060.TM1001 | 60 | 18 | 33 | 24 | 6 | 16.5 | M10 | 21 | 21 | 5800 |
L27072.0003 | L27072.TM0601 | 72 | 19 | 34 | 20 | 10 | 18 | M6 | 15 | 25 | 6500 |
L27072.0006 | L27072.TM0801 | 72 | 19 | 34 | 20 | 10 | 18 | M8 | 20 | 28 | 6500 |
L27072.0010 | L27072.TM1001 | 72 | 19 | 34 | 20 | 10 | 18 | M10 | 21 | 30 | 6500 |
L27072.0017 | L27072.TM1201 | 72 | 19 | 34 | 20 | 10 | 18 | M12 | 17 | 30 | 6500 |
Version L270 - 02 Orange T-handle (RAL 2004 code 02)
Code | Art. | A | B | H | h1 | c | d | d1 6H | Q | Weight (g) | F1 (N) |
---|---|---|---|---|---|---|---|---|---|---|---|
L27050.0012 | L27050.TM0602 | 50 | 15 | 24 | 17 | 5 | 14 | M6 | 10 | 11 | 4100 |
L27060.0012 | L27060.TM0802 | 60 | 18 | 33 | 24 | 6 | 16.5 | M8 | 14 | 17.5 | 5800 |
L27072.0013 | L27072.TM1002 | 72 | 19 | 34 | 20 | 10 | 18 | M10 | 21 | 30 | 6500 |
Version L270 - 16 Red T-handle (RAL 3000 code 16)
Code | Art. | A | B | H | h1 | c | d | d1 6H | Q | Weight (g) | F1 (N) |
---|---|---|---|---|---|---|---|---|---|---|---|
L27050.0006 | L27050.TM0516 | 50 | 15 | 24 | 17 | 5 | 14 | M5 | 12 | 13 | 4100 |
L27050.0014 | L27050.TM0616 | 50 | 15 | 24 | 17 | 5 | 14 | M6 | 10 | 11 | 4100 |
L27060.0013 | L27060.TM0816 | 60 | 18 | 33 | 24 | 6 | 16.5 | M8 | 14 | 17.5 | 5800 |
L27072.0015 | L27072.TM1016 | 72 | 19 | 34 | 20 | 10 | 18 | M10 | 21 | 30 | 6500 |
