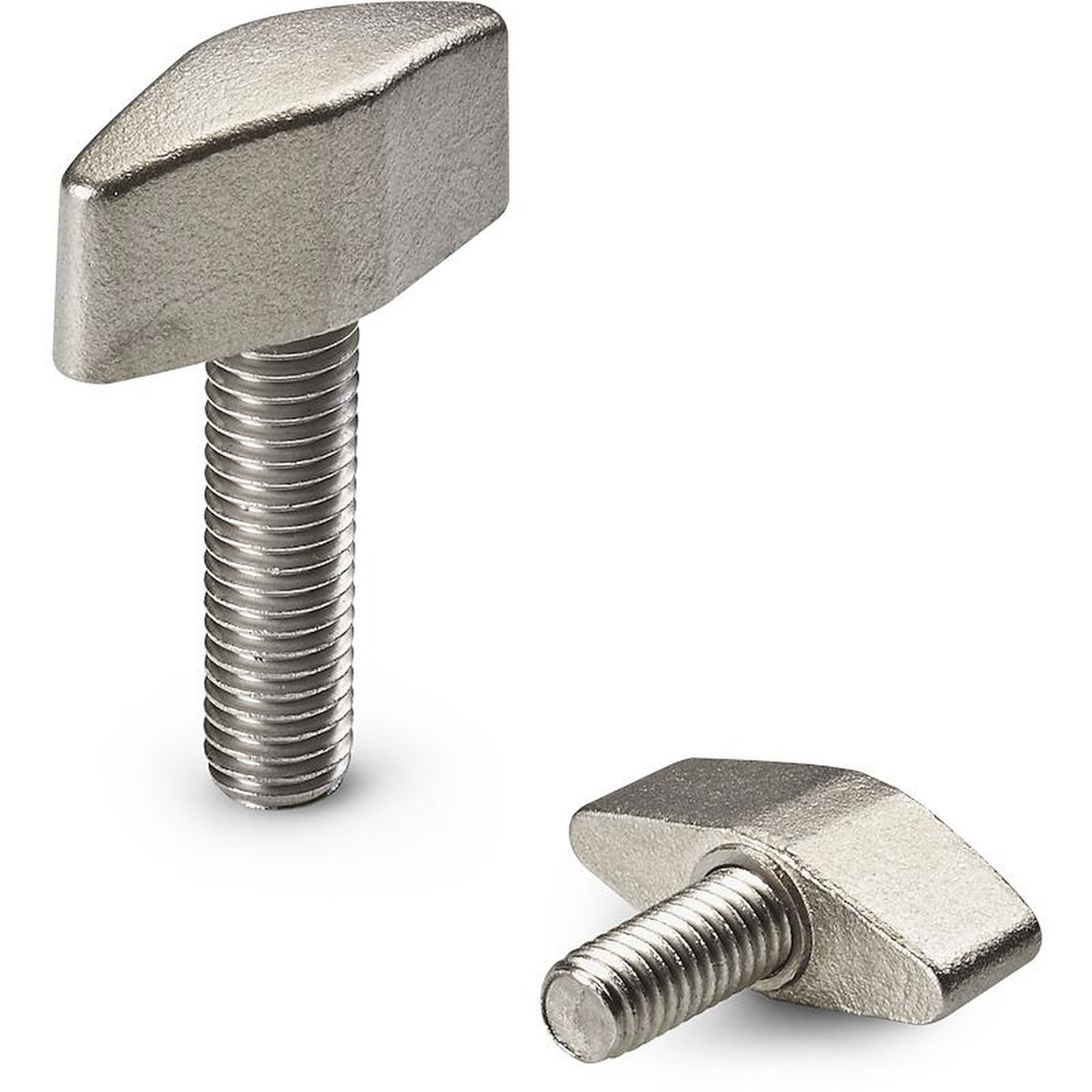

FULL STAINLESS STEEL WING NUT WITH THREADED STUD
12
L251CIN
Galletti in acciaio
Materials:
Precision-cast stainless steel, (Aisi 304).
Surface finish:
Satin.
Colour:
Natural
Inserts:
Stainless steel threaded stud (Aisi 303) (thread tolerance 6g).
ATTENTION: The stud is fixed with glue.
Special Requests:
Upon request and for special quantities inserts can be supplied with customised lengths.
Upon request and for special quantities the wing nut can be supplied in Aisi 316 stainless steel.

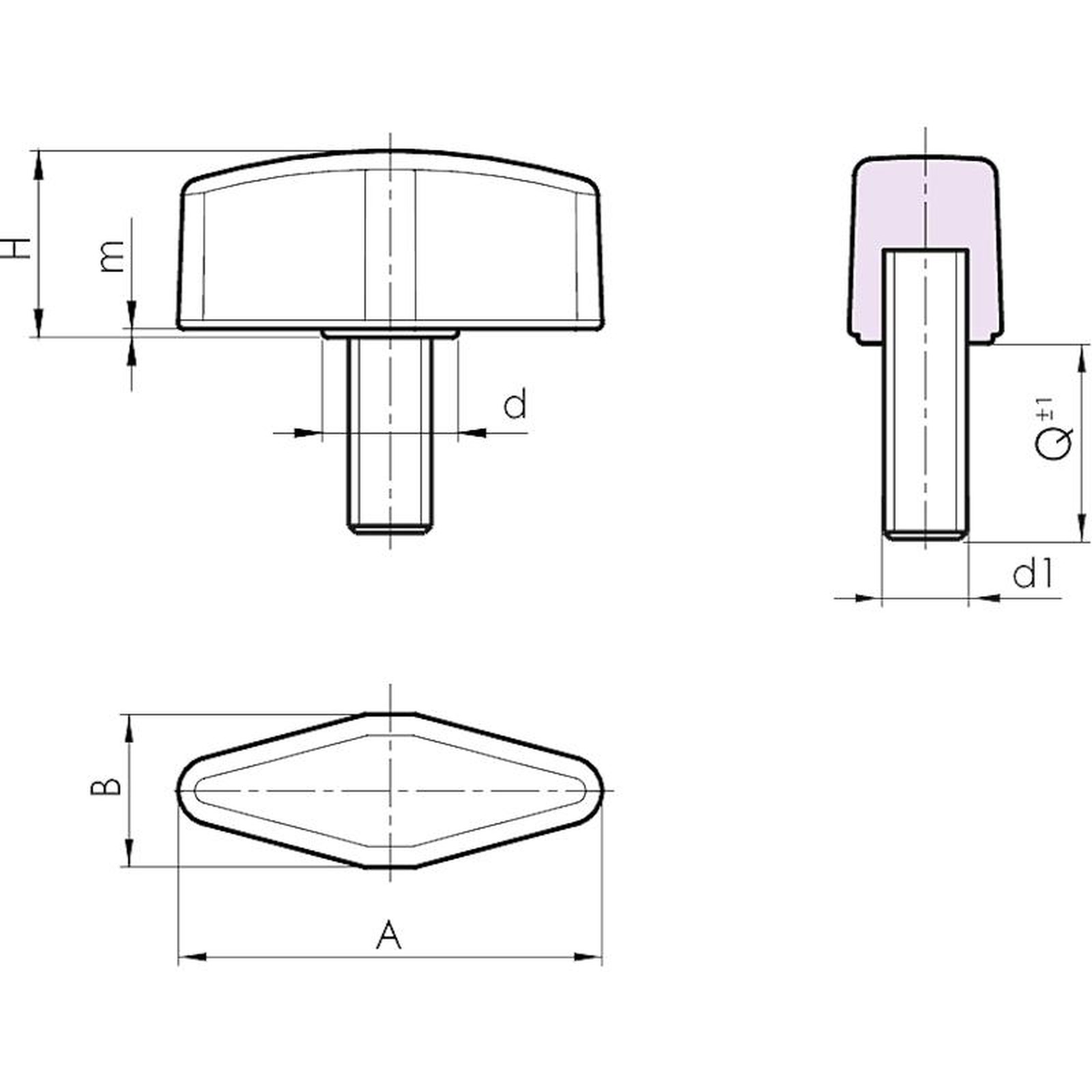

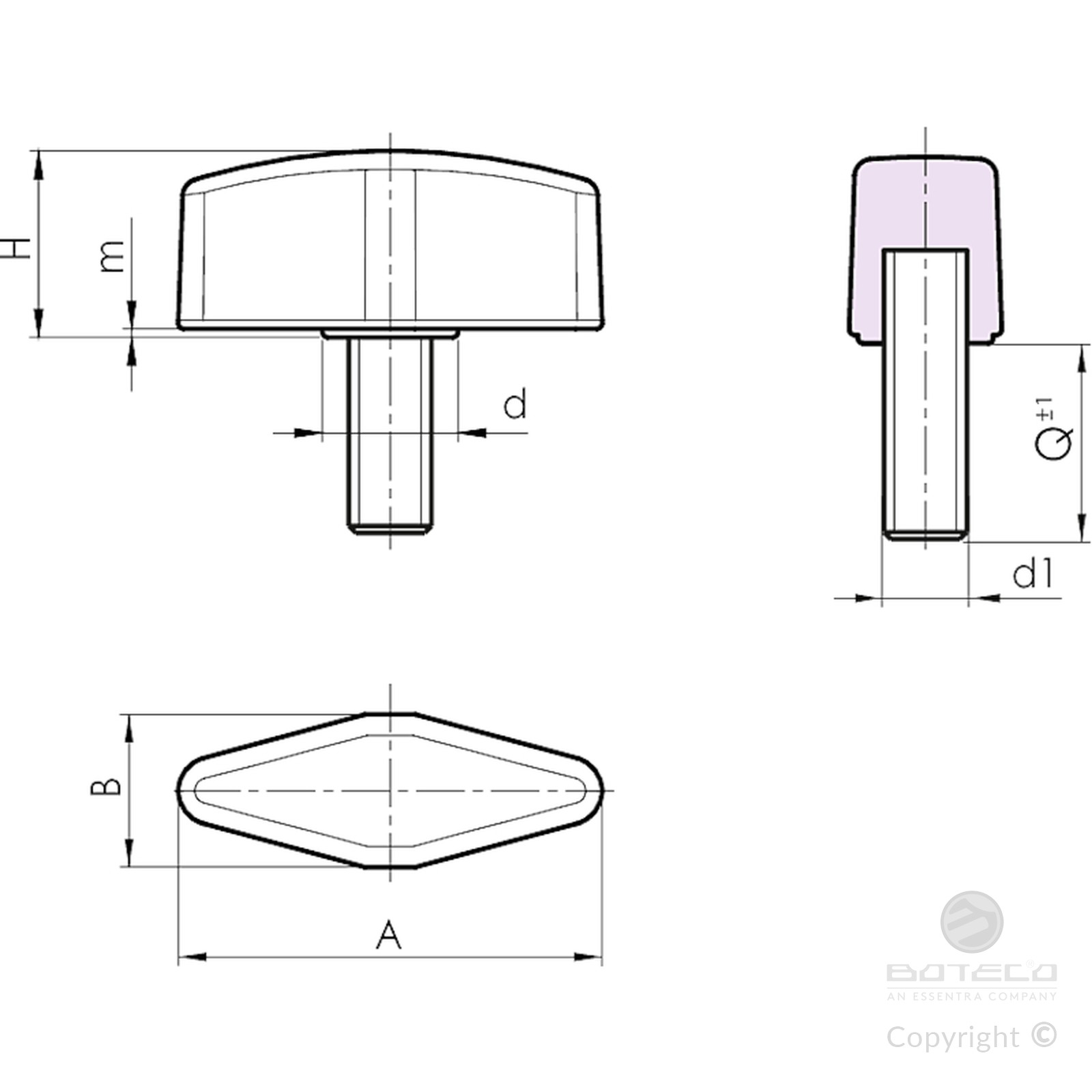

| Code | Art. | A | B | H | m | d | d1 6g | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|
| L25125.0002 | L25125.HM06X16CIN | 25 | 9 | 11 | 0,5 | 8 | M6 | 16 | 11 |
| L25125.0003 | L25125.HM06X20CIN | 25 | 9 | 11 | 0,5 | 8 | M6 | 20 | 12 |
| L25125.0004 | L25125.HM06X25CIN | 25 | 9 | 11 | 0,5 | 8 | M6 | 25 | 13 |
| L25130.0001 | L25130.HM08X16CIN | 30 | 11 | 13.5 | 0,5 | 10 | M8 | 16 | 22 |
| L25130.0002 | L25130.HM08X20CIN | 30 | 11 | 13.5 | 0,5 | 10 | M8 | 20 | 24 |
| L25130.0003 | L25130.HM08X25CIN | 30 | 11 | 13.5 | 0,5 | 10 | M8 | 25 | 26 |
| L25130.0004 | L25130.HM08X32CIN | 30 | 11 | 13.5 | 0,5 | 10 | M8 | 32 | 29 |
| L25136.0001 | L25136.HM10X20CIN | 36 | 13 | 15.5 | 0,5 | 12 | M10 | 20 | 41 |
| L25136.0002 | L25136.HM10X30CIN | 36 | 13 | 15.5 | 0,5 | 12 | M10 | 30 | 46 |
| L25136.0003 | L25136.HM10X40CIN | 36 | 13 | 15.5 | 0,5 | 12 | M10 | 40 | 50 |
Customised stud length available for a minimum of 100 pieces.
