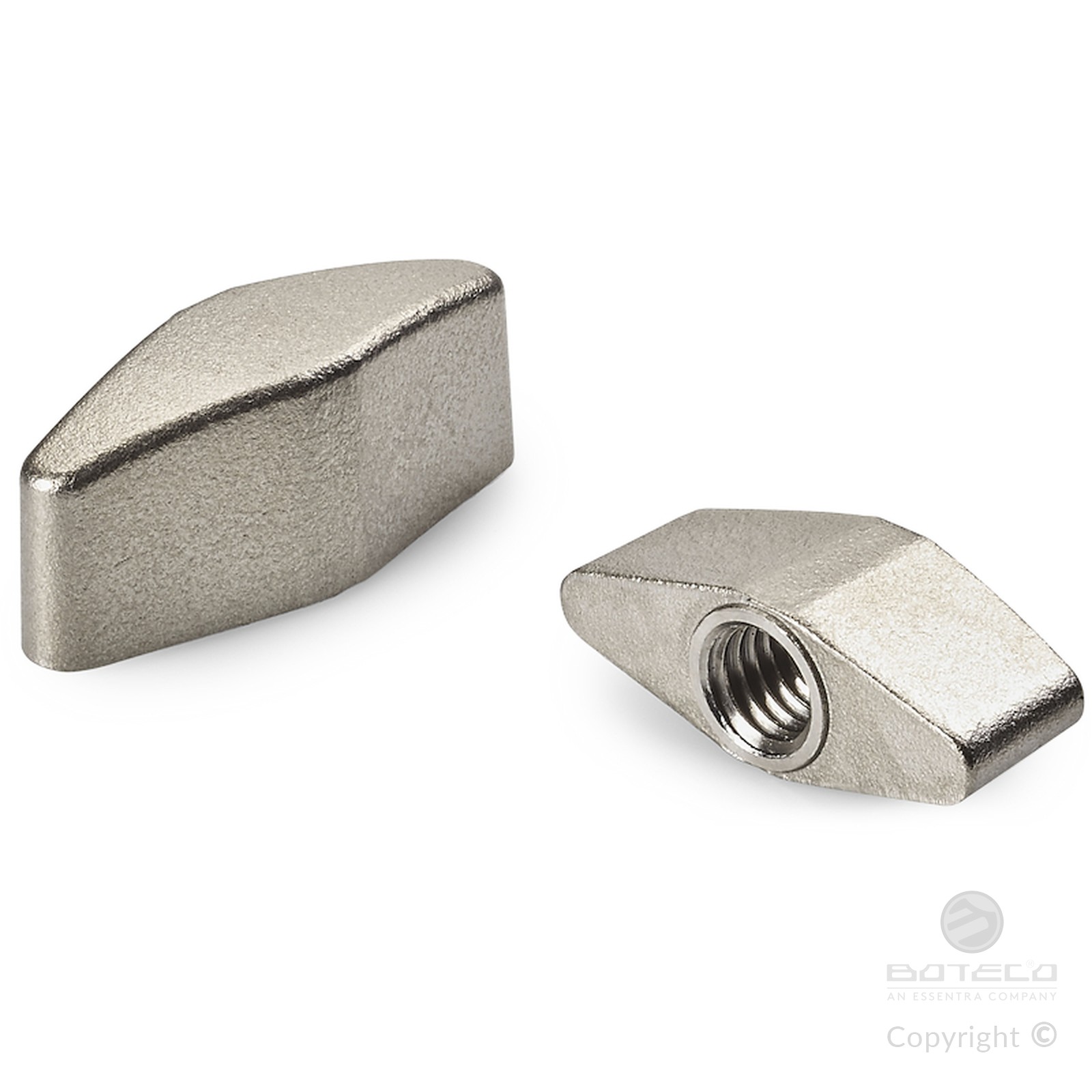

Materials:
Precision-cast stainless steel, (Aisi 304).
Surface finish:
Satin.
Colour:
Natural
Hole:
Female threaded hole, obtained by further processing (thread tolerance 6H).
Special Requests:
Upon request and for special quantities the wing nut can be supplied in Aisi 316 stainless steel.

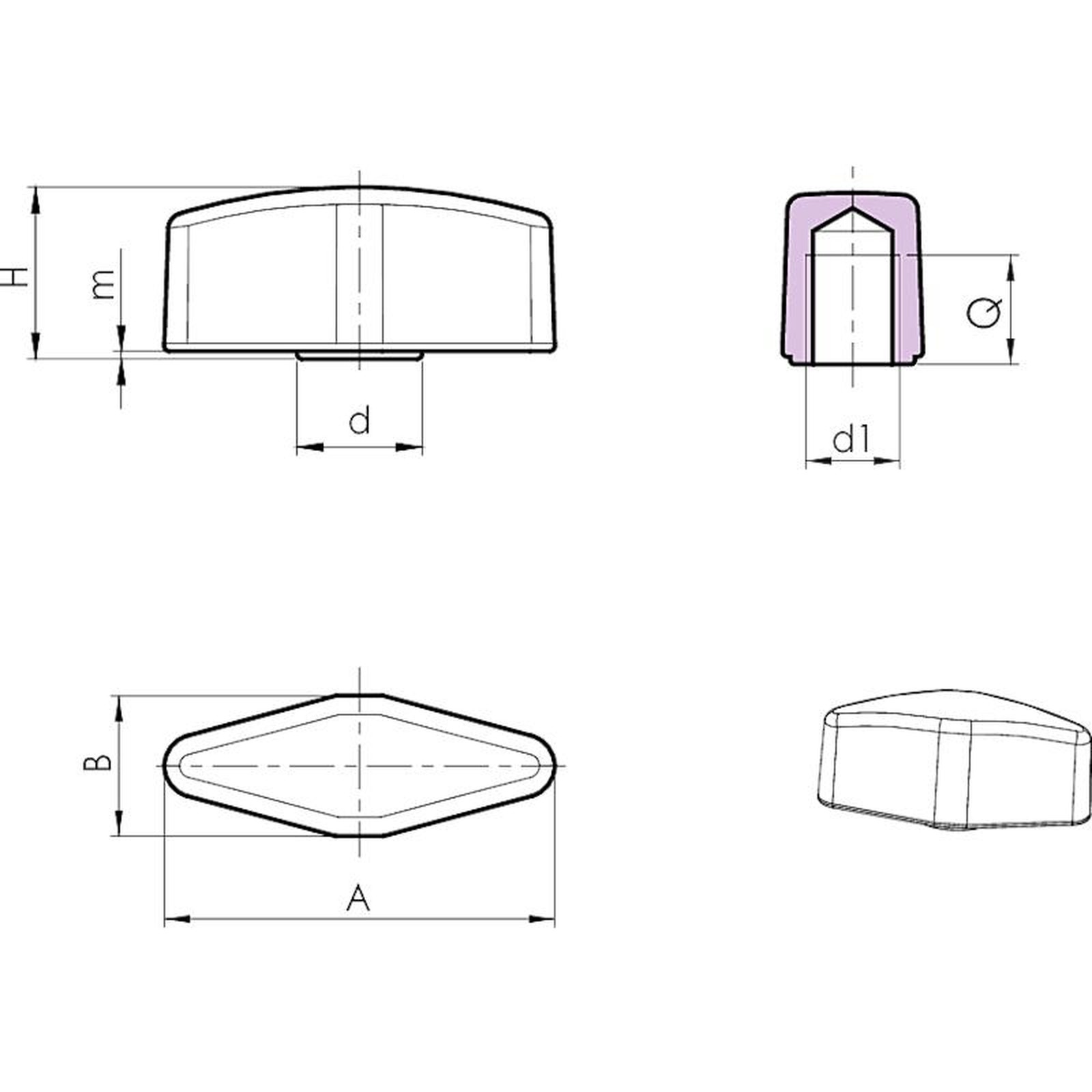

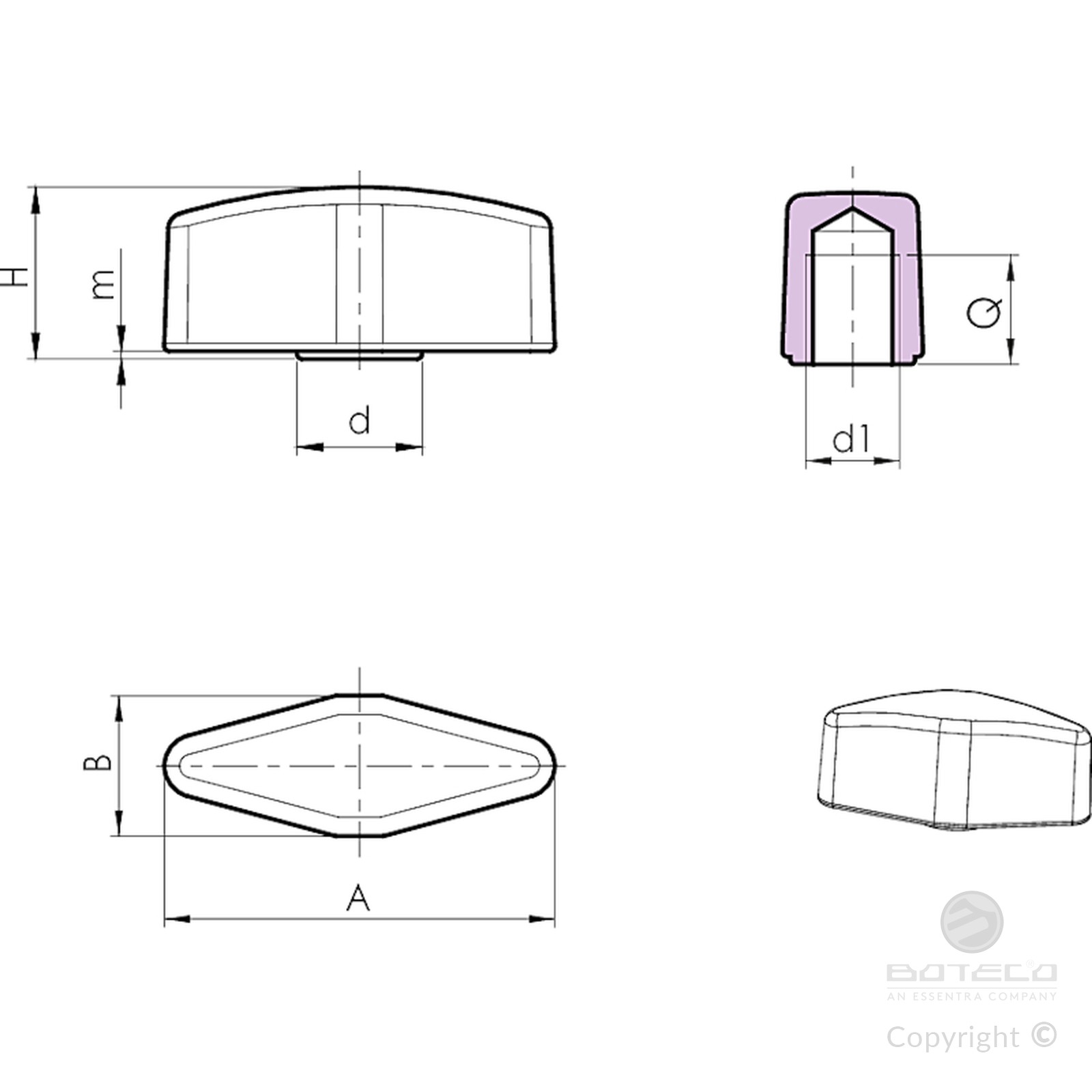

| Code | Art. | A | B | H | m | d | d1 6H | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|
| L25025.0001 | L25025.HM06CIN | 25 | 9 | 11 | 0,5 | 8 | M6 | 6 | 8 |
| L25030.0001 | L25030.HM08CIN | 30 | 11 | 13.5 | 0,5 | 10 | M8 | 8 | 16 |
| L25036.0001 | L25036.HM10CIN | 36 | 13 | 15.5 | 0,5 | 12 | M10 | 9 | 27 |
