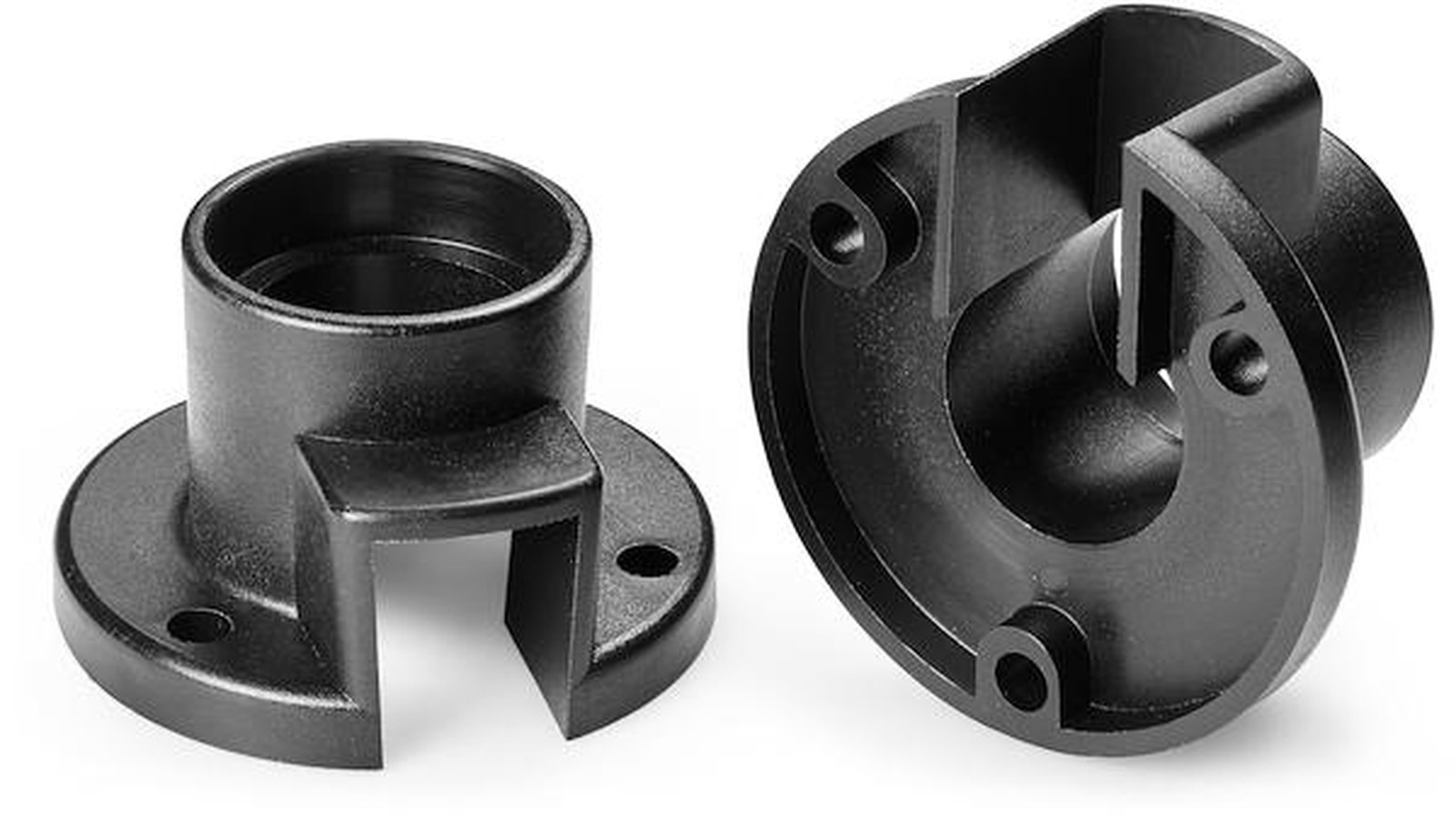

TORCH CONNECTOR FRONT PROTECTION
19
S860
Accessori vari per saldatrici
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Hole:
Smooth through hole obtained by moulding the plastic.
Special Requests:
None.

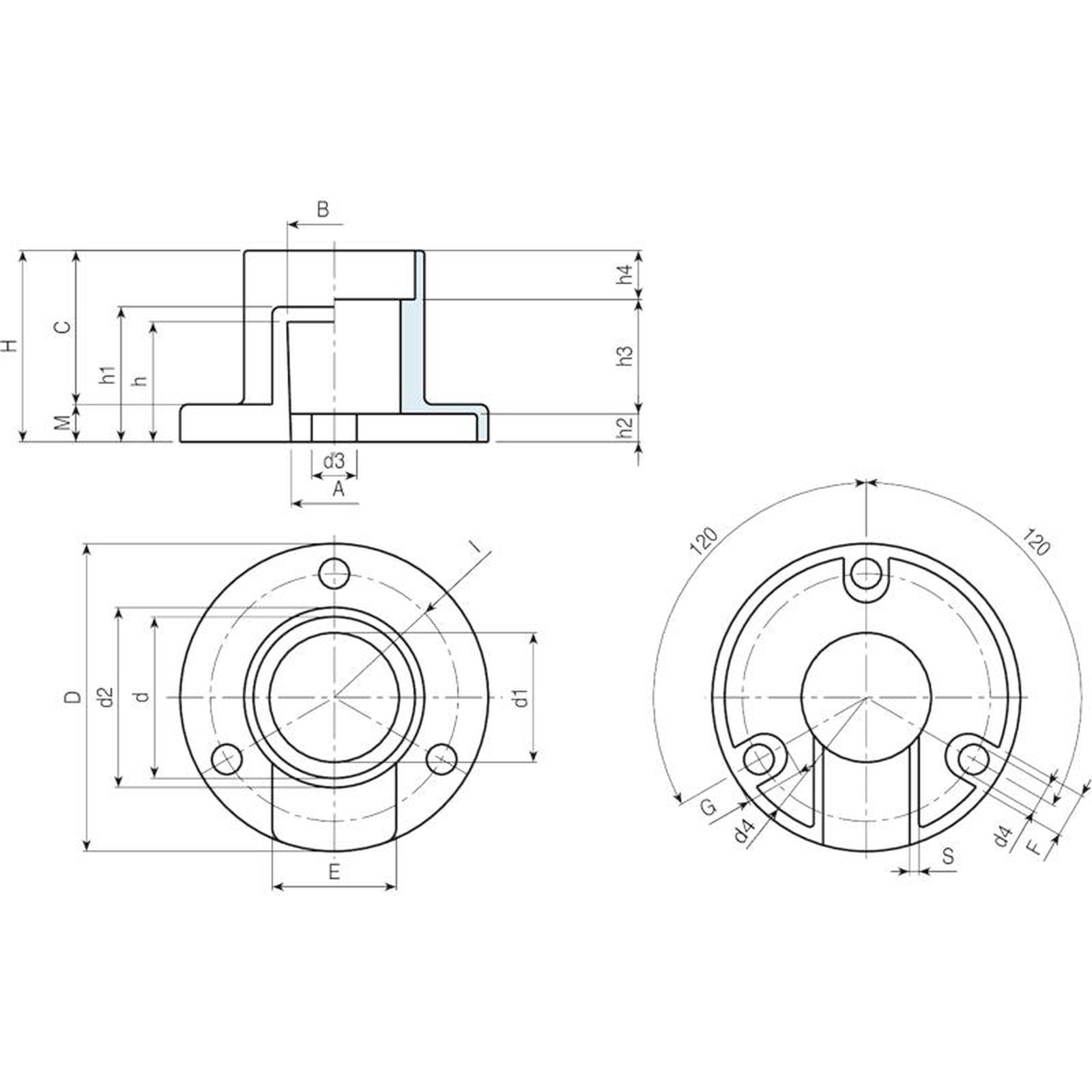

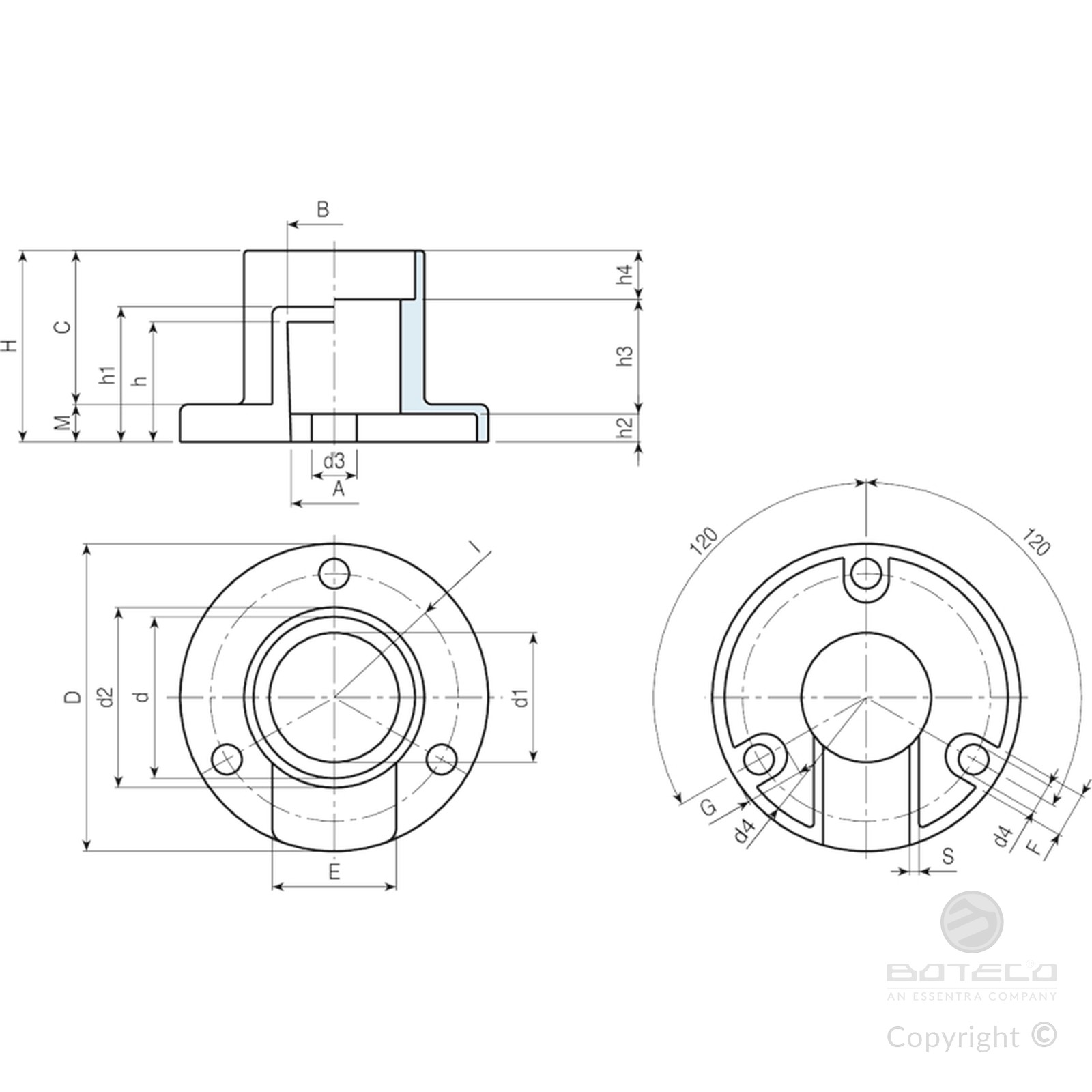

| Code | art. | D | H | A | B | C | E | F | G | I | M | S | h | h1 | h2 | h3 | h4 | d | d1 | d2 | d3 | d4 | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S860.0001 | S860.T01 | 82 | 51 | 23 | 25 | 41 | 34.5 | 12 | 15.5 | 33 | 10 | 2.5 | 32 | 36 | 7.5 | 30.5 | 13 | 43 | 34.5 | 50 | 12 | 8 | 65 |
