Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black(RAL 9011).
Hole:
Smooth through hole obtained by moulding the plastic.
Spring:

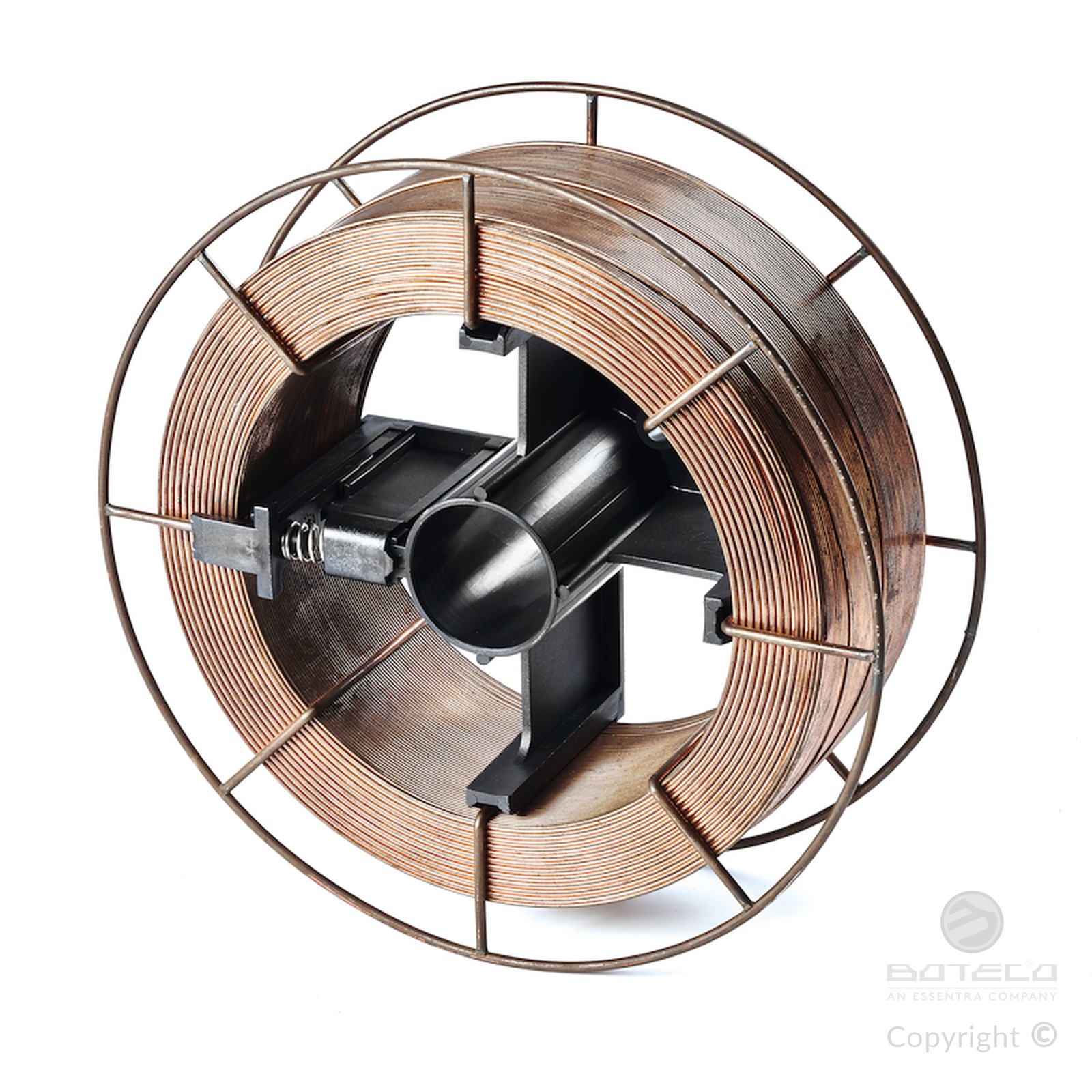

Galvanized steel spring for coil release safety mechanism.
Special Requests:
None.

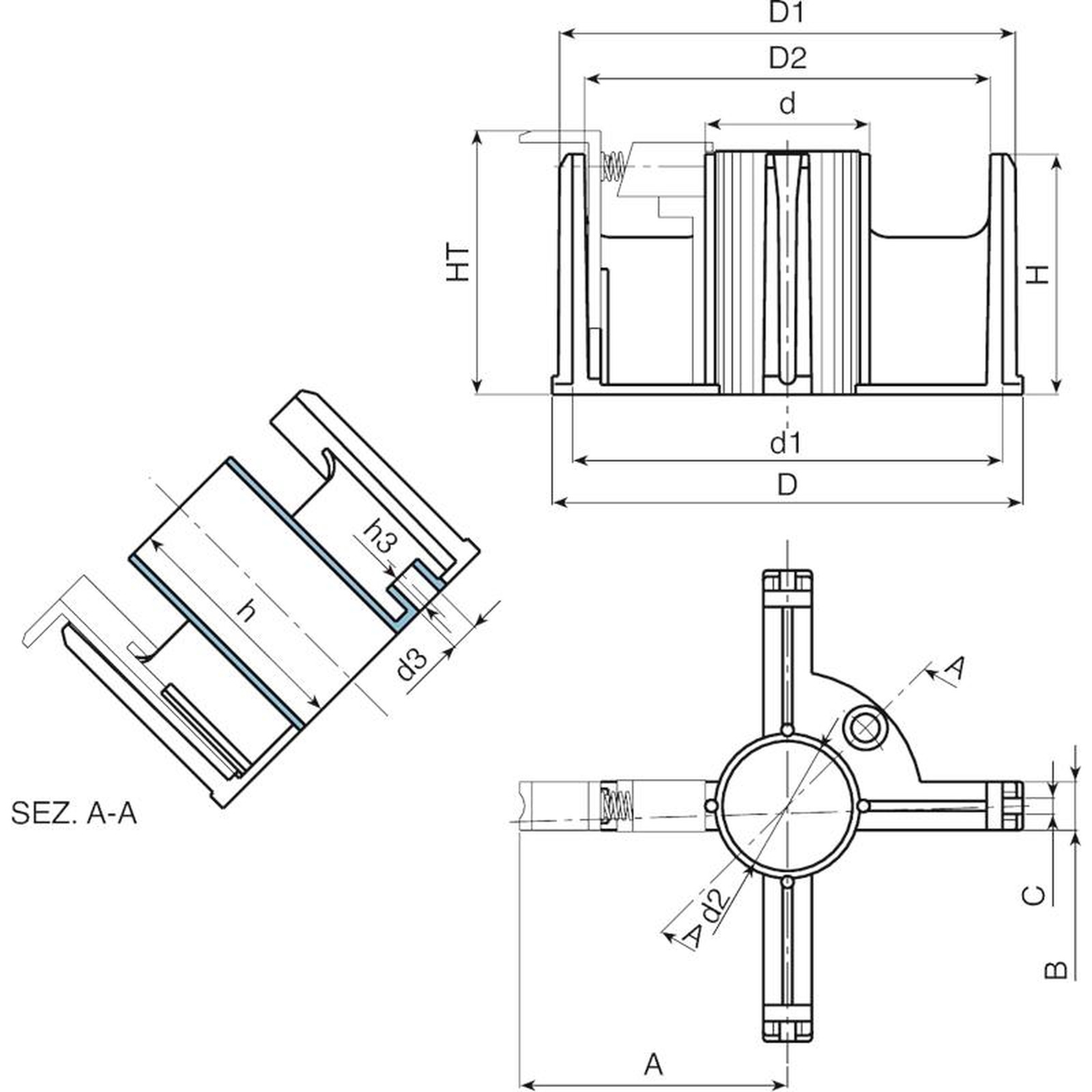

| Code | art. | D | HT | D1 | D2 | d | d1 | d2 | d3 | H | h | h3 | A | B | C | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S816.0001 | S816.T01 | 192 | 108 | 187 | 166 | 67 | 175.5 | 53 | 11.5 | 98 | 99 | 16 | 110 | 17.5 | 6.5 | 290 |
