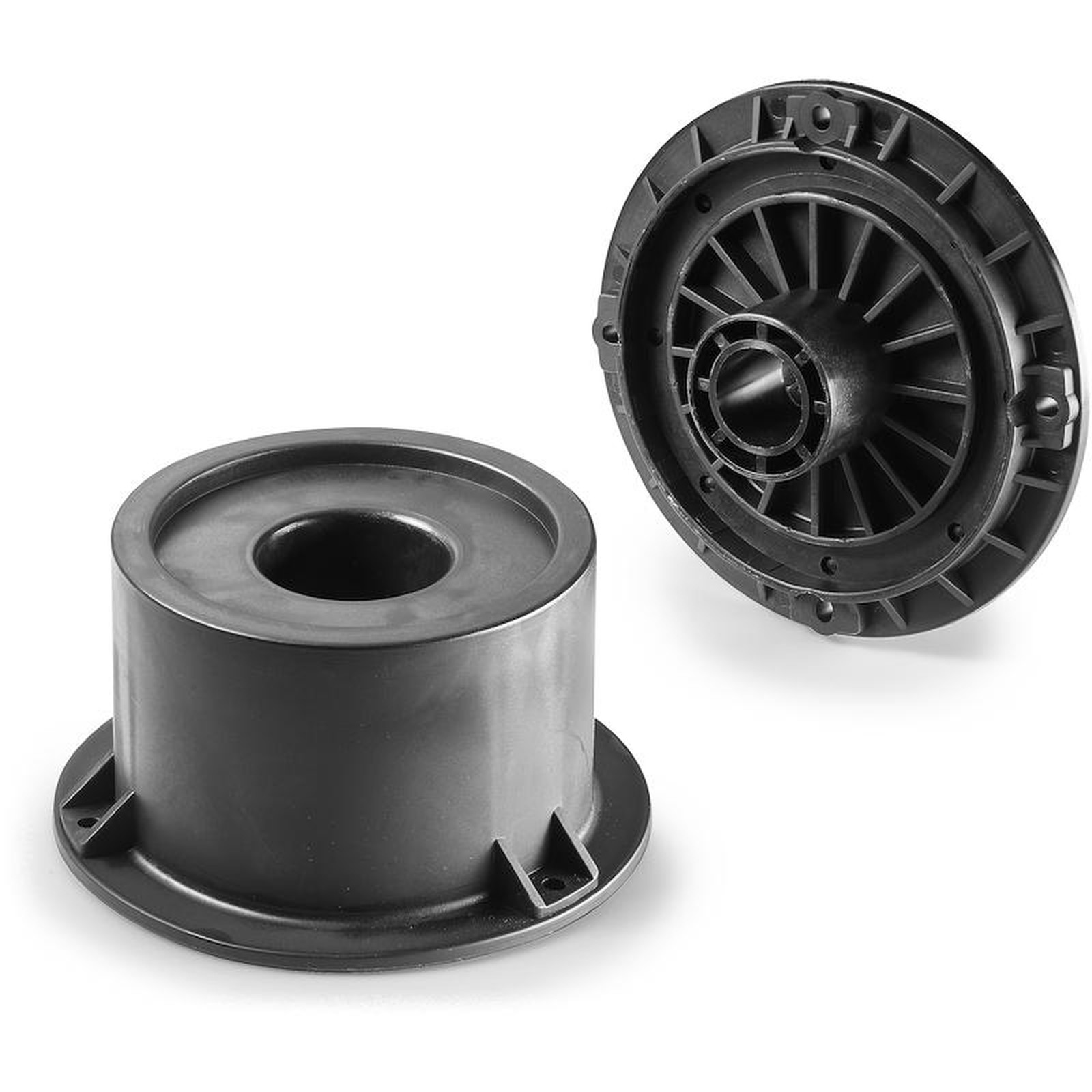

ROTARY SUPPORT FOR WIRE FEEDER HEAD (THREE-PHASE MIG/MAG WELDERS)
19
S802
Accessori bobine MIG
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Hole:
Smooth through hole obtained by moulding the plastic.
Special requests:
You can order the two components separately, and their codes are:
> Top flange: S804.T01
> Low cylinder H=65: S800060.T01
> Middle cylinder H=95: S800086.T01
> High cylinder H=125: S800125.T01

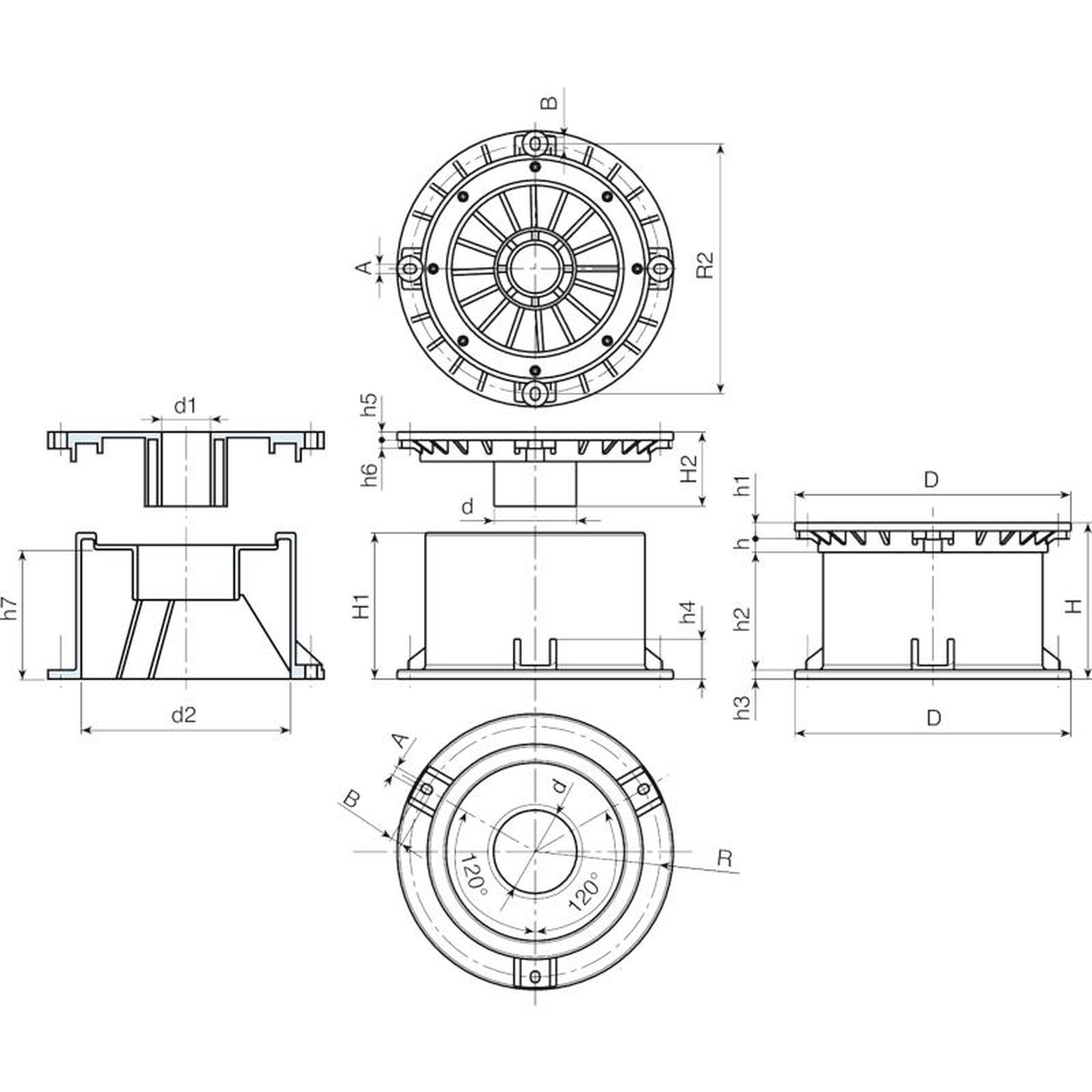

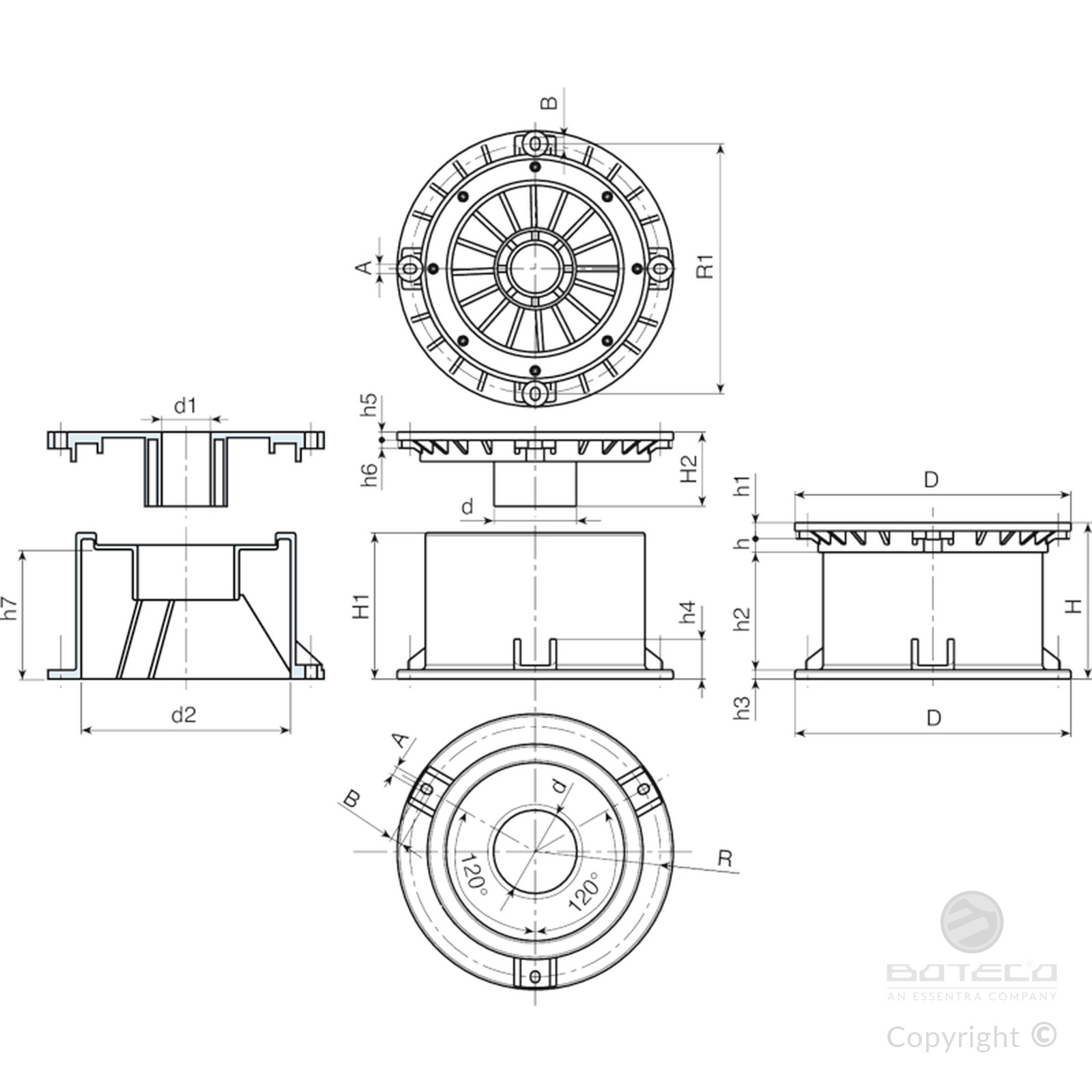

| Code | art. | D | H | H1 | H2 | d | d1 | d2 | h | h1 | h2 | h3 | h4 | h5 | h6 | h7 | R | R1 | A | B | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S802065.0001 | S802065.T01 | 215 | 65 | 56 | 58 | 64 | 35 | - | 13 | 10 | 36 | 6.5 | 31 | 7 | 6 | - | 195 | 195 | 7 | 9 | 1000 |
| S802095.0001 | S802095.T01 | 215 | 86 | 86 | 58 | 64 | 38 | - | 13 | 10 | 56 | 6.5 | 31 | 7 | 6 | - | 195 | 195 | 7 | 9 | 1115 |
| S802125.0001 | S802125.T01 | 215 | 123 | 114 | 58 | 64 | 38 | - | 13 | 10 | 93 | 6.5 | 31 | 7 | 6 | - | 195 | 195 | 7 | 9 | 1215 |
