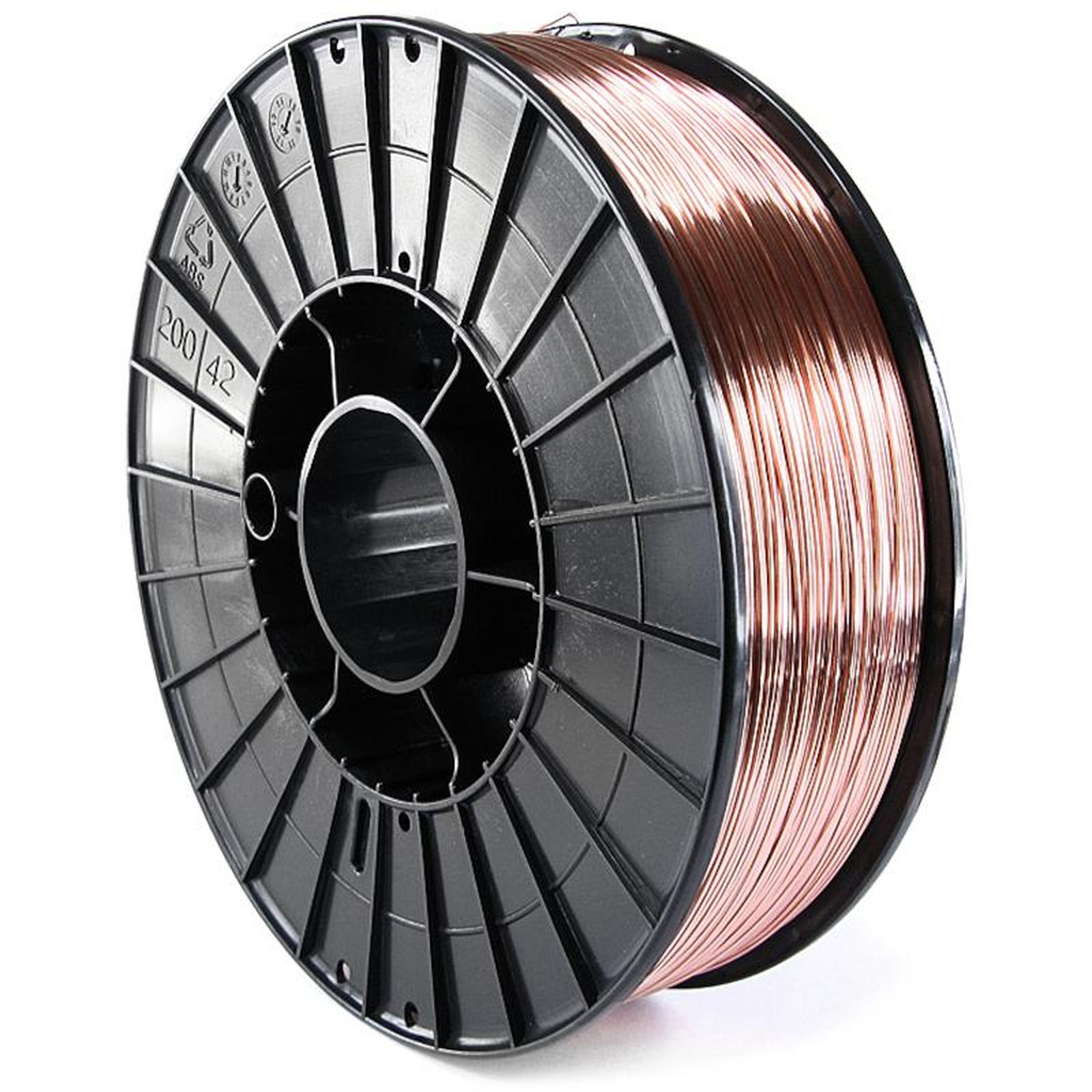

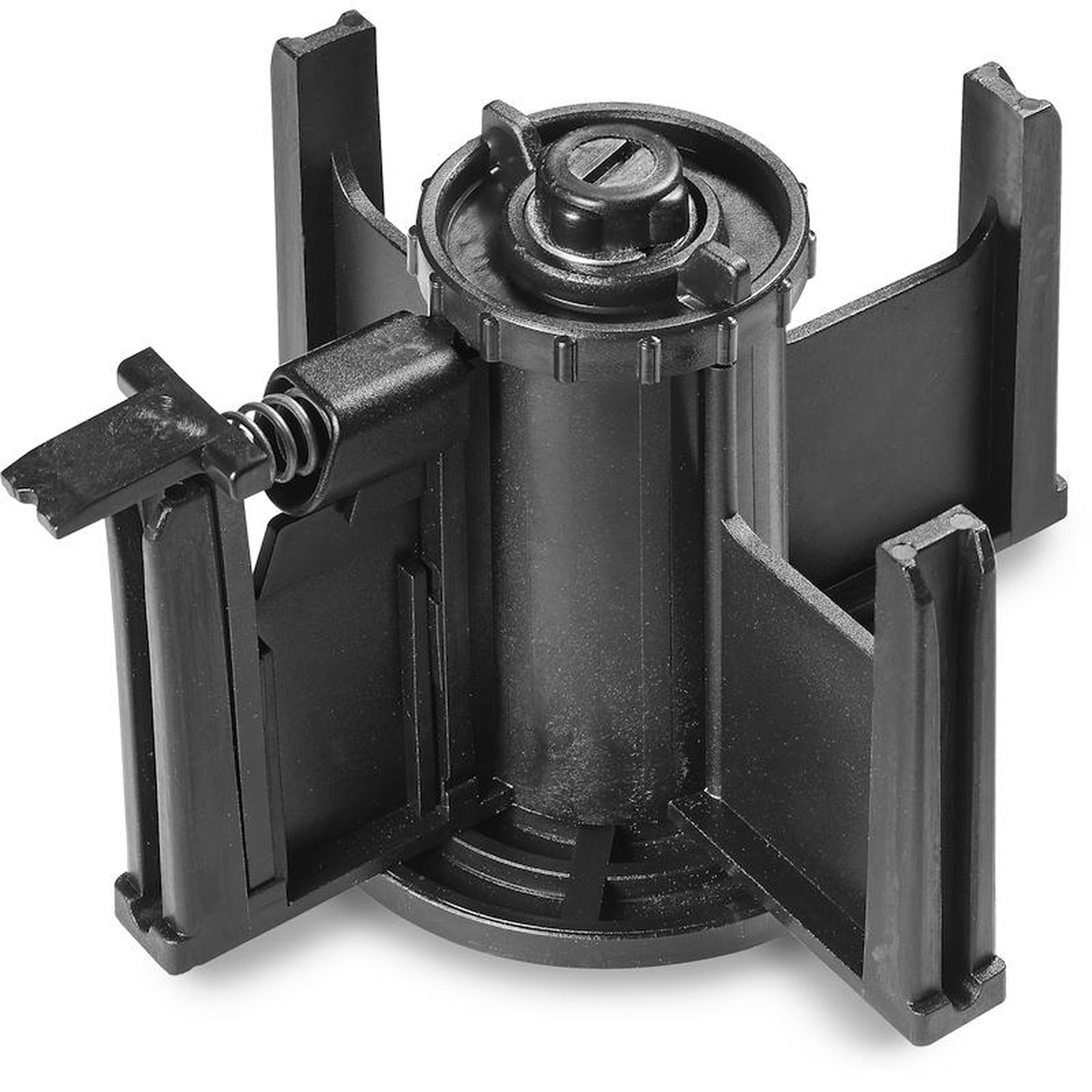

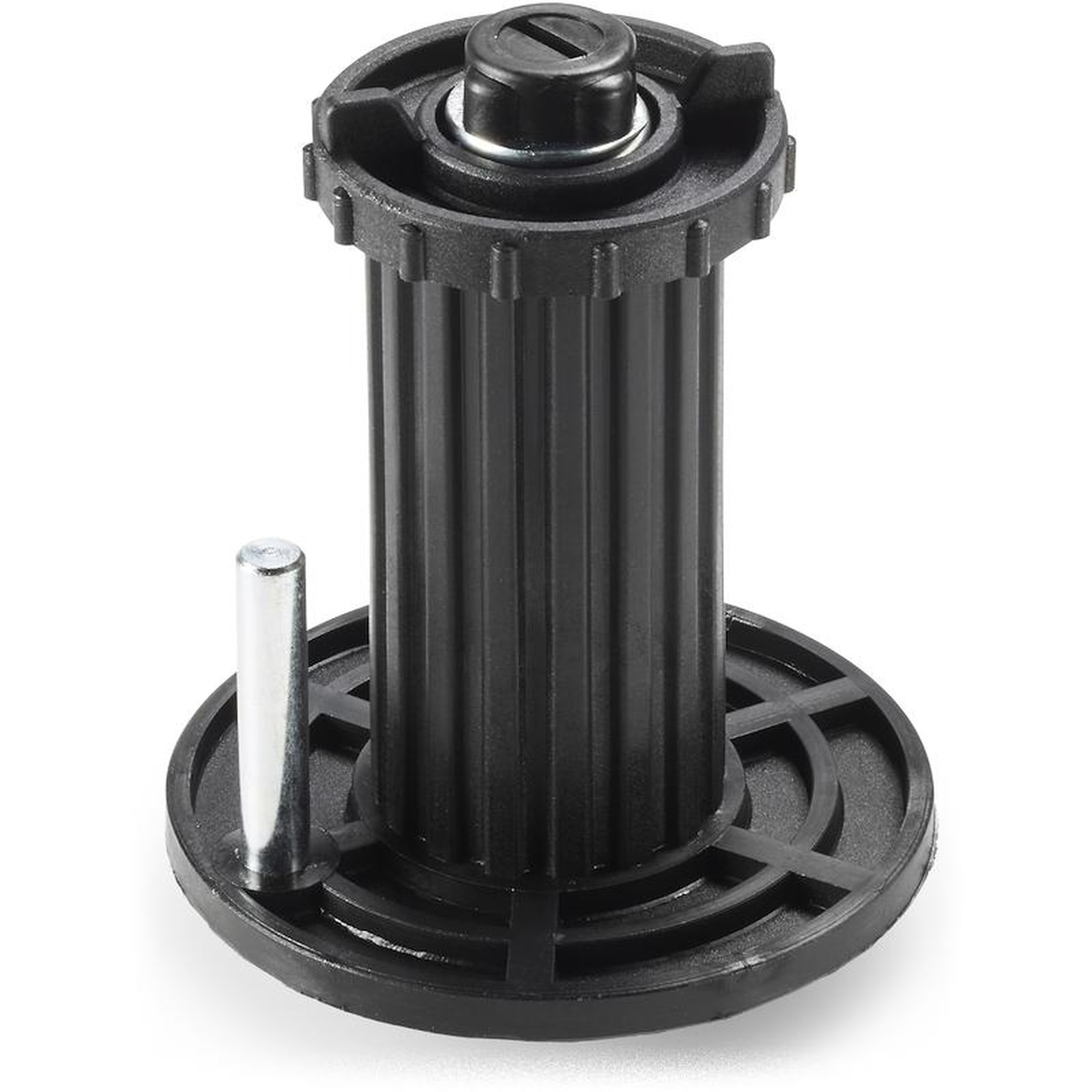

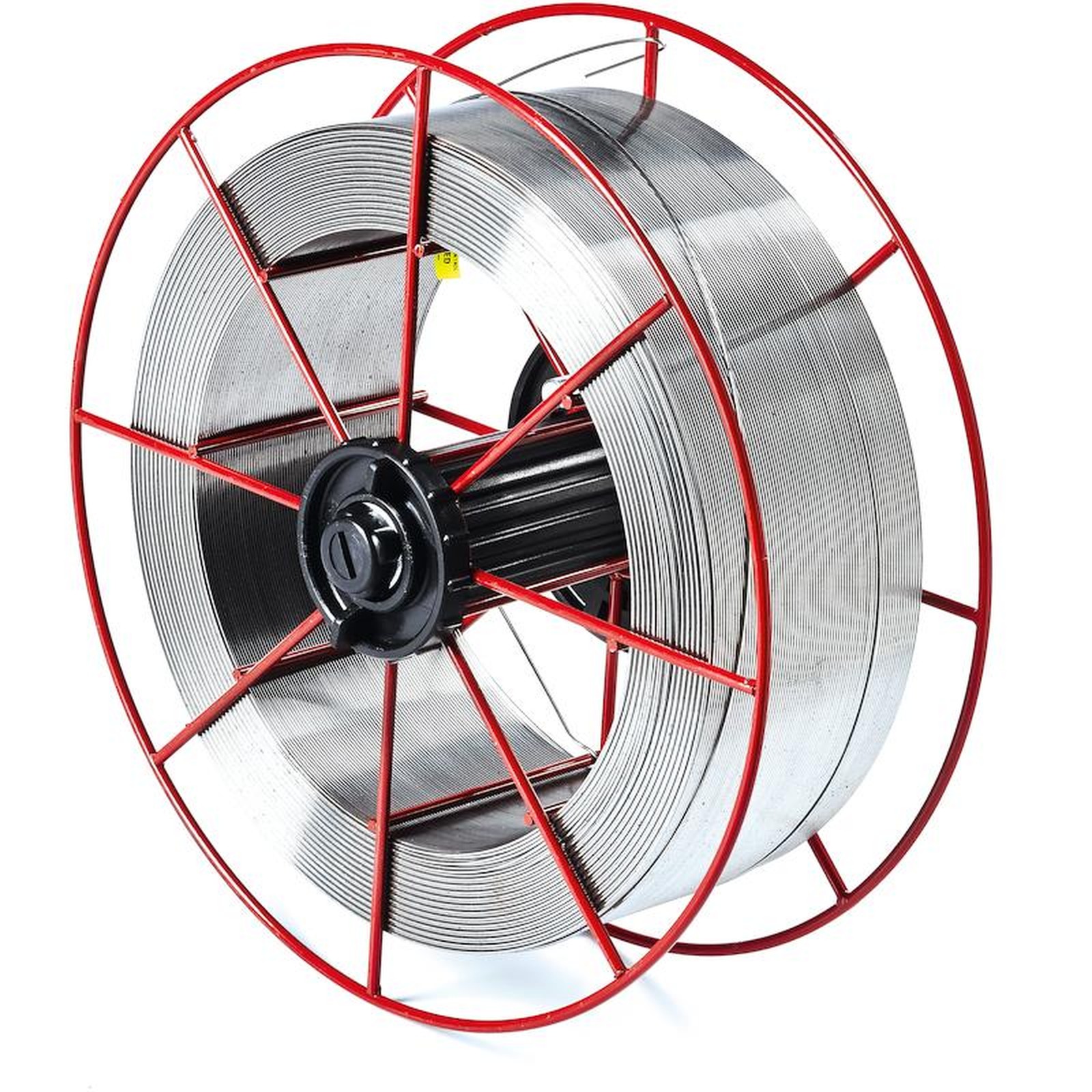

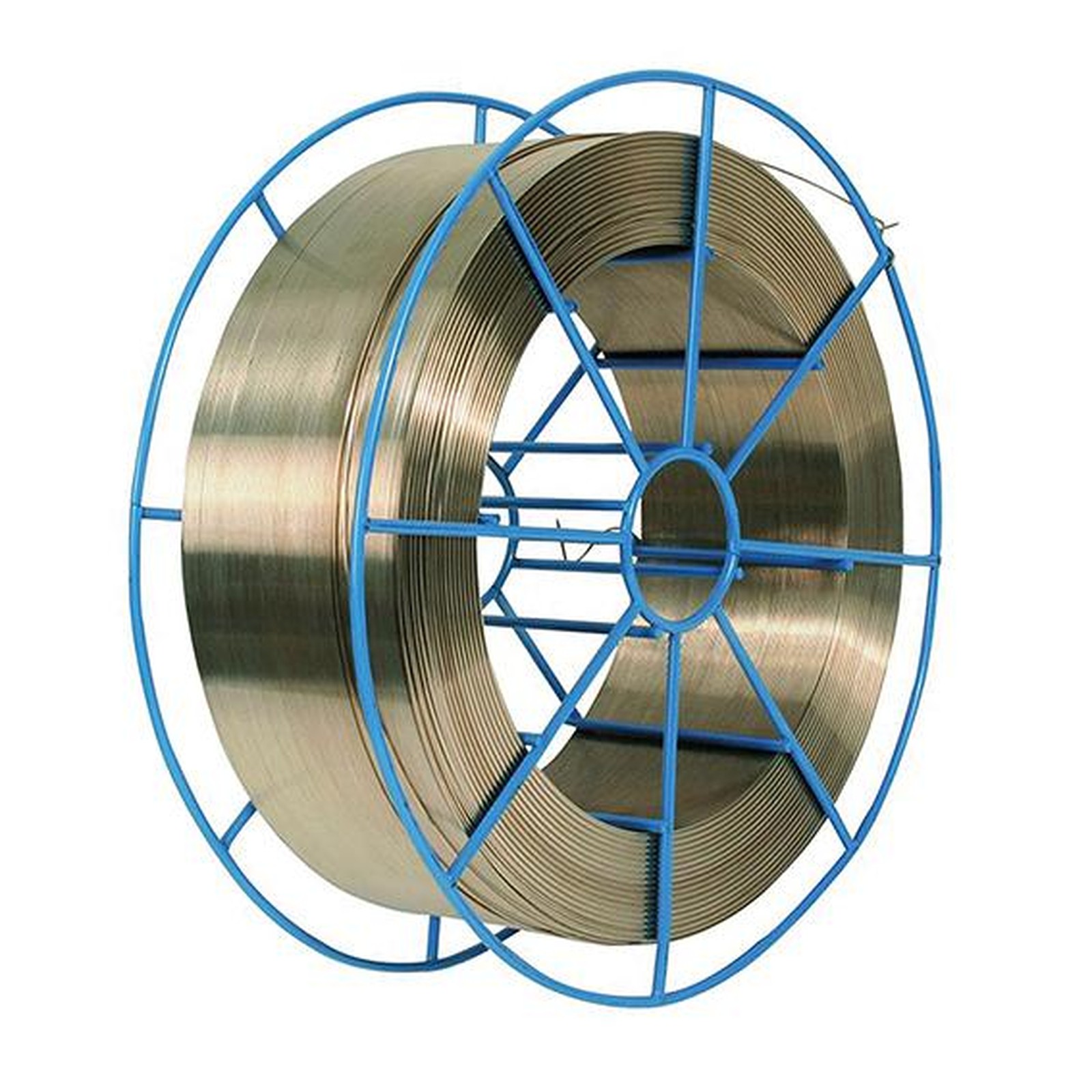

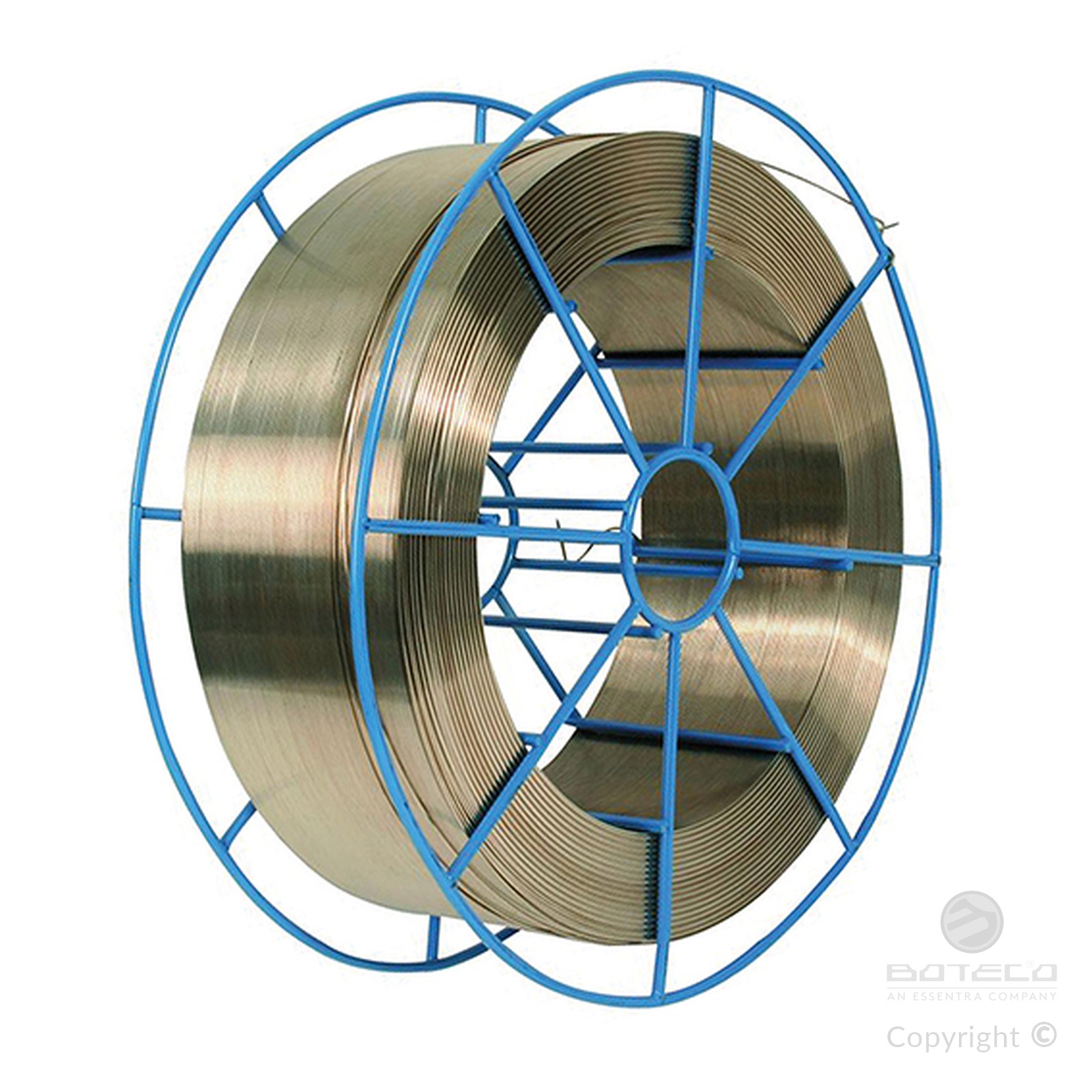

Materials:
(1-3-4-6) Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black(RAL 9011).
Inserts:
(2) Galvanised steel spring.
(5) Galvanised steel insert with threaded holes.
(7) Thermoplastic TPV rubber washer, 75 Shore.
(8) Galvanised steel washer.
(9) Galvanised steel hexagon head screw, left-hand/right-hand thread. The choice must be made according to the motor rotation direction of the wire feeder.
(10) Galvanized steel smooth stud.
Special requests:

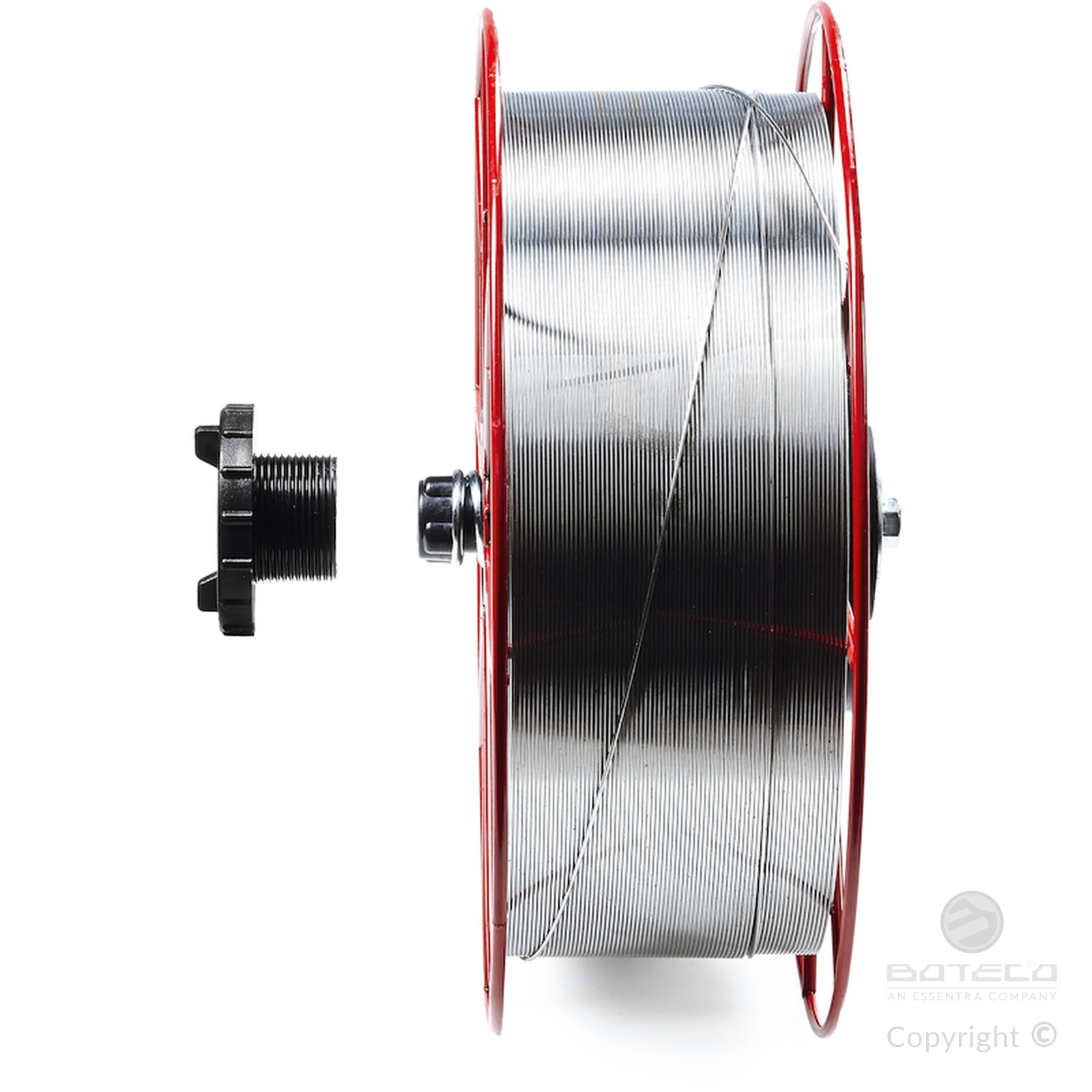

Upon request, adapter S816 can be supplied for metal coils without internal frame. To be ordered separately.

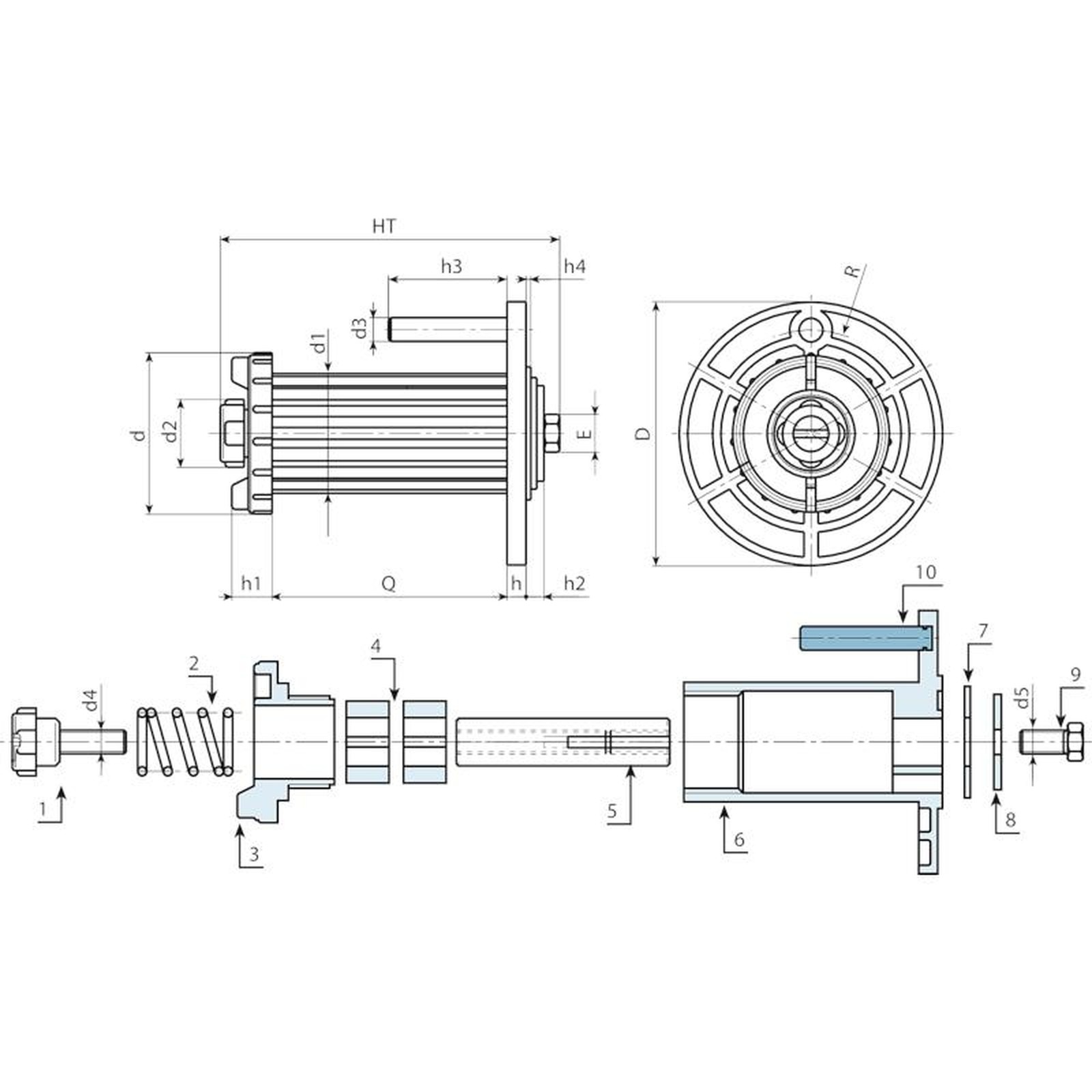

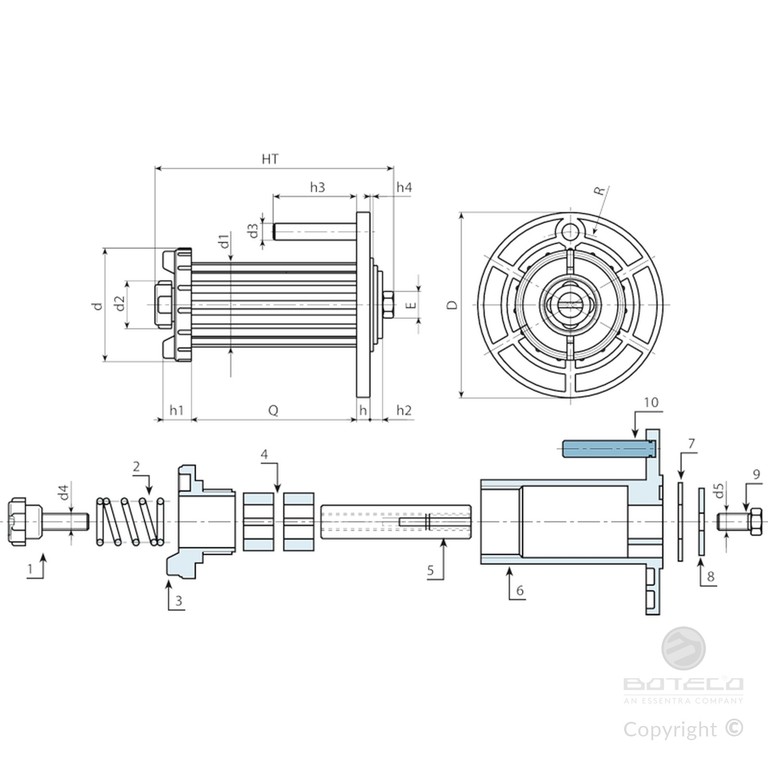

| Code | art. | D | HT | d | d1 | d2 | d3 | d4 | d5 | h | h1 | h2 | h3 | h4 | E | Q | R | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S602116.0015 | S602116.TG10X5001DX | 112 | 140 | 68 | 50.5 | 28 | 10 | M10 DX | M10 DX | 8 | 17 | 8 | 50 | 1.7 | 17 | 99 | 44 | 550 |
| S602116.0016 | S602116.TG10X5001SX | 112 | 140 | 68 | 50.5 | 28 | 10 | M10 DX | M10 SX | 8 | 17 | 8 | 50 | 1.7 | 17 | 99 | 44 | 550 |
