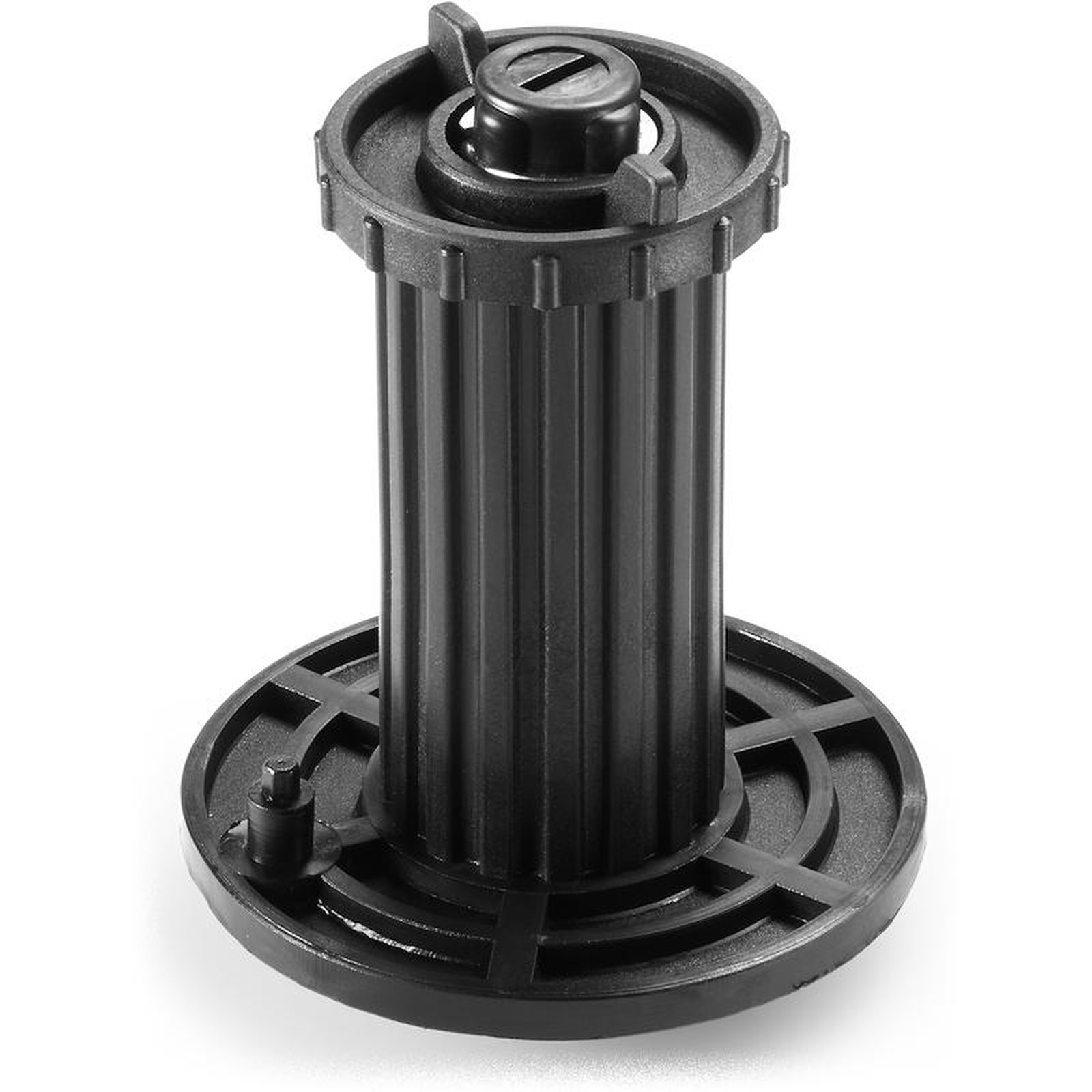

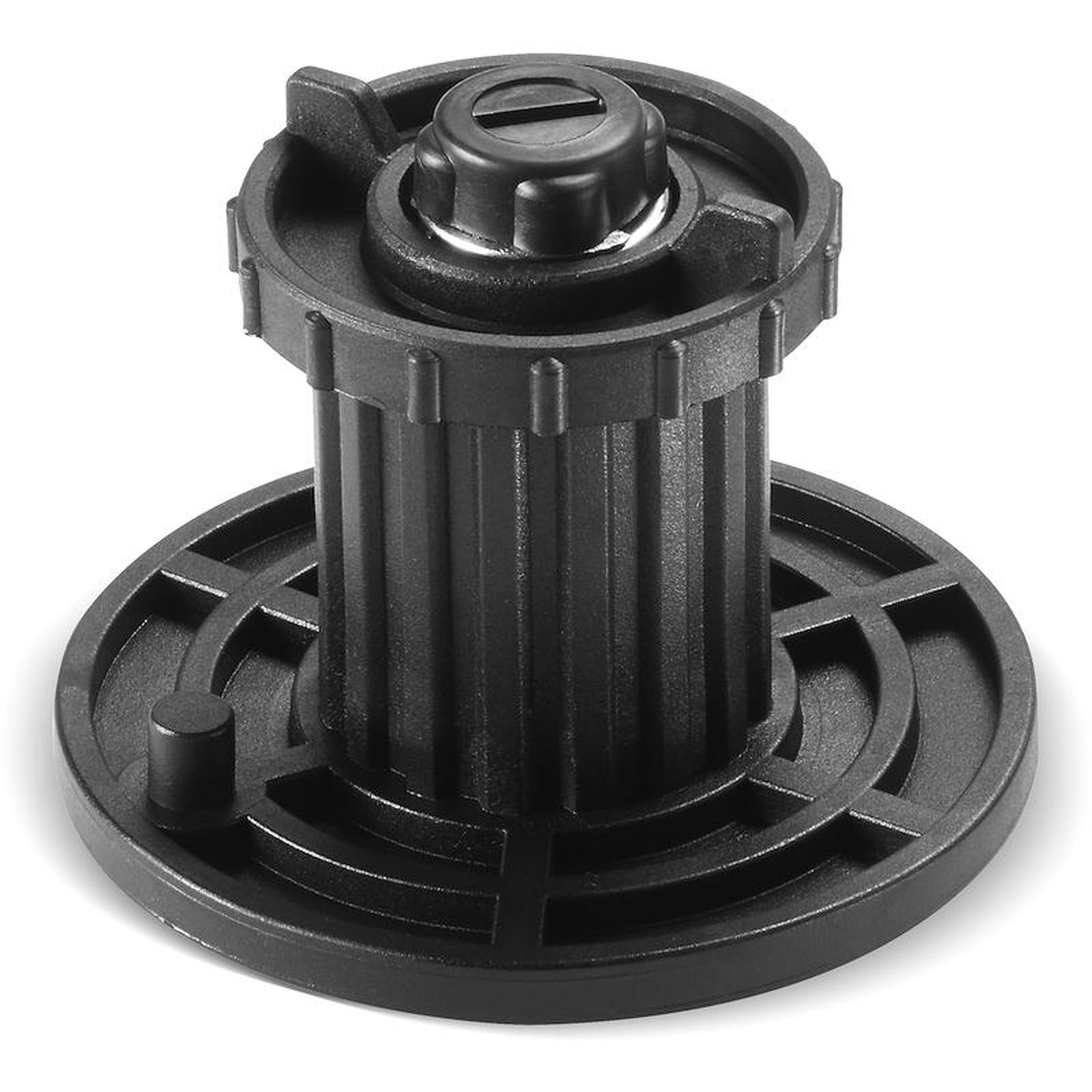

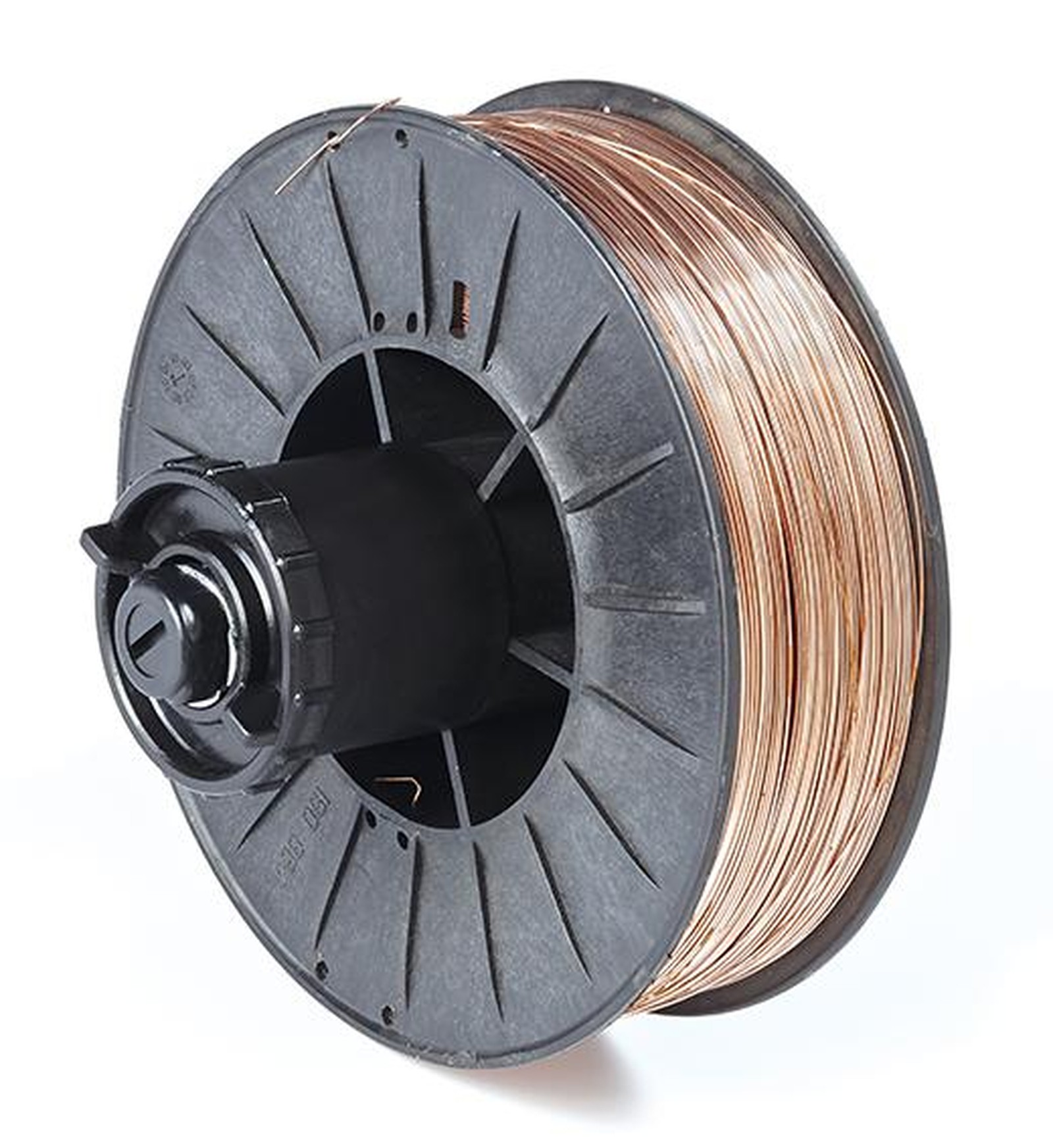

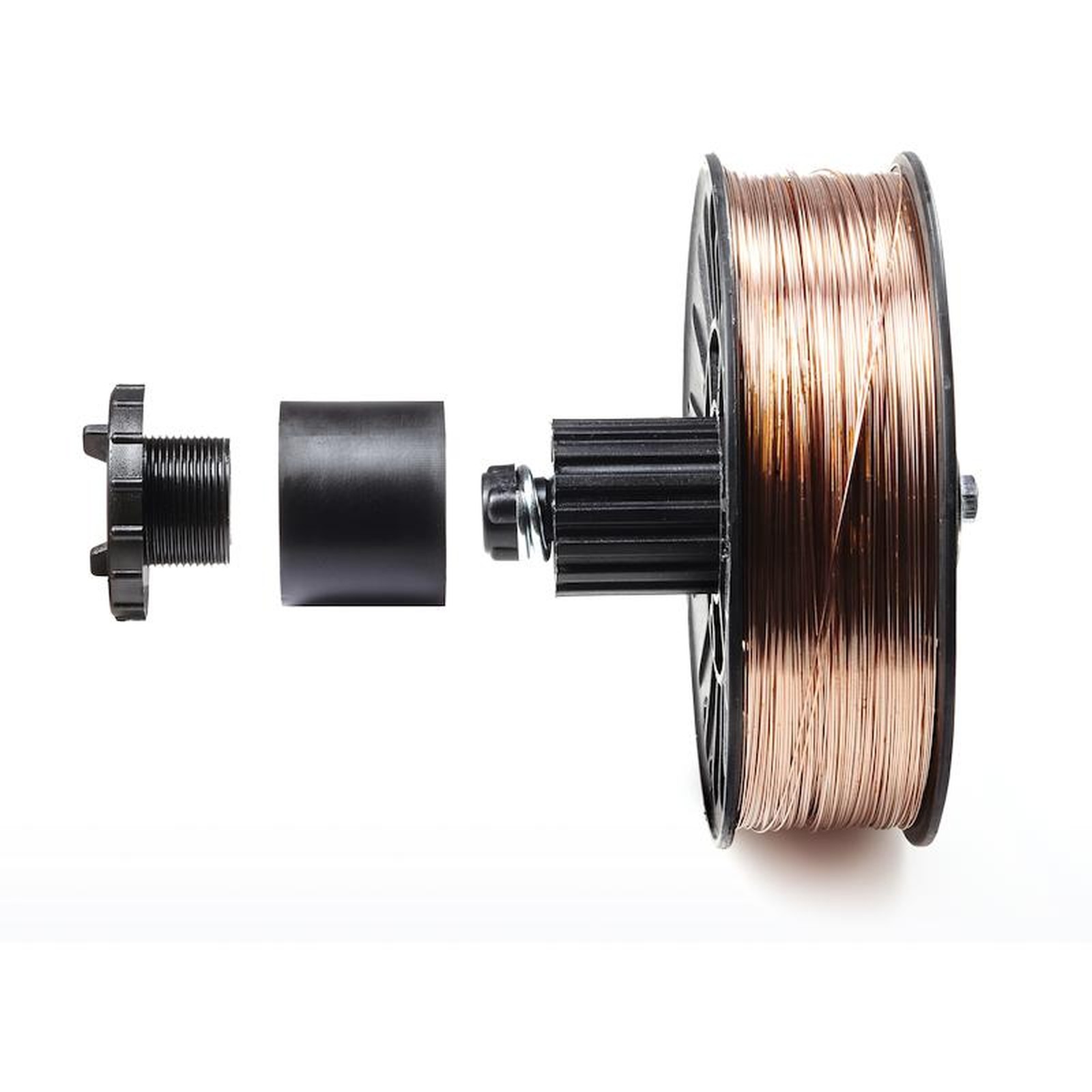

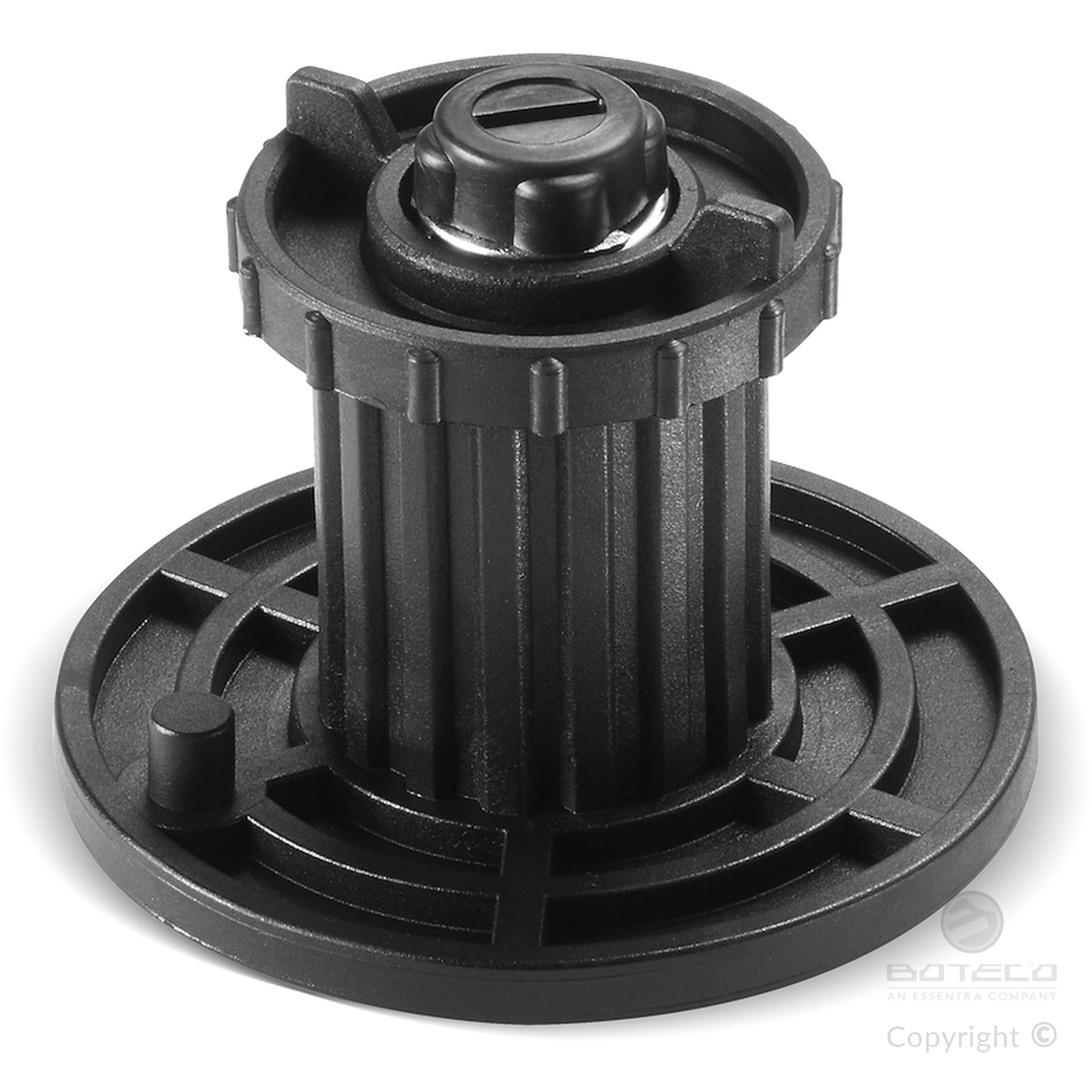

SPOOL HOLDER WITHOUT STUD FOR MIG/MAG WELDING WIRE COIL
19
S602TG10
Accessori bobine MIG

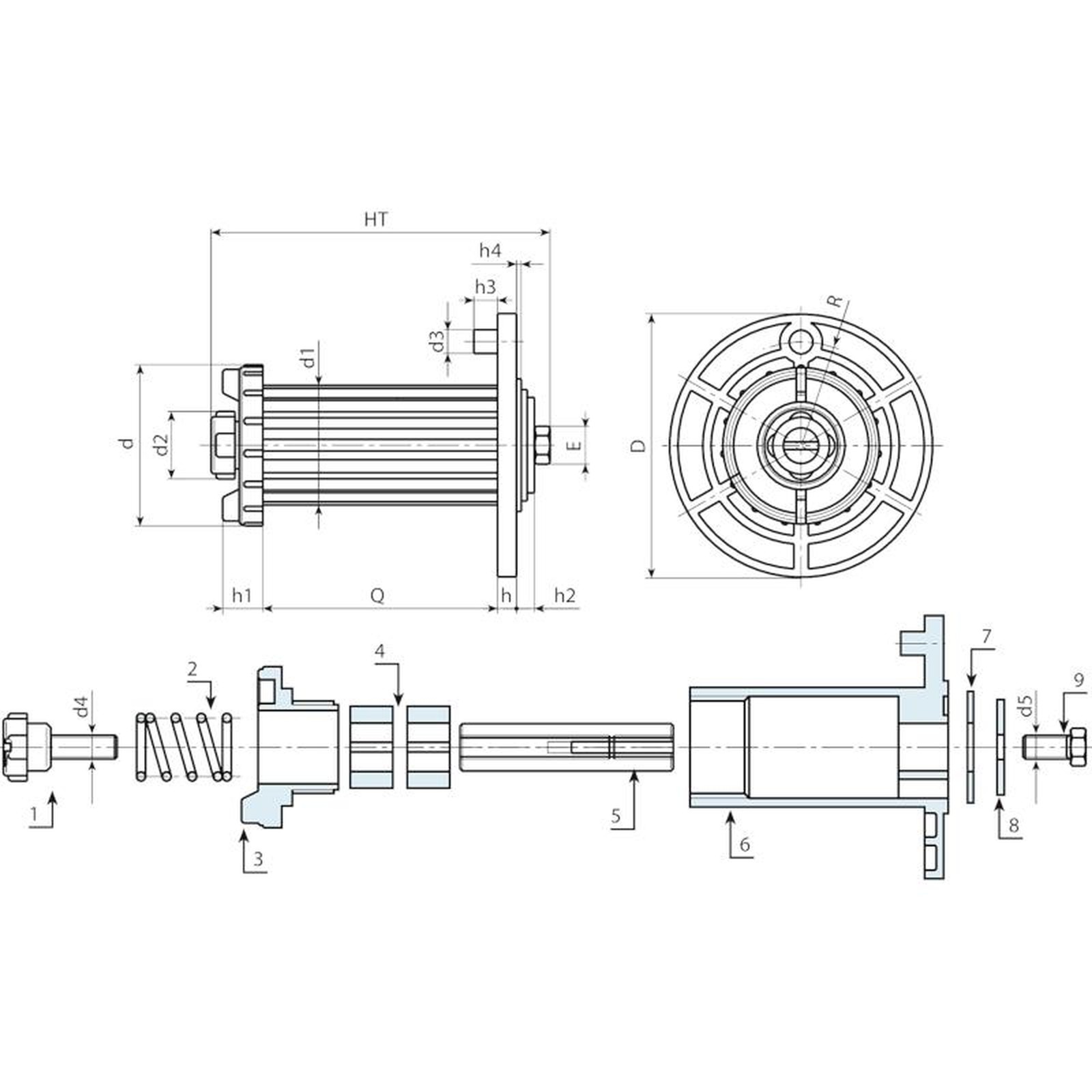

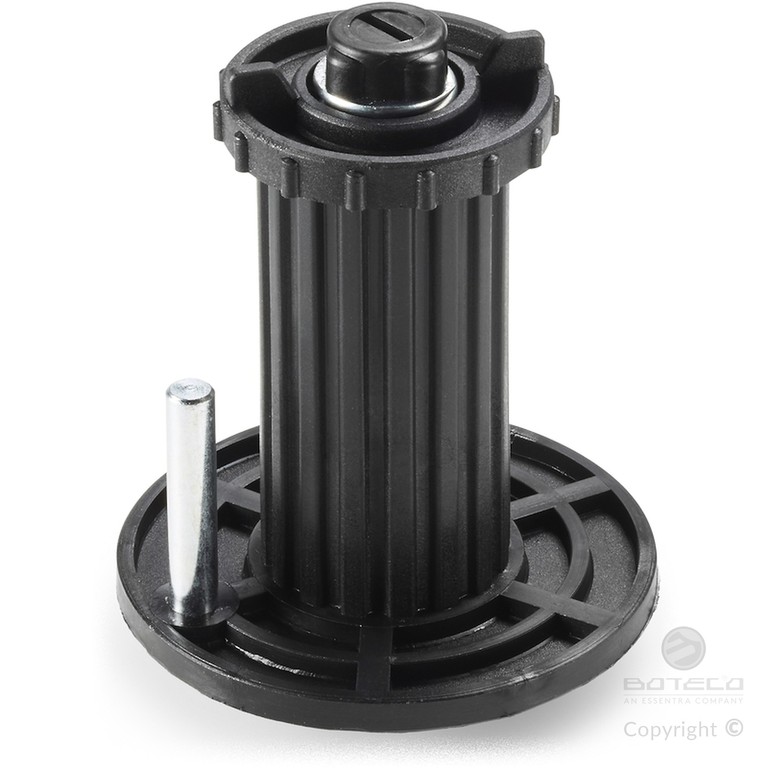

Materials:
(1-3-4-6) Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Inserts:
(2) Galvanised steel spring.
(5) Galvanised steel insert with threaded holes.
(7) Thermoplastic TPV rubber washer, 75 Shore.
(8) Galvanised steel washer.
(9) Galvanised steel hexagon head screw, left-hand/right-hand thread. The choice must be made according to the motor rotation direction of the wire feeder.
Special requests:

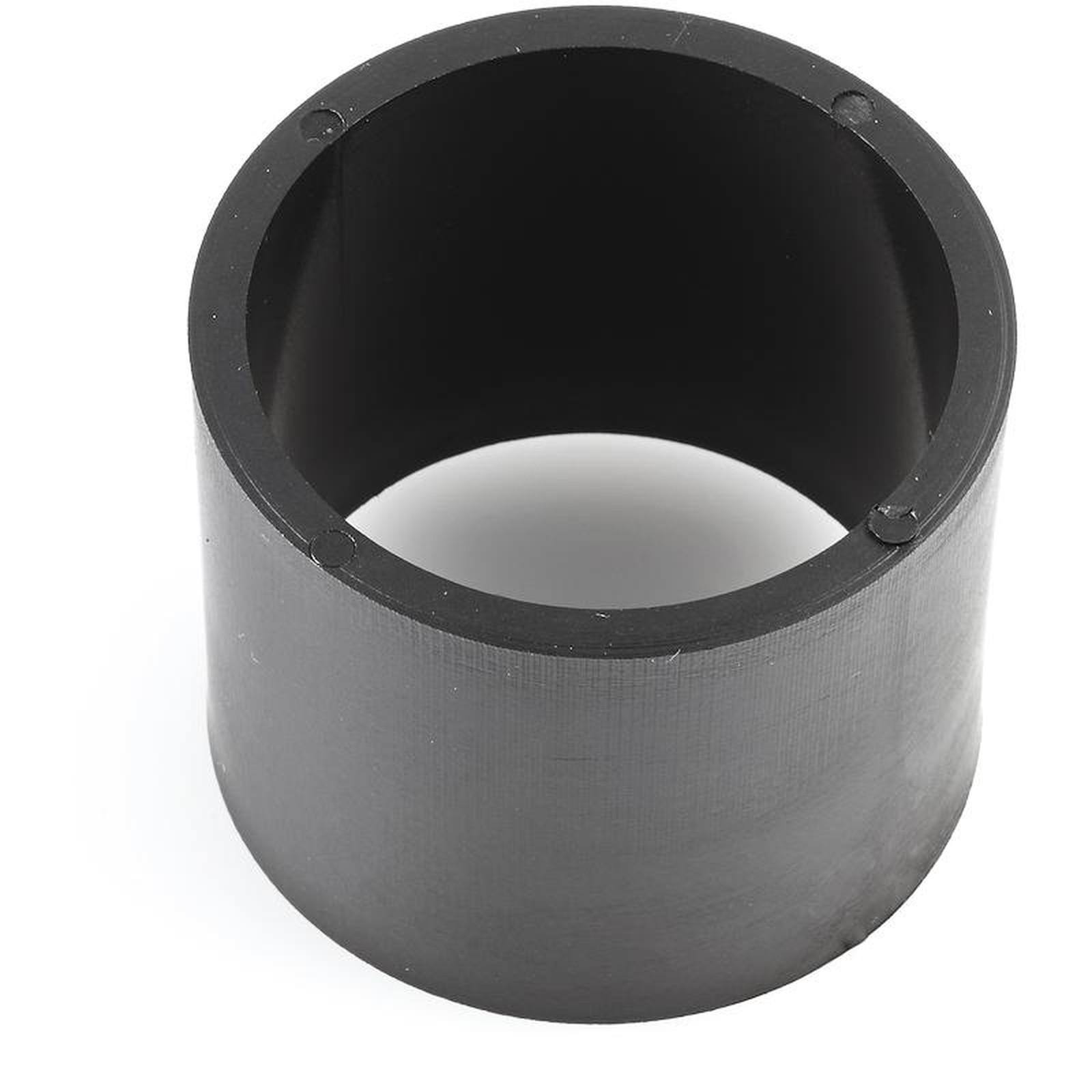

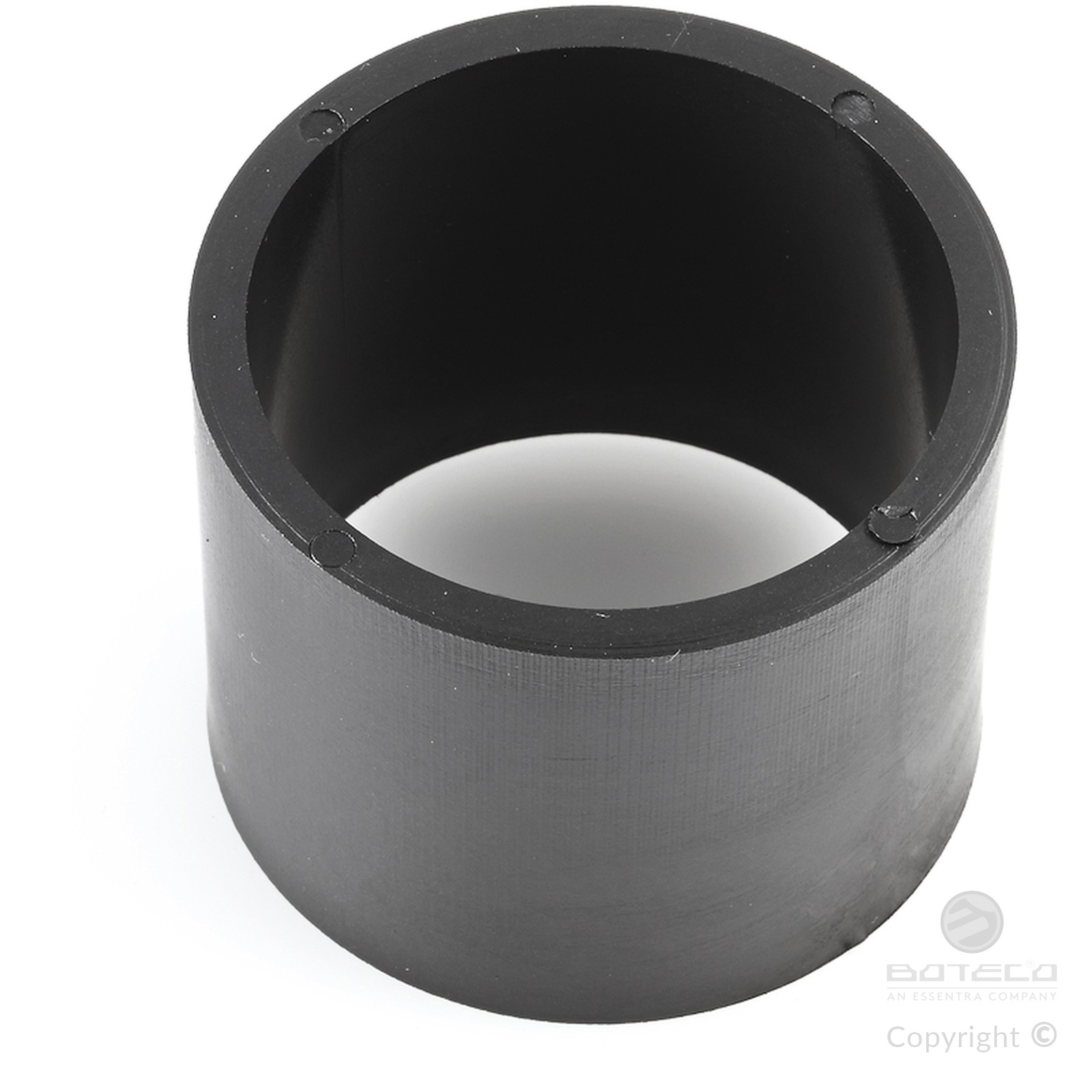

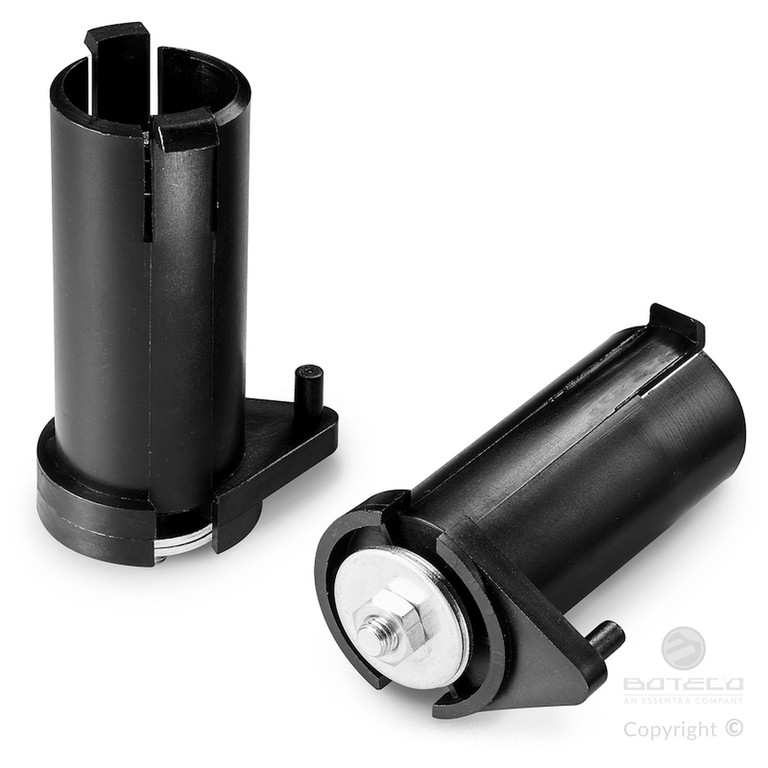

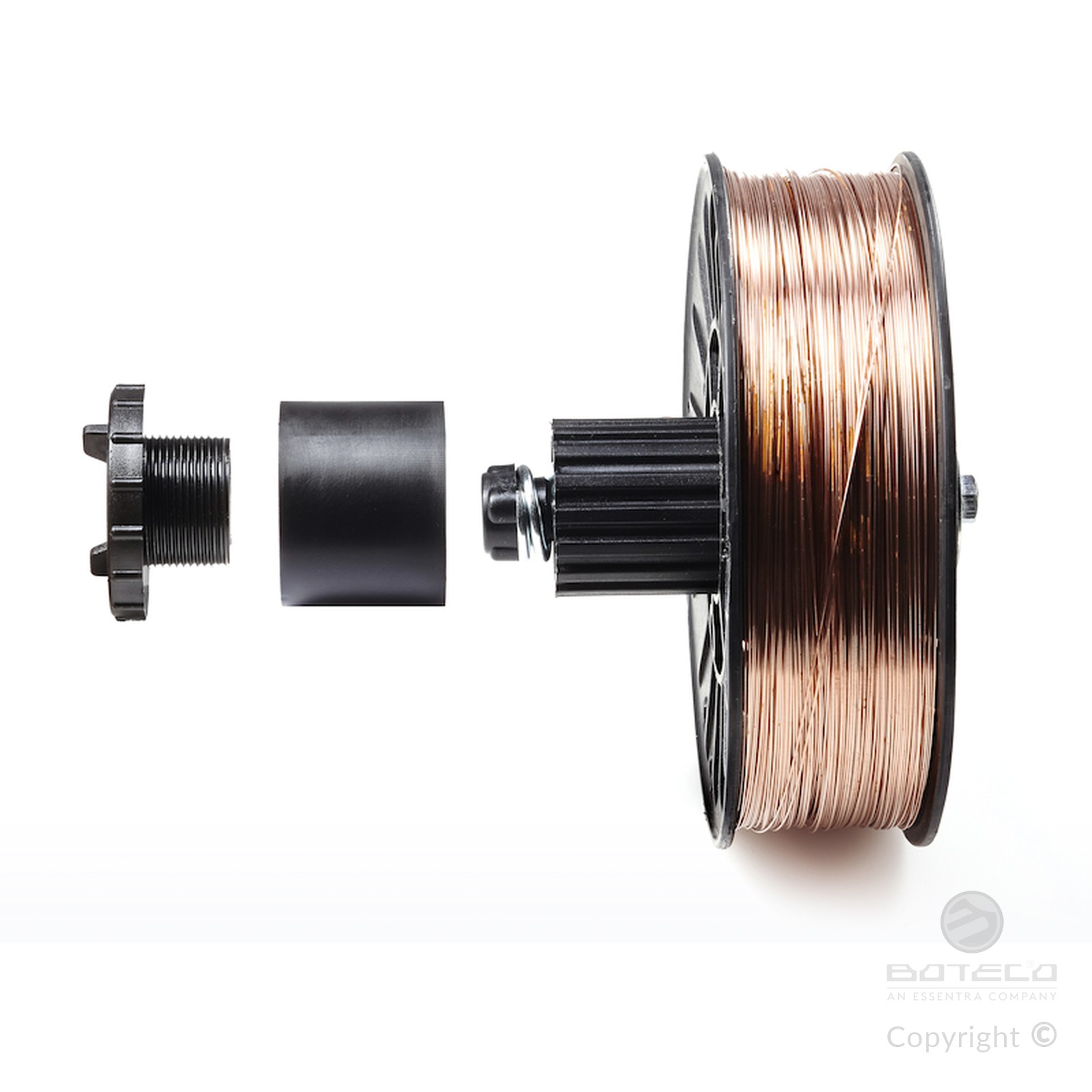

For customers using spool holder S602116 who want to mount a wire coil with width Q=55, plastic adapter S604 can be provided upon request. To be ordered separately.

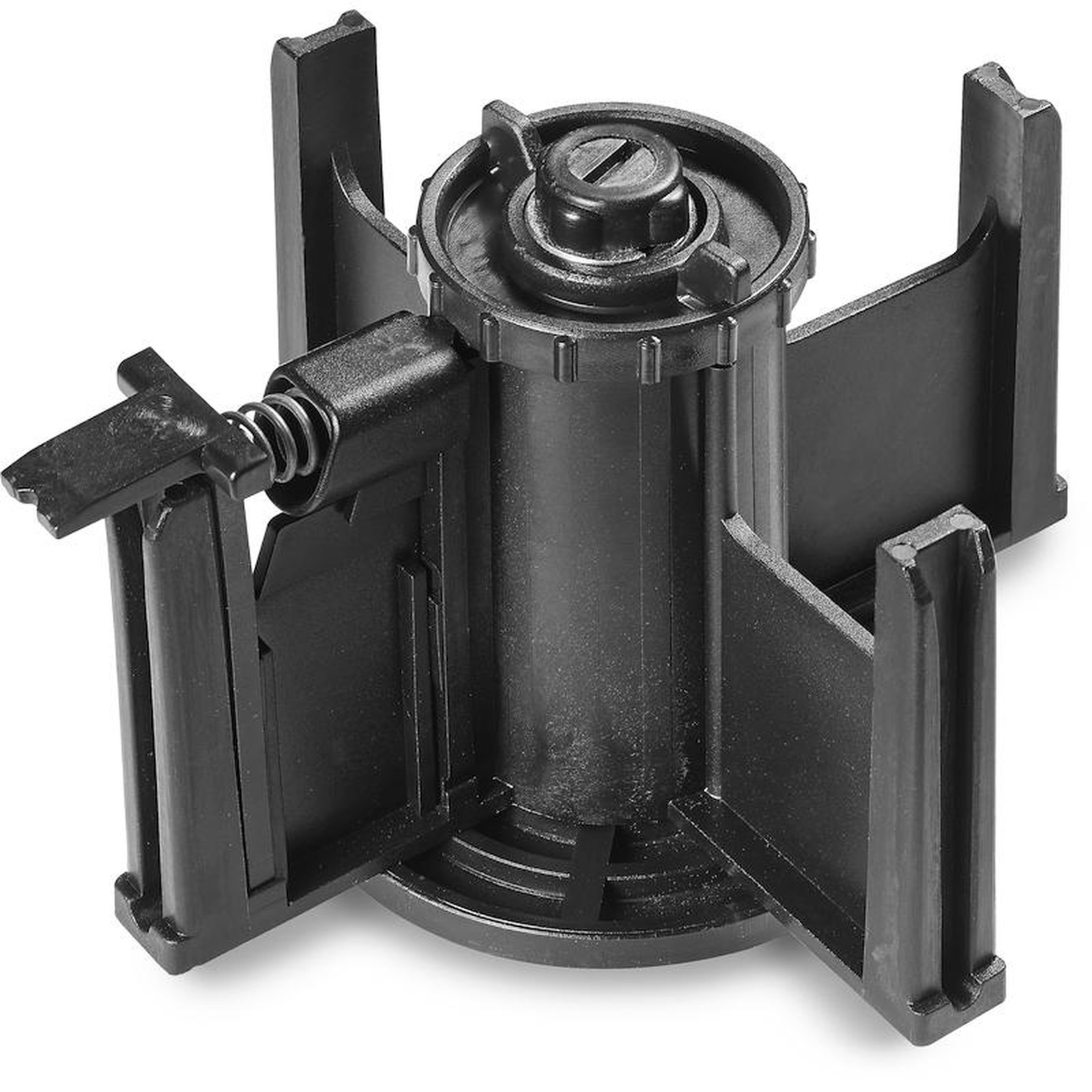

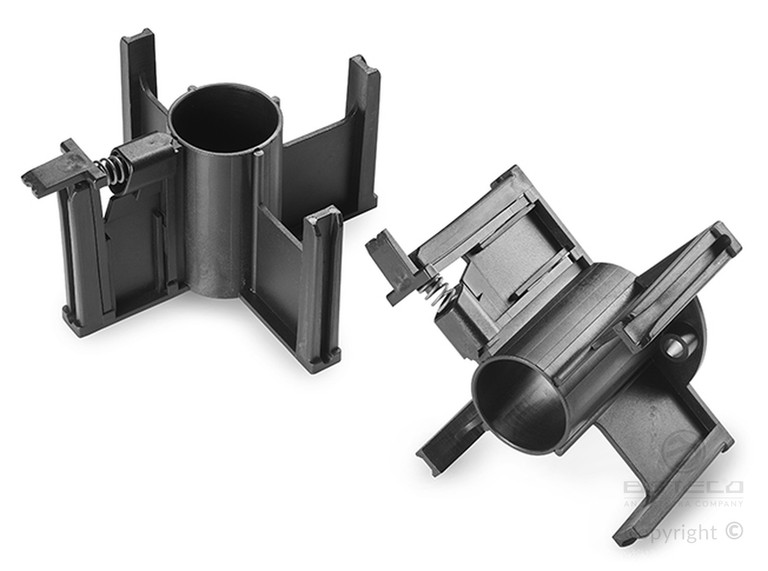

Upon request, adapter S816 can be supplied for metal coils without internal frame. To be ordered separately.












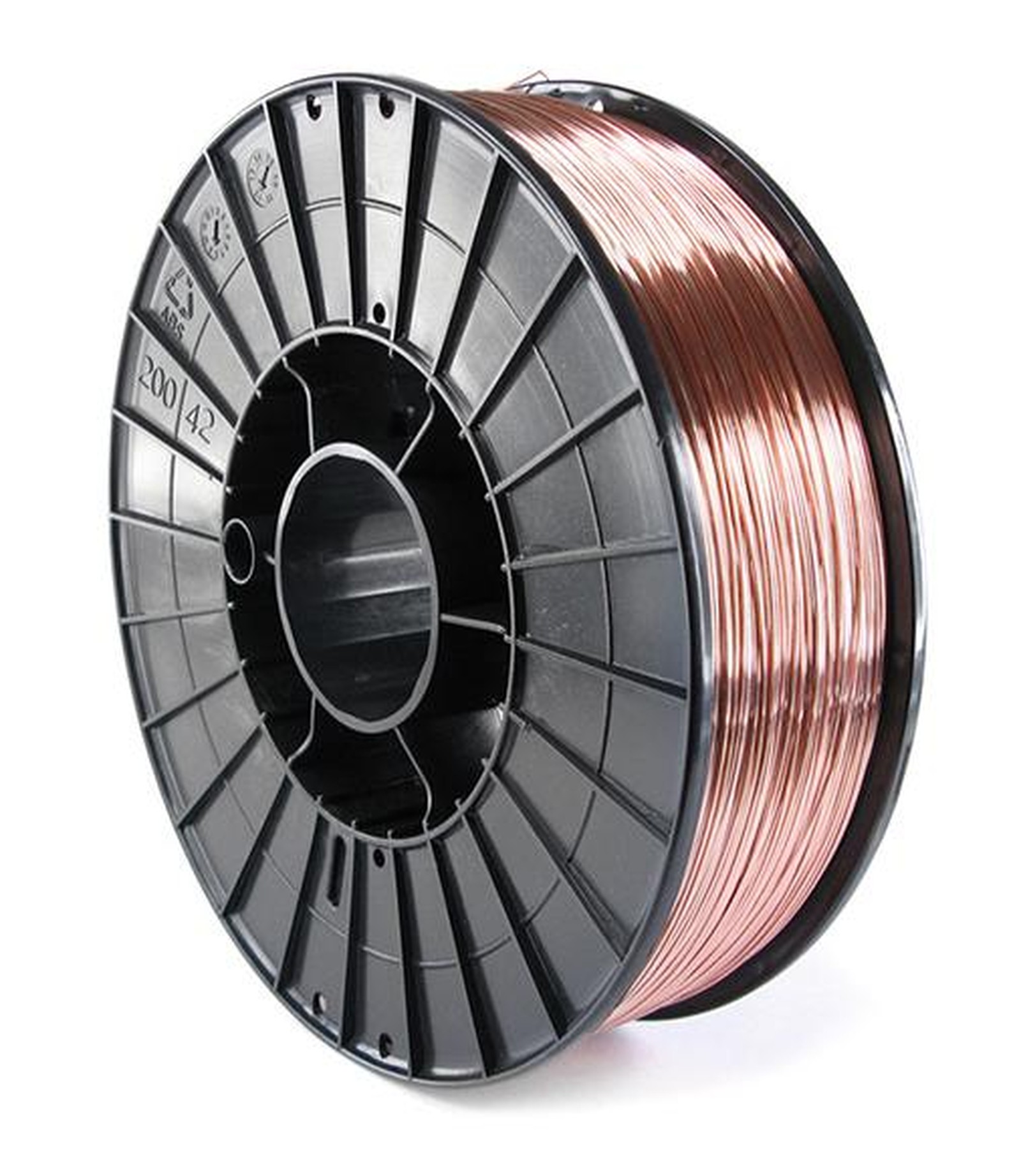

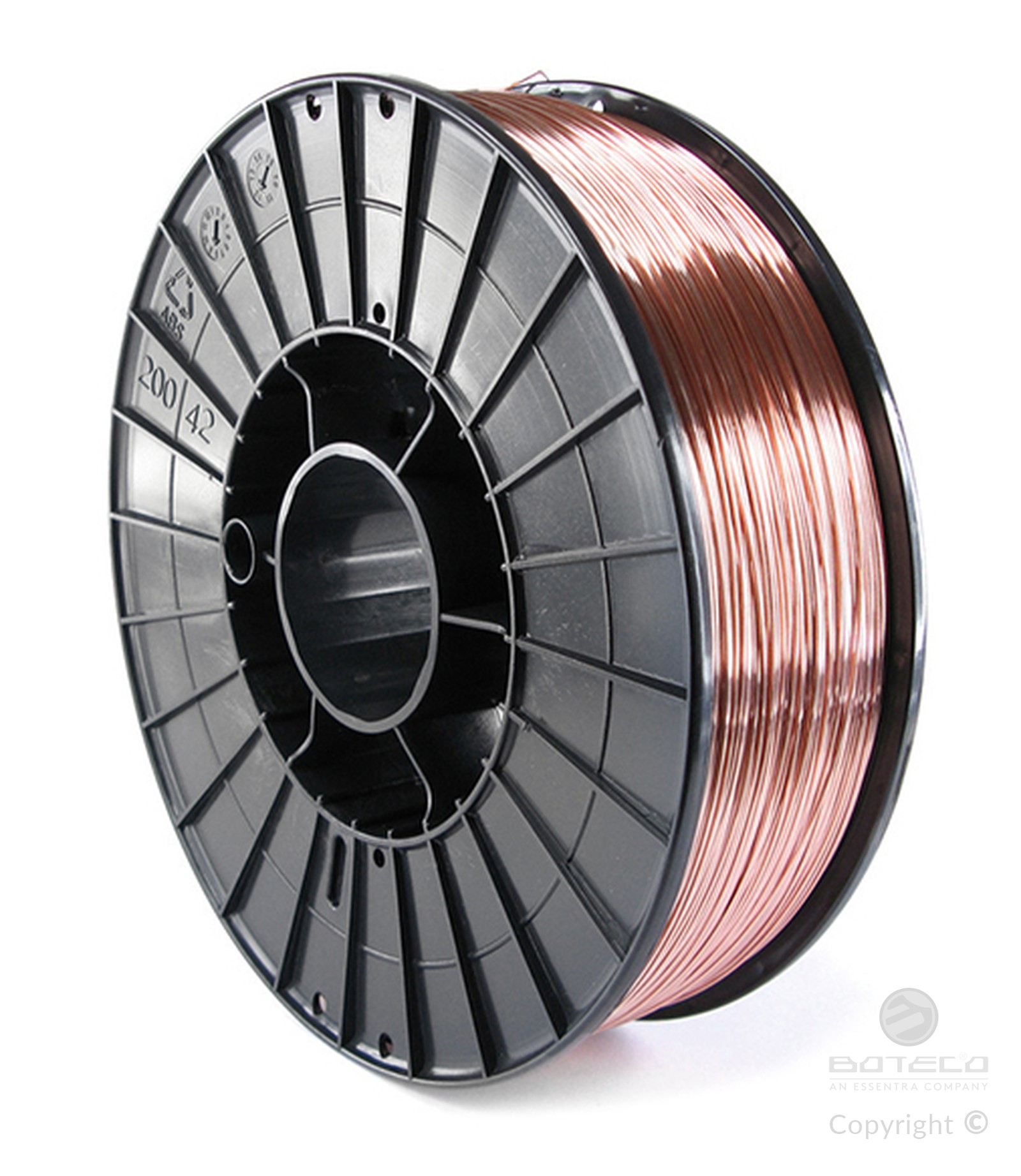

Version for plastic coil with hole: Ø 53 mm - width 55 mm

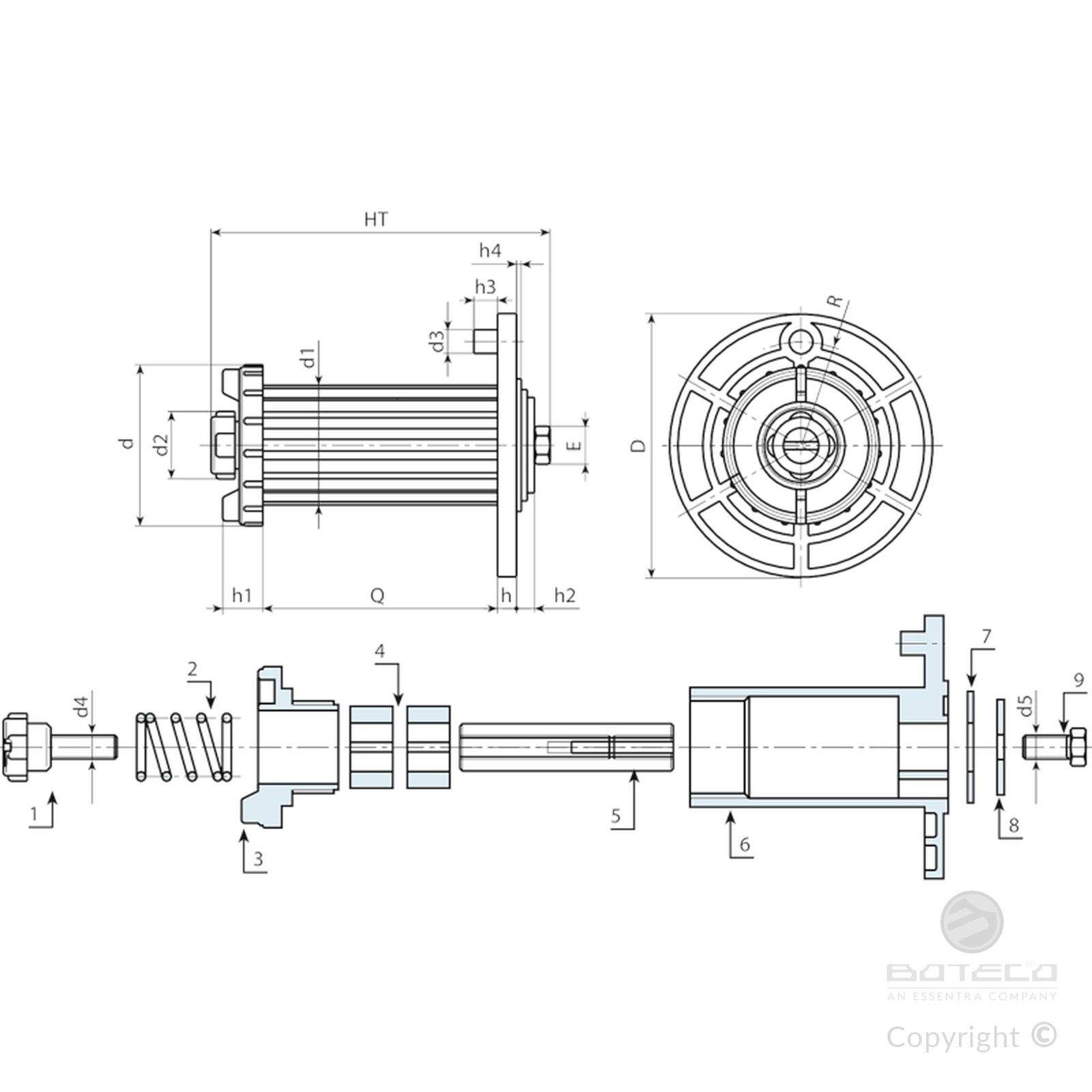

Code | art. | D | HT | d | d1 | d2 | d3 | d4 | d5 | h | h1 | h2 | h3 | h4 | E | Q | R | Weight (g) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
S602074.0001 | S602074.TG10X1001DX | 112 | 102 | 68 | 50.5 | 28 | 10 | M10 DX | M10 DX | 9 | 17 | 8 | 7 | 1.7 | 13 | 55 | 44 | 350 |
S602074.0002 | S602074.TG10X1001SX | 112 | 102 | 68 | 50.5 | 28 | 10 | M10 DX | M10 SX | 9 | 17 | 8 | 7 | 1.7 | 13 | 55 | 44 | 350 |
Version for plastic coil with hole: Ø 53 mm - width 100 mm
Code | art. | D | HT | d | d1 | d2 | d3 | d4 | d5 | h | h1 | h2 | h3 | h4 | E | Q | R | Weight (g) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
S602116.0001 | S602116.TG10X1001DX | 112 | 140 | 68 | 50.5 | 28 | 10 | M10 DX | M10 DX | 9 | 17 | 8 | 7 | 1.7 | 17 | 99 | 44 | 545 |
S602116.0002 | S602116.TG10X1001SX | 112 | 140 | 68 | 50.5 | 28 | 10 | M10 DX | M10 SX | 9 | 17 | 8 | 7 | 1.7 | 17 | 99 | 44 | 545 |
