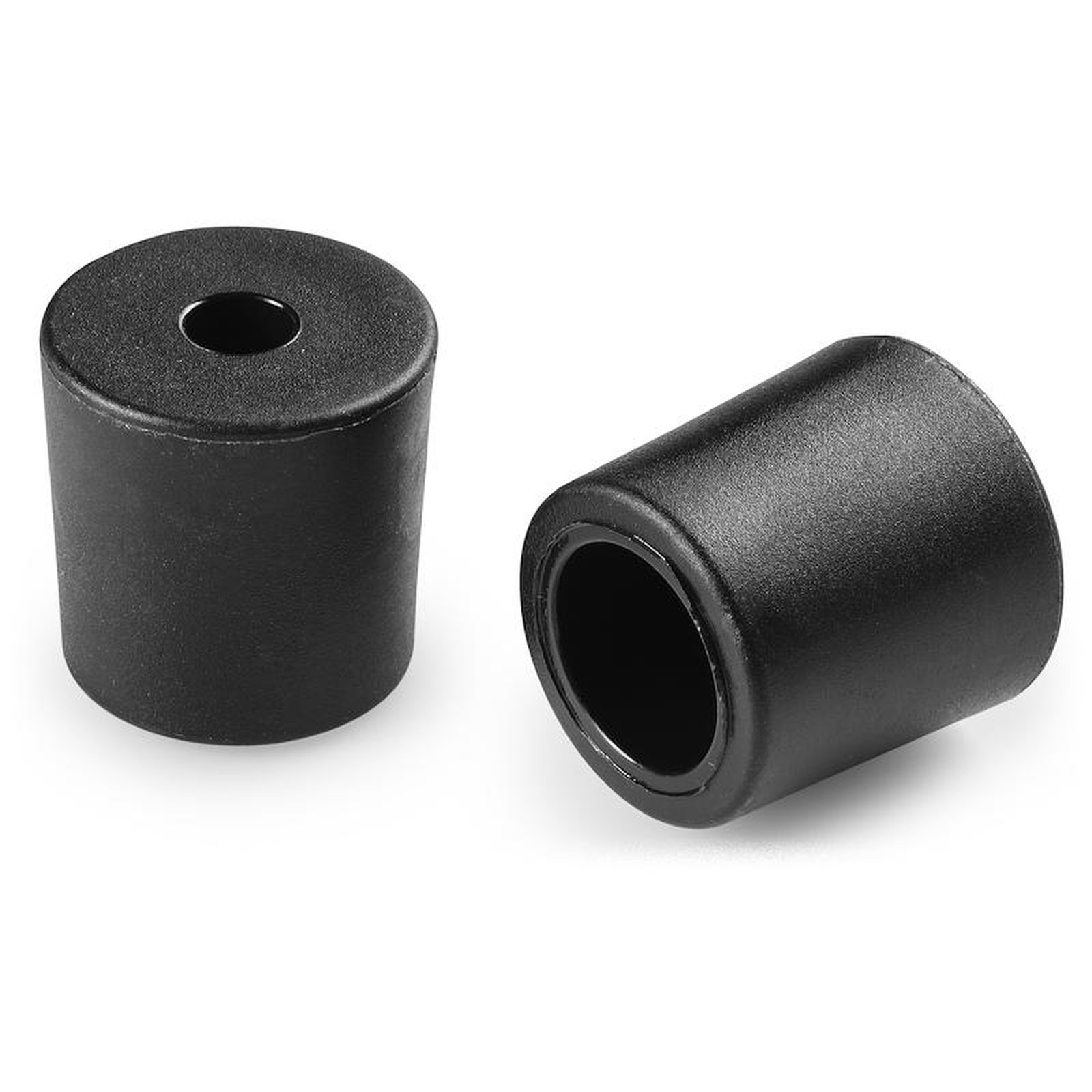

BUMPER CAP (FIXED BASE FOOT)
19
S601
Accessori vari per saldatrici
Materials:
Polypropylene and TPV rubber alloy, 75 Shore.
Resistant to oils and greases.
Surface finish:
Smooth.
Colour:
Black (RAL 9011).
Hole:
Smooth through hole obtained by moulding the plastic.
Special requests:
None.

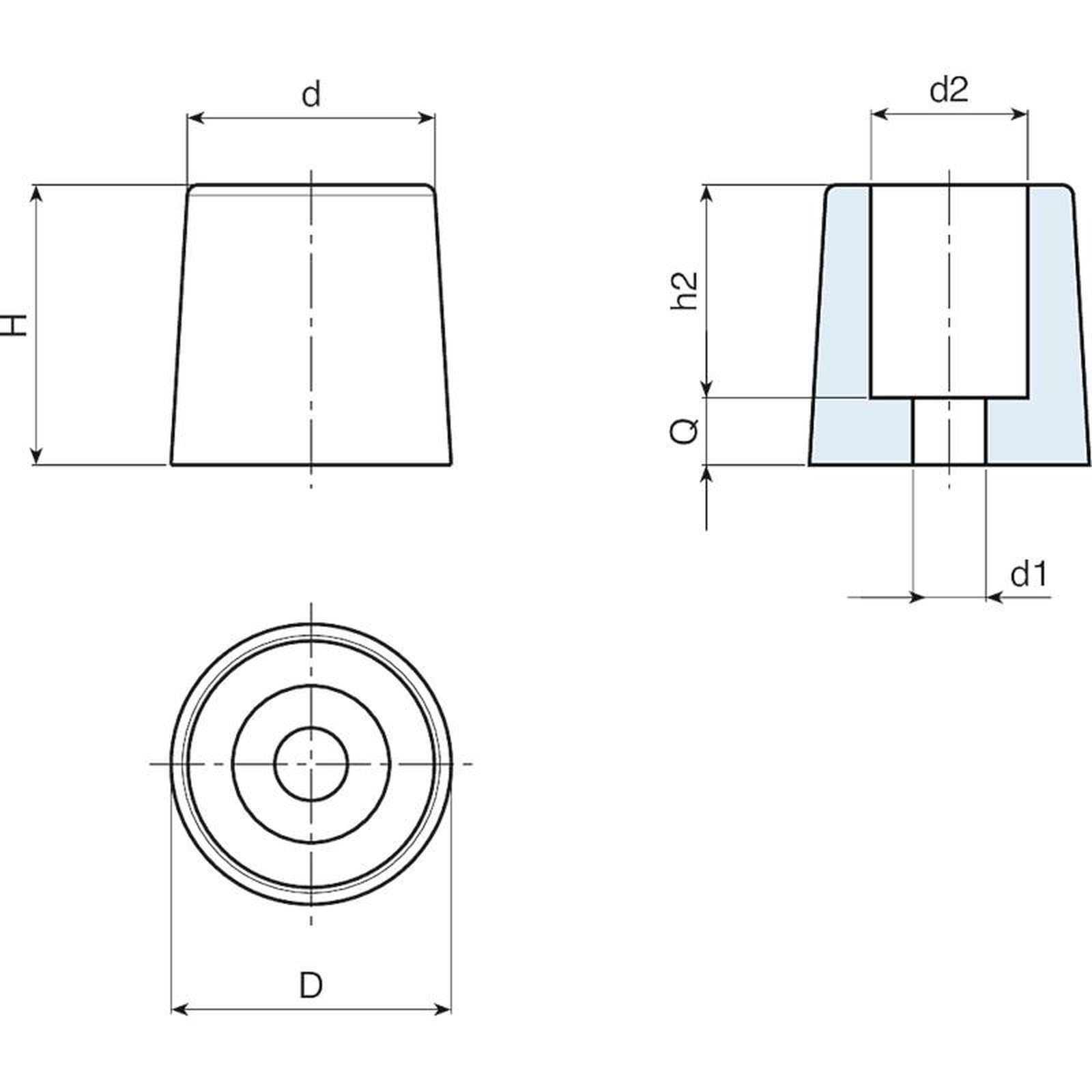

| Code | art. | D | H | d | d2 | h2 | Q | d1 | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|
| S60122.0001 | S60122.E01 | 23 | 17.5 | 21 | 11 | 8 | 9.5 | 4 | 13 |
| S60125.0001 | S60125.D01 | 25 | 25 | 22 | 14 | 19 | 6.5 | 6.5 | 17 |
